100 Ton Split-Type Automatic Hydraulic Pellet Press with Safety Shield
The ZYLAB 100 Ton Split-Type Automatic Hydraulic Pellet Press is a high-performance laboratory press specifically engineered for large-force powder compaction and pelletizing applications. With a fully automatic control system, real-time pressure monitoring, and a split-type design, it is ideal for XRF/XRD sample...
Introduction
The ZYLAB 100 Ton Split-Type Automatic Hydraulic Pellet Press is a high-performance laboratory press specifically engineered for large-force powder compaction and pelletizing applications. With a fully automatic control system, real-time pressure monitoring, and a split-type design, it is ideal for XRF/XRD sample preparation, ceramic materials, battery powders, and other research applications requiring ultra-high pressure.
The separated controller ensures operational safety and minimizes electromagnetic interference, while the integrated safety shield enhances operator protection during high-pressure processing.
1. 100 Ton High Pressure Capability
Supports a maximum pressure of 100 tons (≈980 kN)
Suitable for large-size or high-density powder pellets

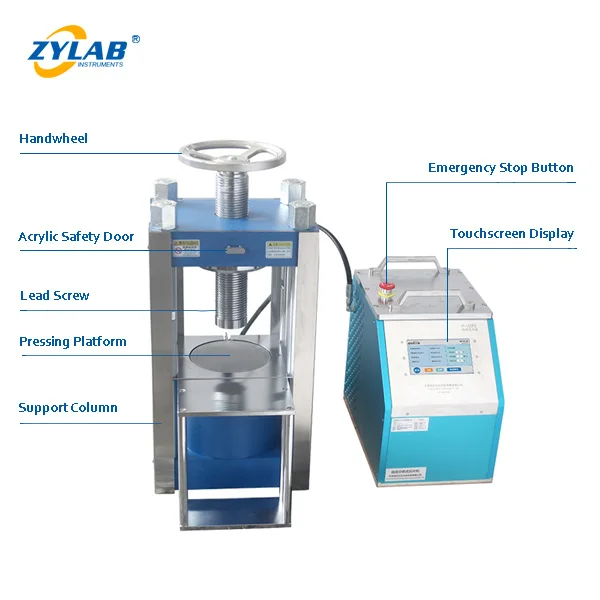

2. Split-Type Design
Main press unit and control system are physically separated
Enhances operational safety, heat resistance, and system stability
3. Full Automation
Automated pressurizing, holding, pressure compensation, and release
SAVTA intelligent system supports 5-stage (optional 15-stage) pressure programming
4. Real-Time Pressure Display
Converts hydraulic pressure to actual sample pressure
Overpressure alert and automatic protection included
5. 7-Inch Touchscreen Interface
Bilingual UI (Chinese/English)
Intuitive operation with precise parameter control
6. Advanced Safety Protection
Equipped with 10 mm alumina panels and 6 mm acrylic safety shield
Built-in limit switch, overload protection, and emergency stop
7. Data Logging & Export
Stores up to 10,000 operational records
Supports USB export for easy tracking and documentation
8. Custom Die Sets Available
Compatible with standard, special-shaped, tungsten carbide, XRF/XRD-specific, or electrically heated die sets
Contact us for custom solutions tailored to your application
Why Choose ZYLAB Split-Type Hydraulic Pellet Press?
Precise control, safe design, and reliable automation
Trusted by university labs, R&D centers, and material testing facilities
Engineered for long-term use with high structural integrity and software flexibility
Matching Die Set：
If you require other special-shaped die sets, or specific types such as tungsten carbide dies, XRF-dedicated molds, or electrically heated die sets, please contact our customer service team immediately. Our technical engineers will assist you in evaluating feasibility and providing customized solutions tailored to your application needs.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | AP-65 | AP-100 | AP-150 | AP-200 |
|---|---|---|---|---|
| Pressure Range | 0.5-65T | 1-100T | 3-150T | 1-200T |
| Cylinder Diameter | 165mm | 200mm | 250mm | 290mm |
| Cylinder Stroke | ≤50mm | ≤50mm | ≤50mm | ≤50mm |
| Power Supply | 220V(50Hz/60Hz)/Customized 110V | |||
| Power Consumption | 800W | 1500W | 1500W | 1500W |
| Usable Space | 220x200x220mm | 260x260x230mm | 300x300x260mm | 350x350x260mm |
| Main Unit Dimensions | 330x400x725mm | 380x520x735mm | 420x600x925mm | 480x650x935mm |
| Main Unit Weight | 285Kg | 451Kg | 552Kg | 703Kg |
| Control Box Dimensions | 260x400x400mm | 300x480x480mm | 300x480x480mm | 300x480x480mm |
| Control Box Weight | 66Kg | 85Kg | 85Kg | 85Kg |
