Automatic Single Punch Tablet Press for Laboratory Tablet Production
The ZYLAB Automatic Single Punch Tablet Press is designed to compress powder or granular materials into round tablets or custom-shaped tablets with high precision and stable performance. This compact laboratory tablet press machine is ideal for research laboratories, universities, pharmaceutical R&D, and small-scale...
Introduction
The ZYLAB Automatic Single Punch Tablet Press is designed to compress powder or granular materials into round tablets or custom-shaped tablets with high precision and stable performance.
This compact laboratory tablet press machine is ideal for research laboratories, universities, pharmaceutical R&D, and small-scale production. It is widely used for manufacturing pharmaceutical tablets, sugar tablets, calcium tablets, catalyst tablets, chemical tablets, and other pressed materials.
The machine adopts a tabletop structure with electric drive, enabling continuous tablet production while maintaining stable pressure and consistent tablet weight. The filling depth and tablet thickness can be easily adjusted, allowing flexible control for different materials and production requirements.
With its compact design, reliable mechanical structure, and high pressing force, the ZYLAB single punch tablet press provides an efficient and economical solution for laboratory tablet production.
Applications：
The ZYLAB laboratory tablet press is widely used in:
Pharmaceutical research and tablet development
Chemical powder tablet pressing
Catalyst tablet preparation
Battery material tablet pressing
Ceramic powder pressing
Food and nutrition tablet production
University laboratory research
Small-batch pilot production
It is particularly suitable for R&D laboratories and small-scale industrial production where flexible tablet forming is required.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | TP50 |
|---|---|
| Maximum Pressure | 50 kN |
| Max Tablet Diameter | 25 mm |
| Max Filling Depth | 20 mm |
| Tablet Thickness | 0.5 – 8 mm |
| Production Capacity | 3600 tablets/hour |
| Voltage | 220 / 380 V, 50 Hz |
| Motor Power | 1.5 kW |
| Machine Size | 580 × 500 × 830 mm |
| Weight | 150 kg |
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Lab-Scale 12 Ton Bench-Top Automatic Hydraulic Pellet Press for Powder Compaction & Dry Granulation Processing

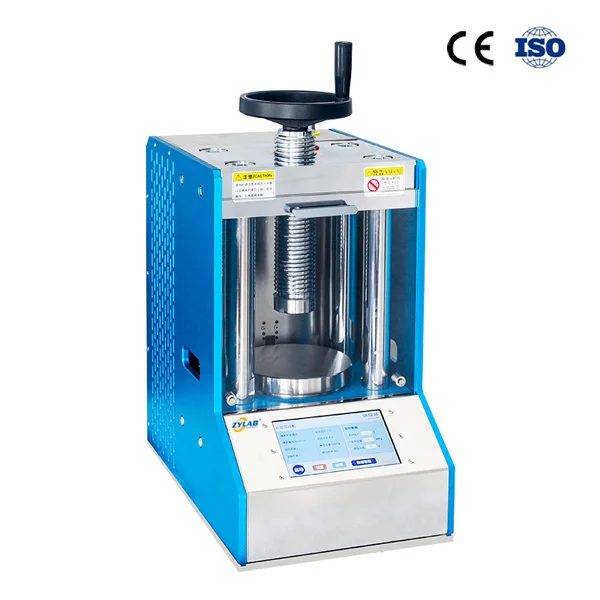

Laboratory 60-ton Automatic Hydraulic Pellet Press with Precision Control

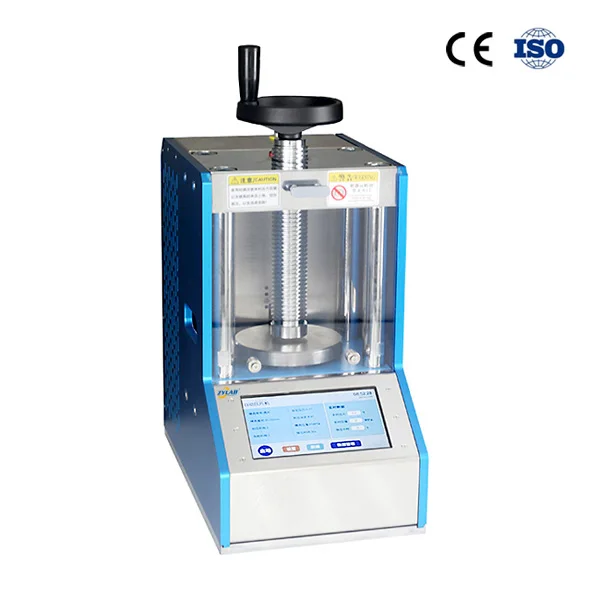

Laboratory 20-ton Automatic Hydraulic Pellet Press with Precision Control

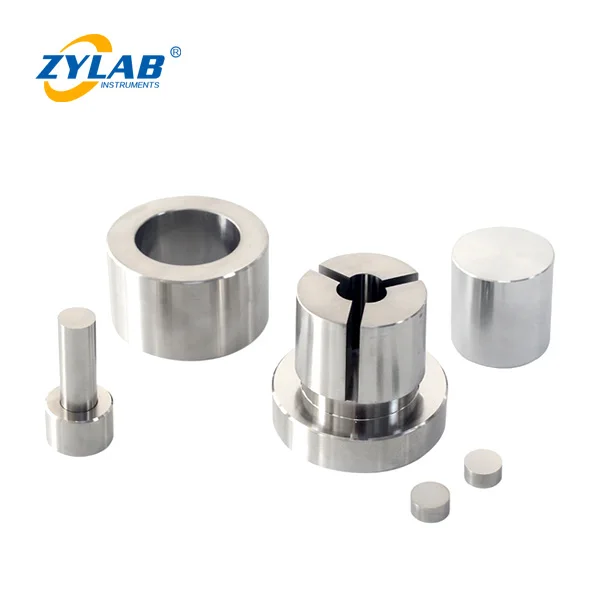

Cylindrical Split Molds for Powder Pressing (Lab Hydraulic Press Use)

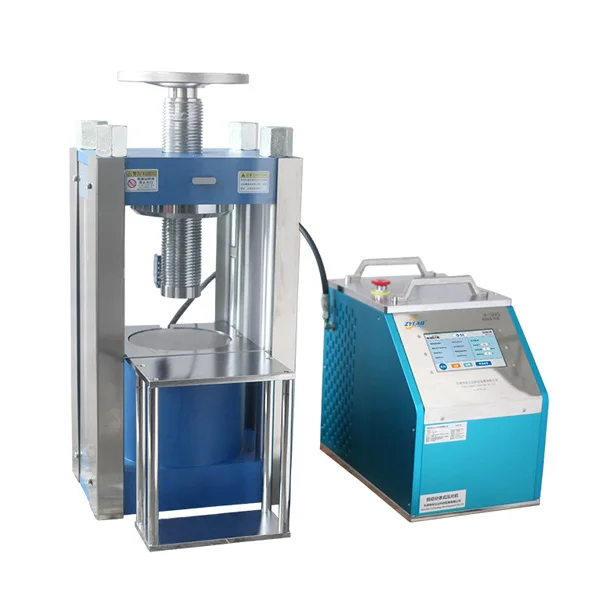

100 Ton Split-Type Automatic Hydraulic Pellet Press with Safety Shield

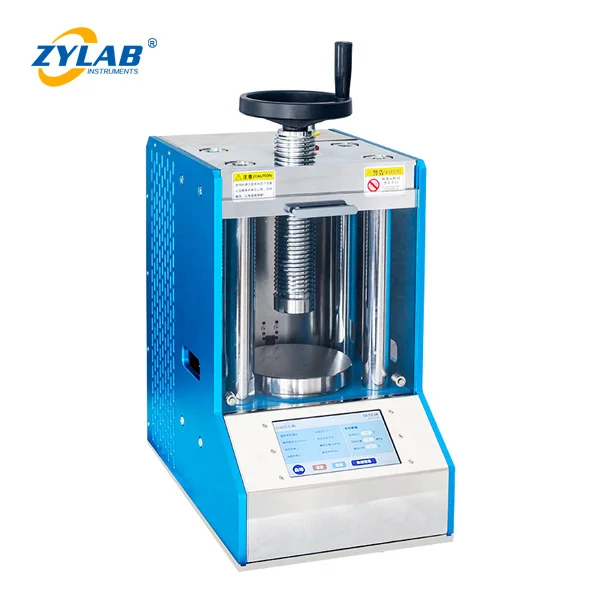

Automatic Lab Press for Powder Pellet Pressing (2–60 Ton)
Powder Tablet Mold – Annular Ring Molds
Lab Hydraulic Press Parts Square Split Pressing Die Set for Powder Sample Forming
Ordering Automatic Single Punch Tablet Press for Laboratory Tablet Production
What is Automatic Single Punch Tablet Press for Laboratory Tablet Production typically used for?
The ZYLAB Automatic Single Punch Tablet Press is designed to compress powder or granular materials into round tablets or custom-shaped tablets with high precision and stable performance. This compact laboratory tablet press machine is ideal for research labora
What warranty comes with Automatic Single Punch Tablet Press for Laboratory Tablet Production?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
Can we get technical help before ordering Automatic Single Punch Tablet Press for Laboratory Tablet Production?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
Which shipping methods do you use?
Sea freight for consignments over about 60 kg (11-30 days to North America, 25-33 days to Europe, 7-20 days to Southeast Asia), air freight to airport in roughly 7-10 days, and DHL, FedEx or UPS door to door in about 5-7 days for small urgent items.
How can we pay for Automatic Single Punch Tablet Press for Laboratory Tablet Production?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
Quote For Automatic Single Punch Tablet Press for Laboratory Tablet Production
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
