Auto-lifting 5L Rotary Evaporator
RE-5000 5L rotary evaporator is an up-dated intelligentized product developed based on the technique of Switzerland Buchi company, adopt high speed performance single Chip Microcomputer controlling sector; special controlling process for different controlled object, elegent appearance and stable, reserved connects for...
Introduction
RE-5000 5L rotary evaporator is an up-dated intelligentized product developed based on the technique of Switzerland Buchi company, adopt high speed performance single Chip Microcomputer controlling sector; special controlling process for different controlled object, elegent appearance and stable, reserved connects for special customer’s upgrade requirement.
Mainly used for concentration, crystallization, drying, separation, and solvent recover in various fields such as, pharmaceutical, chemical, and biotechnology industries.
Main Features and Benefits
1. Main body bracket is made of aluminum alloy, with reasonable structure and exquisite materials.
2. Sealing system adopts Teflon + imported fluororubber combination bidirectional sealing, which can maintain high vacuum.
3. All glass parts are made of high borosilicate glass 3.3 (GG-17), which is resistant to high temperature and corrosion.
4. Continuous feeding is convenient for customers. The valve-type feeding tube is sleeved with PTFE tube.
5. Upright double-layer serpentine coil condenser to ensure high recovery rate.

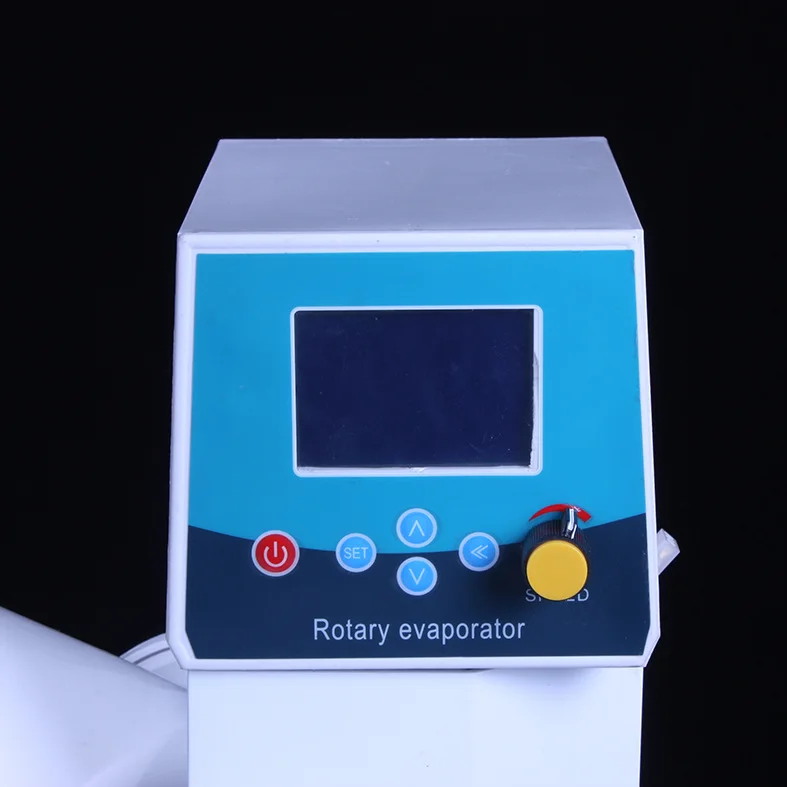

6. Large LCD screen can display the speed and temperature at the same time.
7. Intelligent constant temperature control of the bath pot, the PT100 sensor transmits the temperature quickly and accurately.
8. Fuse safety protection, and has the function of automatic power off to prevent dry burning.
9. Brushless motor, no spark, low noise, no heat, stable operation and long life.
10. Electronic stepless speed regulation (0-200rpm), rotating setting, easy to operate.
11. Bath liner adopts stainless steel + Teflon compound pot, which is fully enclosed and heated.
12. Driven by a micro motor, the host machine automatically moves up and down.
Optional
| Heating | Oil Bath 0-400℃ |
|---|---|
| Bath Material | SUS 304 Stainless Steel |
| Splash Protection | Bath pot supporting transparent cover |
Which Kinds of Industry Can Use This 5L Rotary Evaporator?
Pharmaceutical, food, petroleum industries, and chemical laboratories, etc.
Applications
Distillation,
Purification (purify samples),
Concentration,
Crystallization,
Extraction
Drying,
Separation(liquid separation),
Solvent recovery,
Indistillation of volatile solvents,
Chemical synthesis,
Prepare samples for analysis.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | RE-5000 |
|---|---|
| Glass | High Borosilicate Glass GG-17(3.3) |
| Frame | Aluminium Alloy |
| Bath | Teflon Composite Pot, Fully Enclosed Heating 280*170mm 10L |
| Rotary Bottle | 5L Φ50 |
| Collecting Bottle | 2L #35 |
| Rotary Motor | 40W |
| Rotary Speed | 0-180rpm |
| Heating Power | 2KW |
| Temperature Range | RT-180℃ |
| Temperature Accuracy | ±1℃ |
| Achievable vacuum | 0.098Mpa |
| Elevating Power | 20W |
| Elevating Stroke(mm) | 120mm |
| Voltage | 220V 50/60Hz(others can be customized) |
| Dimensions(mm*mm*mm) | 700L*410W*880H |
| Packing (mm*mm*mm) | 640L*540W*690H 0.24m3 |
| Gross Weight (KG) | 42.5 |
| Speed-regulation | Electronic Stepless Speed-regulation |
| Rotary Speed Display | LCD Digital |
| Temperature Display | LCD Digital |
| Temperature Control | Intelligent temperature control |
| Sealing | Double Sealing with Teflon(PTFE) |
| Lifting Function | Motorized lift |
| Condenser Model | Vertical Type 100*590mm |
| Continue Charging | 19# Charging Valve |
Auto-lifting 5L Rotary Evaporator In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Lab 5L Explosion-proof Rotary Evaporator
R-1050 50L Rotary Evaporator
20L Rotary Evaporator
10L Rotary Evaporator
Auto-lifting 3L Rotary Evaporator
Auto-lifting 1L Rotary Evaporator
MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter
GM-2 High Speed 4cfm Diaphragm Vacuum Pump
Ordering Auto-lifting 5L Rotary Evaporator
What is Auto-lifting 5L Rotary Evaporator typically used for?
RE-5000 5L rotary evaporator is an up-dated intelligentized product developed based on the technique of Switzerland Buchi company, adopt high speed performance single Chip Microcomputer controlling sector; special controlling process for different controlled o
How quickly can Auto-lifting 5L Rotary Evaporator be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship Auto-lifting 5L Rotary Evaporator within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
Can Auto-lifting 5L Rotary Evaporator be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with Auto-lifting 5L Rotary Evaporator?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
Can we get technical help before ordering Auto-lifting 5L Rotary Evaporator?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
Quote For Auto-lifting 5L Rotary Evaporator
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
