Auto-lifting 3L Rotary Evaporator
RE-3000 3L rotary evaporator is an up-dated intelligentized product developed based on the technique of Switzerland Buchi company, adopt high speed performance single Chip Microcomputer controlling sector; special controlling process for different controlled object, elegent appearance and stable, reserved connects for...
Introduction
RE-3000 3L rotary evaporator is an up-dated intelligentized product developed based on the technique of Switzerland Buchi company, adopt high speed performance single Chip Microcomputer controlling sector; special controlling process for different controlled object, elegent appearance and stable, reserved connects for special customer’s upgrade requirement.
Mainly used for concentration, crystallization, drying, separation, and solvent recover in various fields such as, pharmaceutical, chemical, and biotechnology industries.
Main Features and Benefits
1. Main body bracket : aluminum alloy, with reasonable structure and exquisite materials.
2. Sealing system adopts Teflon + imported fluororubber combination bidirectional sealing, which can maintain high vacuum.
3. All glass parts are made of high borosilicate3.3 (GG-17), which is resistant to high temperature and corrosion..
4. Upright double-layer serpentine coil condenser to ensure high recovery rate.
5. Large LCD screen can display the speed and temperature at the same time.
6. Intelligent constant temperature control of the bath, PT100 sensor transmits the temperature quickly and accurately.
7. Fuse safety protection, and has the function of automatic power off to prevent dry burning.
8. Electronic stepless speed regulation (0-200rpm), rotating setting, easy to operate.
9. Bath liner adopts stainless steel + Teflon compound, which is fully enclosed and heated.
10. Driven by a micro motor, automatically moves up and down.
Optional
| Heating | Oil Bath 0-400℃ |
|---|---|
| Bath Material | SUS 304 Stainless Steel |
| Splash Protection | Bath pot supporting transparent cover |

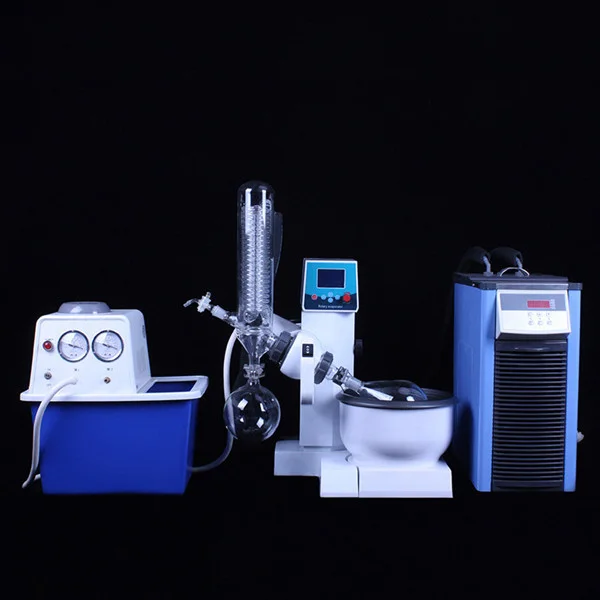

Turnkey Solution
Vacuum Pump
Which Kinds of Industry Can Use This 3L Rotary Evaporator?
Pharmaceutical, food, petroleum industries, and chemical laboratories, etc.
Applications
Distillation,
Purification (purify samples),
Concentration,
Crystallization,
Extraction
Drying,
Separation(liquid separation),
Solvent recovery,
Indistillation of volatile solvents,
Chemical synthesis,
Prepare samples for analysis.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | RE-3000E |
|---|---|
| Glass | High Borosilicate Glass GG-17(3.3) |
| Frame | Aluminium Alloy |
| Bath | Teflon Composite Pot, Fully Enclosed Heating 250*130mm |
| Rotary Bottle | 3L #50 |
| Collecting Bottle | 2L #35 |
| Rotary Motor | 40W, Induction Motor |
| Rotary Speed | 0-200rpm |
| Heating Power | 2KW |
| Temperature Range | 0-99℃ |
| Temperature Accuracy | ±1℃ |
| Achievable vacuum | 0.098Mpa |
| Evaporating capability | 20ml/min |
| Elevating Power | 15W |
| Elevating Stroke(mm) | 150mm |
| Voltage | 220V 50/60Hz(others can be customized) |
| Dimensions(mm*mm*mm) | 660*420*830 |
| Packing (mm*mm*mm) | 630*560*540 0.19m3 |
| Gross Weight (KG) | 30 |
| Speed-regulation | Electronic Stepless Speed-regulation |
| Rotary Speed Display | LCD |
| Temperature Display | PT100 Sensor LCD |
| Temperature Control | Intelligent temperature control |
| Sealing | Double Sealing |
| Lifting Function | Motorized lift |
| Condenser Model | Vertical Type 100*510mm |
| Continue Charging | 19# Charging Valve |
Auto-lifting 3L Rotary Evaporator In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Lab 5L Explosion-proof Rotary Evaporator
R-1050 50L Rotary Evaporator
20L Rotary Evaporator
10L Rotary Evaporator
Auto-lifting 5L Rotary Evaporator
Auto-lifting 1L Rotary Evaporator
MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter
GM-2 High Speed 4cfm Diaphragm Vacuum Pump
Ordering Auto-lifting 3L Rotary Evaporator
What is Auto-lifting 3L Rotary Evaporator typically used for?
RE-3000 3L rotary evaporator is an up-dated intelligentized product developed based on the technique of Switzerland Buchi company, adopt high speed performance single Chip Microcomputer controlling sector; special controlling process for different controlled o
Can Auto-lifting 3L Rotary Evaporator be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
How quickly can Auto-lifting 3L Rotary Evaporator be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship Auto-lifting 3L Rotary Evaporator within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
How is Auto-lifting 3L Rotary Evaporator packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Can you supply items that are not on this page?
Yes. We have access to the complete lines of most of our suppliers and build custom equipment in our own factory, so tell us what the experiment needs and we will source or make it.
Quote For Auto-lifting 3L Rotary Evaporator
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
