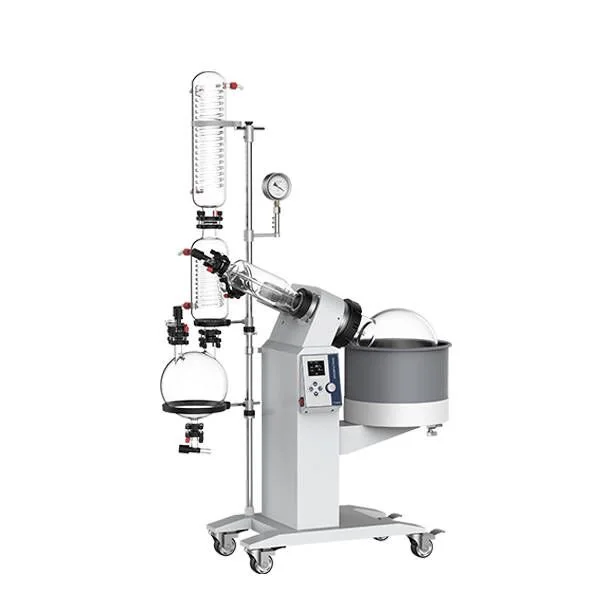

10L Rotary Evaporator
Auto-lifting 10L Rotary Evaporator is designed with large capacity and large opening of evaporating flask, give larger evaporation surface. The evaporating flask keeps rotating when it is constantly heated by water bath, solvent evaporates more efficiently under vacuum condition. Mainly used for concentration,...
Introduction
Auto-lifting 10L Rotary Evaporator is designed with large capacity and large opening of evaporating flask, give larger evaporation surface. The evaporating flask keeps rotating when it is constantly heated by water bath, solvent evaporates more efficiently under vacuum condition.
Mainly used for concentration, crystallization, drying, separation, and solvent recover in various fields such as, pharmaceutical, chemical, and biotechnology industries.
Highlight

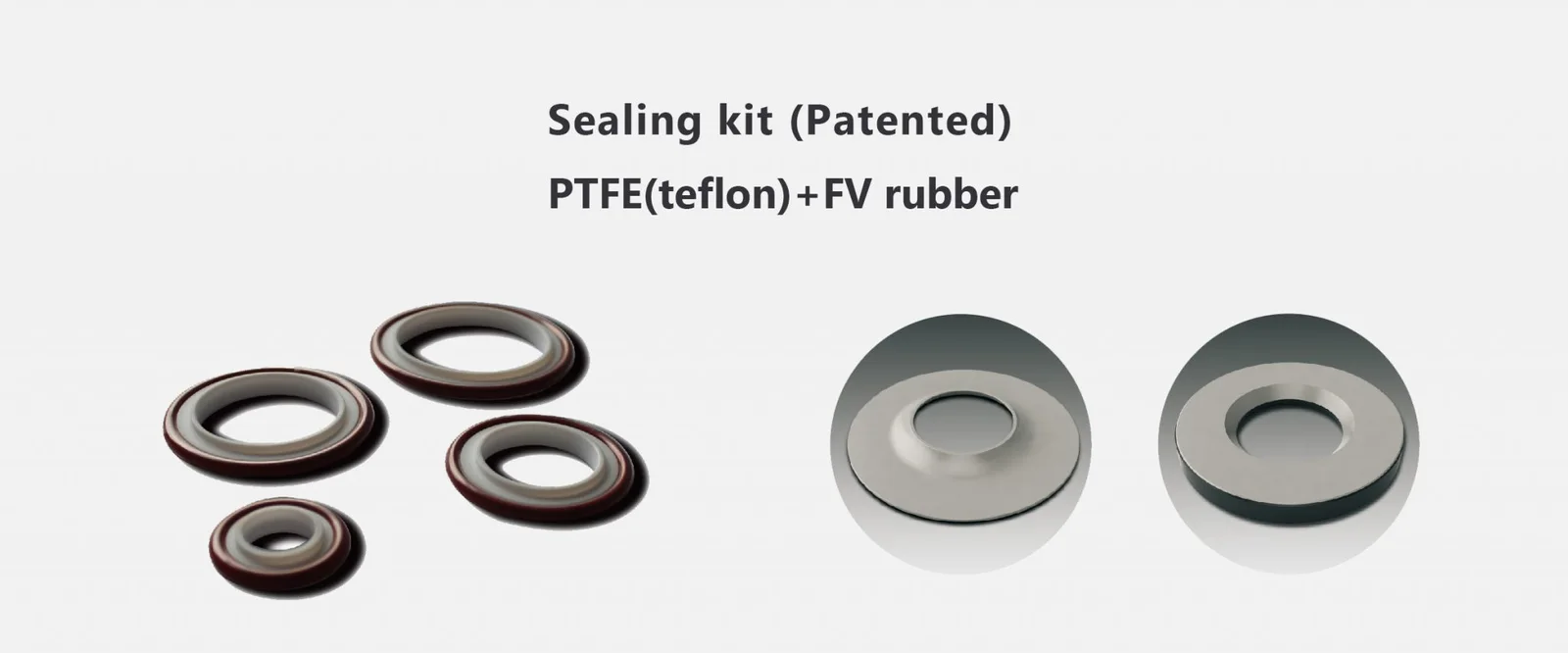

- Patented technology of double sealing of Teflon(PTFE) and FV rubber ensures the negative pressure level.
- Automatic switch valve makes continuous collection possible without affecting vacuum degree and without stopping distillation.
- Teflon discharge valve is corrosion resistant and contamination free.
- Water bath jacket protecting operator from scalding by hot liquid.
Optional

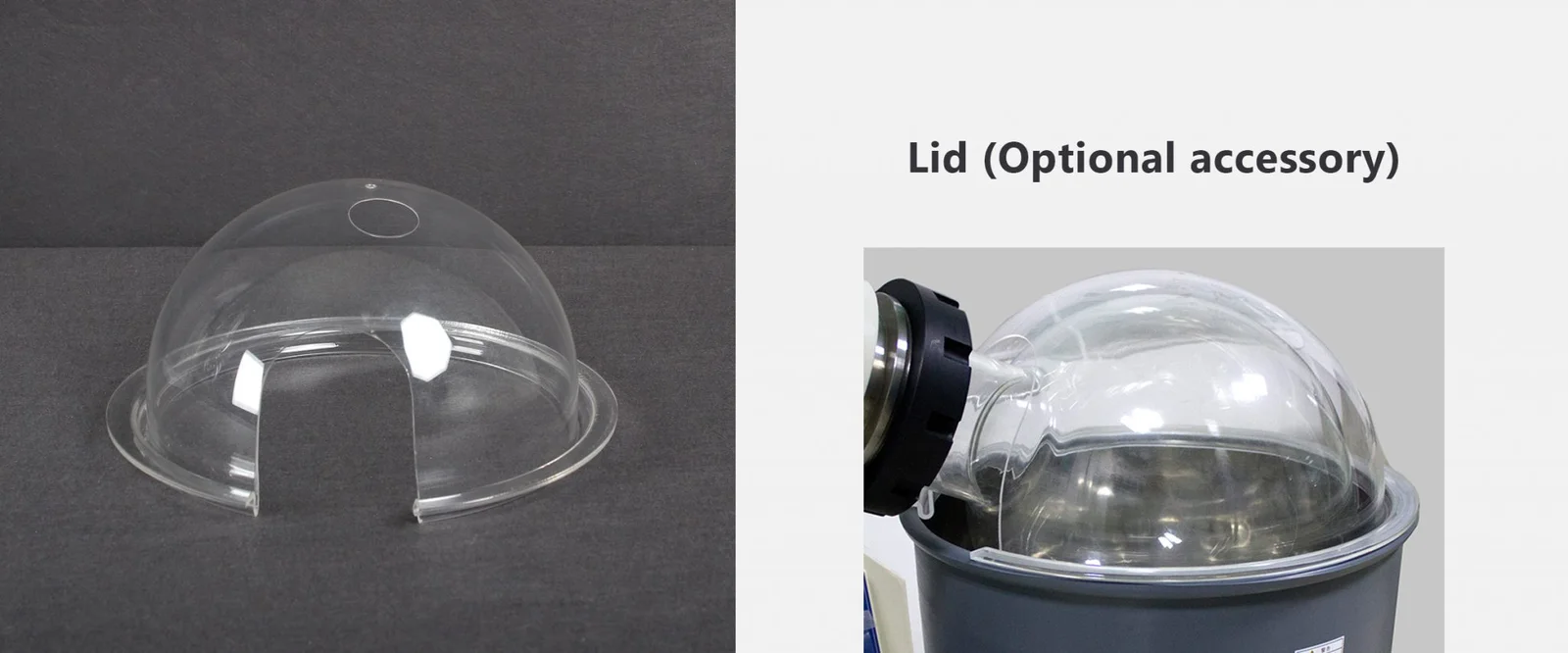

| Splash Protection | Bath pot supporting transparent cover |
|---|
Which Kinds of Industry Can Use This 10L Rotary Evaporator?
Pharmaceutical, food, petroleum industries, and chemical laboratories, etc.
Applications
Distillation,
Purification (purify samples),
Concentration,
Crystallization,
Extraction
Drying,
Separation(liquid separation),
Solvent recovery,
Indistillation of volatile solvents,
Chemical synthesis,
Prepare samples for analysis.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | R-1010/R-1010CE |
|---|---|
| Evaporating Flask | 10L flange opening,φ125mm |
| Receiving flask | 5L |
| Speed-regulation | Continuously variable |
| Power Supply | 220-240V～ 50/60Hz |
| Overall Power | 3.8KW |
| Rotation Speed | 20-130rpm |
| Power of Motor | 250W |
| Condenser | Vertical type, Main+auxiliary dual-cooling coils |
| Condensation area | 0.39m2(Main), 0.253m2(Auxiliary) |
| Bath Material | Stainless steel 304, Φ370*220mm |
| Temperature Range | 95℃ Max |
| Temperature Display | LCD |
| Vacuum Leakage | ≤2kPa/h |
| Evaporating Speed | 3.2L/h(water) 8.6L/h(ethanol) |
| Lifting Function | Motorized lift |
| Dimensions | 1040W*580D*1760H mm |
| Net weight | 61kg |
