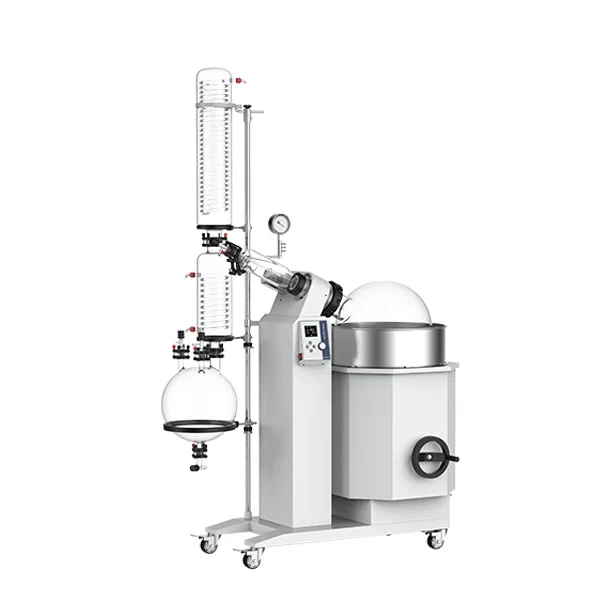

R-1050 50L Rotary Evaporator
R-1050 50L Rotary Evaporator is designed with large capacity and large opening of evaporating flask, give larger evaporation surface. The evaporating flask keeps rotating when it is constantly heated by water bath, solvent evaporates more efficiently under vacuum condition. Mainly used for concentration,...
Introduction
R-1050 50L Rotary Evaporator is designed with large capacity and large opening of evaporating flask, give larger evaporation surface. The evaporating flask keeps rotating when it is constantly heated by water bath, solvent evaporates more efficiently under vacuum condition.
Mainly used for concentration, crystallization, drying, separation, and solvent recover in various fields such as, pharmaceutical, chemical, and biotechnology industries.
Highlight

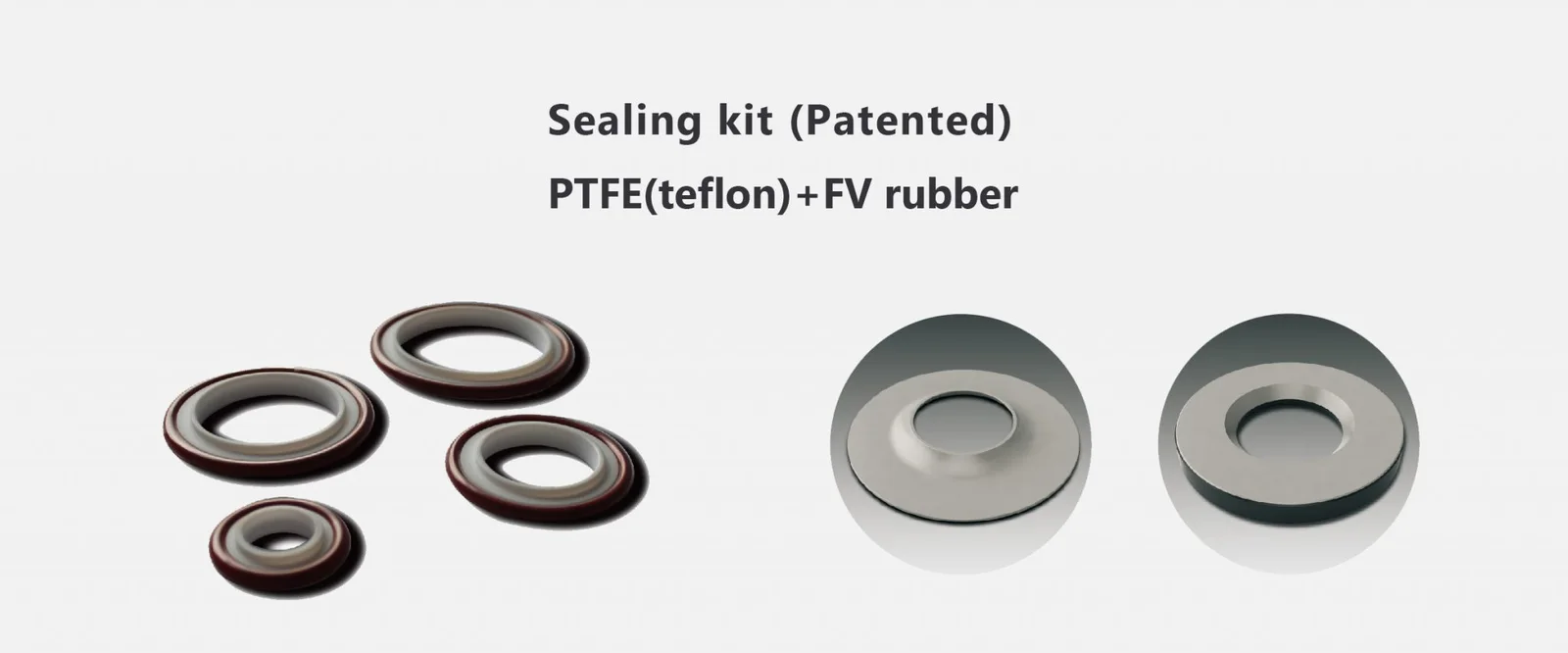

- Patented technology of double sealing of Teflon(PTFE) and FV rubber ensures the negative pressure level.

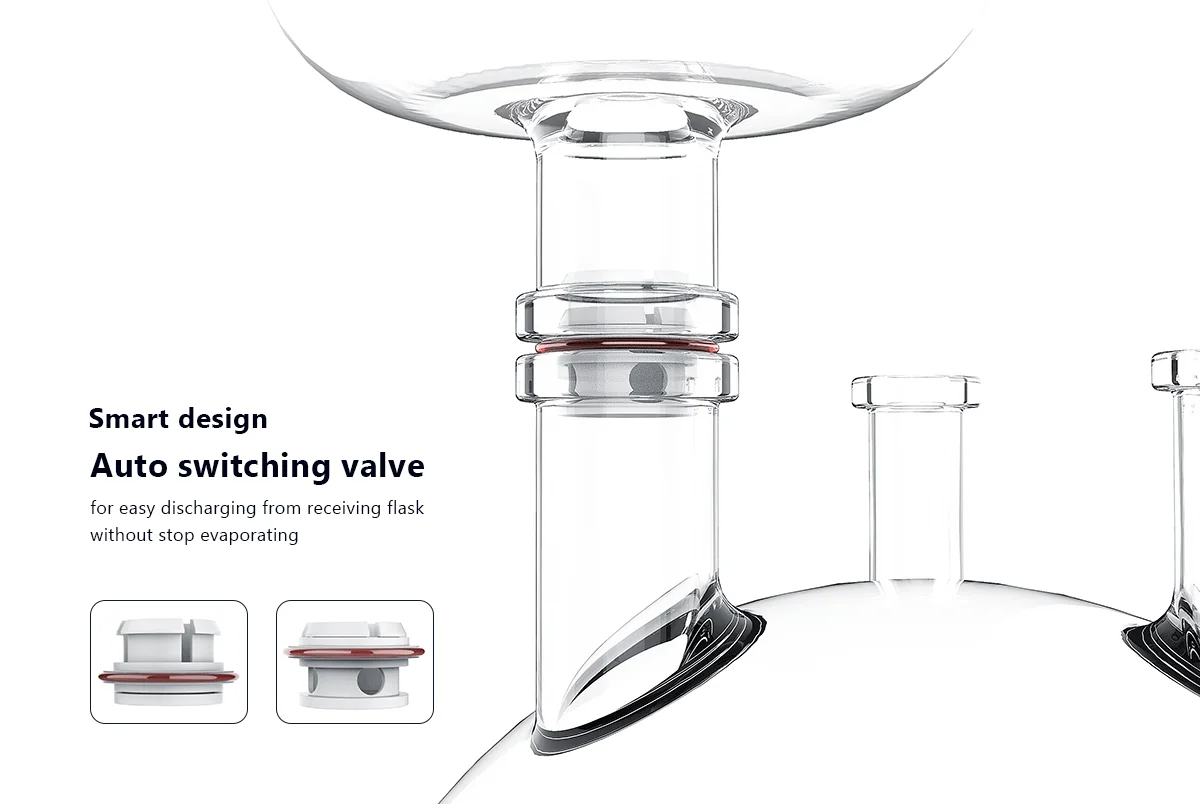

- Automatic switch valve makes continuous collection possible without affecting vacuum degree and without stopping distillation.
- Teflon discharge valve is corrosion resistant and contamination free.
- Water bath jacket protecting operator from scalding by hot liquid.
Optional

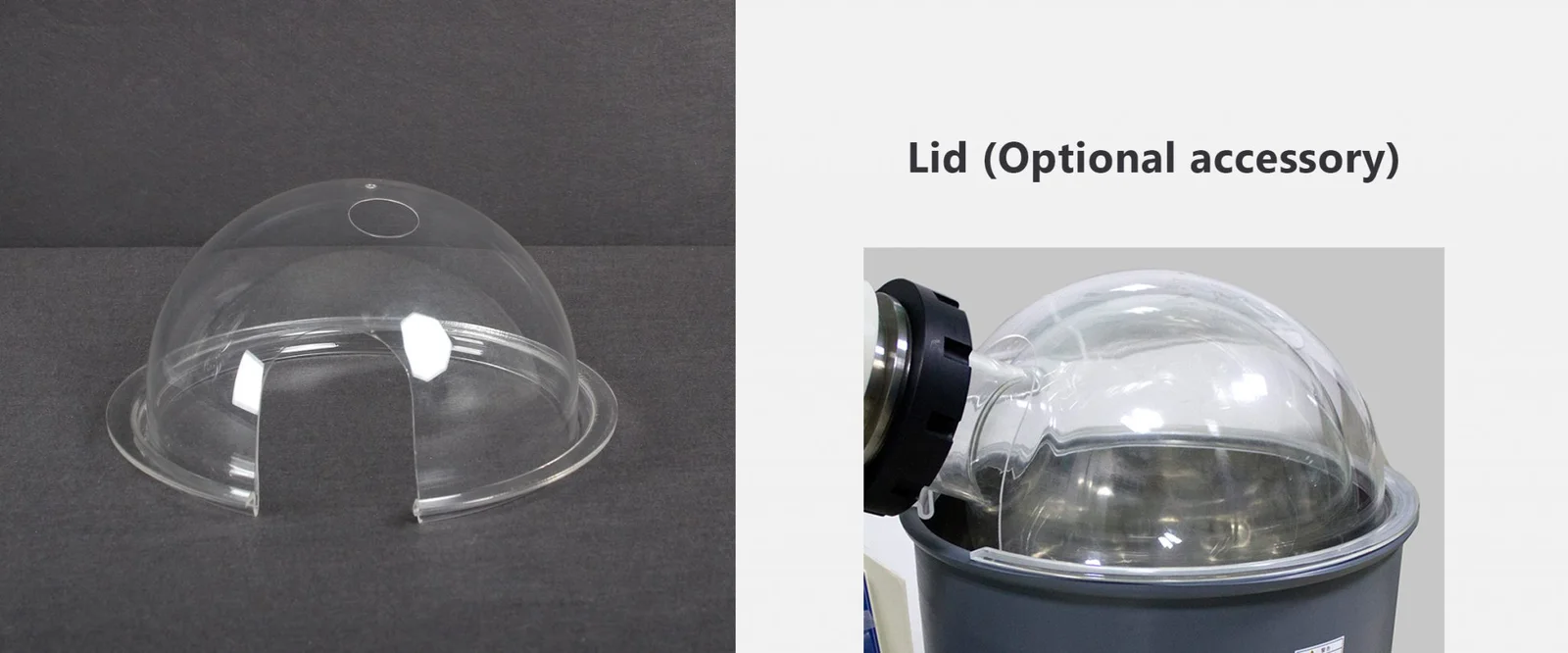

| Splash Protection | Bath pot supporting transparent cover |
|---|
Which Kinds of Industry Can Use This 50L Rotary Evaporator?
Pharmaceutical, food, petroleum industries, and chemical laboratories, etc.
Applications
Distillation,
Purification (purify samples),
Concentration,
Crystallization,
Extraction
Drying,
Separation(liquid separation),
Solvent recovery,
Indistillation of volatile solvents,
Chemical synthesis,
Prepare samples for analysis.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | R-1050/R-1050CE |
|---|---|
| Evaporating flask | 50L flange opening, Φ125mm |
| Receiving flask | 20L |
| Speed-regulation | Continuously variable |
| Power Supply | 3～ 380V,50Hz or 220V, 60Hz |
| Overall Power | 6.3KW |
| Rotation Speed | 20-110rpm |
| Power of Motor | 250W |
| Condenser | Vertical type, Main+auxiliary triple-circulating cold traps |
| Condensation area | 1.15m2(Main), 0.4m2(Auxiliary) |
| Bath Material | Stainless steel 304, Φ550*320mm |
| Temperature Range | 95℃ Max |
| Temperature Display | LCD |
| Vacuum Leakage | ≤2kPa/h |
| Evaporating Speed | 9.0L/h(water) 24.5L/h(ethanol) |
| Lifting Function | Motorized+Manual lift |
| Dimensions | 1345W*770D*2230H mm |
| Net weight | 140kg |
R-1050 50L Rotary Evaporator In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Lab 5L Explosion-proof Rotary Evaporator
20L Rotary Evaporator
10L Rotary Evaporator
Auto-lifting 5L Rotary Evaporator
Auto-lifting 3L Rotary Evaporator
Auto-lifting 1L Rotary Evaporator
MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter
GM-2 High Speed 4cfm Diaphragm Vacuum Pump
Ordering R-1050 50L Rotary Evaporator
What is R-1050 50L Rotary Evaporator typically used for?
R-1050 50L Rotary Evaporator is designed with large capacity and large opening of evaporating flask, give larger evaporation surface. The evaporating flask keeps rotating when it is constantly heated by water bath, solvent evaporates more efficiently under vac
Can R-1050 50L Rotary Evaporator be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
How quickly can R-1050 50L Rotary Evaporator be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship R-1050 50L Rotary Evaporator within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
How is R-1050 50L Rotary Evaporator packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Can you supply items that are not on this page?
Yes. We have access to the complete lines of most of our suppliers and build custom equipment in our own factory, so tell us what the experiment needs and we will source or make it.
Quote For R-1050 50L Rotary Evaporator
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
