Wall Mounted Jib Crane
A wall bracket jib crane with a load capacity of 0.5 to 5 tons. It uses a single I-beam boom for support under load and is mounted to a wall or column with a steel tie rod, which frees the entire floor beneath it.
- Structural steel
Product Overview
A wall bracket jib crane with a load capacity of 0.5 to 5 tons. It uses a single I-beam boom for support under load and is mounted to a wall or column with a steel tie rod, which frees the entire floor beneath it. The design suits warehouses, manufacturing and assembly areas and repair workshops where floor space is already spoken for.
Key Benefits
- Mounted on the wall, so the floor stays available for equipment
- Single I-beam boom carries heavy goods without buckling
- Steel tie rod mounting spreads the load into the wall or column
- Cost effective compared with a free standing structure and foundation
- Low maintenance, which keeps long term cost down
Problems It Solves
- Floor space fully occupied by machines and racking
- Cost of a foundation for a free standing jib crane
- Manual lifting causing workplace injuries
- Lifting equipment that needs frequent attention and spares
Where It Is Used
Applications And Buyers
Application Scenarios

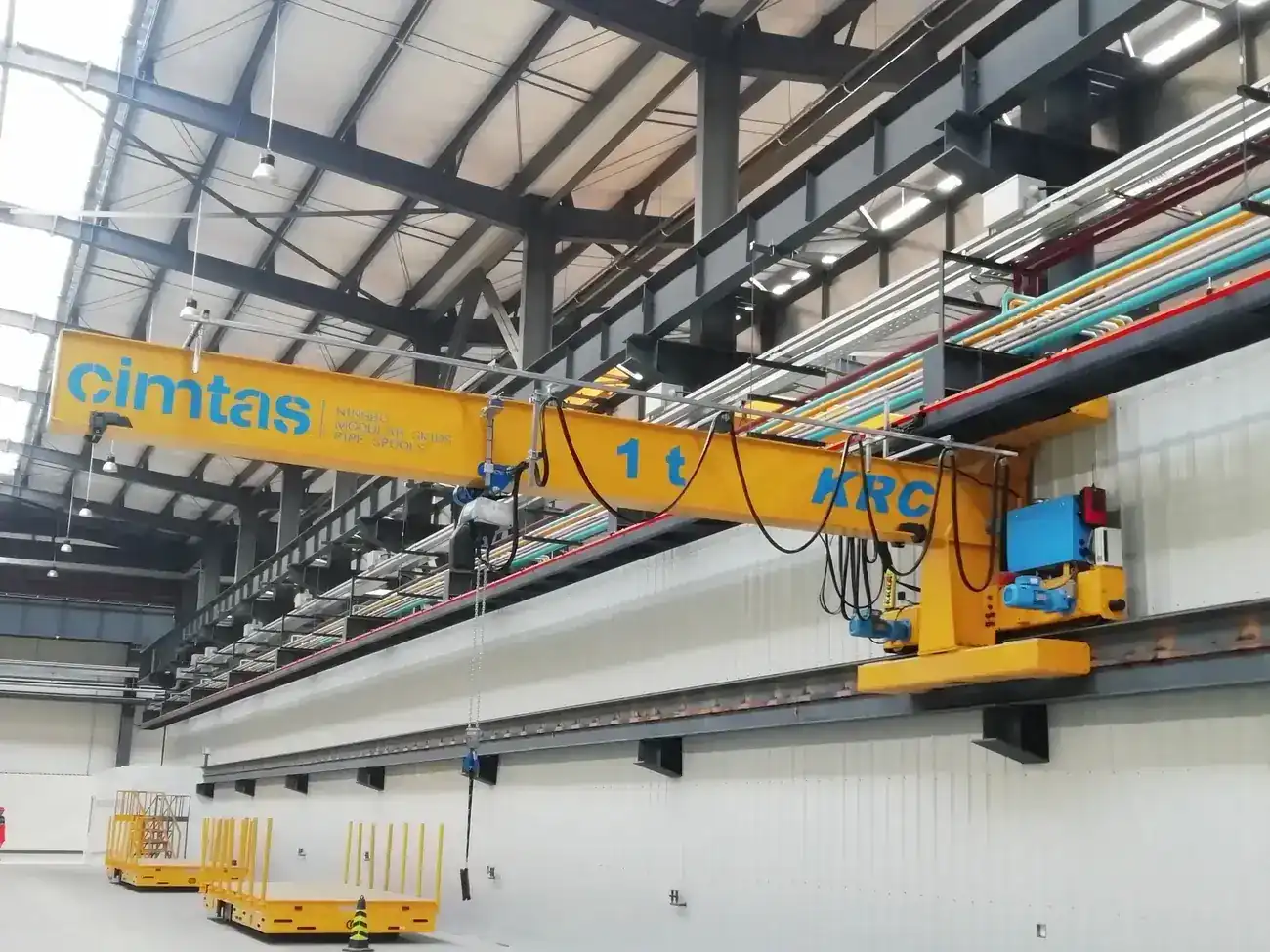

- Picking pallets and containers in warehouses and distribution centres

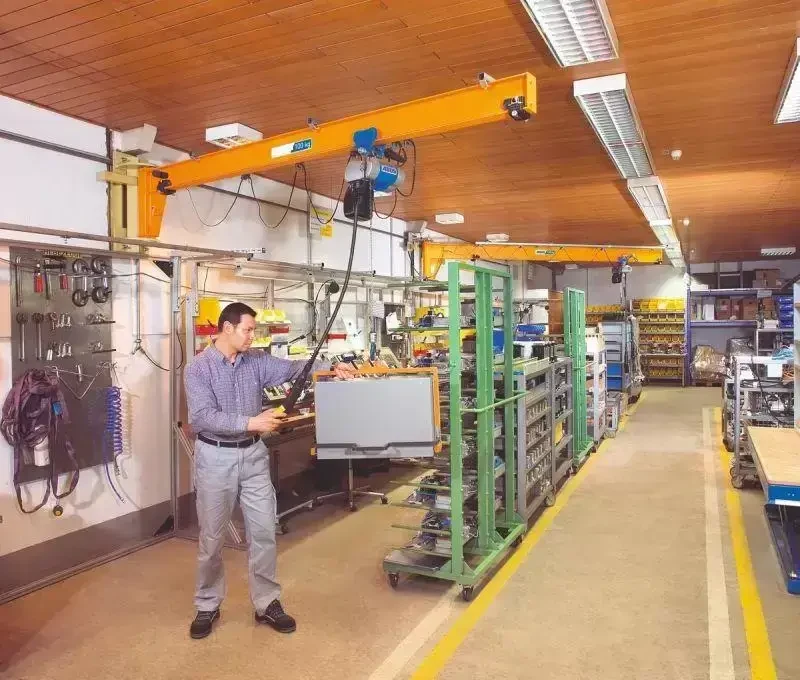

- Lifting and positioning tools in manufacturing and assembly
- Lifting parts during repairs in a workshop
- Serving a bench or machine placed against a wall
Who It Is For
- Distribution centres with limited floor area
- Assembly plants with fixed lifting points along a wall
- Repair workshops handling heavy components
- Facilities reducing manual handling injuries
Technical Features And Specifications
Technical Features
- Load capacity 0.5 T to 5 T

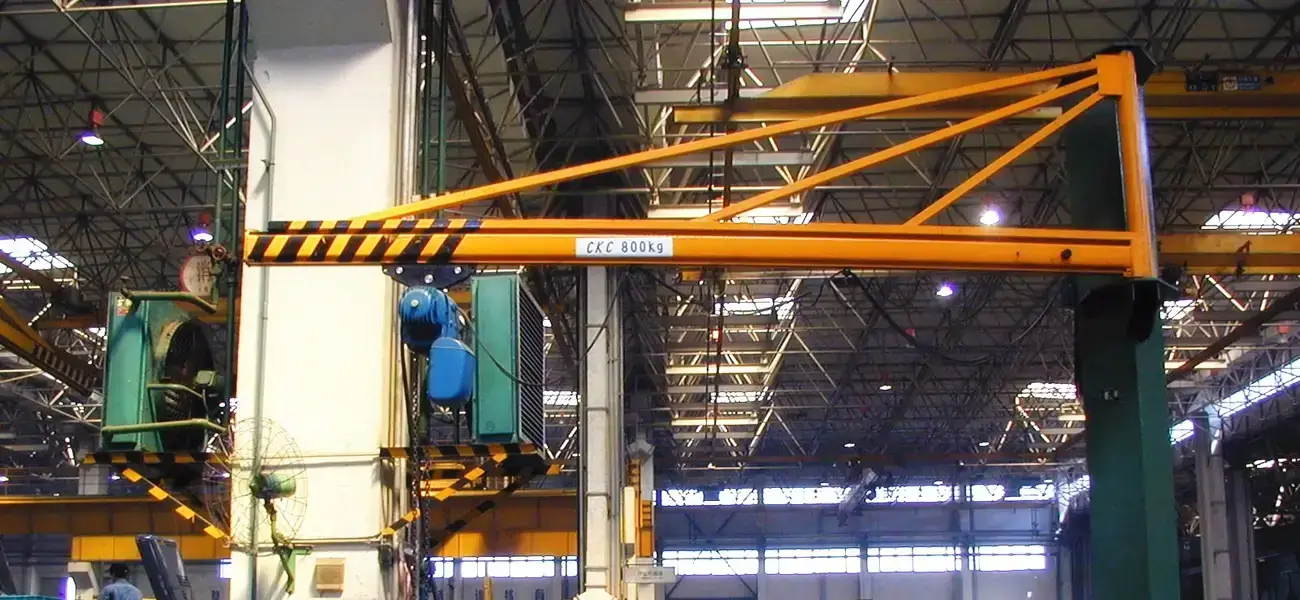

- Single I-beam boom
- Steel tie rod wall or column mounting
- Designed for high speed repetitive duty
- Low maintenance construction
| Load Capacity | 0.5 T to 5 T |
|---|---|
| Boom | Single I-beam |
| Mounting | Wall or column with steel tie rod |
| Floor Space Required | None |
| Typical Use | Warehousing, assembly, workshop repair |
How It Is Made And Checked
Materials Process And Quality Control
Materials
- Structural steel
Manufacturing Process
- Structural fabrication
- Welding
- Assembly
- Load testing
Quality Control
- Specification agreed in writing before production starts
- First article or sample approved against the agreed specification
- Goods inspected and photographed at the factory before loading
- Inspection report sent to you before the container sails
Customisation Options
What Can Be Varied
- Capacity from 0.5 T to 5 T
- Boom length to the working radius
- Hoist type and lifting height
- Mounting arrangement for wall or column
- Control by pendant or wireless remote
Compared With The Alternatives
| Pillar jib crane | The pillar crane needs a foundation but works anywhere; the wall crane is cheaper to install where a suitable wall exists. |
|---|---|
| 1 ton wall jib crane | Same mounting principle at higher capacity, up to 5 tons, with a heavier boom and tie rod arrangement. |
Use Guide
- Have the wall or column checked for the bending load before ordering
- Set the boom length so the hook reaches the far side of the work area
- Keep the slewing arc clear of racking and cable trays
- Inspect the tie rod and its fixings as part of routine crane inspection
Questions
Questions Buyers Ask About This Product
What is the capacity range?
0.5 tons to 5 tons.
How is it fixed to the building?
With a steel tie rod arrangement to a wall or column, which is why the structure has to be assessed first.
Does it take floor space?
No, that is the main reason for choosing it over a pillar or free standing crane.
What boom is used?
A single I-beam, which carries heavy goods without buckling.
Is it suitable for frequent lifting?
Yes, it is intended for repetitive duty in warehousing, assembly and repair work. Tell us lifts per hour so the hoist is classified correctly.
Related Products
Others In Jib Cranes
Jib CranesJib Crane Up To 6 Ton
A jib crane for the 3 to 6 ton range with a rated loading capacity from 0.25 to 10 tons across the series. The boom…
View Product
Jib Cranes2 Ton Jib Crane
A 2 ton jib crane with a load capacity from 250 kg to 2000 kg and a 360 degree slewing range. It is offered in wall…
View Product
Jib Cranes1 Ton Wall Jib Crane
A wall mounted jib crane with a loading capacity of 1.0 tons, supplied as an LW type wall jib. It mounts on walls or…
View Product
Jib CranesDavit Crane
A davit crane built for boat and deck operations, with a load capacity of 2.5 to 20 tons and a 360 degree slewing…
View Product
Jib CranesPillar Jib Crane
A floor mounted pillar jib crane with a capacity range of 0.5 to 6.3 tons and a 270 degree slewing range. The crane…
View ProductGet A Price For Wall Mounted Jib Crane
Send the duty figures, the material if it is fixed, and the quantity. We will confirm the specification and quote against it.
