1 Ton Wall Jib Crane
A wall mounted jib crane with a loading capacity of 1.0 tons, supplied as an LW type wall jib. It mounts on walls or columns, has a slewing range of 180 degrees and is fitted with an electric chain hoist.
Product Overview
A wall mounted jib crane with a loading capacity of 1.0 tons, supplied as an LW type wall jib. It mounts on walls or columns, has a slewing range of 180 degrees and is fitted with an electric chain hoist. The lightweight design keeps the load on the building structure low while covering a wide working area from the wall.
Key Benefits
- Mounts on a wall or column and uses no floor space
- 180 degree slewing covers a wide area from a fixed point
- Electric chain hoist makes loading and unloading quick
- Lightweight design suits buildings with modest structural capacity
- Keeps repetitive lifting away from the main overhead crane
Problems It Solves
- No free floor area for a free standing lifting structure
- Manual lifting at a repetitive station
- Main crane called away for small lifts
- Buildings that cannot carry a heavy free standing jib
Where It Is Used
Applications And Buyers
Application Scenarios
- Loading and unloading at a bench or machine against a wall
- Goods in and goods out areas
- Workshops where floor space is fully used
- Stations where lifts repeat many times a day
Who It Is For
- Small workshops without an overhead crane
- Production lines with a fixed lifting point
- Maintenance areas along a wall
- Facilities reducing manual handling injuries
Technical Features And Specifications
Technical Features
- LW type wall jib crane
- 1.0 ton loading capacity
- 180 degree rotation angle
- Wall or column mounting
- Electric chain hoist
| Rated Capacity | 1 ton |
|---|---|
| Slewing Range | 180 degrees |
| Mounting | Wall or column |
| Hoist | Electric chain hoist |
| Type | LW wall jib crane |
How It Is Made And Checked
Materials Process And Quality Control
Manufacturing Process
- Structural fabrication
- Welding
- Assembly
- Load testing
Quality Control
- Specification agreed in writing before production starts
- First article or sample approved against the agreed specification
- Goods inspected and photographed at the factory before loading
- Inspection report sent to you before the container sails
Customisation Options
What Can Be Varied
- Arm length for the working radius needed
- Wall or column mounting
- Hoist speed and lift height
- Control pendant length or wireless control
Compared With The Alternatives
| Free standing jib crane | A free standing crane gives 360 degree coverage and needs no wall, but takes floor space and a foundation; the wall jib uses the building instead. |
|---|---|
| 2 ton jib crane | The 2 ton crane covers heavier loads and offers 360 degree slewing; the 1 ton wall jib is lighter, simpler and cheaper to mount. |
Use Guide
- Confirm the wall or column can carry the bending load before installation
- Set arm length so the hook reaches the far edge of the work area
- Keep the 180 degree sweep clear of shelving and services
- Inspect the chain hoist at the intervals given in its manual
Questions
Questions Buyers Ask About This Product
What is the rotation angle?
180 degrees, which is normal for a wall mounted jib since the wall occupies the other half of the circle.

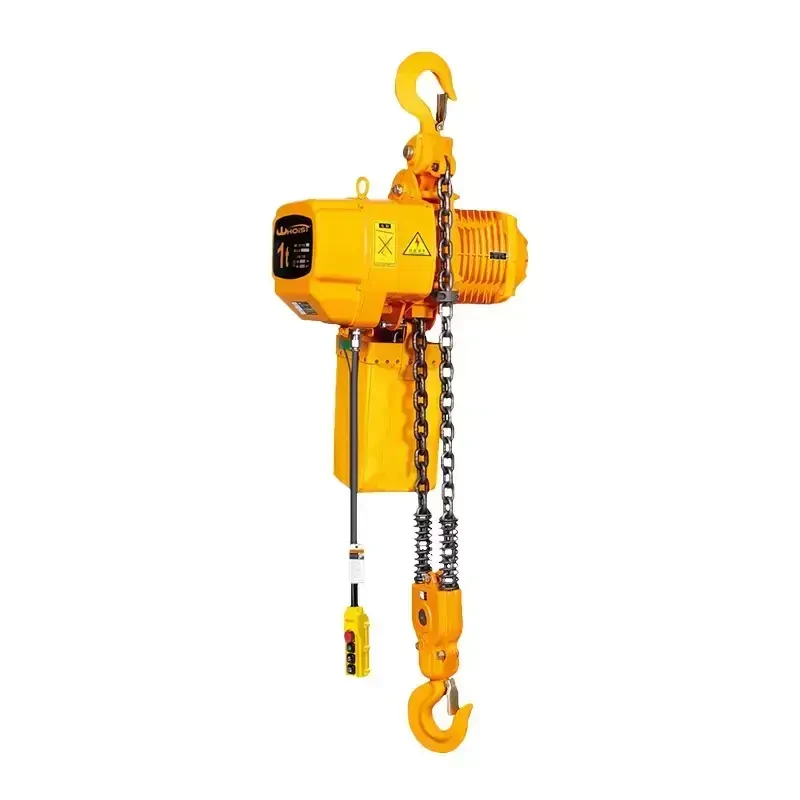

What hoist is fitted?
An electric chain hoist, sized to the 1 ton capacity.
Can it be mounted on a column instead of a wall?
Yes, wall or column mounting are both available.
Does it need a foundation?
No. It is carried by the wall or column, which is why the structure has to be checked first.
Is this crane suitable for outdoor use?
Tell us the environment at enquiry. Outdoor installation changes the protection specification for the hoist and controls.
