Davit Crane

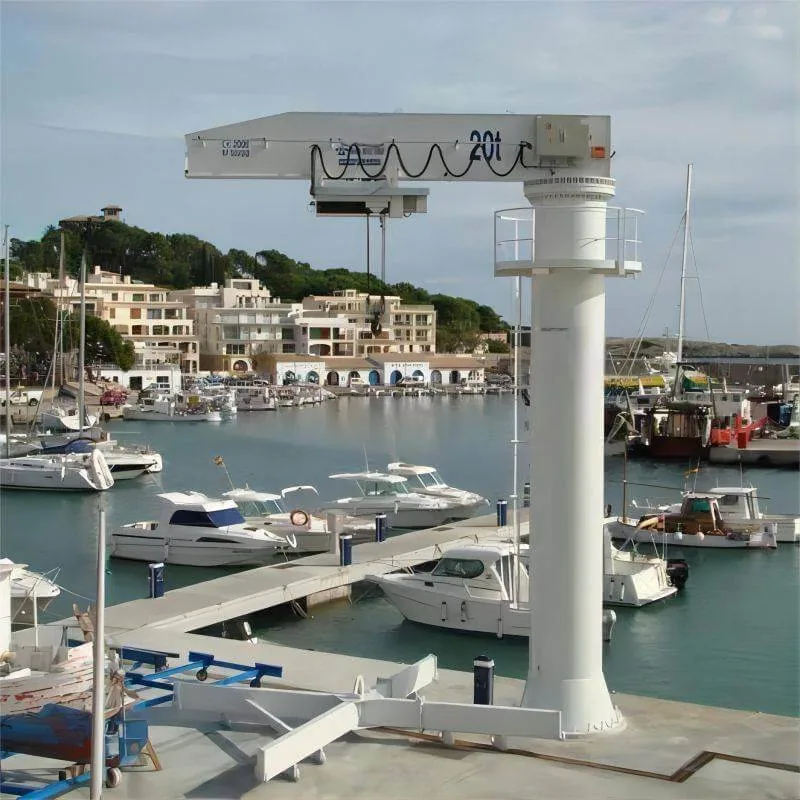

A davit crane built for boat and deck operations, with a load capacity of 2.5 to 20 tons and a 360 degree slewing range. It uses a wire rope hoist, corrosion resistant materials for marine exposure, anti sway technology and a variable frequency drive, and can be operated by radio control or fixed push button control.
- Corrosion resistant steel
Product Overview
A davit crane built for boat and deck operations, with a load capacity of 2.5 to 20 tons and a 360 degree slewing range. It uses a wire rope hoist, corrosion resistant materials for marine exposure, anti sway technology and a variable frequency drive, and can be operated by radio control or fixed push button control.
Key Benefits
- Corrosion resistant materials chosen for marine and dockside exposure
- 360 degree slewing covers deck and waterside in one installation
- Anti sway technology steadies loads over water where a swinging load is dangerous
- Variable frequency drive optimises motor performance and power use
- Radio control lets the operator stand clear of the lifting area
Problems It Solves
- Standard industrial cranes corroding quickly in a marine atmosphere
- Loads swinging over water where there is no way to steady them by hand
- Operators forced to stand inside the lifting area to see the load
- Precise positioning needed at the waterline with no fixed reference
Where It Is Used
Applications And Buyers
Application Scenarios

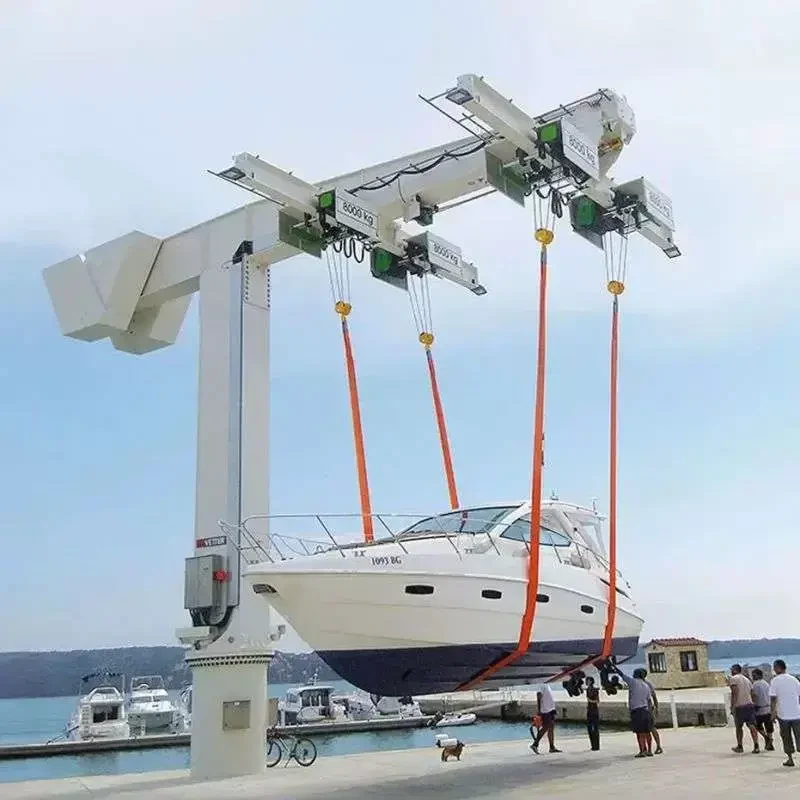

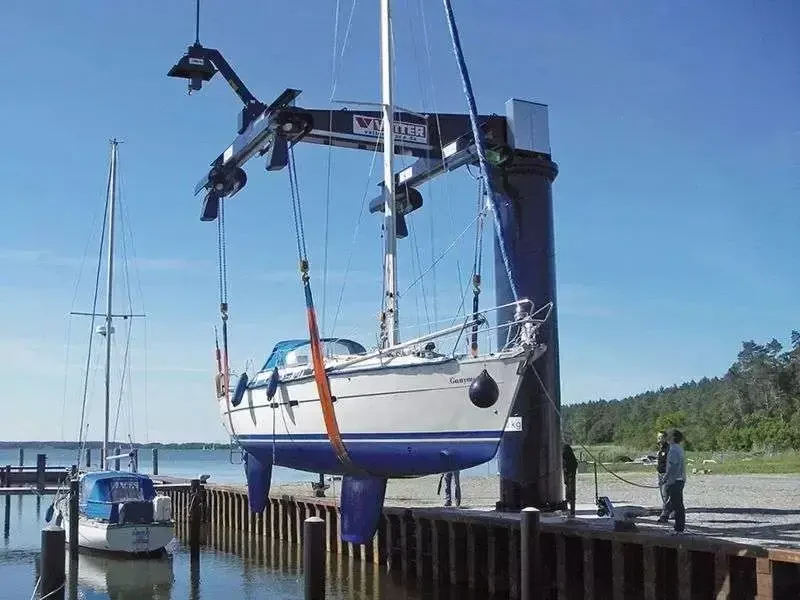

- Lifting boats out of the water
- Loading and unloading heavy materials at shipyards
- Deck lifting on vessels and platforms
- Dockside handling of equipment and stores
Who It Is For
- Shipyards and boatyards
- Marinas and port operators
- Vessel operators fitting deck lifting equipment
- Offshore and waterside maintenance teams
Technical Features And Specifications
Technical Features
- Wire rope hoist
- 360 degree slewing range
- Corrosion resistant materials
- Anti sway technology
- Variable frequency drive
- Radio control and fixed push button control
| Load Capacity | 2.5 to 20 ton |
|---|---|
| Slewing Range | 360 degrees |
| Hoist | Wire rope hoist |
| Drive | Variable frequency drive |
| Control | Radio control, fixed push button |
| Materials | Corrosion resistant |
How It Is Made And Checked
Materials Process And Quality Control
Materials
- Corrosion resistant steel
Manufacturing Process
- Structural fabrication
- Welding
- Protective coating
- Assembly
- Load testing
Quality Control
- Specification agreed in writing before production starts
- First article or sample approved against the agreed specification
- Goods inspected and photographed at the factory before loading
- Inspection report sent to you before the container sails
Customisation Options
What Can Be Varied
- Capacity within the 2.5 to 20 ton range
- Boom radius to the reach required over the water
- Radio or push button control
- Coating specification for the exposure at site
Compared With The Alternatives
| Pillar jib crane | Same slewing principle, but the davit crane is built for marine exposure and load control over water rather than for a dry workshop floor. |
|---|---|
| Mobile crane at the quayside | A davit crane is permanently installed and always ready; a mobile crane has to be brought in and set up for each lift. |
Use Guide
- Confirm the reach needed from the mounting point to the lifting position over the water
- Specify the coating for the salt exposure at your location
- Use anti sway and slow lifting speed when lifting from a moving surface
- Inspect the wire rope regularly in a marine environment
Questions
Questions Buyers Ask About This Product
What load capacity is available?
2.5 to 20 tons.
Does it rotate fully?
Yes, the slewing range is 360 degrees.
How is it protected against corrosion?
The crane uses corrosion resistant materials, and the coating specification is set for the exposure at your site.
Can it be operated remotely?
Radio control and fixed push button control are both available.
Is it suitable for lifting boats?
Yes, boat lifting out of the water is one of the applications this crane is designed for.
