Jib Crane Up To 6 Ton

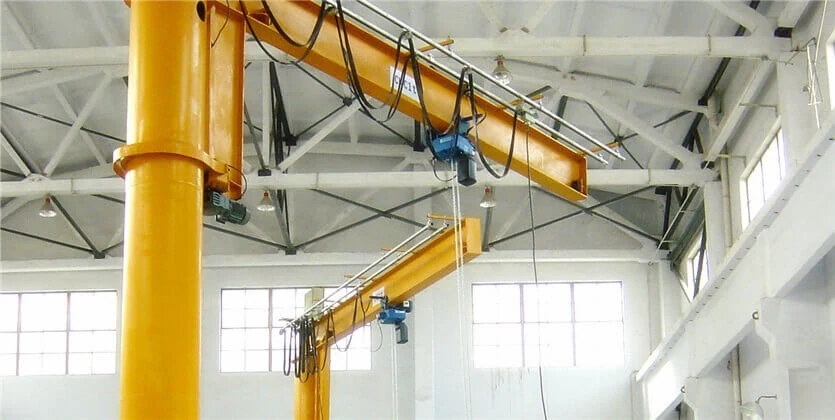

A jib crane for the 3 to 6 ton range with a rated loading capacity from 0.25 to 10 tons across the series. The boom is horizontal, so the crane handles loads within a circular area, and the slewing range is 360 degrees.
Product Overview
A jib crane for the 3 to 6 ton range with a rated loading capacity from 0.25 to 10 tons across the series. The boom is horizontal, so the crane handles loads within a circular area, and the slewing range is 360 degrees. Arms are adjustable to the application, wireless remote control is available, and electric, manual and pneumatic hoisting configurations can be fitted.
Key Benefits
- 360 degree slewing covers a full circle of work area
- Adjustable arm length to suit the working radius
- Electric, manual or pneumatic hoist depending on the duty and the site
- Wireless remote control reduces operator fatigue
- Six mounting types so the crane fits the space available
Problems It Solves
- Every lift at a machine stopping the whole bay because the main crane is called
- Limited floor space for a free standing lifting structure
- Operator fatigue from pendant control on repetitive lifts
- Sites with no compressed air or no reliable power, where hoist type matters
Where It Is Used
Applications And Buyers
Application Scenarios

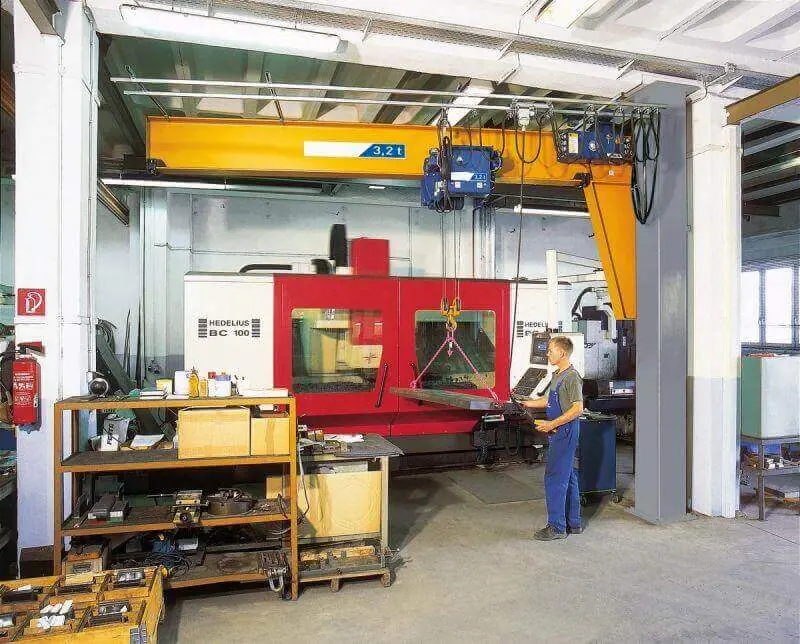

- Loading and unloading at a single machine
- Work stations that currently wait for the bay crane
- Areas where floor space rules out a free standing structure
- Portable lifting where the crane has to be relocated
Who It Is For
- Machine shops loading heavy workpieces
- Maintenance workshops with fixed lifting points
- Production lines with repetitive lifting at a station
- Facilities that want to free the overhead crane for bay work
Technical Features And Specifications
Technical Features
- Horizontal boom covering a circular working area
- 360 degree slewing range
- Adjustable arm
- Wall mounted, column mounted, free standing, articulating, mast type and portable options

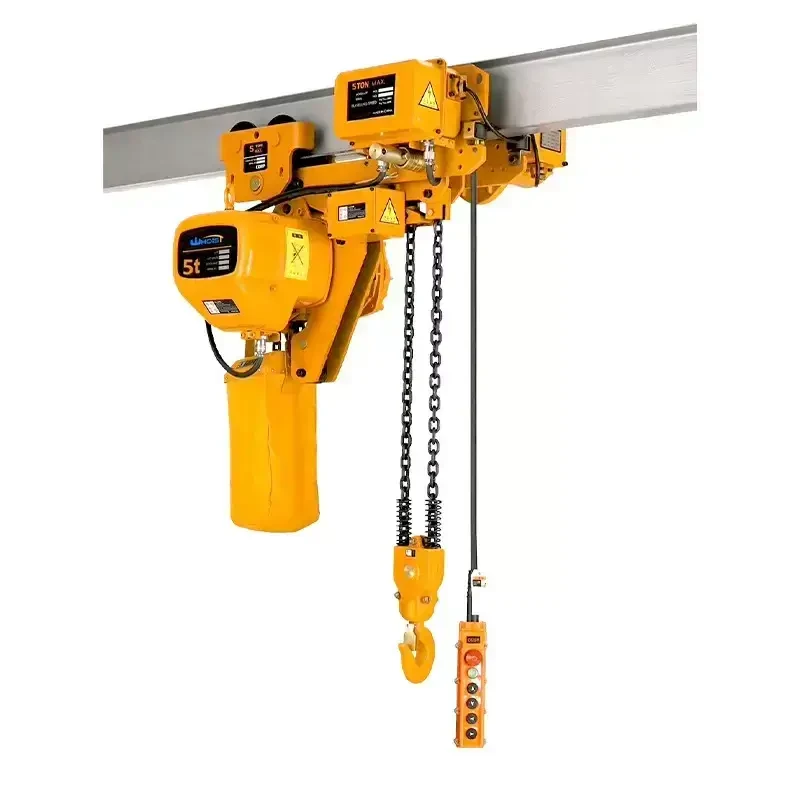

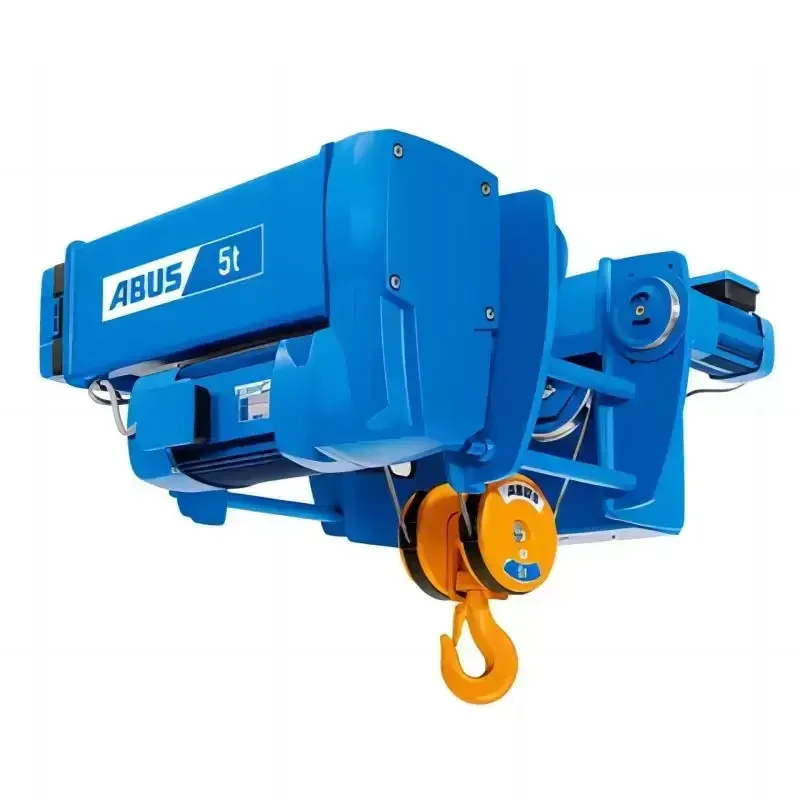

- Electric, manual and pneumatic hoisting configurations
| Model Range | 3 to 6 ton |
|---|---|
| Rated Loading Capacity | 0.25 to 10 ton across the series |
| Slewing Range | 360 degrees |
| Boom | Horizontal, adjustable arm |
| Mounting Options | Wall mounted, column mounted, free standing, articulating, mast type, portable |
| Hoist Options | Electric, manual, pneumatic |
| Control | Wireless remote available |
How It Is Made And Checked
Materials Process And Quality Control
Manufacturing Process
- Structural fabrication
- Welding
- Assembly
- Load testing
Quality Control
- Specification agreed in writing before production starts
- First article or sample approved against the agreed specification
- Goods inspected and photographed at the factory before loading
- Inspection report sent to you before the container sails
Customisation Options
What Can Be Varied
- Arm length set to the working radius
- Mounting type chosen for the available structure
- Hoist type by power availability and duty
- Wireless or pendant control
- Capacity anywhere in the 0.25 to 10 ton series range
Compared With The Alternatives
| Overhead bridge crane | The jib crane serves one point and costs a fraction as much; the bridge crane serves the whole bay. Most workshops need both. |
|---|---|
| Articulating jib crane | The articulating arm reaches around obstacles and gives precise positioning; a straight boom is simpler and cheaper where the path is clear. |
Use Guide
- Measure the working radius from the intended mounting point before choosing arm length
- Check wall or column capacity for a mounted crane
- Match hoist type to the services available at the station
- Keep the slewing circle clear of adjacent machinery
Questions
Questions Buyers Ask About This Product
What capacity range does this jib crane cover?
The rated loading capacity is 0.25 to 10 tons across the series, with this model covering the 3 to 6 ton range.
How far does it rotate?
360 degrees, so the boom covers a full circular working area.
Can I have a pneumatic hoist?
Yes. Electric, manual and pneumatic hoisting configurations are all available.
Which mounting type should I choose?
Wall and column mounting save floor space, free standing and mast types need no building structure, and portable versions can be moved between stations.
Is remote control available?
Yes, a wireless remote control method is available and reduces operator fatigue on repetitive lifts.
