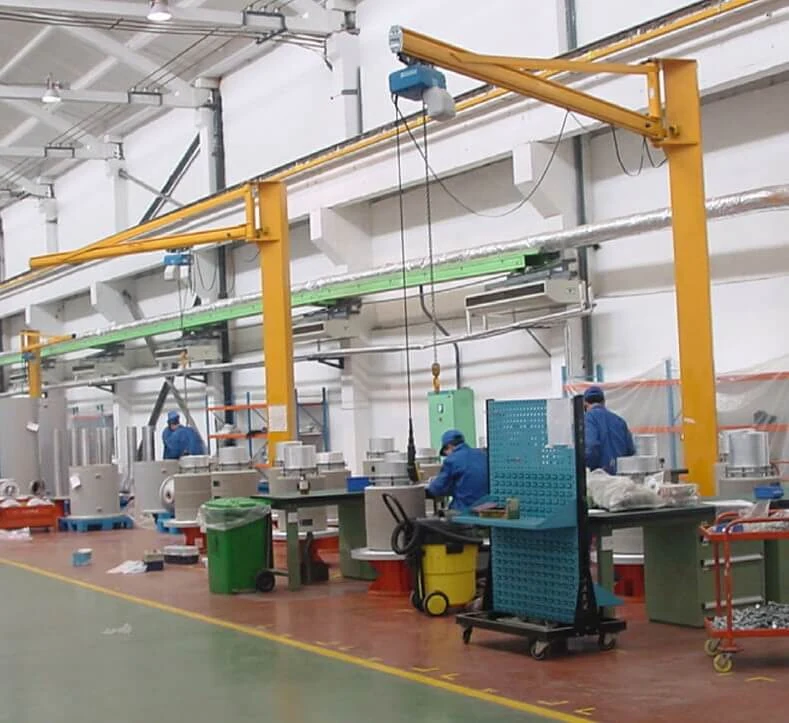

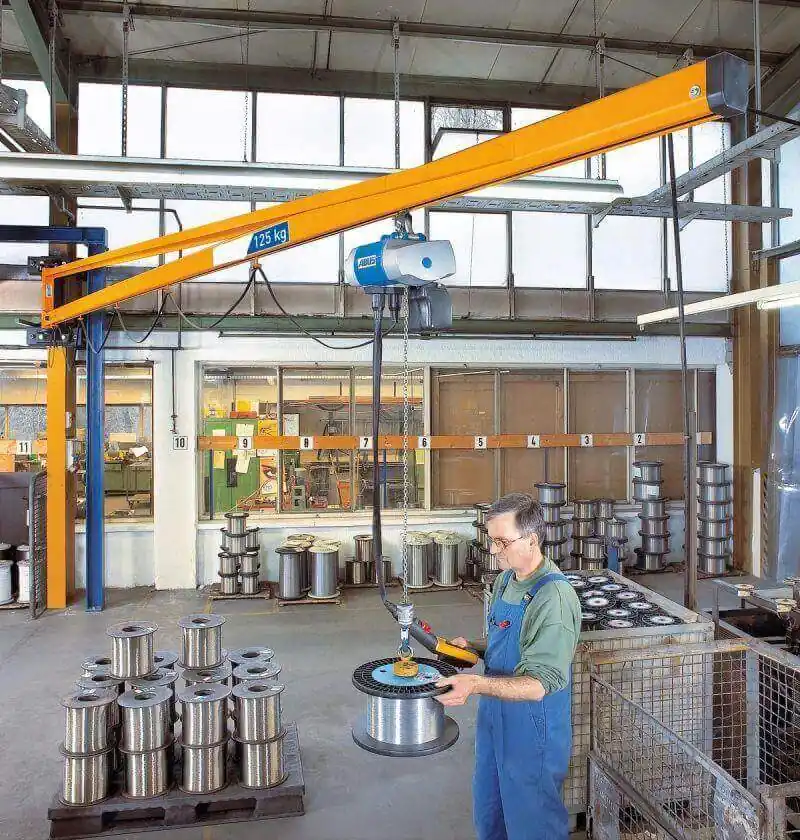

Pillar Jib Crane
A floor mounted pillar jib crane with a capacity range of 0.5 to 6.3 tons and a 270 degree slewing range. The crane stands on the floor without needing a wall or column for support, has a simple structure with few parts, and is available with mobile control so the operator can work from the best position.
- CE
Product Overview
A floor mounted pillar jib crane with a capacity range of 0.5 to 6.3 tons and a 270 degree slewing range. The crane stands on the floor without needing a wall or column for support, has a simple structure with few parts, and is available with mobile control so the operator can work from the best position. The range is CE certified.
Key Benefits
- Stands on its own foundation, so no wall or building structure is needed
- 270 degree slewing picks loads from flexible positions around the pillar
- Simple structure with few parts keeps maintenance low
- Mobile control option reduces operator effort
- CE certified range
Problems It Solves
- Lifting points in the middle of a floor where no wall is available
- Manual unloading of heavy goods from containers and trucks
- Maintenance heavy lifting equipment in a small workshop
- Operator strain and injury from repeated manual lifts
Where It Is Used
Applications And Buyers
Application Scenarios
- Lifting spare parts from ship decks
- Carrying materials out of containers in a warehouse
- Loading and unloading heavy items from trucks
- Serving a machine or bench in the middle of a floor
Who It Is For
- Warehouses unloading containers regularly
- Loading bays handling heavy items off trucks
- Workshops with lifting points away from walls
- Shipping and port side operations
Technical Features And Specifications
Technical Features
- Floor mounted pillar structure needing no additional support
- 270 degree slewing range
- Lightweight construction for straightforward installation
- Few moving parts
- Ergonomic and mobile control options
| Capacity Range | 0.5 t to 6.3 t |
|---|---|
| Slewing Range | 270 degrees |
| Mounting | Floor mounted pillar, no wall support required |
| Control | Mobile and ergonomic control options |
| Certification | CE |
How It Is Made And Checked
Materials Process And Quality Control
Certifications Stated By The Manufacturer
- CE
Manufacturing Process
- Structural fabrication
- Welding
- Assembly
- Load testing
Quality Control
- Specification agreed in writing before production starts
- First article or sample approved against the agreed specification
- Goods inspected and photographed at the factory before loading
- Inspection report sent to you before the container sails
Customisation Options
What Can Be Varied
- Capacity from 0.5 t to 6.3 t
- Boom length for the working radius
- Hoist type and lifting height
- Control arrangement for the operator position
- Model selected from the range for the duty
Compared With The Alternatives
| Wall mounted jib crane | The wall crane uses no floor space but needs a wall strong enough to carry it; the pillar crane works anywhere there is a floor and a foundation. |
|---|---|
| Overhead crane | A pillar jib serves one position at a fraction of the cost; an overhead crane serves the entire bay. |
Use Guide
- Design the foundation for the overturning moment, not just the load
- Set boom length from the furthest point the hook must reach
- Keep the 270 degree sweep clear of racking and services
- Check the hoist and slewing bearing at the intervals in the manual
Questions
Questions Buyers Ask About This Product
What capacities are available?
0.5 tons to 6.3 tons.
How far does the crane slew?
270 degrees.
Does it need a wall or column?
No. The pillar jib is mounted on the floor and supports itself, which is why it suits open areas.
Is the crane certified?
Yes, the jib crane range is CE certified.
What foundation is required?
A reinforced foundation sized for the crane's overturning moment. We supply the loading figures so your civil contractor can design it.
