Trigger Spring Oval Ring
A sprung oval ring in zinc alloy, produced in 19 mm, 25 mm, 32 mm and 38 mm inner widths. The oval gives a longer gate opening than a round spring ring of the same outside size, which is what lets folded 32 mm webbing pass through. Minimum 1,000 pieces at 500 per colour.
The size-ladder oval ring, for removable webbing straps from 19 mm up to 38 mm.
| Size | 19 mm/25 mm/32 mm/38 mm, custom sizes available |
|---|---|
| Material | Zinc alloy |
| Finishes | Rainbow/Gold/Rose Gold/Nickel/Gunmetal/Antique Brass and others |
| Typical Use | Dog Collar, Purse, Wallet, Bag, Backpack, Belt, and others |
| Minimum Order | 1000 pcs(500 pcs/color) |
| Sampling Time | 1 to 3 days |
Problems It Solves
- A round spring ring big enough for 38 mm webbing looks clumsy on a slim strap
- Short gate openings force the assembler to fold webbing twice, which bulks the seam
- Sprung gates plated after assembly show bare metal inside the gate
Key Benefits
- The oval shape gives a long gate opening without a large outside diameter
- Flat profile keeps the ring lying along the strap rather than standing proud
- Gate parts plated before assembly so no bare metal shows when it opens
Application Scenarios
- Removable webbing straps on totes and crossbody bags
- Clip-on purse straps and chain strap ends
- Pet lead handles where the loop has to pass through a folded strap
Who It Is For
- Bag factories fitting removable webbing straps
- Chain strap assemblers needing a flat sprung end fitting
- Brands that want a slimmer look than a round spring ring gives
How This Part Is Produced
Six steps inside one factory, from the mould to the packed carton.
Technical Features
- Die cast zinc alloy body with a sprung trigger gate
- Inner width and wire thickness both cast to the drawing
- Optional logo etched on the flat of the ring body
Quality Control
- Incoming zinc, brass, iron and stainless material checked against the grade ordered
- First article from each mould compared with the approved sample before the run starts
- Dimensional check on inner width and thickness during casting and stamping
- Plating thickness and colour compared against the approved colour plate
- Spring and swivel action tested by hand on hooks, snaps and side release buckles
- Counted, bagged and cartoned with the order's own packing list
Customisation Options
- Size or inner width changed on an existing catalogue style with no mould fee
- Finish chosen from nickel, gunmetal, black nickel, gold, light gold, rose gold, antique brass and rainbow
- Logo etched or embossed where the part has a flat large enough to carry it
- Painted or enamel colour where a plated metal tone will not match the brand colour
- Free 3D design from a photo or a physical sample if you have no drawing
The factory states that this item is produced as an eco-friendly part to ISO 9001, SGS and RoHS requirements. We do not hold a certificate scan for this specific SKU on the website, so ask for the current certificates by email or WhatsApp before you place a compliance-critical order.

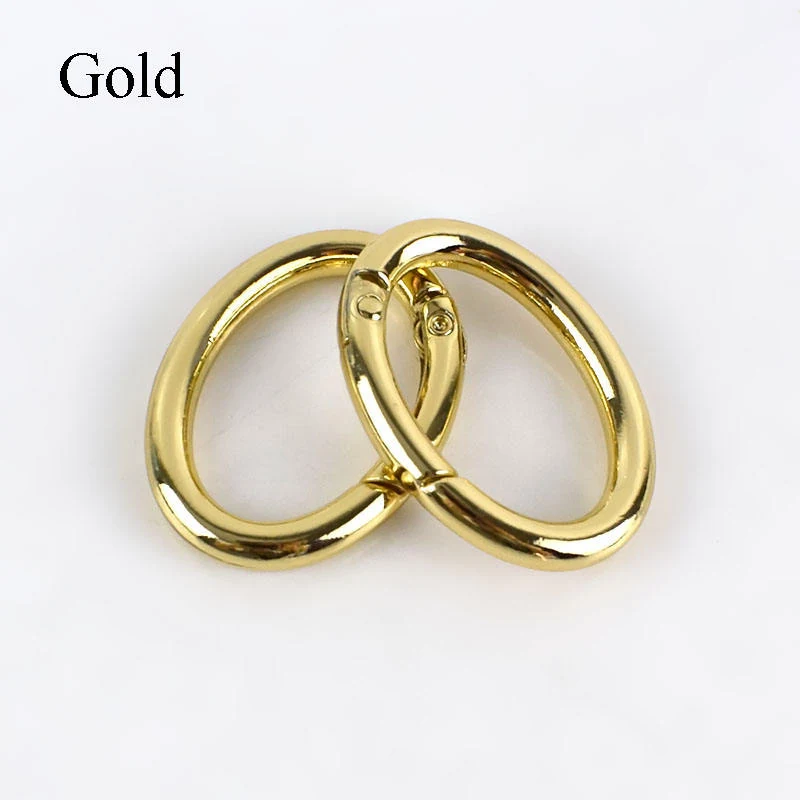

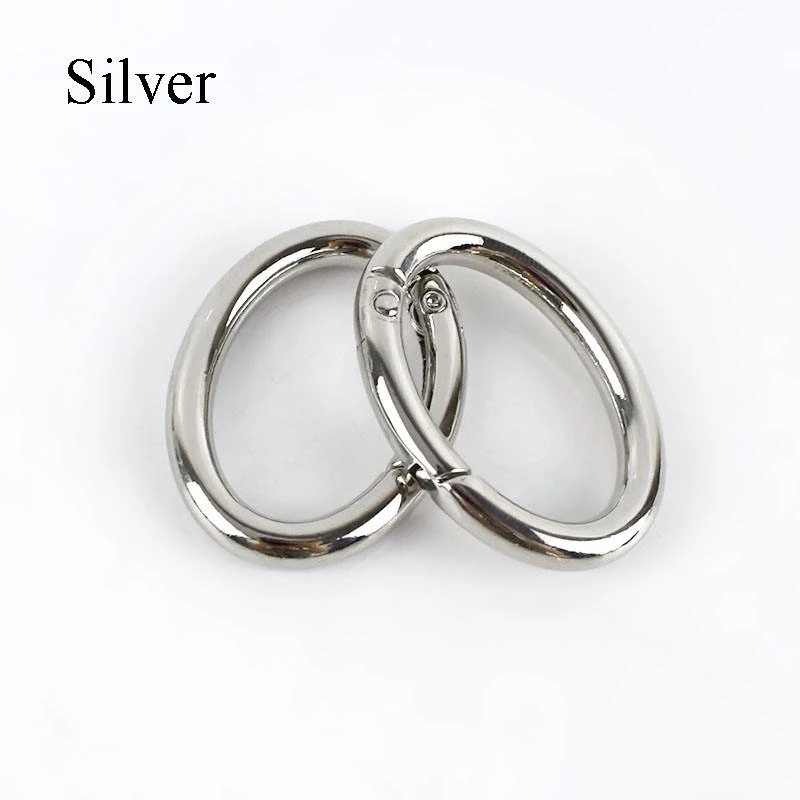

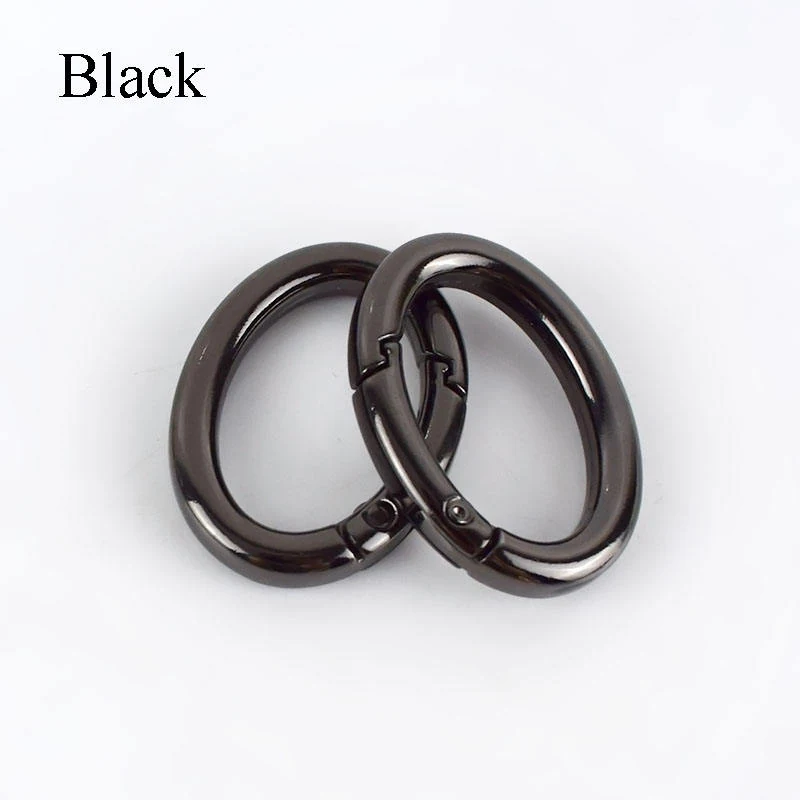

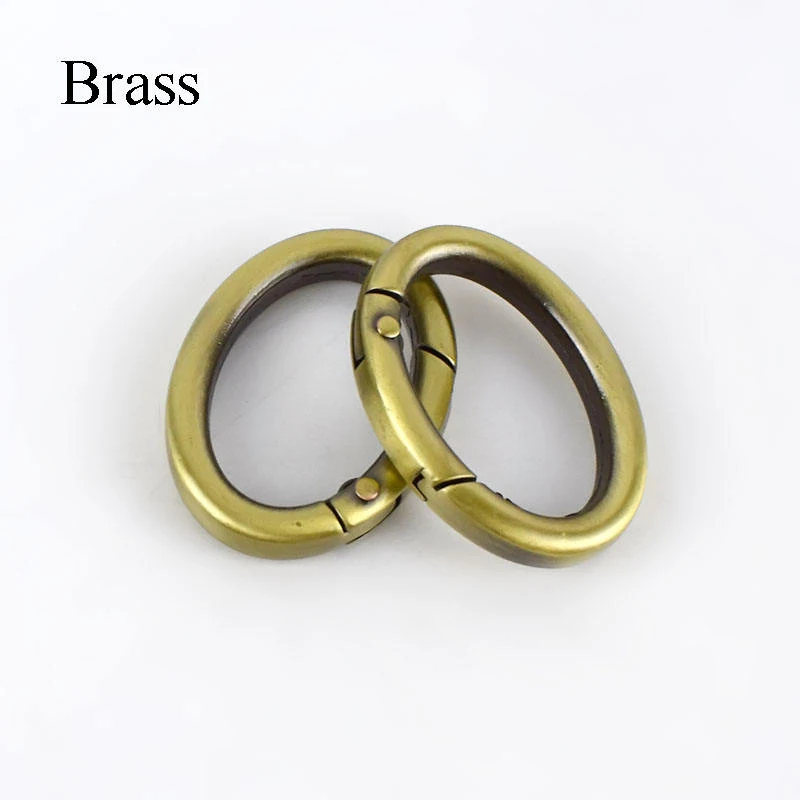

Photographs of This Item
Every image is a photograph of the part itself, taken from the manufacturer's own product record rather than a rendering.
Use Guide
- Measure the folded thickness of your webbing, then choose the gate opening from that
- Keep the gate on the outside face so the end user can reach it
- Order the matching snap hook in the same plating batch
| Compared with | What changes |
|---|---|
| Spring O ring | The oval opens wider for the same outside size, which matters on wide webbing |
| Swivel snap hook | A snap hook swivels, while an oval ring is flatter and cheaper where no rotation is needed |
Related Reading
Industries
Solutions
Other Items in Oval Rings
Questions About This Item
Sizing, finish, minimum order and lead time on this part.
Can the Oval Ring Carry a Logo
Yes, on the straight flat of the body. Send vector artwork and we will confirm the smallest legible size for the ring you choose.
Ask for a Sample of the Trigger Spring Oval Ring
Stock samples are free and you pay only the courier. Sampling time is 1 to 3 days, and we will confirm the MOQ and the plated finish in writing before production.
