Double Cap Metal Rivet in Iron
A plain double cap rivet in iron, offered in 8 mm to 14 mm cap sizes across the full plated colour range. Iron keeps the piece price down on programmes that set thousands of rivets, which is why the minimum order here is 5,000 pieces per colour rather than 1,000.
The volume option: pick this when rivet cost per piece drives the decision and the cap sits under a strap.
| Size | 8 mm/10 mm/12 mm/14 mm and others, custom sizes available |
|---|---|
| Material | Iron |
| Finishes | Rainbow/Gold/Rose Gold/Nickel/Gunmetal/Antique Brass and others |
| Typical Use | Dog Collar, Purse, Wallet, Bag, Backpack, Belt, and others |
| Minimum Order | 5000 pcs/color |
| Sampling Time | 1 to 3 days |
Problems It Solves
- Rivets set with the wrong post length either spin loose or split the cap
- Iron rivets under a scratched plating rust and stain the leather around them
- Decorative studs with a shallow relief lose their shape after plating
Key Benefits
- Cap and post sold as matched sets so the set height is right first time
- Zinc alloy and iron versions so the cost can follow the product's price point
- Shaped caps, including heart profiles, cast deep enough to survive plating
Application Scenarios
- Strap end and handle attachment points on leather bags
- Decorative studding on belts, collars and wallets
- Reinforcement at stress points beside stitching
- Dog collar decoration
Who It Is For
- Leather workshops setting rivets by hand press
- Belt and collar makers using studs as decoration
- Bag factories reinforcing handle and strap joints
How This Part Is Produced
Six steps inside one factory, from the mould to the packed carton.
Technical Features
- Double cap construction with cap diameters in the 8 mm to 14 mm range
- Zinc alloy or iron body, plated in the full catalogue colour range
- Post length selected to the total material thickness
Quality Control
- Incoming zinc, brass, iron and stainless material checked against the grade ordered
- First article from each mould compared with the approved sample before the run starts
- Dimensional check on inner width and thickness during casting and stamping
- Plating thickness and colour compared against the approved colour plate
- Spring and swivel action tested by hand on hooks, snaps and side release buckles
- Counted, bagged and cartoned with the order's own packing list
Customisation Options
- Size or inner width changed on an existing catalogue style with no mould fee
- Finish chosen from nickel, gunmetal, black nickel, gold, light gold, rose gold, antique brass and rainbow
- Logo etched or embossed where the part has a flat large enough to carry it
- Painted or enamel colour where a plated metal tone will not match the brand colour
- Free 3D design from a photo or a physical sample if you have no drawing
The factory states that this item is produced as an eco-friendly part to ISO 9001, SGS and RoHS requirements. We do not hold a certificate scan for this specific SKU on the website, so ask for the current certificates by email or WhatsApp before you place a compliance-critical order.

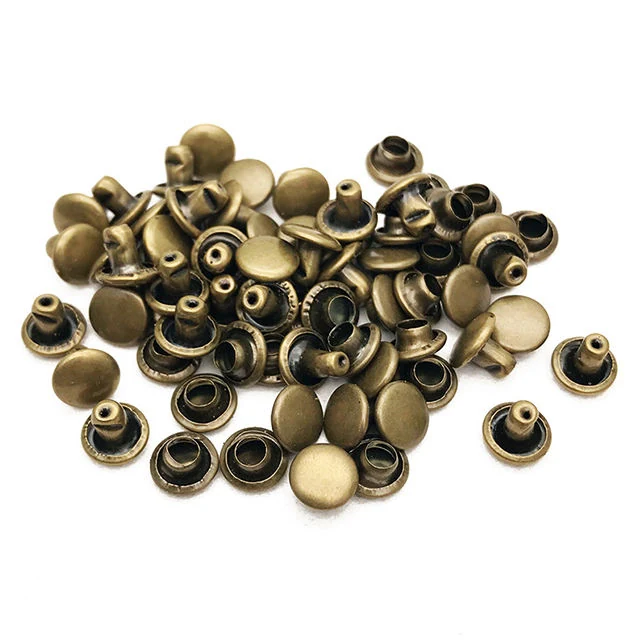

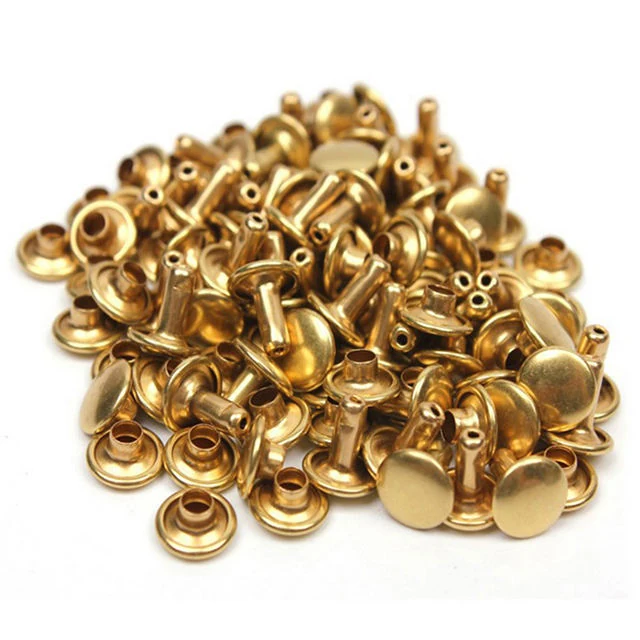

Photographs of This Item
Every image is a photograph of the part itself, taken from the manufacturer's own product record rather than a rendering.
Use Guide
- Add the thickness of every layer, then choose a post about 1 mm longer
- Use a matched setting die, since a flat punch deforms the cap
- Set one test rivet on a scrap stack before running the batch
| Compared with | What changes |
|---|---|
| Screw rivet | A screw rivet can be opened for service, while a set rivet is permanent and cheaper |
| Stitching alone | Stitching spreads the load but a rivet carries a point load that would otherwise cut thread |
Related Reading
Industries
Solutions
Other Items in Rivets and Studs
Questions About This Item
Sizing, finish, minimum order and lead time on this part.
How Do I Choose the Post Length
Measure the total stack of all layers, then take a post roughly 1 mm longer. Send us the stack thickness and we will pick the post for you.
Ask for a Sample of the Double Cap Metal Rivet in Iron
Stock samples are free and you pay only the courier. Sampling time is 1 to 3 days, and we will confirm the MOQ and the plated finish in writing before production.
