Die Cast Spring O Ring With 1 Inch Inner Diameter
A sprung O ring with a 1 inch inner diameter and a 4 mm section, formed in iron. Quoting both the inner diameter and the thickness matters here, because a 1 inch ring in a thin section will pull oval under a hanging strap. Minimum 500 pieces per colour and production runs 2 to 7 days.
The sprung O ring with its section published, so you can judge whether it will hold its circle.
| Inner Diameter | 1” |
|---|---|
| Thickness | 4 mm |
| Material | Iron |
| Finishes | Rainbow/Gold/Rose Gold/Nickel/Gunmetal/Antique Brass |
| Typical Use | Bag/purse/backpack/webbing |
| Minimum Order | 500 pcs/color |
| Production Time | 2 to 7 days |
Problems It Solves
- A soldered ring that opens at the joint is the failure point on most charm attachments
- Spring gates that do not close flush catch on lining fabric
- Thin wire rings deform into an oval once a bag has been carried for a season
Key Benefits
- Sprung versions let the wearer add or remove a strap without tools
- Wire section sized so the ring holds its circle under a hanging load
- Same plated colours as the hooks and sliders on the same bag
Application Scenarios
- Charm and tassel attachment points on handbags
- Strap junctions that need to swing in any direction
- Key rings and lanyard loops
- Webbing loops on backpacks and pet harnesses
Who It Is For
- Handbag brands attaching charms, tassels and removable straps
- Gift and keychain suppliers
- Pet and outdoor brands needing a sprung gate loop
How This Part Is Produced
Six steps inside one factory, from the mould to the packed carton.
Technical Features
- Die cast zinc alloy or formed iron with an optional sprung gate
- Inner diameter and wire thickness both specified, because either alone can mislead
- Gate spring assembled after plating so the colour is even inside the gate
Quality Control
- Incoming zinc, brass, iron and stainless material checked against the grade ordered
- First article from each mould compared with the approved sample before the run starts
- Dimensional check on inner width and thickness during casting and stamping
- Plating thickness and colour compared against the approved colour plate
- Spring and swivel action tested by hand on hooks, snaps and side release buckles
- Counted, bagged and cartoned with the order's own packing list
Customisation Options
- Size or inner width changed on an existing catalogue style with no mould fee
- Finish chosen from nickel, gunmetal, black nickel, gold, light gold, rose gold, antique brass and rainbow
- Logo etched or embossed where the part has a flat large enough to carry it
- Painted or enamel colour where a plated metal tone will not match the brand colour
- Free 3D design from a photo or a physical sample if you have no drawing
The factory states that this item is produced as an eco-friendly part to ISO 9001, SGS and RoHS requirements. We do not hold a certificate scan for this specific SKU on the website, so ask for the current certificates by email or WhatsApp before you place a compliance-critical order.

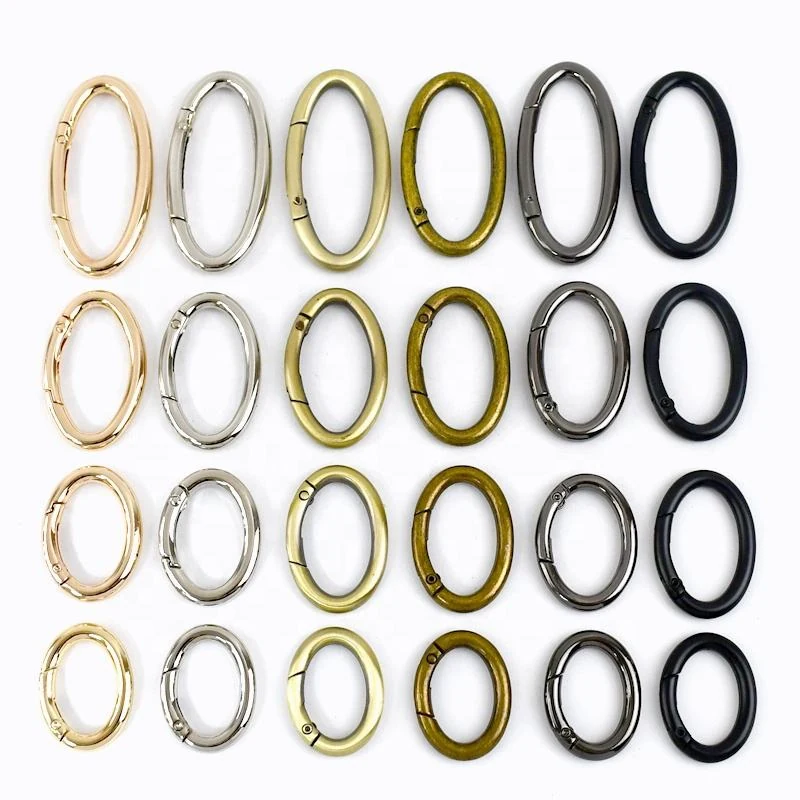

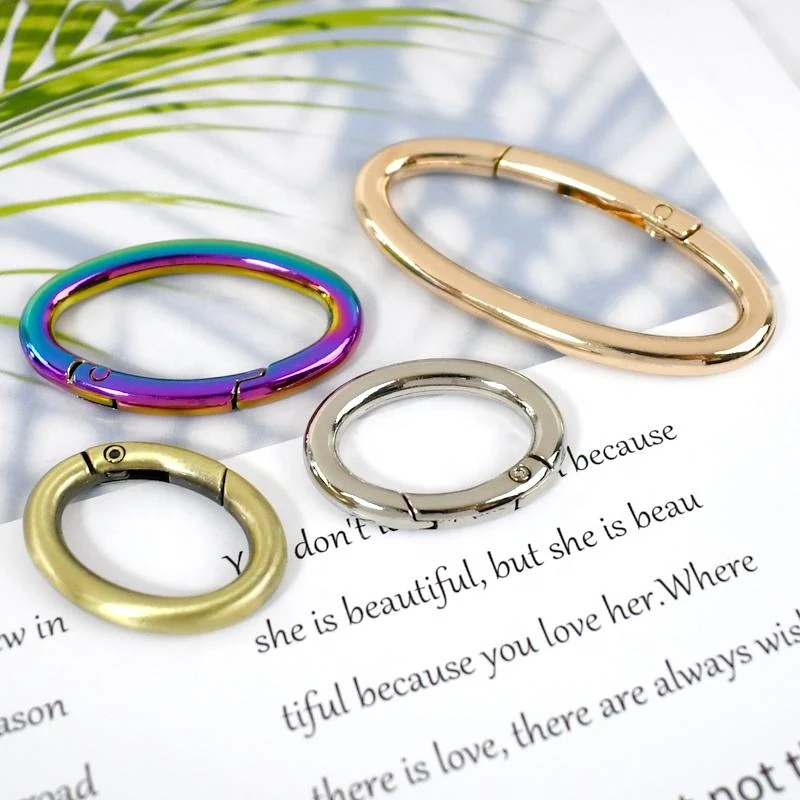

Photographs of This Item
Every image is a photograph of the part itself, taken from the manufacturer's own product record rather than a rendering.
Use Guide
- Specify inner diameter and thickness together when you request a quote
- For a hanging charm choose a sprung O ring so the end user can change it
- Check the gate closes flush against the ring before approving a batch
| Compared with | What changes |
|---|---|
| Split key ring | A split ring is cheaper but scratches leather and is awkward to open by hand |
| D ring | A D ring holds a square pull, while an O ring allows the strap to swing |
| Oval spring ring | An oval gives a longer gate opening for thick webbing while taking the same wire section |
Related Reading
Industries
Solutions
Questions About This Item
Sizing, finish, minimum order and lead time on this part.
What Is the Difference Between an O Ring and a Spring O Ring
A plain O ring is closed, so the strap has to be sewn in. A spring O ring has a sprung gate, so the end user can clip and unclip the strap or charm.
Ask for a Sample of the Die Cast Spring O Ring With 1 Inch Inner Diameter
Stock samples are free and you pay only the courier. Sampling time is 1 to 3 days, and we will confirm the MOQ and the plated finish in writing before production.
