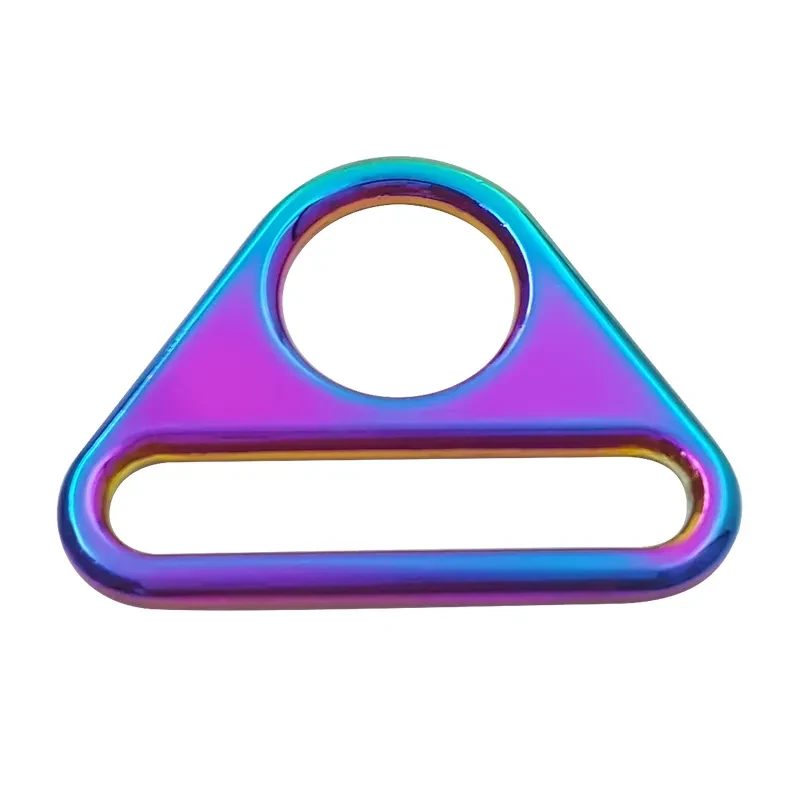

Rainbow Triangle Buckle in 1 Inch to 2 Inch
A zinc alloy triangle buckle produced at 1 inch, 1-1/2 inch and 2 inch inner widths with a rainbow plated finish. The 2 inch size is the widest triangle in the catalogue and is used where a wide webbing yoke narrows to a single hook point. Minimum 1,000 pieces.
The widest triangle buckle here, up to 2 inch, in a rainbow finish meant to be seen.
| Inner Width | 1”, 1-1/2”, 2” |
|---|---|
| Material | Zinc alloy |
| Finishes | Rainbow/Gold/Rose Gold/Nickel/Gunmetal/Antique Brass |
| Typical Use | Bag/purse |
| Minimum Order | 1000 pcs |
Problems It Solves
- Anchoring 38 mm webbing to a small leather tab needs a shape that narrows the load path
- A rectangle ring at a strap end leaves the webbing free to shift sideways
- Sharp apex corners on cheap triangles chafe the lining they sit against
Key Benefits
- The apex concentrates the pull into one point, which suits a hook or a swivel
- Wide base keeps the webbing flat where it enters the buckle
- Rounded apex so the ring does not mark the panel behind it
Application Scenarios
- Strap ends that clip to a snap hook
- Backpack yoke junctions where webbing meets a single anchor
- Decorative trim on tote and bucket bag straps
Who It Is For
- Bag factories converting wide webbing to a single hook point
- Backpack makers building yoke and harness junctions
- Fashion brands using the triangle as a visible trim detail
How This Part Is Produced
Six steps inside one factory, from the mould to the packed carton.
Technical Features
- Die cast zinc alloy with an even section on all three sides
- Inner width quoted across the base, which is the webbing dimension
- Apex radius polished before plating
Quality Control
- Incoming zinc, brass, iron and stainless material checked against the grade ordered
- First article from each mould compared with the approved sample before the run starts
- Dimensional check on inner width and thickness during casting and stamping
- Plating thickness and colour compared against the approved colour plate
- Spring and swivel action tested by hand on hooks, snaps and side release buckles
- Counted, bagged and cartoned with the order's own packing list
Customisation Options
- Size or inner width changed on an existing catalogue style with no mould fee
- Finish chosen from nickel, gunmetal, black nickel, gold, light gold, rose gold, antique brass and rainbow
- Logo etched or embossed where the part has a flat large enough to carry it
- Painted or enamel colour where a plated metal tone will not match the brand colour
- Free 3D design from a photo or a physical sample if you have no drawing
The factory states that this item is produced as an eco-friendly part to ISO 9001, SGS and RoHS requirements. We do not hold a certificate scan for this specific SKU on the website, so ask for the current certificates by email or WhatsApp before you place a compliance-critical order.

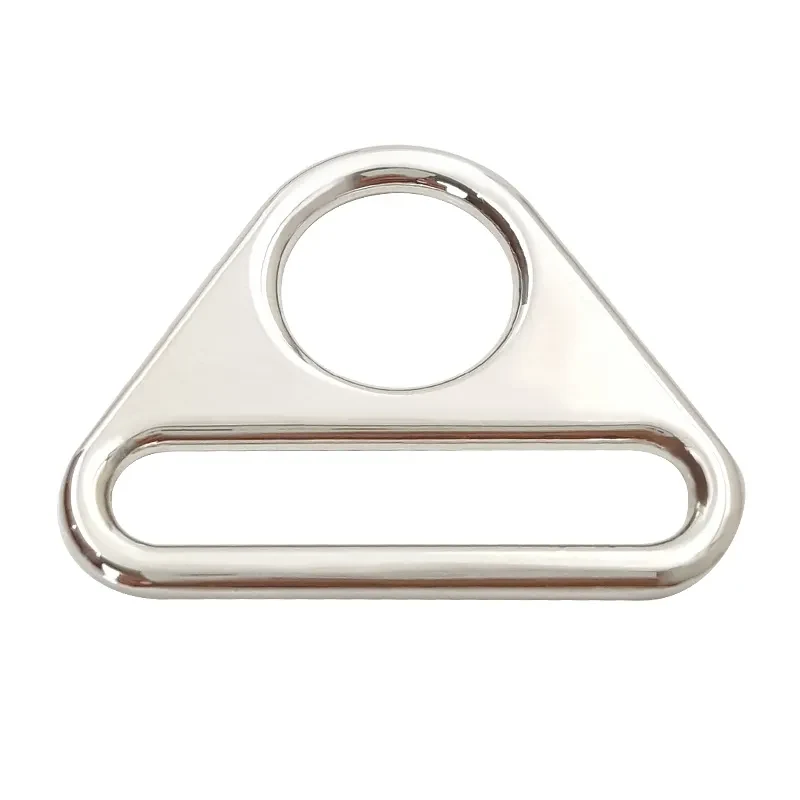

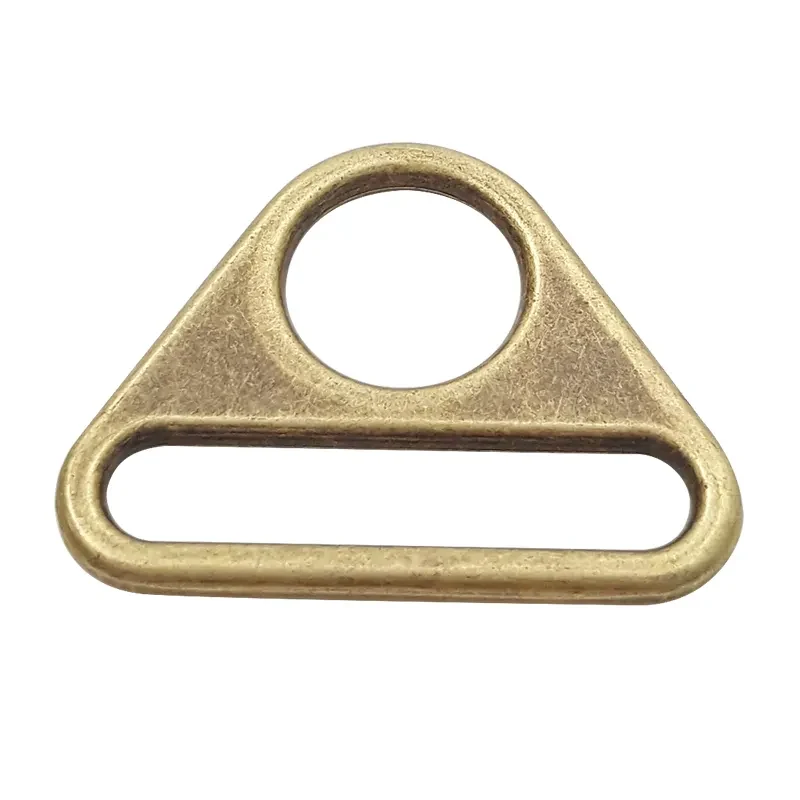

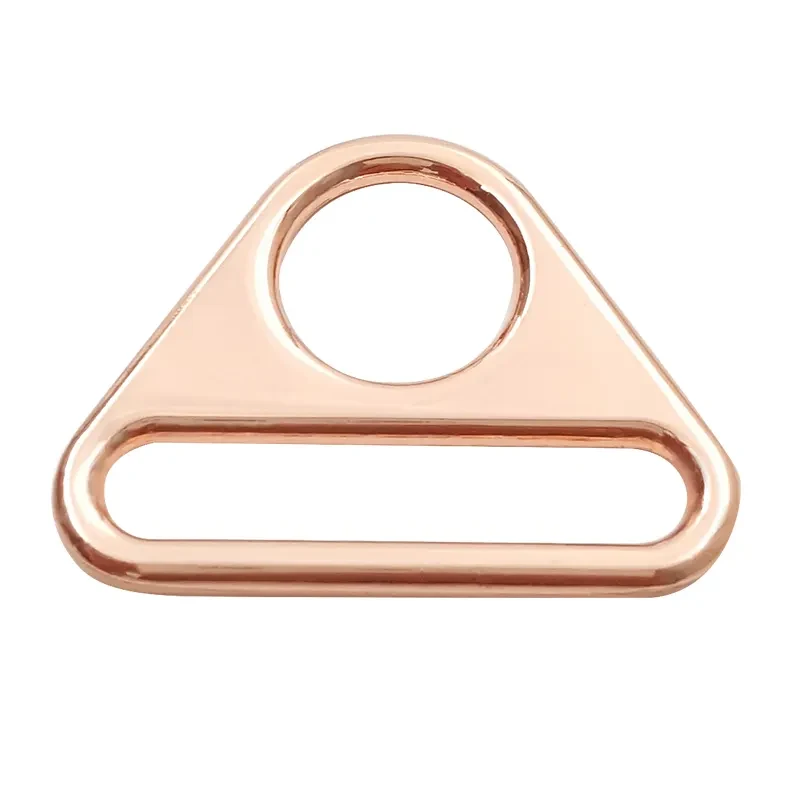

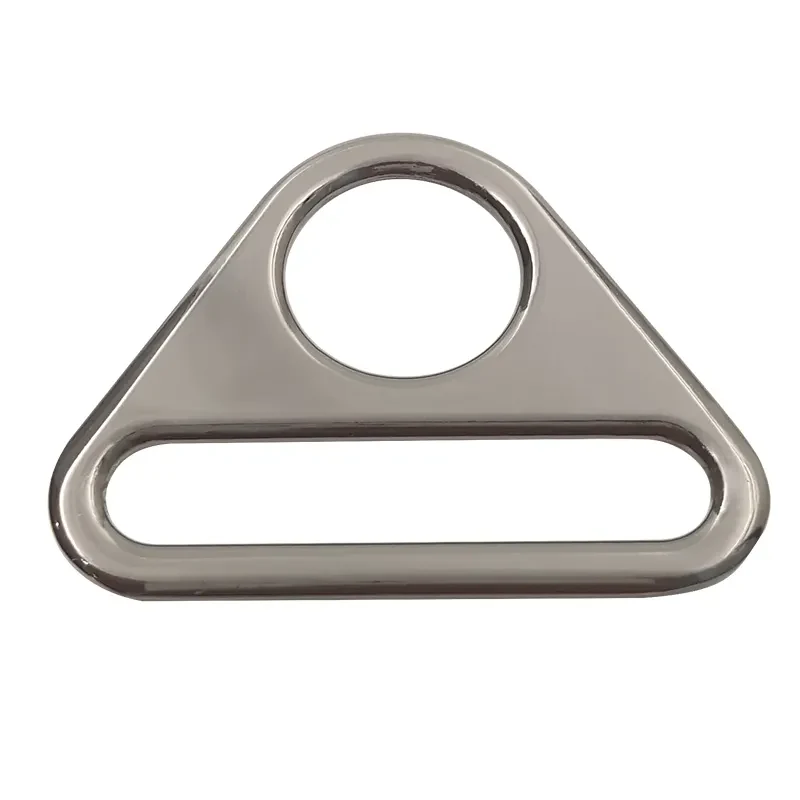

Photographs of This Item
Every image is a photograph of the part itself, taken from the manufacturer's own product record rather than a rendering.
Use Guide
- Quote the size by base inner width, since that is what the webbing has to pass
- Keep the apex facing away from the body panel to avoid marking it
- Match the plated colour to the hook that clips into the apex
| Compared with | What changes |
|---|---|
| Rectangle ring | A rectangle ring keeps the strap the same width, while a triangle narrows it to one anchor point |
| D ring | A D ring needs a sewn tab, while a triangle takes the full webbing width directly |
Related Reading
Industries
Solutions
Other Items in Triangle Buckles
Questions About This Item
Sizing, finish, minimum order and lead time on this part.
Is the Size Measured Across the Base or the Height
Across the base inner width, because that is the dimension your webbing has to pass through.
Ask for a Sample of the Rainbow Triangle Buckle in 1 Inch to 2 Inch
Stock samples are free and you pay only the courier. Sampling time is 1 to 3 days, and we will confirm the MOQ and the plated finish in writing before production.
