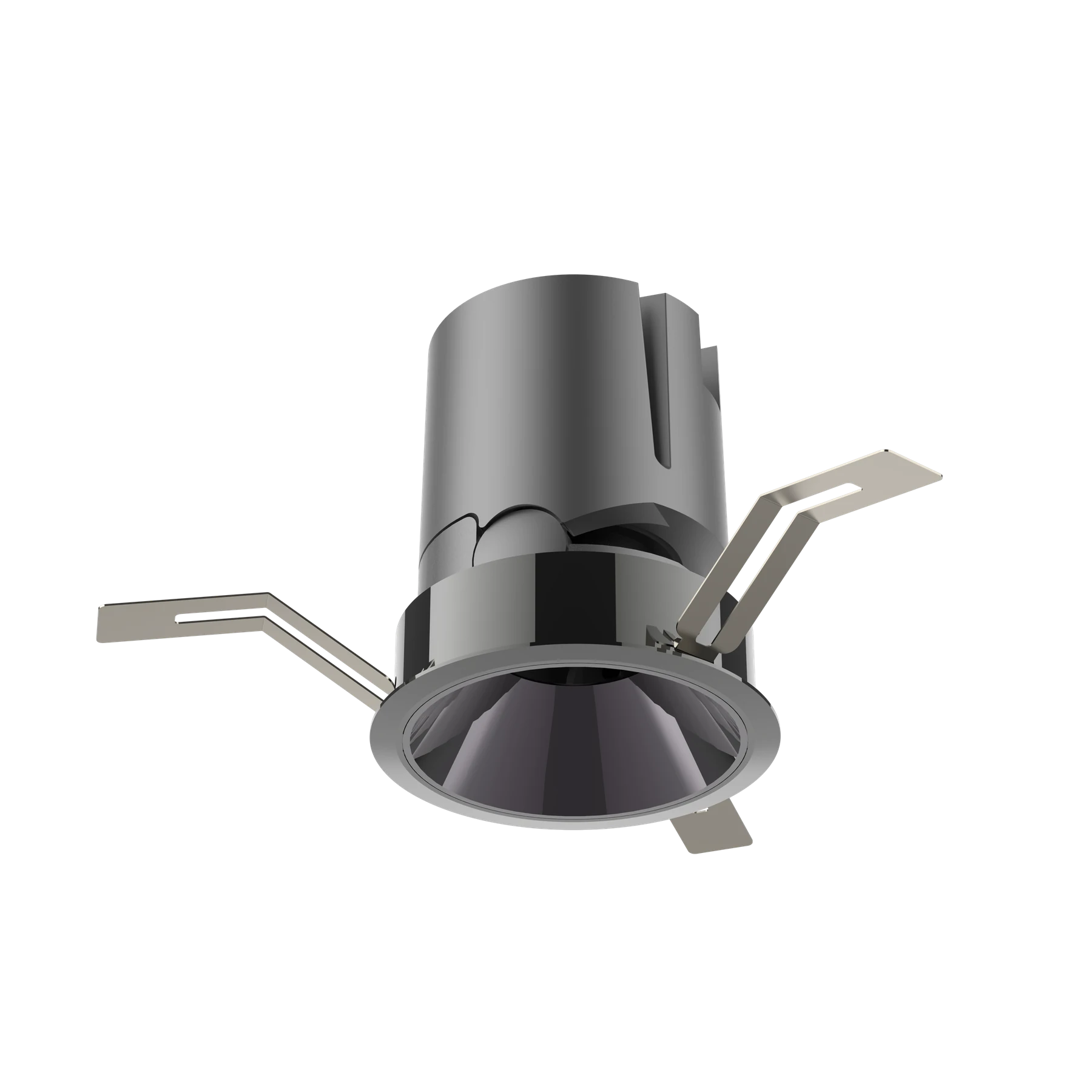

WA02-85 Bordered Round LED Spotlight 25 W
The WA02-85 is the 25 W spotlight in the Circular Border Series. Its 92 x 87.3 mm body sits in a Ø85 mm cutout and the optic is chosen at order stage from 15°, 24°, 36° and 50°. Cooling is passive through the cast aluminium body, a design our own die-casting workshop produces to the same geometry each run.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The WA02-85
- 4 beam options on one body: 15°, 24°, 36° and 50°
- Fixed Ø85 mm ceiling cutout shared with other models in the range
- 25 W rating suited to display lighting and taller retail ceilings
- 1616-11 light engine matched to the housing
- Overall size 92 x 87.3 mm
What It Fixes On Site
- Retrofit projects replacing older recessed lights of mixed sizes
- Shallow plenums that cannot take a deep body
- Installations that may need to be serviced and re-seated
- Ceiling cuts that are not clean enough for a trimless fitting
Published Figures For The WA02-85
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 25 W |
|---|---|
| Beam Angle | 15°, 24°, 36° and 50° |
| Dimensions (mm) | 92 x 87.3 |
| Ceiling Cutout (mm) | Ø85 |
| LED Chip Platform | 1616-11 |
| Body Material | Die-cast aluminium |
| Mounting | Recessed |
| Model Reference | WA02-85 |
How It Is Built
- Light engine platform 1616-11
- Die-cast aluminium housing produced in our own casting workshop
- Recessed installation
- Beam angle fixed per order line from 15°, 24°, 36° and 50°
- Passive cooling, no fan
Where The WA02-85 Is Used
Retail retrofits
Office reception ceilings
Residential living areas
Hotel guest rooms
Who Buys This Model
- Chain store rollouts with varied existing ceilings
- Hotels replacing halogen downlights
- Distributors needing a complete round aperture ladder
- Renovation and retrofit contractors
Specifying and Installing It
- Cut the ceiling to Ø85 mm and check the void clears the 92 x 87.3 mm body plus the wiring.
- Confirm the beam angle before the order is placed. 15°, 24°, 36° and 50° are available and the optic is fitted at the factory.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The WA02-85 Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
Related Models In The Circular Border Series
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
WA02-85 Questions
What ceiling cutout does the WA02-85 need?
Ø85 mm. The body measures 92 x 87.3 mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the WA02-85?
15°, 24°, 36° and 50°. The angle is fixed per order line, so one project can take several angles in this same model.
What light engine does it use?
A 1616-11 platform matched to the die-cast aluminium housing, so the thermal interface is part of the design.
Can the WA02-85 be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the WA02-85?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
Request A Quotation On The WA02-85
Tell us the beam angle, the finish and the quantity. Jenny replies on WhatsApp during Guangdong working hours.
