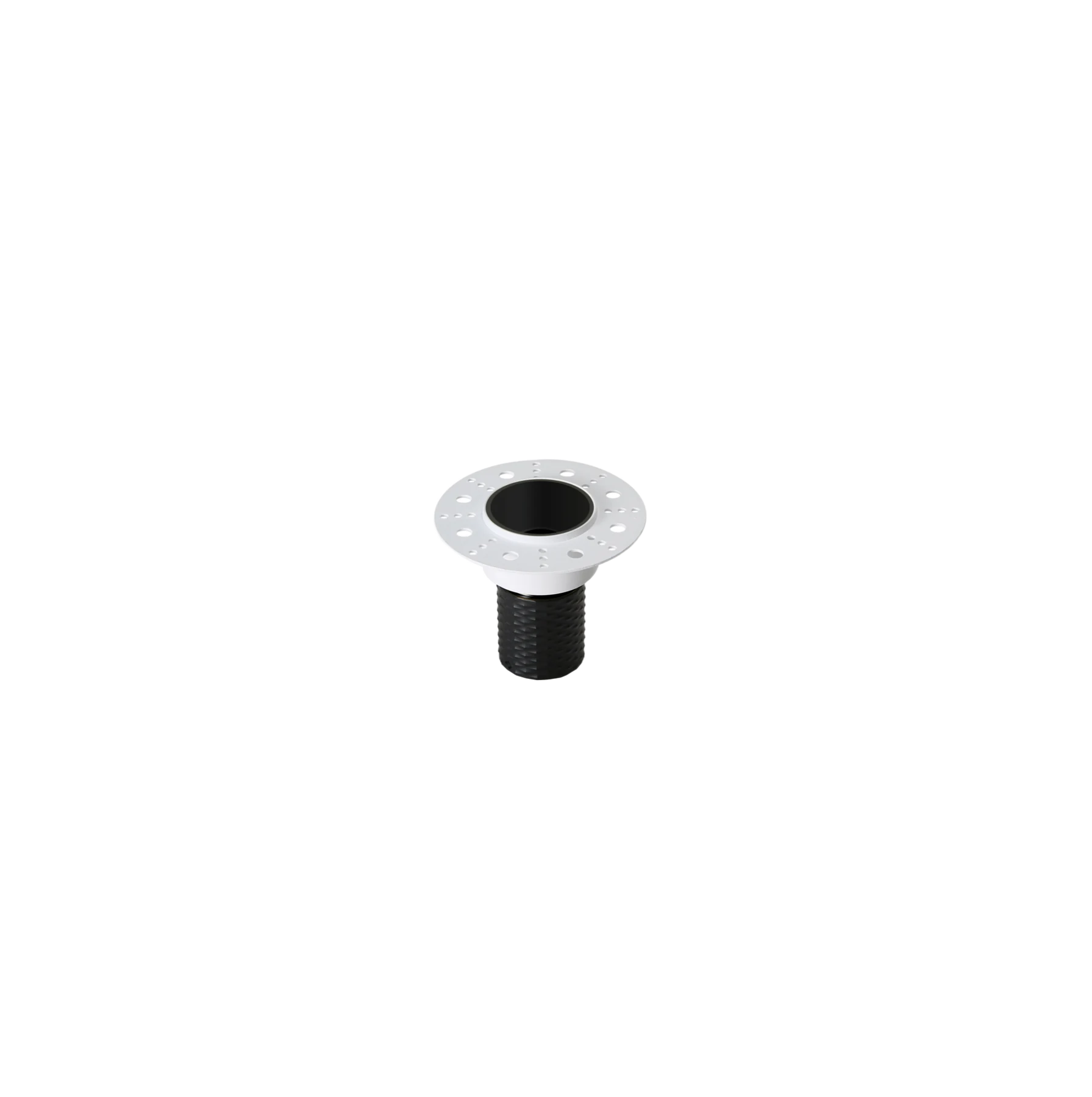

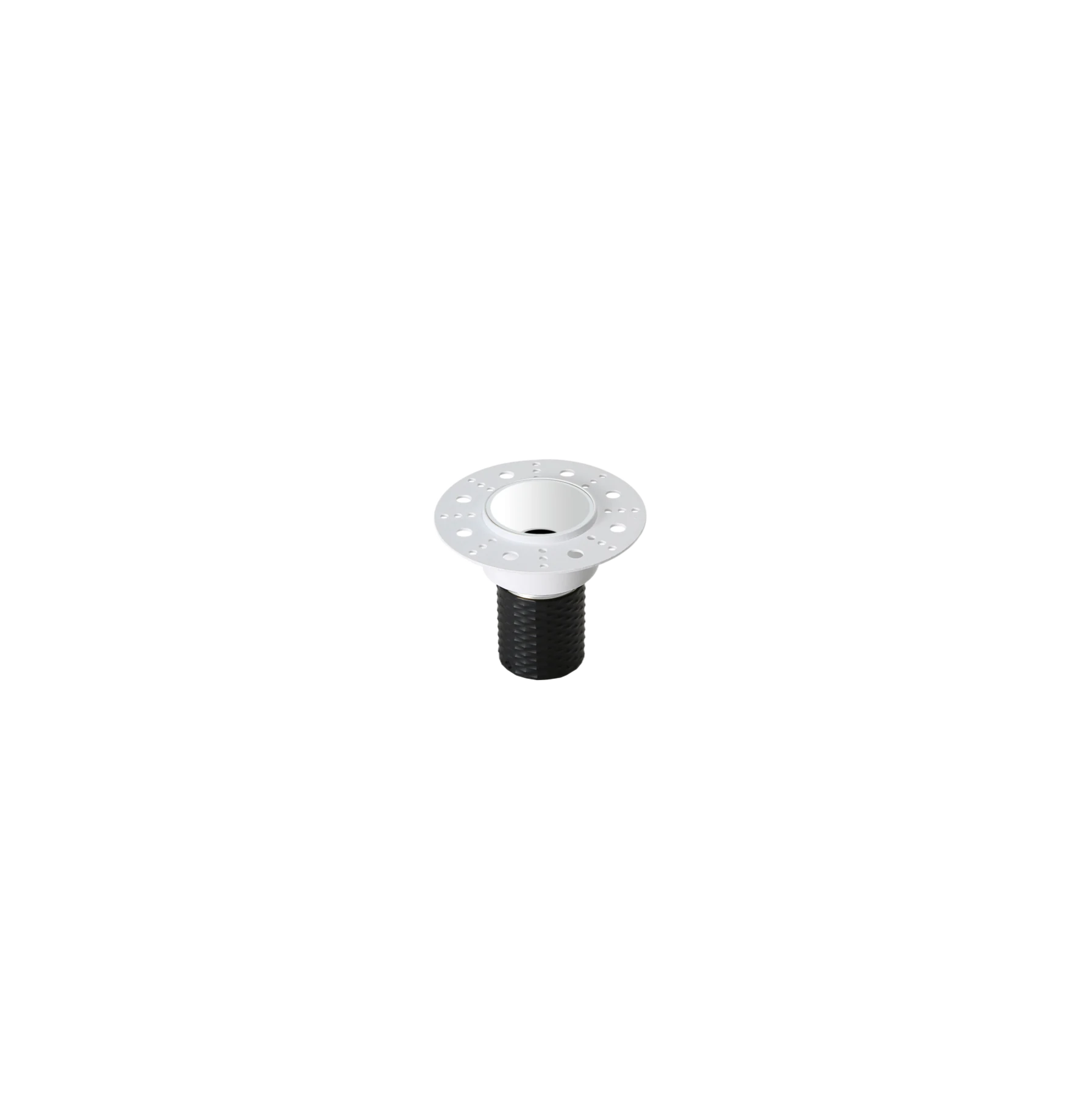

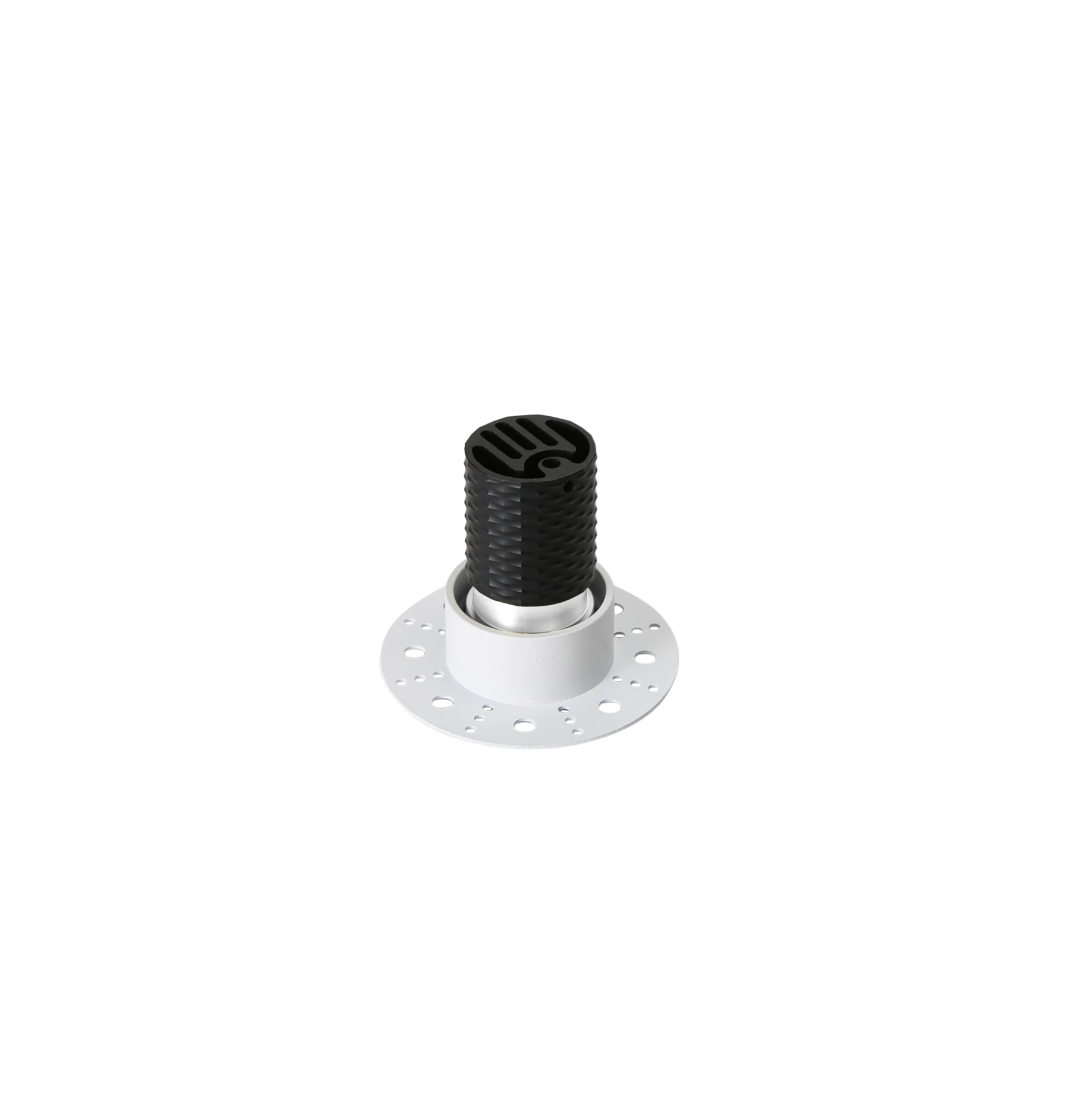

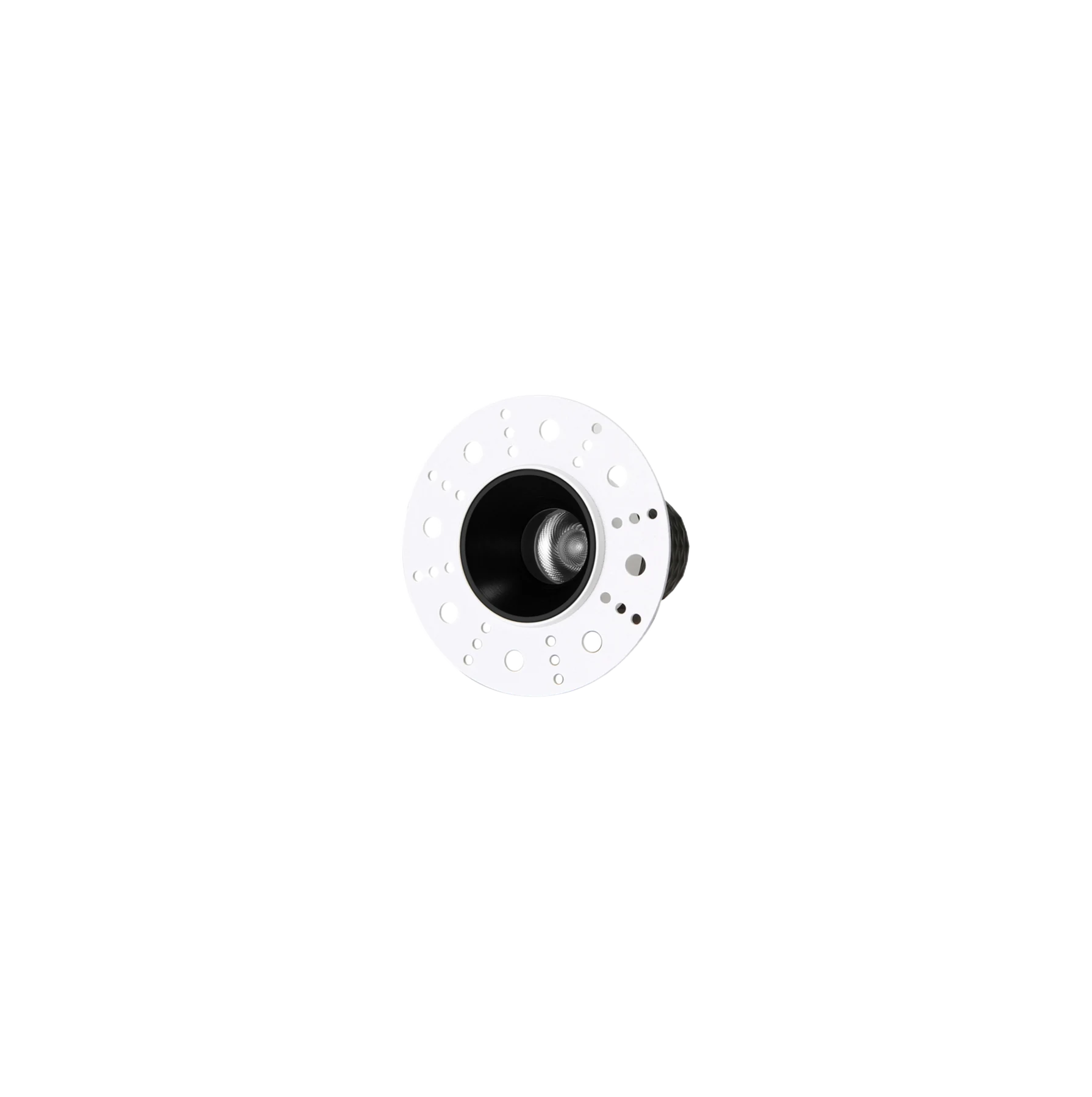

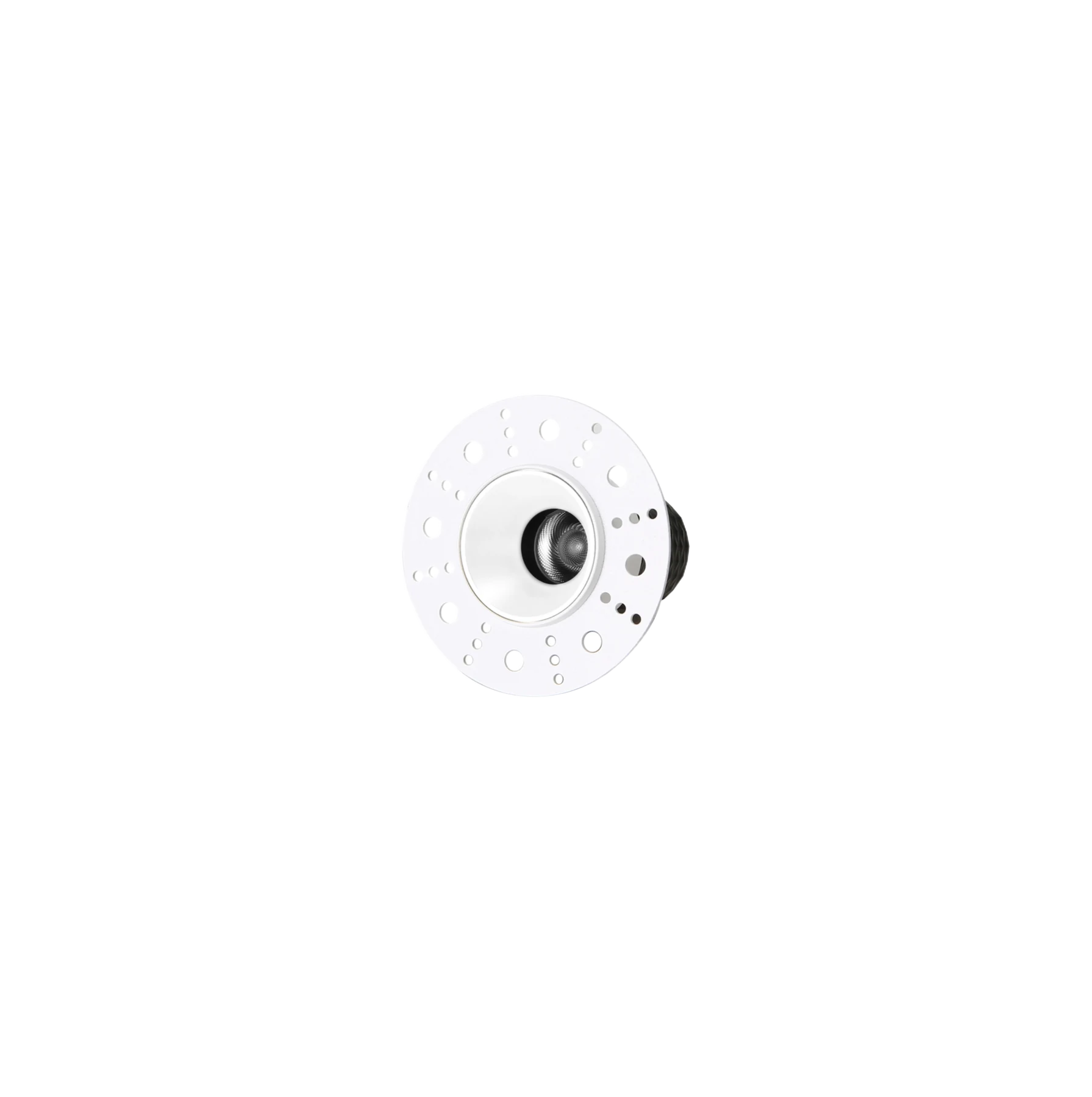

SD2201-08 Diamond Series Mini LED Spotlight 3 W
SD2201-08 covers the 3 W step in the Diamond Series. The body measures Ø40 x H60 mm and seats behind a Ø45 mm opening, with 15°, 24° and 36° beam options selected per order line. The housing is die-cast aluminium from our own workshop, so wall thickness and heat-sink geometry repeat between batches.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The SD2201-08
- 3 beam options on one body: 15°, 24° and 36°
- Fixed Ø45 mm ceiling cutout shared with other models in the range
- 3 W rating suited to cabinet, niche and detail lighting
- 1313 light engine matched to the housing
- Overall size Ø40 x H60 mm
What It Fixes On Site
- Display cases that need a tight beam without visible glare
- Wardrobe and cloakroom lighting that looks like an afterthought
- Small apertures that still have to match the main ceiling scheme
- Cabinet and joinery ceilings with 60 to 80 mm of depth
Published Figures For The SD2201-08
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 3 W |
|---|---|
| Beam Angle | 15°, 24° and 36° |
| Dimensions (mm) | Ø40 x H60 |
| Ceiling Cutout (mm) | Ø45 |
| LED Chip Platform | 1313 |
| Body Material | Die-cast aluminium |
| Mounting | Recessed |
| Model Reference | SD2201-08 |
How It Is Built
- Light engine platform 1313
- Die-cast aluminium housing produced in our own casting workshop
- Recessed installation
- Beam angle fixed per order line from 15°, 24° and 36°
- Passive cooling, no fan
Where The SD2201-08 Is Used
Wine cabinets and wardrobes
Cloakrooms
Retail shelving
Display cabinets
Who Buys This Model
- Jewellery, watch and cosmetics retail
- Residential projects with wine cabinets and wardrobes
- Museum and exhibition case builders
- Joinery and shopfitting workshops
Specifying and Installing It
- Cut the ceiling to Ø45 mm and check the void clears the Ø40 x H60 mm body plus the wiring.
- Confirm the beam angle before the order is placed. 15°, 24° and 36° are available and the optic is fitted at the factory.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The SD2201-08 Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
Related Models In The Diamond Series
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
SD2201-08 Questions
What ceiling cutout does the SD2201-08 need?
Ø45 mm. The body measures Ø40 x H60 mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the SD2201-08?
15°, 24° and 36°. The angle is fixed per order line, so one project can take several angles in this same model.
What light engine does it use?
A 1313 platform matched to the die-cast aluminium housing, so the thermal interface is part of the design.
Can the SD2201-08 be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the SD2201-08?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
Request A Quotation On The SD2201-08
Tell us the beam angle, the finish and the quantity. Jenny replies on WhatsApp during Guangdong working hours.
