5-Color Zoomable Indoor Spot Light X0009-01B-3
X0009-01B-3 is a 10W directional ceiling spotlight with a 15 to 45 degree zoom, which is a tighter range than a track head and better suited to picking out a single object. The black cylinder body measures 2.36 by 2.36 by 4.84 inches and pairs with five selectable colour temperatures, so gallery walls, kitchen islands and dining tables can all be lit from one item.
Product Overview
X0009-01B-3 is a 10W directional ceiling spotlight with a 15 to 45 degree zoom, which is a tighter range than a track head and better suited to picking out a single object. The black cylinder body measures 2.36 by 2.36 by 4.84 inches and pairs with five selectable colour temperatures, so gallery walls, kitchen islands and dining tables can all be lit from one item.
Key Benefits
- 15 to 45 degree zoom gives a tighter accent beam than a standard track head
- Five colour temperatures from 2700K to 5000K selected on the fixture
- 900 lumens at 10W with CRI 90 for accurate colour on artwork and food
- 10 to 100 percent TRIAC dimming for evening and display scenes
- Black finish and compact cylinder body that stays visually quiet on a white ceiling
Specifications
| Model Number | X0009-01B-3 |
|---|---|
| Wattage | 10 W |
| Luminous Flux | 900 lm |
| CRI | 90 |
| Colour Temperature | 2700K / 3000K / 3500K / 4000K / 5000K selectable |
| Beam Angle | 15 to 45 degrees zoomable |
| Dimming | 10 to 100 percent TRIAC |
| Voltage | 120 to 240 V |

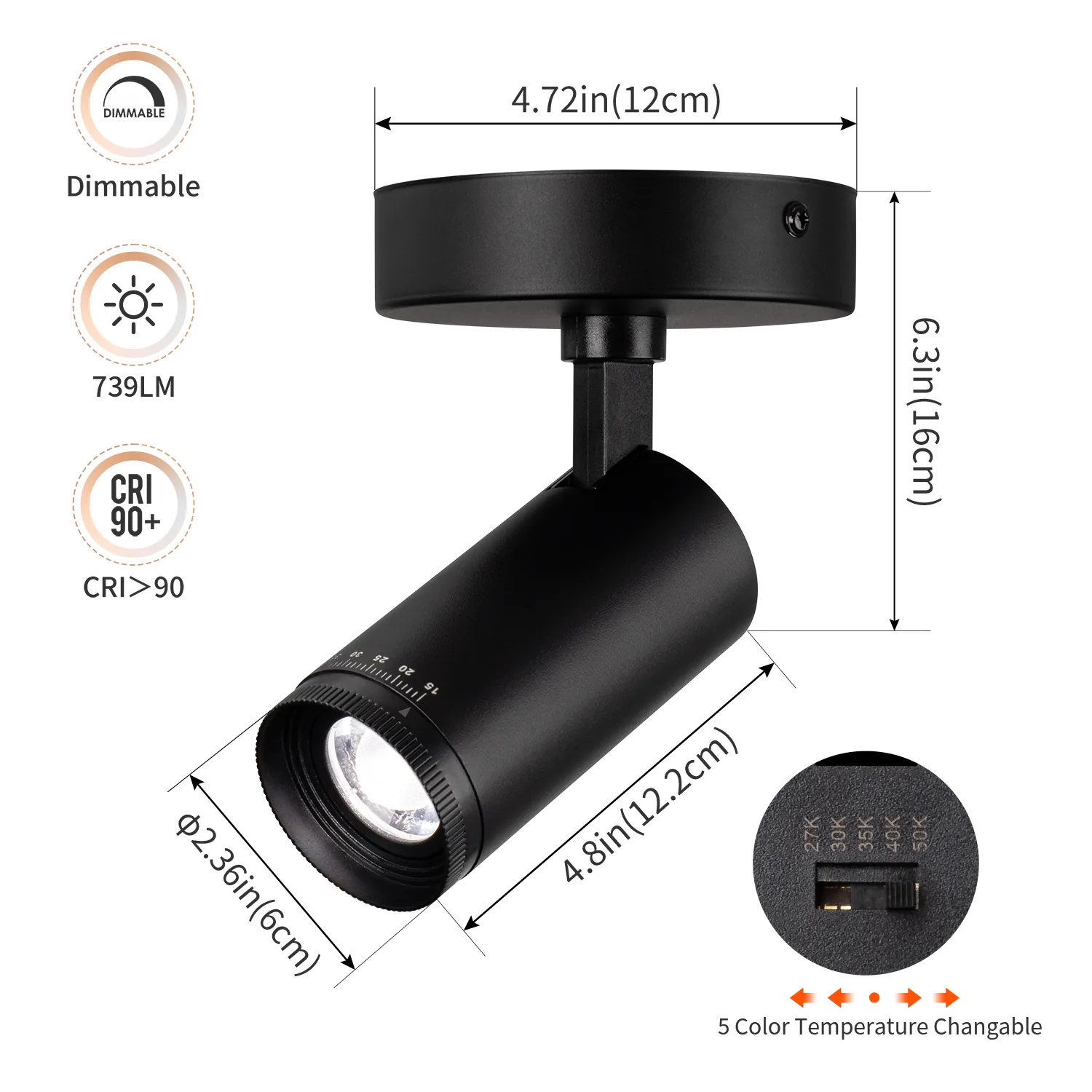

| Dimensions | 2.36 in L x 2.36 in W x 4.84 in H |
| Material | Aluminium and acrylic |
| Shade Material | Acrylic |
| Colour | Black |
| Power Source | Corded electric |
| Installation | Ceiling mount |
| Use | Indoor only |
| Warranty | 2 years |
Who It Is For
- Interior designers specifying accent lighting for homes
- Gallery owners lighting rotating exhibitions
- Distributors selling directional spotlights for residential projects
- Contractors who need a ceiling mounted spot rather than a track run
Problems It Solves
- Wide beams that light the room instead of the object
- Repeated rewiring when the display or furniture layout changes
- Colour temperature that suits the artwork but not the room
- Glare and colour shift from low CRI spotlights
Application Scenarios
- Gallery and artwork accent lighting
- Kitchen island and dining room lighting
- Living room and bedroom feature lighting
- Hallway wall washing in residential and boutique projects
Technical Features
- 10W LED ceiling spotlight
- 900 lumen output
- CRI 90
- 2700K to 5000K five-step selectable colour temperature
- 15 to 45 degree zoomable beam angle
- 10 to 100 percent TRIAC dimming
- 350 degree horizontal and 90 degree vertical adjustment
- Aluminium and acrylic body with acrylic shade
- 120 to 240 volt corded electric supply
- Ceiling mount installation
- Black finish
- No UV and no IR
How It Is Made and Checked
Manufacturing Process
- LED and driver assembly
- Zoom optic calibration
- Black finish application
- Ageing and lit test
- Export packing
Quality Control
- Lit and aged before packing
- Colour temperature and beam angle checked against the model specification
- Dimming behaviour tested with a TRIAC dimmer
- Export cartons checked before sealing
Materials
- Aluminium housing
- Acrylic shade
Certification Status
We do not list a certificate for this model. Where a project requires listed fixtures we can point you at the models that carry ETL or CE and CB approval.
Customization Options
- Black or alternative body finish
- Private label packaging
- Retail pack quantity
- OEM and ODM programmes
Compared With the Alternatives
| XL04 track head | The spot light zooms 15 to 45 degrees for tighter accent work while XL04 covers 24 to 60 degrees on a track run |
|---|---|
| Fixed downlights | The head is directional and can be re-aimed when the artwork or furniture moves |
| Surface mounted spots with fixed CCT | Five selectable colour temperatures avoid a second order when the room tone changes |
Use Guide
- Mount on the ceiling and connect the corded electric supply with the circuit switched off
- Select one of the five colour temperatures on the fixture
- Set the beam between 15 and 45 degrees for the object you are lighting
- Aim with 350 degree horizontal and 90 degree vertical adjustment
- Use a TRIAC dimmer for 10 to 100 percent brightness control
- Allow at least 5 minutes to cool after switching off before touching the luminaire
Other Models Buyers Compare
5-Color Zoomable LED Track Light XL04
XL04 is a 13.5W H-type LED track head that lets one item cover five colour temperatures and a 24 to 60 degree beam range.
View Product
6.5W COB LED Track Light XL01
XL01 is a 6.5W COB track head built for accent and task lighting where the object matters more than the fixture.
View Product
20W 5-Color Linear LED Track Light GDSD12B-3
GDSD12B-3 is the high output head in the range, a 20W linear bar that delivers 1200 lumens with CRI above 90.
View ProductIndustries Applications and Guides
Retail and Showroom
Track lighting for stores and showrooms where merchandise colour and beam control decide whether a display works.
Read MoreAccent Lighting for a Gallery Rehang
Light individual pieces tightly, without UV or IR on the works, using fixtures that can be re-aimed by the install crew rather than an electrician.
Read MoreHow to Choose LED Track Lighting for Retail
Matching wattage beam angle and colour rendering to the display, and why selectable CCT cuts the number of items a chain has to stock.
Read MoreQuestions About 5-Color Zoomable Indoor Spot Light X0009-01B-3
How tight is the narrowest beam
15 degrees at the narrow end of the zoom, opening to 45 degrees. That makes it suitable for lighting a single painting or a display object.
What are the fixture dimensions
2.36 inches long by 2.36 inches wide by 4.84 inches high, which keeps it compact on a residential ceiling.
Is it dimmable with my existing dimmer
It dims from 10 to 100 percent with TRIAC dimmers. Send us your dimmer model and we will confirm before you order.
Can it be used outdoors or in a bathroom
No. It is specified for indoor use only. Ask us about our outdoor solar range for exterior applications.
Do you offer it in other colours
The standard finish is black. Other finishes can be quoted as an OEM or ODM order.
How long is the warranty
The spotlight carries a 2 year warranty. Quote model X0009-01B-3 with your order date for any claim.
Ask For the 5-Color Zoomable Indoor Spot Light X0009-01B-3 Quotation
Send your quantity, destination and packing requirement. We reply with price, lead time and the datasheet.
