20W 5-Color Linear LED Track Light GDSD12B-3
GDSD12B-3 is the high output head in the range, a 20W linear bar that delivers 1200 lumens with CRI above 90. The 18.9 inch body spreads light along a shelf or a counter instead of dropping a single pool, which is why it is chosen for long display runs and open plan commercial spaces. It is ETL certified and available in black and white.
Product Overview
GDSD12B-3 is the high output head in the range, a 20W linear bar that delivers 1200 lumens with CRI above 90. The 18.9 inch body spreads light along a shelf or a counter instead of dropping a single pool, which is why it is chosen for long display runs and open plan commercial spaces. It is ETL certified and available in black and white.
Key Benefits
- 1200 lumens at 20W covers long display runs that need more output than a 13.5W head
- Linear 18.9 inch body lights a shelf or counter evenly rather than in spots
- CRI above 90 for true colour reproduction on merchandise
- Five selectable colour temperatures from 2700K to 5000K
- ETL certified and UV and IR free for residential and commercial use
Specifications
| Model Number | GDSD12B-3 |
|---|---|
| Wattage | 20 W |
| Luminous Flux | 1200 lm |
| CRI | Above 90 |
| Colour Temperature | 2700K / 3000K / 3500K / 4000K / 5000K selectable |
| Dimming | 10 to 100 percent TRIAC |
| Voltage | 120 to 240 V |
| Dimensions | 18.9 in L x 1.3 in W x 2.28 in H |
| Item Weight | 3.64 lb |
| Material | Aluminium and glass |
| Colour | Black and white |
| Track Type | H-type |
| Rotation | 350 degrees horizontal and 90 degrees vertical |
| Certification | ETL |
| Use | Indoor only |
| Warranty | 2 years |
Who It Is For
- Commercial fit-out contractors specifying higher output track
- Retail chains lighting long gondola runs
- Distributors in markets that require ETL certification
- OEM buyers needing a linear alternative to cylinder heads
Problems It Solves
- Spot heads leaving dark gaps between pools of light on long shelves
- Insufficient output when a 13.5W head is asked to cover a larger area
- Certification gaps in North American commercial projects
- Colour distortion on merchandise under low CRI fixtures

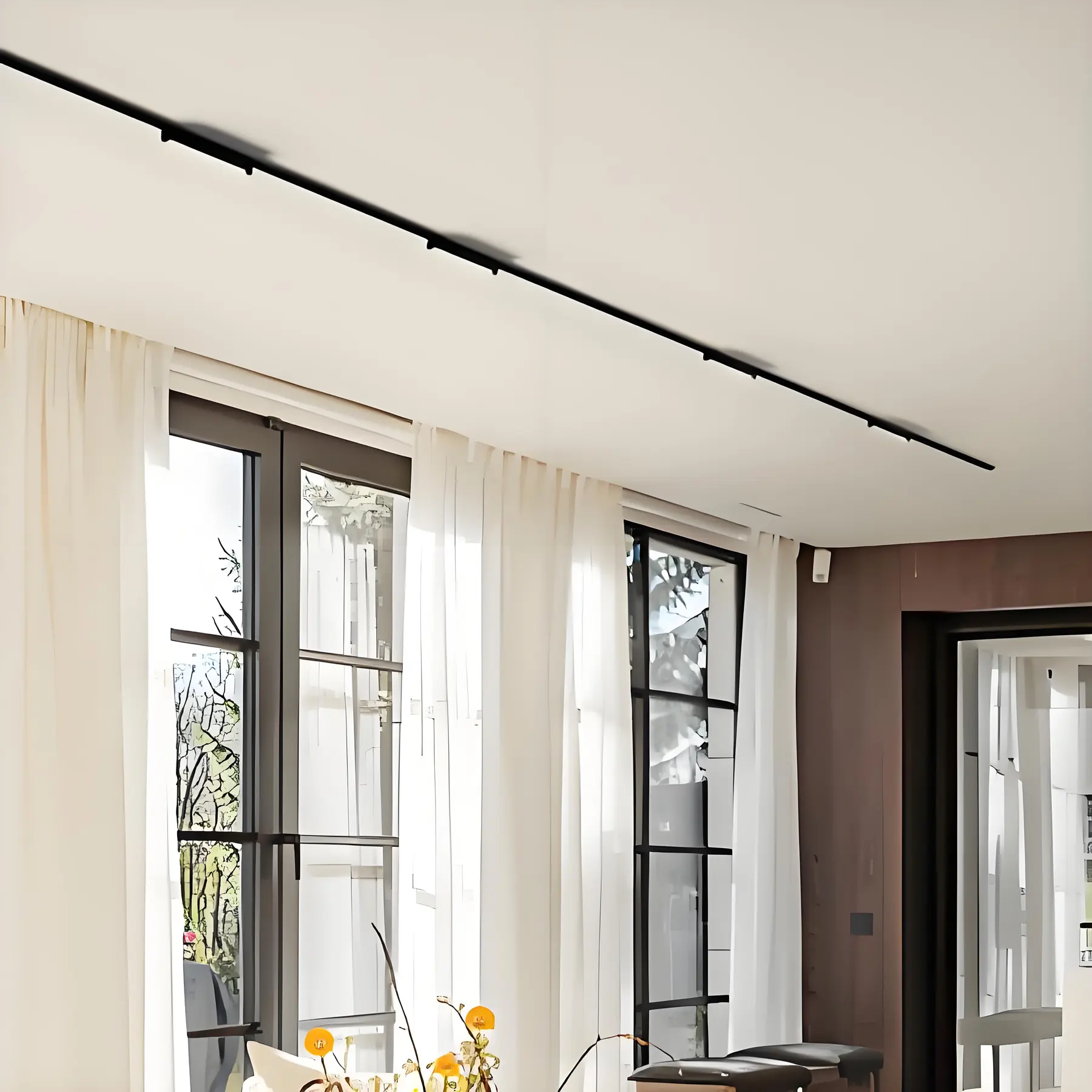

Application Scenarios
- Long retail shelving and display runs
- Open plan office and studio lighting
- Commercial counters and reception areas
- Residential kitchens and living areas needing wider coverage
Technical Features
- 20W linear LED track head
- 1200 lumen output
- CRI above 90
- 2700K to 5000K five-step selectable colour temperature
- 10 to 100 percent TRIAC dimming
- 90 degree adjustable precision aiming with smooth glide on H-type track
- 350 degree horizontal rotation
- Aluminium and glass construction
- 120 to 240 volt input
- Black and white finishes
- ETL certified
- UV and IR free
How It Is Made and Checked
Manufacturing Process
- Linear LED board assembly
- Driver integration
- Anodised and painted finish
- ETL compliant build and test
- Export packing
Quality Control
- Lit and aged before packing
- Colour temperature and beam angle checked against the model specification
- Dimming behaviour tested with a TRIAC dimmer
- Export cartons checked before sealing
Materials
- Aluminium housing
- Glass diffuser
Certifications
- ETL
Customization Options
- Black or white finish
- Private label packaging
- Project quantity cartons
- OEM and ODM programmes
Compared With the Alternatives
| Cylinder track heads | The linear body lights a long shelf evenly while a cylinder head drops a single beam |
|---|---|
| XL04 13.5W head | GDSD12B-3 delivers 1200 lumens against 930 lumens, for areas that need more coverage from fewer fixtures |
| Non certified track heads | ETL certification supports commercial projects that require listed fixtures |
Use Guide
- Confirm the run uses H-type track before ordering the linear head
- Switch off the circuit and glide the head onto the rail
- Select the colour temperature on the fixture
- Set the aim within 90 degrees vertical and 350 degrees horizontal along the shelf
- Use a TRIAC dimmer for 10 to 100 percent output
- Allow the luminaire to cool at least 5 minutes after switch off before handling
Other Models Buyers Compare
5-Color Zoomable LED Track Light XL04
XL04 is a 13.5W H-type LED track head that lets one item cover five colour temperatures and a 24 to 60 degree beam range.
View Product
3-Color Zoomable LED Track Light XL02
XL02 is a 13.5W COB track head for projects that need controlled even light rather than maximum output.
View Product
Commercial LED Track Light LPTRL Series 20W 30W
The LPTRL series is the project specification track light in the X-LUZ range, supplied as LPTRL-20F011 at 20W and LPTRL-30F011 at 30W.
View ProductIndustries Applications and Guides
Retail and Showroom
Track lighting for stores and showrooms where merchandise colour and beam control decide whether a display works.
Read MoreTrack Lighting for a Multi Store Retail Rollout
Keep lighting identical across stores that differ in ceiling height and shelf length, without stocking a separate fixture variant for every colour temperature.
Read MoreHow to Choose LED Track Lighting for Retail
Matching wattage beam angle and colour rendering to the display, and why selectable CCT cuts the number of items a chain has to stock.
Read MoreQuestions About 20W 5-Color Linear LED Track Light GDSD12B-3
Is this fixture certified
Yes. GDSD12B-3 is ETL certified, which is usually the requirement for commercial installations in North America.
How long is the fixture
18.9 inches long, 1.3 inches wide and 2.28 inches high, weighing 3.64 pounds.
Which finishes are available
Black and white are standard. Other finishes can be quoted as an OEM order.
How does it compare with your 13.5W heads
It delivers 1200 lumens against 930 lumens on XL04 and spreads the light along a line rather than in a single beam.
Can I order mixed colour temperatures
Each fixture selects between 2700K 3000K 3500K 4000K and 5000K, so a single order covers every requirement on site.
What packaging do you use for export
Standard export cartons, with private label and project packing available. Ask for carton dimensions and weight for your quantity.
Ask For the 20W 5-Color Linear LED Track Light GDSD12B-3 Quotation
Send your quantity, destination and packing requirement. We reply with price, lead time and the datasheet.
