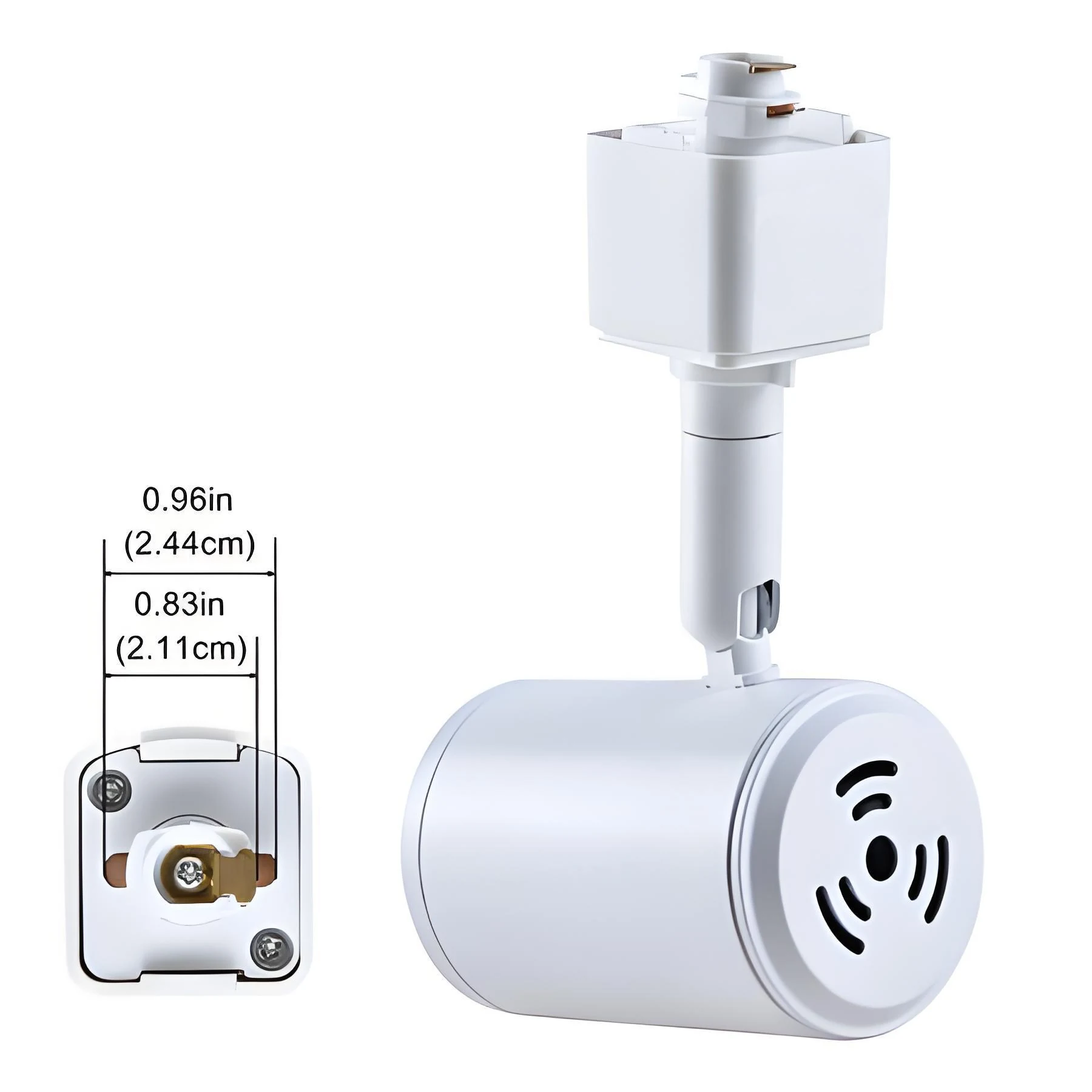

6.5W COB LED Track Light XL01
XL01 is a 6.5W COB track head built for accent and task lighting where the object matters more than the fixture. It replaces a 50W halogen spot, throws a tight 24 degree beam and emits no UV or IR, which is why it is used over artwork, exhibition pieces and wall displays. Two colour temperatures and three pack sizes cover most retail and gallery jobs.
Product Overview
XL01 is a 6.5W COB track head built for accent and task lighting where the object matters more than the fixture. It replaces a 50W halogen spot, throws a tight 24 degree beam and emits no UV or IR, which is why it is used over artwork, exhibition pieces and wall displays. Two colour temperatures and three pack sizes cover most retail and gallery jobs.
Key Benefits
- Replaces a 50W halogen spot at 6.5W with instant on and no warm-up
- 24 degree beam concentrates light on artwork and merchandise instead of spilling onto walls
- No UV and no IR output so pigments and finishes are not degraded by display lighting
- Fits 3-wire single circuit H-type track at universal line voltage
- Supplied in 3 6 or 12 packs so installers can order by the run
Specifications
| Model Number | XL01 |
|---|---|
| Wattage | 6.5 W |
| Luminous Flux | 500 lm |
| Halogen Equivalent | 50 W |
| Beam Angle | 24 degrees |
| Colour Temperature | 3000K or 4000K |
| Voltage | 120 to 240 V |
| Track Type | 3-wire single circuit H-type |
| Material | Metal body with glass shade |
| Finish | White painted |
| Rotation | 350 degrees horizontal and 90 degrees vertical |
| Dimming | Dimmable |
| Packing | 3 pack / 6 pack / 12 pack |
| Use | Indoor only |
| Warranty | 2 years |
Who It Is For
- Gallery and museum lighting contractors
- Retail display specialists
- Distributors replacing halogen track inventory
- Wholesale and OEM buyers building track lighting kits
Problems It Solves
- Halogen heat damaging displayed pieces and adding to the cooling load
- UV and IR fading of artwork under continuous display lighting
- Wide uncontrolled beams that wash the wall instead of lighting the piece
- Mixed inventory when a run needs 3 6 or 12 heads
Application Scenarios
- Artwork and painting lighting in galleries
- Exhibition and museum display cases
- Wall art and accent lighting in hospitality
- Task lighting over work surfaces and counters
Technical Features
- 6.5W integrated COB LED track head
- 500 lumen output per luminaire
- 50W halogen equivalent
- 24 degree beam angle
- 3000K warm white or 4000K neutral white
- Dimmable
- Parabolic aluminized reflector for uniform illumination
- 350 degree horizontal and 90 degree vertical rotation
- Universal line voltage 120 to 240 V
- 3-wire single circuit H-type track compatible
- Metal body with glass shade
- White painted finish
- No UV and no IR
How It Is Made and Checked
Manufacturing Process
- COB LED mounting
- Reflector assembly
- Painted finish
- Lit test and ageing
- Multi-pack packing
Quality Control
- Lit and aged before packing
- Colour temperature and beam angle checked against the model specification
- Dimming behaviour tested with a TRIAC dimmer
- Export cartons checked before sealing
Materials
- Metal housing
- Glass shade
- Parabolic aluminized reflector
Certification Status
We do not list a certificate for this model. Where a project requires listed fixtures we can point you at the models that carry ETL or CE and CB approval.
Customization Options
- 3 6 or 12 unit retail packs
- Wholesale and OEM programmes
- Choice of 3000K or 4000K per order
- Private label cartons
Compared With the Alternatives
| 50W halogen track spot | Same visual output at 6.5W with instant on and no UV or IR falling on the displayed piece |
|---|---|
| XL02 COB track head | XL01 is the lower wattage 24 degree accent head while XL02 steps up to 13.5W with three selectable colour temperatures |
| Wide beam downlights | The 24 degree optic puts light on the object rather than the surrounding wall |
Use Guide
- Confirm your track is a 3-wire single circuit H-type system
- Install in four steps using the supplied adaptor
- Choose 3000K for warm interiors or 4000K for neutral display areas at order stage

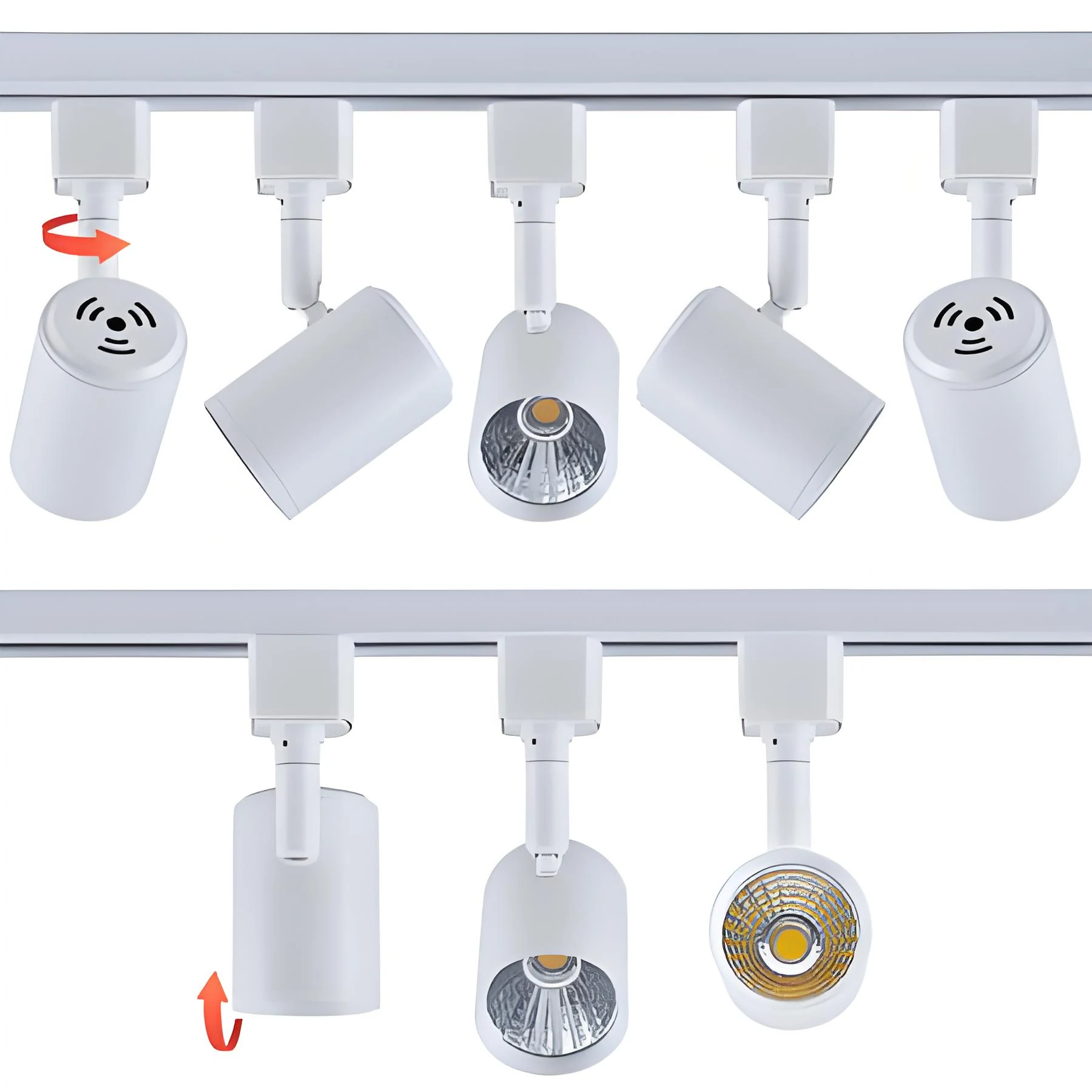

- Aim with 350 degree horizontal and 90 degree vertical rotation
- Allow at least 5 minutes cool down after switching off before touching the luminaire
Other Models Buyers Compare
3-Color Zoomable LED Track Light XL02
XL02 is a 13.5W COB track head for projects that need controlled even light rather than maximum output.
View Product
5-Color Zoomable Indoor Spot Light X0009-01B-3
X0009-01B-3 is a 10W directional ceiling spotlight with a 15 to 45 degree zoom, which is a tighter range than a track head and better suited to picking out a single object.
View Product
Commercial LED Track Light LPTRL Series 20W 30W
The LPTRL series is the project specification track light in the X-LUZ range, supplied as LPTRL-20F011 at 20W and LPTRL-30F011 at 30W.
View ProductIndustries Applications and Guides
Retail and Showroom
Track lighting for stores and showrooms where merchandise colour and beam control decide whether a display works.
Read MoreAccent Lighting for a Gallery Rehang
Light individual pieces tightly, without UV or IR on the works, using fixtures that can be re-aimed by the install crew rather than an electrician.
Read MoreHow to Choose LED Track Lighting for Retail
Matching wattage beam angle and colour rendering to the display, and why selectable CCT cuts the number of items a chain has to stock.
Read MoreQuestions About 6.5W COB LED Track Light XL01
Is it safe over paintings and artwork
Yes. XL01 emits no UV and no IR, which is why it is specified as accent and task lighting for artworks.
What halogen lamp does it replace
It is rated as a 50W halogen equivalent while drawing 6.5W and delivering 500 lumens per luminaire.
Which colour temperatures are available
Warm white 3000K and neutral white 4000K. Specify the mix per carton when you place the order.
Do you sell in bulk packs
Yes. Standard packing is 3 pack 6 pack or 12 pack, and wholesale and OEM orders are supported.
Can I get my own brand on the product
Yes. XL01 supports wholesale and OEM. Send your logo and packaging requirement with your target quantity.
Is it dimmable
Yes, the luminaire is dimmable. Confirm your dimmer model with us before ordering so we can check compatibility.
Ask For the 6.5W COB LED Track Light XL01 Quotation
Send your quantity, destination and packing requirement. We reply with price, lead time and the datasheet.
