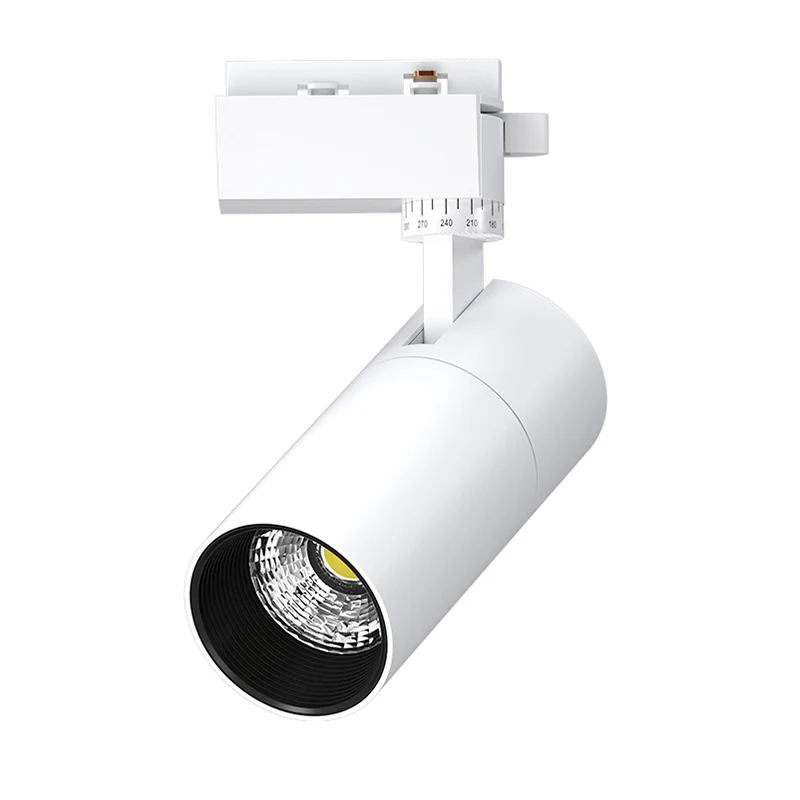

Commercial LED Track Light LPTRL Series 20W 30W
The LPTRL series is the project specification track light in the X-LUZ range, supplied as LPTRL-20F011 at 20W and LPTRL-30F011 at 30W. It is the version specifiers ask for when a tender requires CE and CB certification, a stated 50000 hour rated life and IES photometric files for lighting calculations.
Product Overview
The LPTRL series is the project specification track light in the X-LUZ range, supplied as LPTRL-20F011 at 20W and LPTRL-30F011 at 30W. It is the version specifiers ask for when a tender requires CE and CB certification, a stated 50000 hour rated life and IES photometric files for lighting calculations.
Key Benefits
- CE and CB certified for projects that require documented compliance
- IES files available so lighting designers can run calculations before the order
- 50000 hour rated life reduces relamping in high ceiling commercial spaces
- Two wattage steps at 20W and 30W from a single housing platform
- Adjustable colour temperature available as an option on the series
Specifications
| Model Numbers | LPTRL-20F011 / LPTRL-30F011 |
|---|---|
| Wattage | 20 W / 30 W |
| Certification | CE, CB |
| Ingress Protection | IP20 |
| Rated Life | 50000 h |
| Colour Temperature | 2700K / 4000K / 6500K |
| CCT Adjustable | Available |
| Material | Aluminium |
| Photometric Data | IES files available |
| Use | Indoor only |
Who It Is For
- Lighting designers who need IES data before specifying
- Project contractors bidding jobs that require CE and CB documents
- Distributors serving European and CB scheme markets
- Buyers standardising on one housing across two wattages
Problems It Solves
- Tenders rejected because photometric files or certificates are missing
- Uncertain lifetime claims on unlisted fixtures
- Two separate housings needed when a project mixes 20W and 30W positions
- Colour temperature locked at order stage when the design is still changing
Application Scenarios
- Commercial retail projects under tender specification
- Showroom and exhibition lighting
- Shopping centre and chain store rollouts
- Indoor commercial spaces needing documented photometrics
Technical Features
- 20W and 30W versions
- CE and CB certified
- IP20 rated for indoor use
- 50000 hour rated life
- 2700K 4000K and 6500K colour temperatures
- CCT adjustable version available
- Aluminium housing
- IES photometric files available
- Model references LPTRL-20F011 and LPTRL-30F011
How It Is Made and Checked
Manufacturing Process
- LED module assembly
- Driver integration
- Photometric measurement and IES file generation
- CE and CB compliant production
- Lit test and export packing
Quality Control
- Lit and aged before packing
- Colour temperature and beam angle checked against the model specification
- Dimming behaviour tested with a TRIAC dimmer
- Export cartons checked before sealing
Materials
- Aluminium housing
Certifications
- CE
- CB
Customization Options
- 20W or 30W selection
- CCT adjustable option
- Project specific packaging
- OEM and ODM programmes
Compared With the Alternatives
| Retail track heads | LPTRL is the project grade option with CE and CB certificates and IES files for lighting calculations |
|---|---|
| GDSD12B-3 linear head | LPTRL is specified by wattage and photometrics for tenders while the linear head targets shelf and counter runs |
| Uncertified imports | Documented certification and a stated 50000 hour rated life support compliance in specified projects |
Use Guide
- Request the IES file for the wattage you plan to specify
- Confirm whether the project needs fixed or adjustable colour temperature
- Check that the IP20 rating suits the installation, which must be indoors and dry
- Choose between LPTRL-20F011 and LPTRL-30F011 by required output per position
- Ask for the CE and CB certificates to attach to the tender submission
Other Models Buyers Compare
20W 5-Color Linear LED Track Light GDSD12B-3
GDSD12B-3 is the high output head in the range, a 20W linear bar that delivers 1200 lumens with CRI above 90.
View Product
5-Color Zoomable LED Track Light XL04
XL04 is a 13.5W H-type LED track head that lets one item cover five colour temperatures and a 24 to 60 degree beam range.
View Product
6.5W COB LED Track Light XL01
XL01 is a 6.5W COB track head built for accent and task lighting where the object matters more than the fixture.
View ProductIndustries Applications and Guides
Retail and Showroom
Track lighting for stores and showrooms where merchandise colour and beam control decide whether a display works.
Read MoreHow to Choose LED Track Lighting for Retail
Matching wattage beam angle and colour rendering to the display, and why selectable CCT cuts the number of items a chain has to stock.
Read MoreQuestions About Commercial LED Track Light LPTRL Series 20W 30W
Which certifications do you hold for this series
The LPTRL series is CE and CB certified. We can send the certificates for your tender file.
Can you provide IES files
Yes. IES photometric files are available for the series so your designer can run calculations before ordering.
What is the rated life
50000 hours as stated for the series.
What is the IP rating
IP20, which means the fixture is for indoor dry locations only.
Is adjustable colour temperature available
Yes. CCT adjustable is available on the series alongside fixed 2700K 4000K and 6500K options.
What is the difference between LPTRL-20F011 and LPTRL-30F011
The wattage. The first is 20W and the second is 30W on the same aluminium housing platform.
Ask For the Commercial LED Track Light LPTRL Series 20W 30W Quotation
Send your quantity, destination and packing requirement. We reply with price, lead time and the datasheet.
