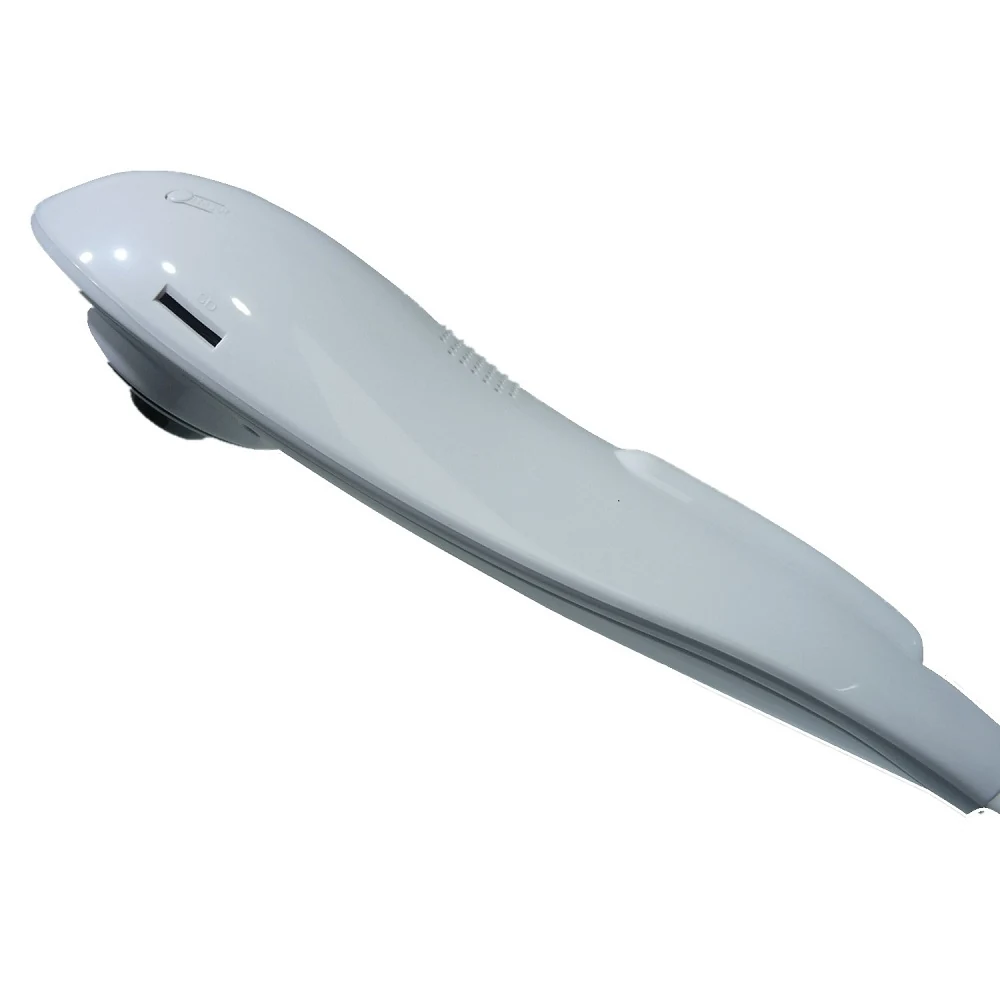

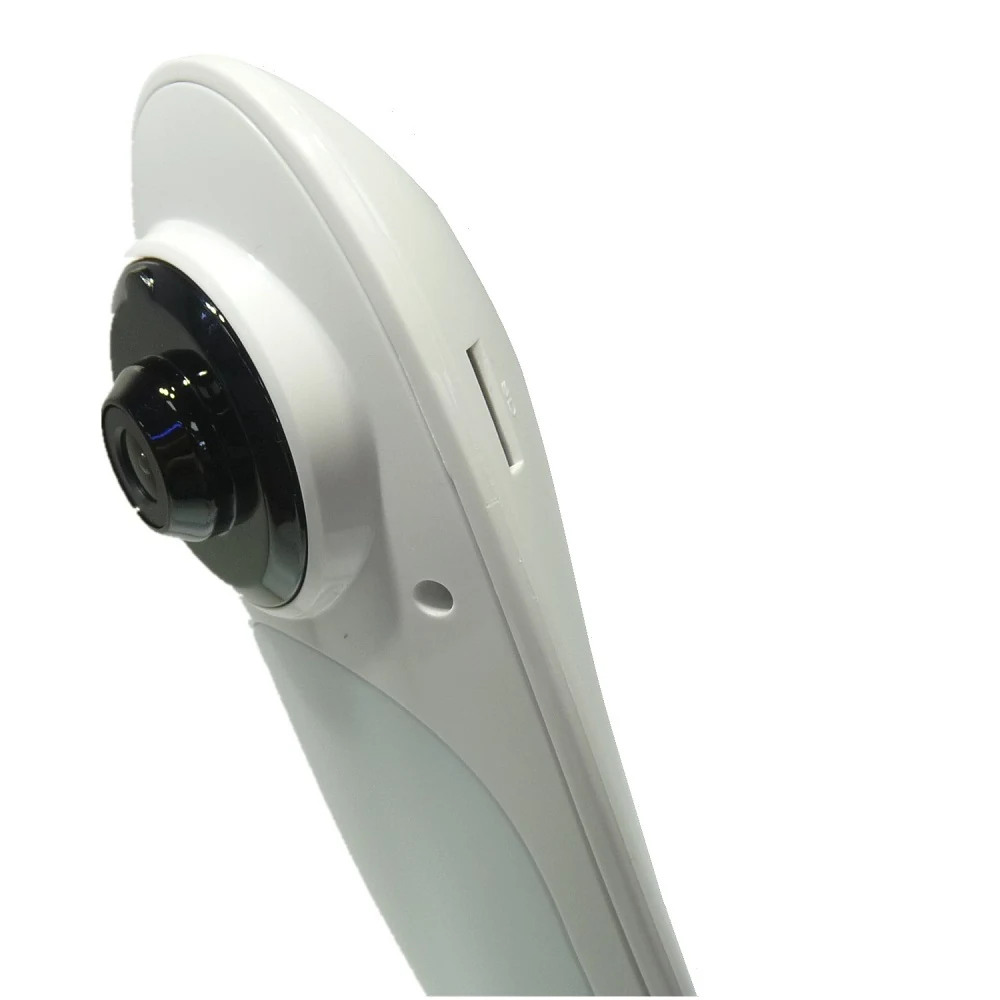

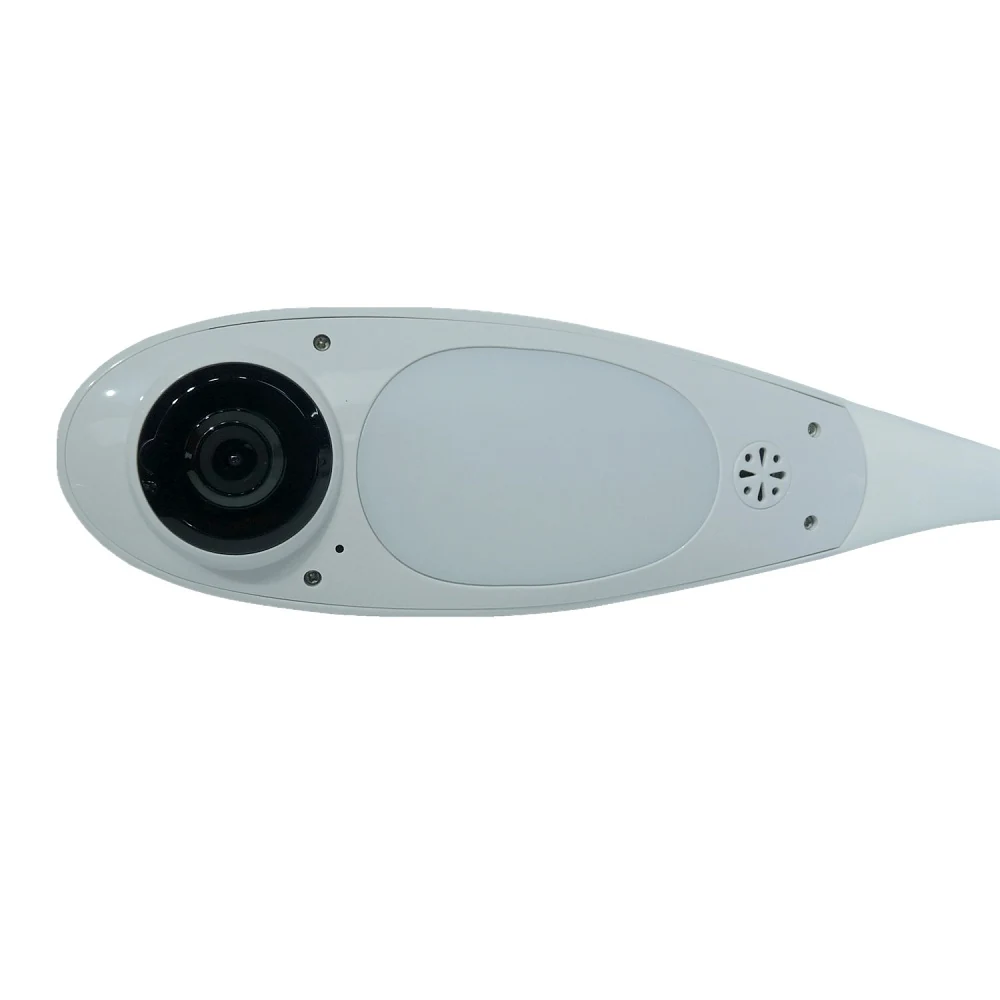

WiFi Table Lamp Baby Monitor WF-720TLC
A table lamp baby monitor with a 1/4 inch CMOS sensor and a 3.6mm F1.6 wide angle lens, recording 720P or VGA in H.264 to a micro SD card up to 64GB. Infrared night vision reaches three to eight metres depending on the room. It is meant to be seen.
- A lamp is welcome in a nursery in a way a camera housing is not
- F1.6 aperture gathers more light than the narrower lenses in this class
- Three to eight metres of infrared night vision for a darkened room
- H.264 to a 64GB card alongside live app viewing
One year warranty · PayPal, T/T or Western Union · DHL, UPS, FedEx or EMS
Who It Is For
- Parents and carers monitoring a sleeping child
- Care settings operating openly and with consent
- Distributors supplying the baby and nursery channel
Problems It Solves
- A conventional monitor is another device on a crowded shelf
- Narrow aperture lenses produce noisy footage in a dim room
- Cloud only monitors leave nothing behind if the network drops
Application Scenarios
- A nursery where a bedside lamp is wanted anyway
- A child's room monitored openly by the household
- A care setting with the resident's or family's consent
- A hallway outside a bedroom door
Specifications
WF-720TLC Technical Data
Taken from the factory specification sheet. Anything the sheet does not state is left out rather than estimated, and the FAQ below says which figures are still being confirmed.
| Image sensor | 1/4 inch CMOS sensor |
|---|---|
| Image Resolution | 720P/VGA |
| Lens | 3.6mm Wide angle F1.6 |
| Day and night | IR-cut |
| Night vision | IR irradiation distance:3-8m（Varies by environment） |
| Encode format | H.264 |
| Audio In | 1 Channel Internal MIC |
| Audio Out | 1 Channel Internal speaker(８Ω0.25Ｗ) |
| Wi-Fi | WiFi802.11b/g/n |
| Rotate | Automatic cruise |
| Memory | support max64GB Micro SD card |
| Rated voltage | DC5±0.3V |
| Power consumption | Typical:3.5Ｗ(IR LED turn on)/Max:7W |
| Operating condition | Temperature:-10～50°C,humidity<90% |

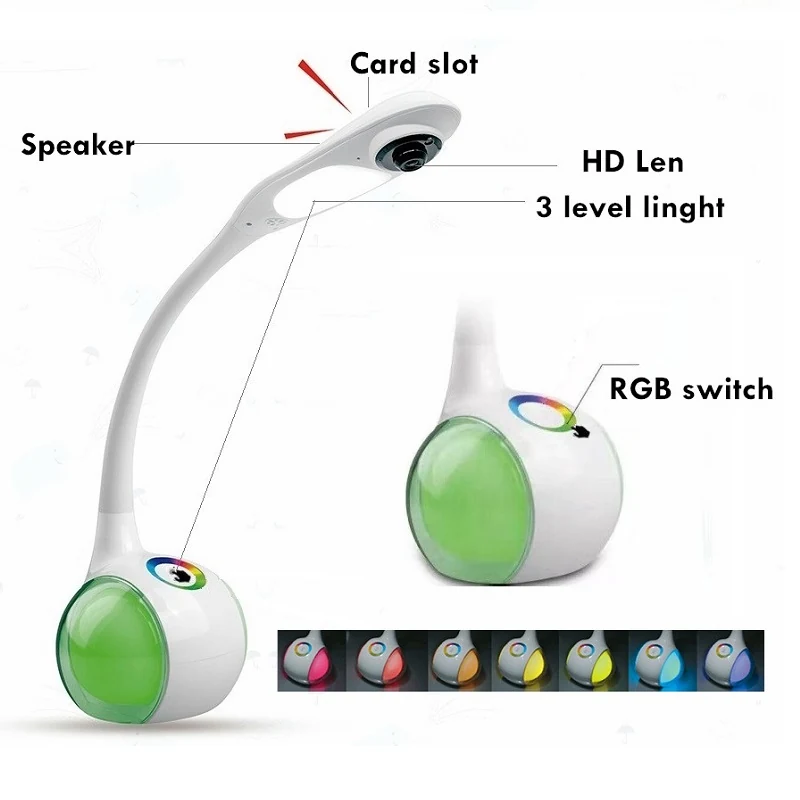

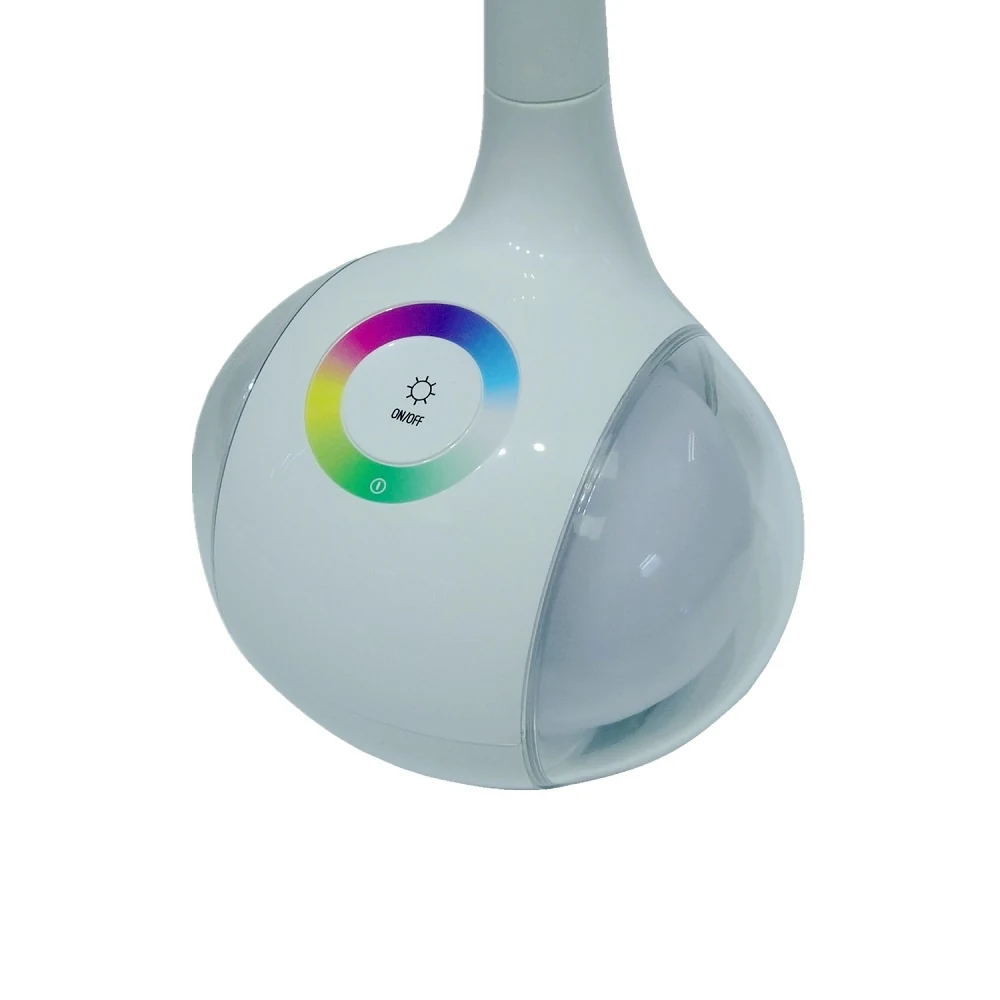

| RGB Switch | 7 colors atmosphere |
| Light | Three Level light |
Comparison
How It Differs From The Closest Alternatives
Compared With The WF-720MDC monkey doll monitor
Same sensor, resolution and night vision in a soft toy body with a wider 1.44mm lens. Choose on where it will sit.
Compared With The WF-1080ULC desk lamp
The WF-1080ULC is 1080P with a concealed pinhole and 128GB support, for offices rather than nurseries.
Use Guide
Getting The Unit Into Service
- Charge or connect power first. Battery models should be fully charged before the first placement; mains models simply run from the socket.
- Fit a micro SD card within the stated limit. Fitting a card larger than the model supports will not work, and cards are not supplied unless the specification says otherwise.
- Place for the lens, then check the frame. Set the unit where it needs to see, record a short test clip and review it before leaving it in position.
- Check the legal position before use. Recording rules differ by country and by room, and audio is usually regulated more tightly than video.
Customisation
OEM And ODM Options
- Housing printing with your own logo and artwork
- Printed manual and insert in your own wording
- Retail packaging produced to your artwork
- Plug type, colour and card capacity variations where the model allows
Related Products
Other Models Buyers Compare With This One
WiFi Hidden Cameras
WiFi USB Desk Lamp Camera WF-1080ULC
128GB card support, the highest capacity the catalogue offers
WF-1080ULC
Specifications
Smart Home Security Cameras
360 Panoramic Ceiling WiFi Camera WF-360MOC
185 degree fisheye covers an entire room from one ceiling position
WF-360MOC
Specifications
Smart Home Security Cameras
360 Panoramic Bulb Camera E27 WF-360BUB
Screws into an existing E27 holder, so no wiring and no bracket
WF-360BUB
Specifications
Guides About This Kind Of Camera
Design Guide
Lens View Angle Guide For Covert Cameras
From a 50 degree pen to a 185 degree ceiling fisheye. How to pick a view angle for the room rather than for the specification sheet.
Installation Guide
WiFi Camera App Setup And P2P Connection Guide
How the WiFi models pair, what P2P and QR code setup actually do, and the three things that cause most failed connections.
Industries Buying This Model
Security Product Distributors
One Supplier Covering A Whole Covert Camera Catalogue
Property Managers And Short Stay Hosts
Check An Unoccupied Property Without Driving To It
Logistics And Warehouse Operators
Cover A Loading Bay Or An Aisle Without Running Cable
Lawful Use Only
WOWLIVE products are supplied for lawful security and property protection. Laws on recording people, and on recording audio in particular, differ between countries and between rooms in the same building. Recording in places where people reasonably expect privacy, such as bathrooms, changing rooms and bedrooms that are not your own, is a criminal offence in most jurisdictions. Buyers and resellers are responsible for checking the rules that apply where the goods are used and sold, including any import, notification and signage requirements. We will not supply orders intended for unlawful surveillance.
Questions
WF-720TLC Questions
Is this camera concealed?
No. It is a visible monitor and should be used openly.
What resolution does it record?
720P or VGA, encoded in H.264.
How far does the night vision reach?
Three to eight metres depending on the room.
Does the lamp work?
Yes, it is a functioning table lamp.
Get Pricing On The WF-720TLC
Send us the quantity and destination country for the WiFi Table Lamp Baby Monitor WF-720TLC and we will come back with a price, a lead time and a shipping option.
