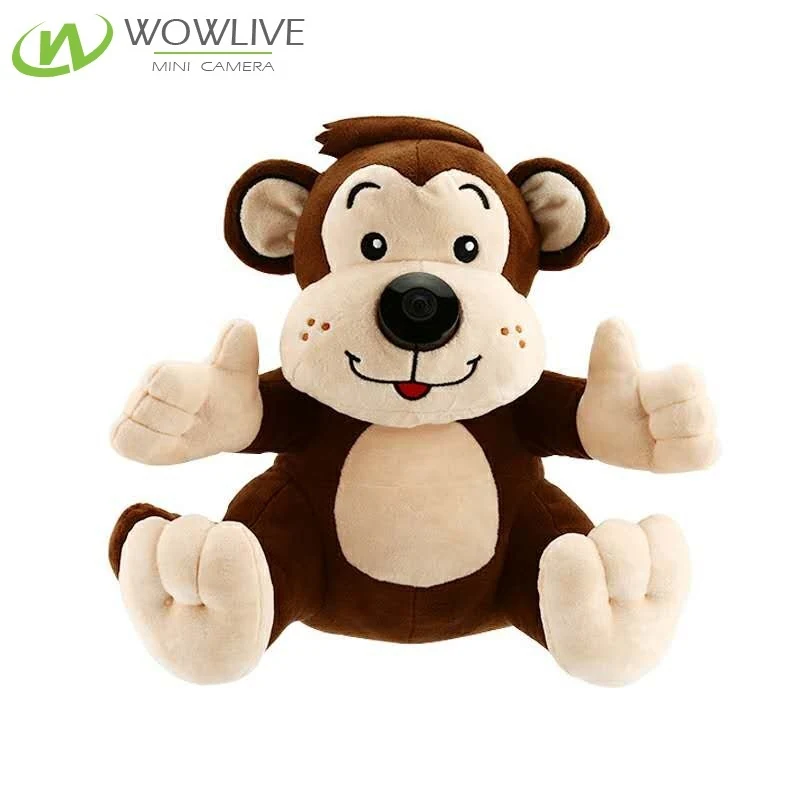

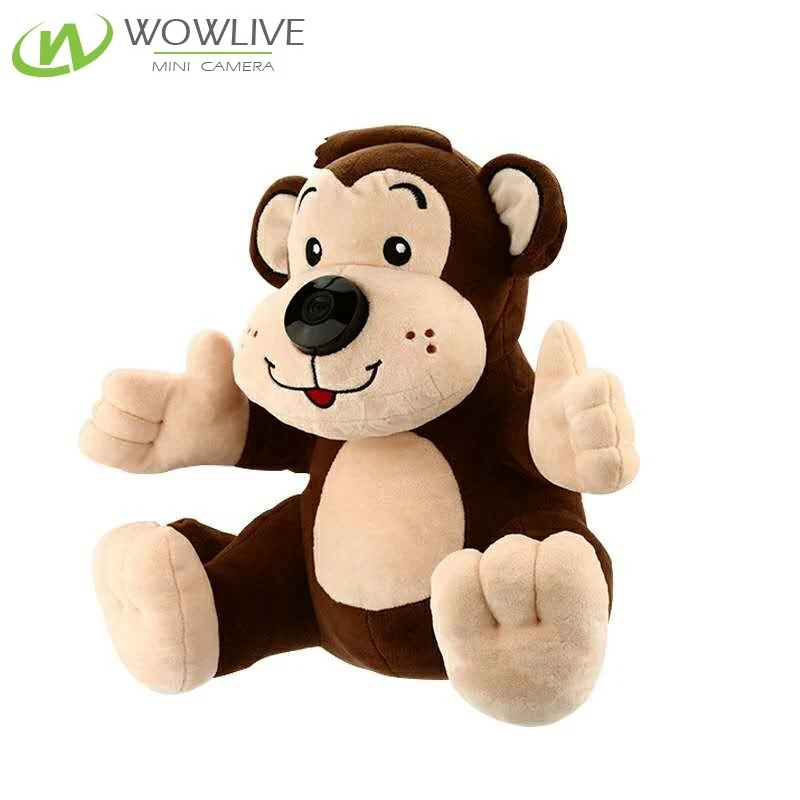

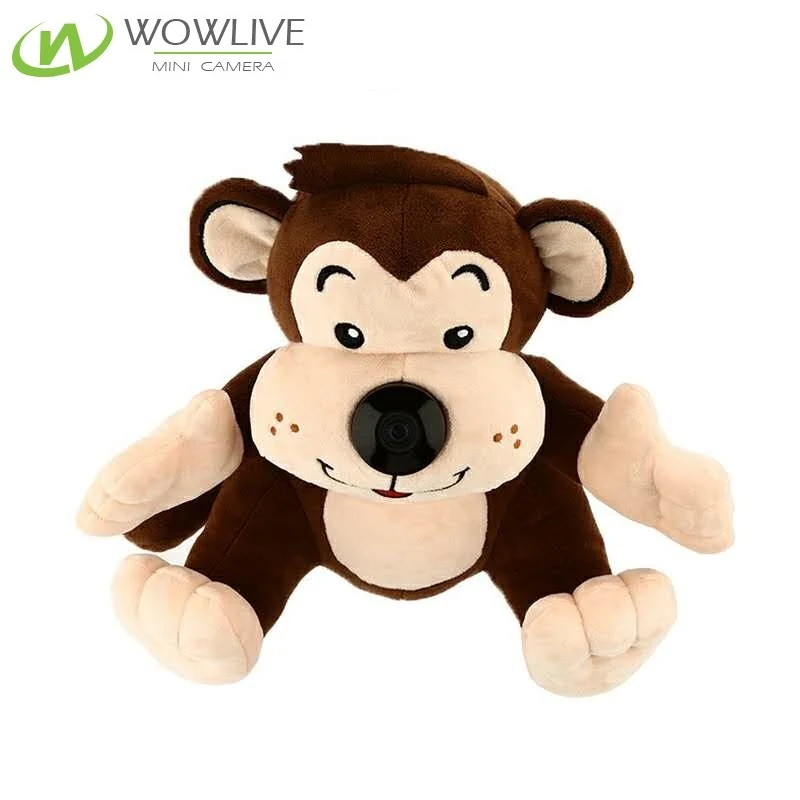

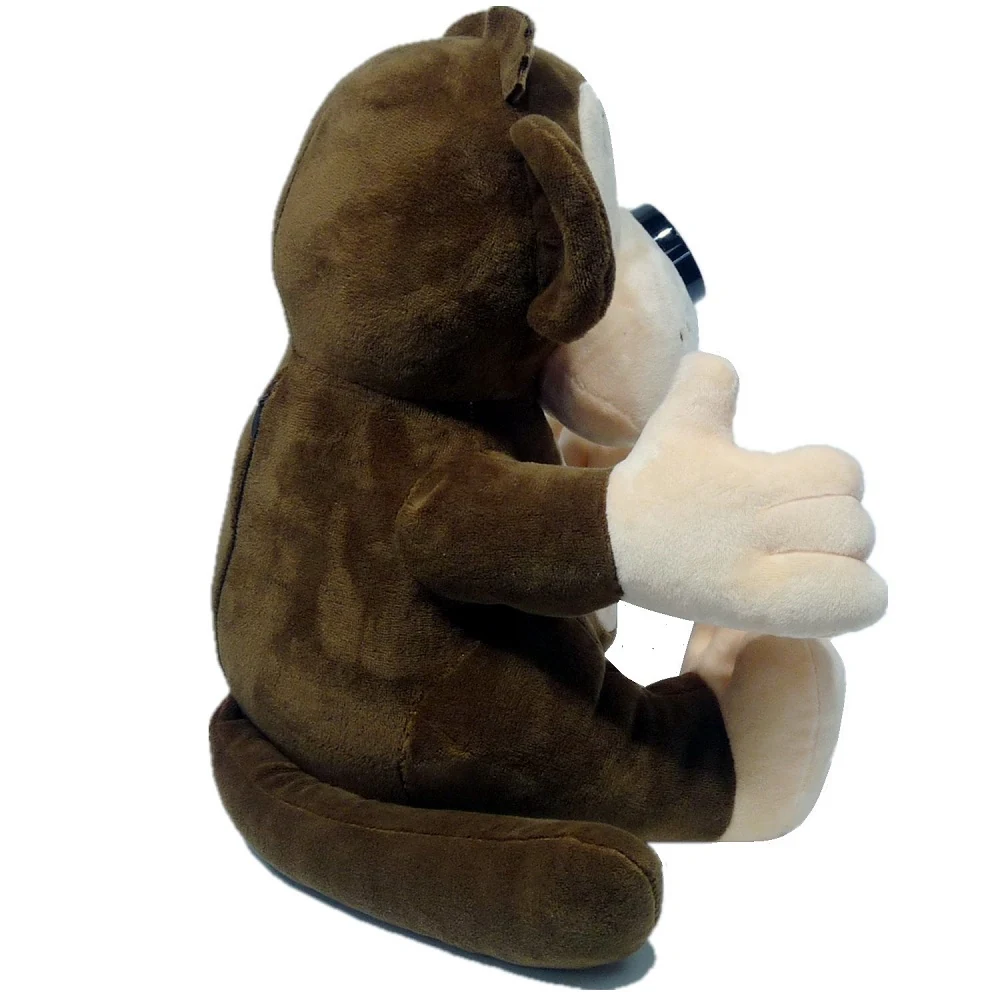

WiFi Monkey Doll Baby Monitor WF-720MDC
A soft toy baby monitor on the same 1/4 inch CMOS platform as the table lamp version, with a wider 1.44mm F1.6 lens. 720P or VGA in H.264 to a card up to 64GB, with three to eight metres of infrared night vision and two way audio.
- 1.44mm lens, wider than the lamp version, so a whole cot is in frame
- A soft toy belongs in a cot in a way that no camera housing does
- Three to eight metres of infrared for a darkened nursery
- Two way audio so a parent can be heard from another room
One year warranty · PayPal, T/T or Western Union · DHL, UPS, FedEx or EMS
Who It Is For
- Parents monitoring a cot or a small bedroom
- Grandparents and carers wanting a simple, visible monitor
- Distributors supplying the nursery and gift channel
Problems It Solves
- A narrow lens on a cot side monitor misses half the cot
- Hard plastic monitors are not safe or welcome inside a cot area
- Audio only monitors give no picture when a child is quiet but awake
Application Scenarios
- A cot or nursery monitored openly by the household
- A playroom during the day
- A grandparent's home for occasional visits
- A child's bedroom at night with the family's knowledge
Specifications
WF-720MDC Technical Data
Taken from the factory specification sheet. Anything the sheet does not state is left out rather than estimated, and the FAQ below says which figures are still being confirmed.
| Image sensor | 1/4 inch CMOS sensor |
|---|---|
| Image Resolution | 720P/VGA |
| Lens | 1.44mm Wide angle F1.6 |
| Day and night | IR-cut |
| Night vision | IR irradiation distance:3-8m（Varies by environment） |
| Encode format | H.264 |
| Audio In | 1 Channel Internal MIC |
| Audio Out | 1 Channel Internal speaker(８Ω0.25Ｗ) |
| Wi-Fi | WiFi802.11b/g/n |
| Rotate | Automatic cruise |
| Memory | support max64GB Micro SD card |
| Rated voltage | DC5±0.3V |
| Power consumption | Typical:3.5Ｗ(IR LED turn on)/Max:7W |
| Operating condition | Temperature:-10～50°C,humidity<90% |
Comparison
How It Differs From The Closest Alternatives
Compared With The WF-720TLC table lamp monitor
Same sensor and night vision. The lamp uses a 3.6mm lens and sits on a shelf; the doll uses 1.44mm and sits nearer the cot.
Compared With The WF-360MOC ceiling camera
The ceiling camera covers a whole room but has to be mounted overhead.
Use Guide
Getting The Unit Into Service

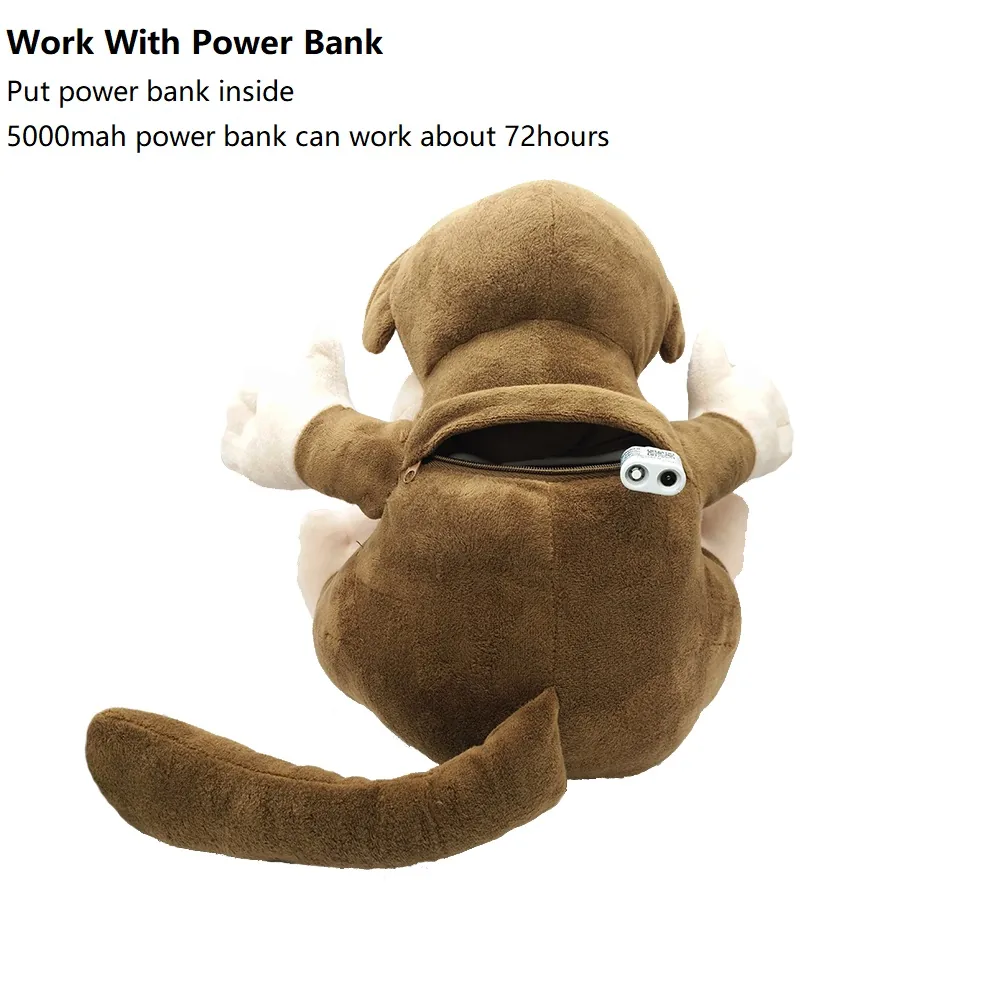

- Charge or connect power first. Battery models should be fully charged before the first placement; mains models simply run from the socket.
- Fit a micro SD card within the stated limit. Fitting a card larger than the model supports will not work, and cards are not supplied unless the specification says otherwise.
- Place for the lens, then check the frame. Set the unit where it needs to see, record a short test clip and review it before leaving it in position.
- Check the legal position before use. Recording rules differ by country and by room, and audio is usually regulated more tightly than video.
Customisation
OEM And ODM Options
- Housing printing with your own logo and artwork
- Printed manual and insert in your own wording
- Retail packaging produced to your artwork
- Plug type, colour and card capacity variations where the model allows
Related Products
Other Models Buyers Compare With This One
Smart Home Security Cameras
360 Panoramic Ceiling WiFi Camera WF-360MOC
185 degree fisheye covers an entire room from one ceiling position
WF-360MOC
Specifications
Smart Home Security Cameras
360 Panoramic Bulb Camera E27 WF-360BUB
Screws into an existing E27 holder, so no wiring and no bracket
WF-360BUB
Specifications
Smart Home Security Cameras
360 Panoramic Bulb Camera B22 WF-360BUC
Fits markets that use a bayonet rather than a screw lamp base
WF-360BUC
Specifications
Guides About This Kind Of Camera
Design Guide
Lens View Angle Guide For Covert Cameras
From a 50 degree pen to a 185 degree ceiling fisheye. How to pick a view angle for the room rather than for the specification sheet.
Installation Guide
WiFi Camera App Setup And P2P Connection Guide
How the WiFi models pair, what P2P and QR code setup actually do, and the three things that cause most failed connections.
Industries Buying This Model
Security Product Distributors
One Supplier Covering A Whole Covert Camera Catalogue
Property Managers And Short Stay Hosts
Check An Unoccupied Property Without Driving To It
Logistics And Warehouse Operators
Cover A Loading Bay Or An Aisle Without Running Cable
Lawful Use Only
WOWLIVE products are supplied for lawful security and property protection. Laws on recording people, and on recording audio in particular, differ between countries and between rooms in the same building. Recording in places where people reasonably expect privacy, such as bathrooms, changing rooms and bedrooms that are not your own, is a criminal offence in most jurisdictions. Buyers and resellers are responsible for checking the rules that apply where the goods are used and sold, including any import, notification and signage requirements. We will not supply orders intended for unlawful surveillance.
Questions
WF-720MDC Questions
Is it safe inside a cot?
Follow the same guidance you would for any toy and keep cables outside the cot. Place it beside the cot rather than in it.
What is the lens?
1.44mm wide angle at F1.6 on a 1/4 inch CMOS sensor.
Does it do two way audio?
Yes.
What card size does it take?
Micro SD up to 64GB.
Get Pricing On The WF-720MDC
Send us the quantity and destination country for the WiFi Monkey Doll Baby Monitor WF-720MDC and we will come back with a price, a lead time and a shipping option.
