Smart Home Security Cameras
360 Panoramic Bulb Camera B22 WF-360BUC
Fits markets that use a bayonet rather than a screw lamp base
WF-360BUC
Specifications
Smart Home Security Cameras · WF-360BUB

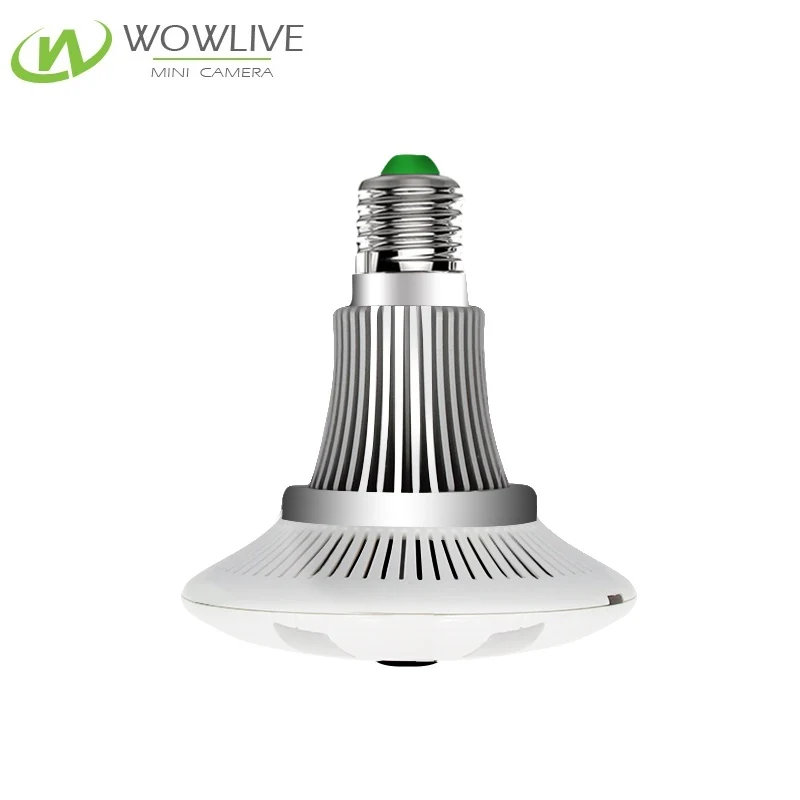

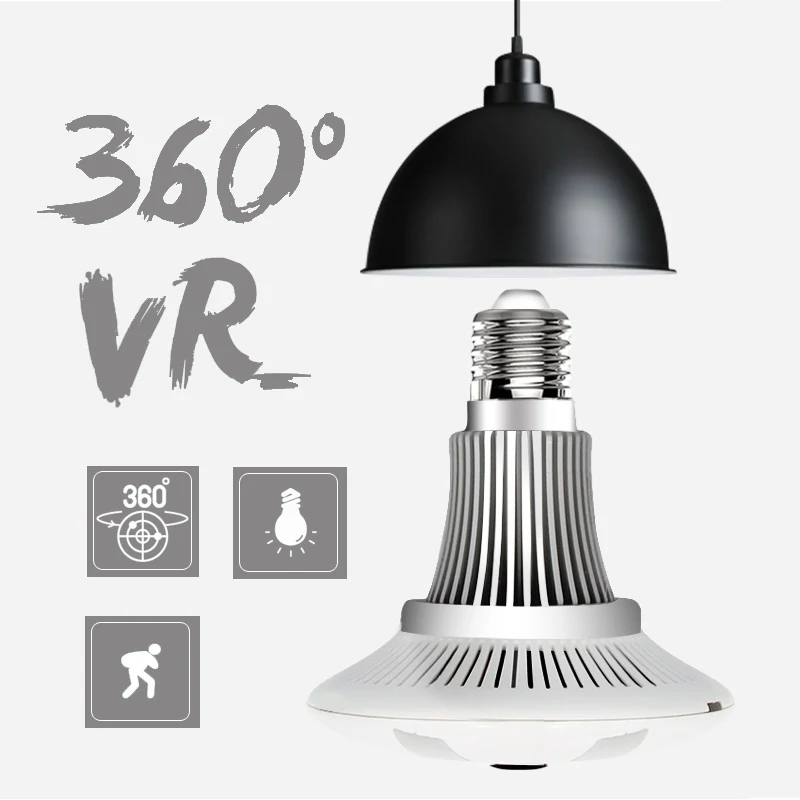

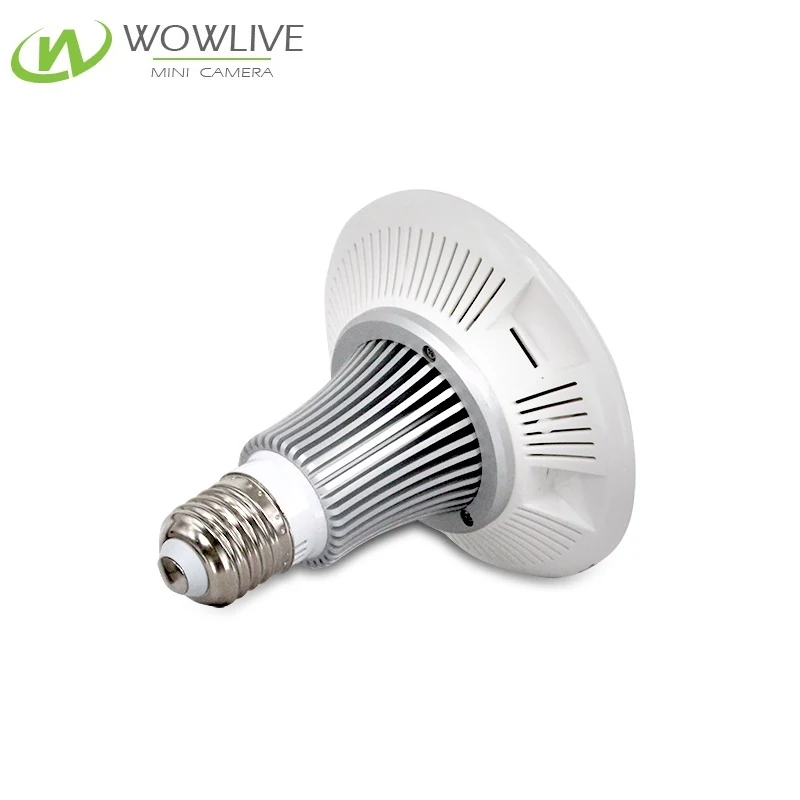

360 Panoramic Bulb Camera E27 WF-360BUB

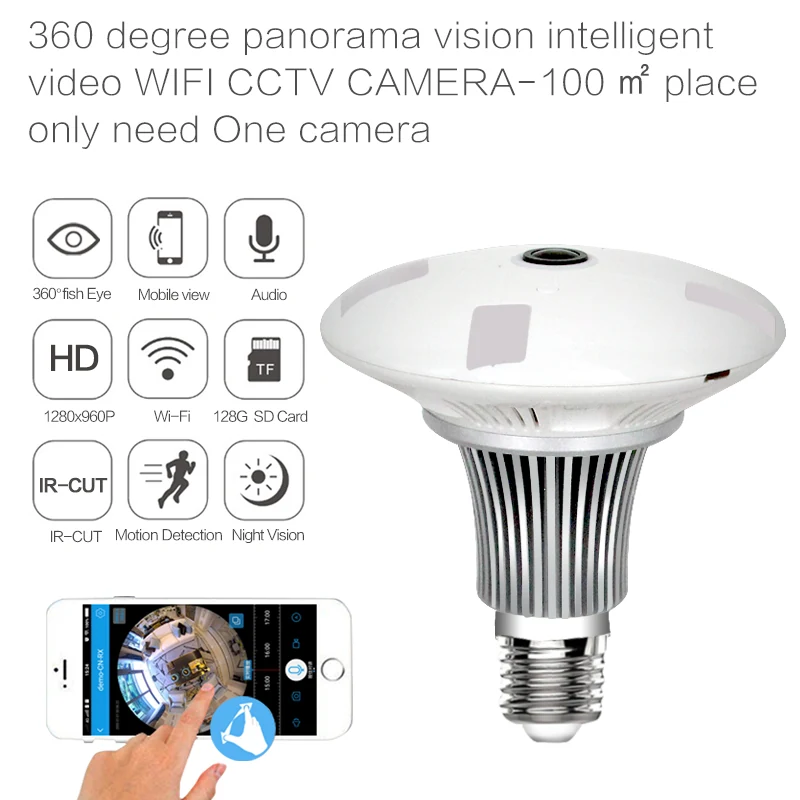

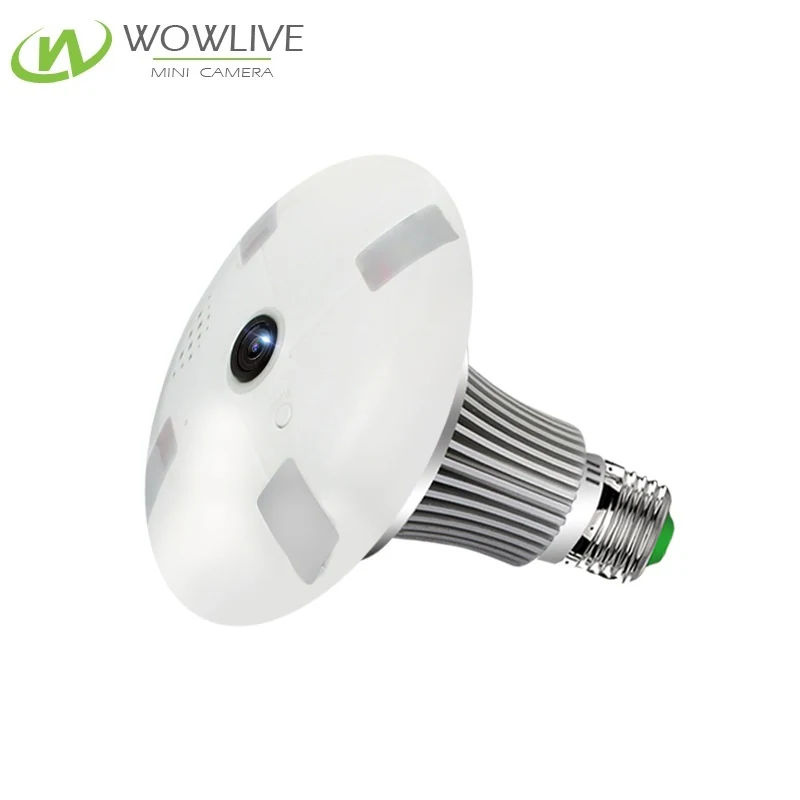

A 360 degree fisheye camera in a bulb body for an E27 holder, using a 1.44mm lens on a 1/3 inch progressive scan CMOS at 1280x960 and up to 25fps. It draws permanent power from the lamp holder, so it never needs charging. Indoor use, 138g net, 7.0 x 7.0 x 12.5cm.
- Screws into an existing E27 holder, so no wiring and no bracket
- Permanent mains power from the fitting, with nothing to recharge

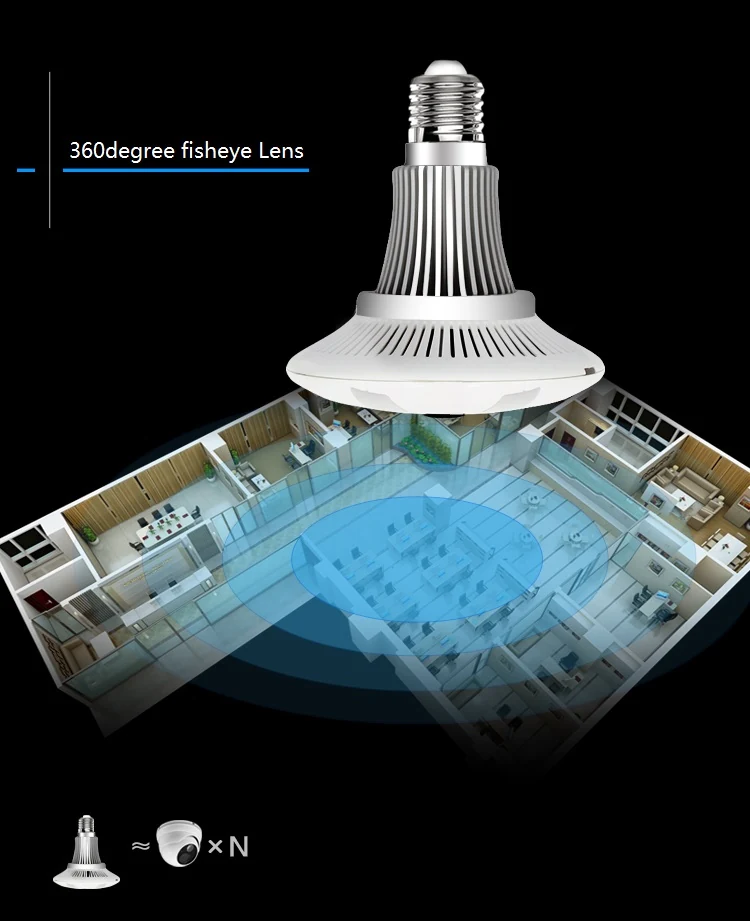

- 360 degree fisheye covers the whole room from the ceiling
- 802.11b/g/n WiFi with app based viewing
One year warranty · PayPal, T/T or Western Union · DHL, UPS, FedEx or EMS
Who It Is For
- Homes and landlords using a ceiling rose as the only power point
- Small shops and offices with no cabling budget
- Distributors supplying markets on E27 fittings
Problems It Solves
- Most rooms have a ceiling light but no ceiling power outlet for a camera
- Battery cameras in ceiling positions are hard to reach for recharging
- Corner cameras leave the area directly below them uncovered
Application Scenarios
- A hallway or landing with a pendant fitting
- A shop floor covered from a central ceiling rose
- A stairwell where running cable is impractical
- A garage or utility room with a single bulb holder
Specifications
WF-360BUB Technical Data
Taken from the factory specification sheet. Anything the sheet does not state is left out rather than estimated, and the FAQ below says which figures are still being confirmed.
| Image sensor | 1/3 Progressive Scan CMOS |
|---|---|
| Built in lens | 1.44mm,360 deg fisheye lens |
| View Angle | 360 deg |
| Video format | 1280*960P(1.3MP) |
| Video compression standard | H.264 |
| Audio compression standard | G.711 |
| Video frame rate | Maximum 25 frames |
| Video playback mode | Mobile client |
| Audio input and output | Input: built in microphone; output: built-in speaker |
| Illumination | 3pcs 1W White LED |
| Focus Mode | Manual |
| Local storage | TF card, maximum support 128G |
| Support multiple protocols | TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP |
| WiFi protocol | IEEE 802.11b/g/n |
| Video control | Support |
| Motion detection | Support |
| Alarm action | Mobile client push screenshot |
| User settings | Max share to 5 users |
| System interface | E27（Europe），TF interface |
| Supply voltage | AC 100～240V |
| Working temperature | 0°C -60°C |
| Applicaton | indoor |
| Product size | 7.0*7.0*12.5CM |
| Packing size | 14*16.5*7.8CM |
| Net weight | 138g |
| G.W. weight | 434g |
| Carton size： | 70*35*43.5CM（50pcs/Carton） |
| Gross weight： | 22.7Kg |

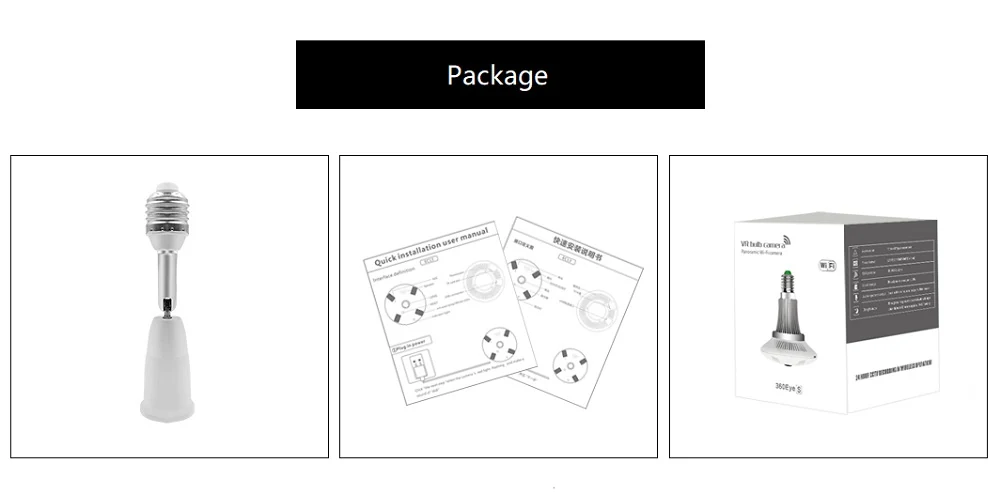

| Packaging and accessories | 1 Color box |
Comparison
How It Differs From The Closest Alternatives
Compared With The WF-360BUC bulb camera
Same optics, sensor and body. The WF-360BUC is supplied for a different lamp base, so order against the fitting used in your market.
Compared With The WF-360MOC ceiling camera
The WF-360MOC is a dedicated ceiling fitting with a wider 185 degree lens and two way audio.
Use Guide
Getting The Unit Into Service
- Charge or connect power first. Battery models should be fully charged before the first placement; mains models simply run from the socket.
- Fit a micro SD card within the stated limit. Fitting a card larger than the model supports will not work, and cards are not supplied unless the specification says otherwise.
- Place for the lens, then check the frame. Set the unit where it needs to see, record a short test clip and review it before leaving it in position.
- Check the legal position before use. Recording rules differ by country and by room, and audio is usually regulated more tightly than video.
Customisation
OEM And ODM Options
- Housing printing with your own logo and artwork
- Printed manual and insert in your own wording
- Retail packaging produced to your artwork
- Plug type, colour and card capacity variations where the model allows
Related Products
Other Models Buyers Compare With This One
Smart Home Security Cameras
360 Panoramic Ceiling WiFi Camera WF-360MOC
185 degree fisheye covers an entire room from one ceiling position
WF-360MOC
Specifications
Smart Home Security Cameras
WiFi Table Lamp Baby Monitor WF-720TLC
A lamp is welcome in a nursery in a way a camera housing is not
WF-720TLC
Specifications
Smart Home Security Cameras
WiFi Monkey Doll Baby Monitor WF-720MDC
1.44mm lens, wider than the lamp version, so a whole cot is in frame
WF-720MDC
Specifications
Guides About This Kind Of Camera
Design Guide
Lens View Angle Guide For Covert Cameras
From a 50 degree pen to a 185 degree ceiling fisheye. How to pick a view angle for the room rather than for the specification sheet.
Installation Guide
WiFi Camera App Setup And P2P Connection Guide
How the WiFi models pair, what P2P and QR code setup actually do, and the three things that cause most failed connections.
Industries Buying This Model
Security Product Distributors
One Supplier Covering A Whole Covert Camera Catalogue
Property Managers And Short Stay Hosts
Check An Unoccupied Property Without Driving To It
Logistics And Warehouse Operators
Cover A Loading Bay Or An Aisle Without Running Cable
Lawful Use Only
WOWLIVE products are supplied for lawful security and property protection. Laws on recording people, and on recording audio in particular, differ between countries and between rooms in the same building. Recording in places where people reasonably expect privacy, such as bathrooms, changing rooms and bedrooms that are not your own, is a criminal offence in most jurisdictions. Buyers and resellers are responsible for checking the rules that apply where the goods are used and sold, including any import, notification and signage requirements. We will not supply orders intended for unlawful surveillance.
Questions
WF-360BUB Questions
Which lamp fitting does this take?
E27. Order the WF-360BUC for the alternative base.
Does it give light as well?
The factory sheet does not state a lighting output, so we list it as to be confirmed rather than claim it. Ask us before quoting.
Is it suitable for outdoor use?
No. The specification states indoor application.
What are the shipping dimensions?
Packed at 14 x 16.5 x 7.8cm, 434g gross, 138g net.
Get Pricing On The WF-360BUB
Send us the quantity and destination country for the 360 Panoramic Bulb Camera E27 WF-360BUB and we will come back with a price, a lead time and a shipping option.
