Smart Home Security Cameras · WF-360BUC
360 Panoramic Bulb Camera B22 WF-360BUC
The alternative base version of the panoramic bulb camera. Identical 1.44mm 360 degree fisheye on a 1/3 inch progressive scan CMOS at 1280x960 and 25fps, 802.11b/g/n WiFi, indoor use, 138g net.
- Fits markets that use a bayonet rather than a screw lamp base
- Permanent power from the lamp holder with nothing to recharge
- 360 degree whole room coverage from the ceiling
- Same app, same optics and same packing as the E27 version
One year warranty · PayPal, T/T or Western Union · DHL, UPS, FedEx or EMS
Who It Is For
- Distributors in bayonet fitting markets such as the UK, Ireland and Australia
- Landlords standardising on the fittings already in their properties
- Buyers ordering both base types on one purchase order
Problems It Solves
- Supplying only E27 forces customers into an adaptor or a return
- A camera position with no power outlet still has a lamp holder
- Stocking two suppliers for two lamp bases doubles the admin
Application Scenarios
- A hallway or landing on a bayonet pendant
- A rental property standardised on one fitting type
- A shop or office in a bayonet market
- A mixed order covering both base types in one shipment
Specifications
WF-360BUC Technical Data
Taken from the factory specification sheet. Anything the sheet does not state is left out rather than estimated, and the FAQ below says which figures are still being confirmed.
| Image sensor | 1/3 Progressive Scan CMOS |
|---|---|
| Built in lens | 1.44mm,360 deg fisheye lens |
| View Angle | 360 deg |
| Video format | 1280*960P(1.3MP) |
| Video compression standard | H.264 |
| Audio compression standard | G.711 |
| Video frame rate | Maximum 25 frames |
| Video playback mode | Mobile client |
| Audio input and output | Input: built in microphone; output: built-in speaker |
| Illumination | 3pcs 1W White LED |
| Focus Mode | Manual |
| Local storage | TF card, maximum support 128G |
| Support multiple protocols | TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP |
| WiFi protocol | IEEE 802.11b/g/n |
| Video control | Support |
| Motion detection | Support |
| Alarm action | Mobile client push screenshot |
| User settings | Max share to 5 users |
| System interface | E27（Europe），TF interface |
| Supply voltage | AC 100～240V |
| Working temperature | 0°C -60°C |
| Applicaton | indoor |
| Product size | 7.0*7.0*12.5CM |
| Packing size | 14*16.5*7.8CM |
| Net weight | 138g |
| G.W. weight | 434g |
| Carton size： | 70*35*43.5CM（50pcs/Carton） |
| Gross weight： | 22.7Kg |

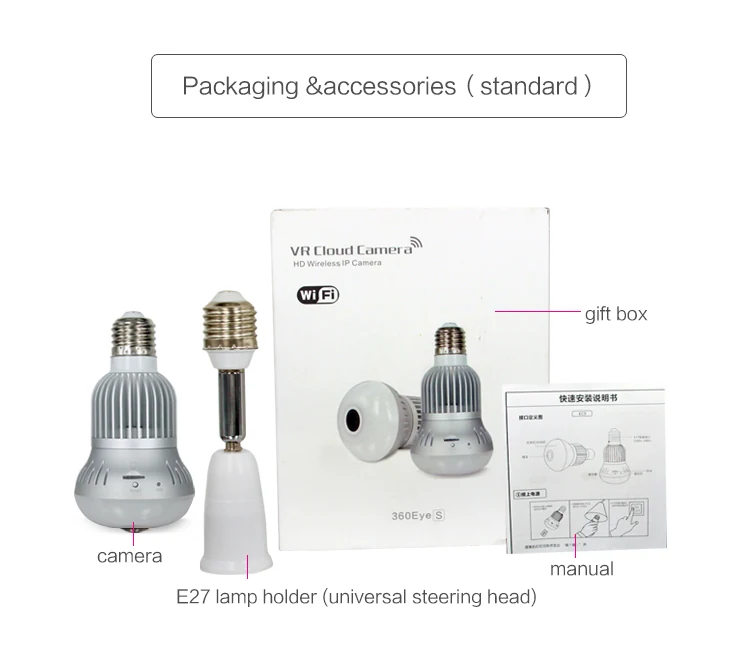

| Packaging and accessories | 1 Color box |
Comparison
How It Differs From The Closest Alternatives
Compared With The WF-360BUB bulb camera
The same camera for an E27 screw base. Choose on the fitting, not on capability.
Compared With The WF-360MOC ceiling camera
The WF-360MOC has a wider 185 degree lens and two way audio but needs its own power feed.
Use Guide
Getting The Unit Into Service
- Charge or connect power first. Battery models should be fully charged before the first placement; mains models simply run from the socket.
- Fit a micro SD card within the stated limit. Fitting a card larger than the model supports will not work, and cards are not supplied unless the specification says otherwise.
- Place for the lens, then check the frame. Set the unit where it needs to see, record a short test clip and review it before leaving it in position.
- Check the legal position before use. Recording rules differ by country and by room, and audio is usually regulated more tightly than video.
Customisation
OEM And ODM Options
- Housing printing with your own logo and artwork
- Printed manual and insert in your own wording
- Retail packaging produced to your artwork
- Plug type, colour and card capacity variations where the model allows
Related Products
Other Models Buyers Compare With This One
Smart Home Security Cameras
360 Panoramic Ceiling WiFi Camera WF-360MOC
185 degree fisheye covers an entire room from one ceiling position
WF-360MOC
Specifications
Smart Home Security Cameras
WiFi Table Lamp Baby Monitor WF-720TLC
A lamp is welcome in a nursery in a way a camera housing is not
WF-720TLC
Specifications
Smart Home Security Cameras
WiFi Monkey Doll Baby Monitor WF-720MDC
1.44mm lens, wider than the lamp version, so a whole cot is in frame
WF-720MDC
Specifications
Guides About This Kind Of Camera
Design Guide
Lens View Angle Guide For Covert Cameras
From a 50 degree pen to a 185 degree ceiling fisheye. How to pick a view angle for the room rather than for the specification sheet.
Installation Guide
WiFi Camera App Setup And P2P Connection Guide
How the WiFi models pair, what P2P and QR code setup actually do, and the three things that cause most failed connections.
Industries Buying This Model
Security Product Distributors
One Supplier Covering A Whole Covert Camera Catalogue
Property Managers And Short Stay Hosts
Check An Unoccupied Property Without Driving To It
Logistics And Warehouse Operators
Cover A Loading Bay Or An Aisle Without Running Cable
Lawful Use Only
WOWLIVE products are supplied for lawful security and property protection. Laws on recording people, and on recording audio in particular, differ between countries and between rooms in the same building. Recording in places where people reasonably expect privacy, such as bathrooms, changing rooms and bedrooms that are not your own, is a criminal offence in most jurisdictions. Buyers and resellers are responsible for checking the rules that apply where the goods are used and sold, including any import, notification and signage requirements. We will not supply orders intended for unlawful surveillance.
Questions
WF-360BUC Questions
What is different from the WF-360BUB?
The lamp base only. Optics, sensor, resolution, WiFi, body size and weight are identical.
Can we order both base types together?
Yes, on one purchase order and in one shipment.
Is it for indoor use?
Yes. The specification states indoor application.
What resolution does it record?
1280x960 at 1.3MP, up to 25 frames per second.
Get Pricing On The WF-360BUC
Send us the quantity and destination country for the 360 Panoramic Bulb Camera B22 WF-360BUC and we will come back with a price, a lead time and a shipping option.
