IBC Butterfly Valve DN80(100mm) S100x8

Name: IBC Butterfly Valve DN80(100mm) S100x8
Brand: United Packaging

The Large Bore Valve for Thick and Viscous Product

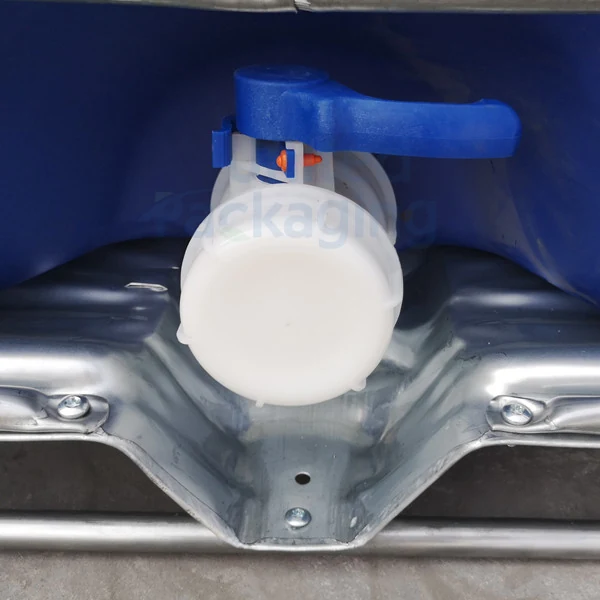

DN80 IBC butterfly valve outlet and handle

Product Overview

What This Product Is

An HDPE butterfly valve with a DN80 100mm inlet and an S60x6 outlet, sealed with EPDM or TPE gaskets. The larger DN80 bore gives more flow capacity than the DN50 version, which is what viscous and thick liquids need to discharge at a workable rate.

Key Benefits

DN80 at 100mm gives noticeably more flow capacity than the DN50 valve
Butterfly action opens and closes quickly for precise flow control
EPDM or TPE gaskets are selected against the product being carried
The S60x6 outlet accepts the standard adapter range for hoses and pipework

Problems It Solves

What Goes Wrong Without It

Thick product moves through a DN50 valve so slowly that discharge holds up the line
Granulated and high viscosity material bridges in a small outlet and stops flowing
A valve that cannot be cleaned properly rules the tote out for the next product

Who It Is For

Application Scenarios

Producers of viscous chemicals, resins and concentrates
Food and agricultural processors handling thick liquids and granulated substances
IBC manufacturers and reconditioners specifying valves for heavy duty totes

Specifications

Technical Data

Material	HDPE
Inlet	DN80(100mm)
Outlet	S60x6
Gasket	EPDM/TPE

Figures above are taken from the product documentation. Anything not listed is confirmed at enquiry rather than estimated.

Technical Features

Features and Advantages

Features

Ideal for handling thick liquids
Easily installed
Equipped with gaskets
Can be easily cleaned and sanitized for reuse

Advantages

Designed to efficiently regulate the flow of liquids or granulated substances stored within the IBC tanks
Equipped with seals and gaskets that provide secure sealing to prevent leaks and spills during storage, transport, and dispensing
Constructed from durable plastics, ensuring long-lasting performance in demanding industrial environments.
Can be easily installed and securely fastened, saving time and effort during setup or replacement
Fit for most IBC brands
Can be equipped with different types of IBC adapters

Use Guide

How to Specify and Use It

Confirm the tote outlet is DN80, 100mm, before ordering

Fit the valve and check the gasket seats evenly around the flange

Open fully for discharge rather than throttling, to avoid bridging thick product

Clean and sanitise the valve whenever the tote is prepared for a different product

Comparison With Other Products

Compared with the DN50 butterfly valve, the DN80 offers greater flow capacity and robustness and is the one to pick for viscous or thick fluids. Where the product is thin and connections are made and broken frequently, a camlock ball valve is the faster arrangement.

Customisation

Sizes, colours and materials can be adapted where the product allows it, and branding can be applied to closures and cap seals. Confirm the change you need when you send the enquiry.

Quality Control

United Packaging operates a professional quality control system under ISO 9001 certification, following quality management procedures intended to minimise the risk of defects.
