IBC Ball Valve DN50(75mm) S60x6
A Quarter Turn Replacement Valve With an S60x6 Outlet
What This Product Is

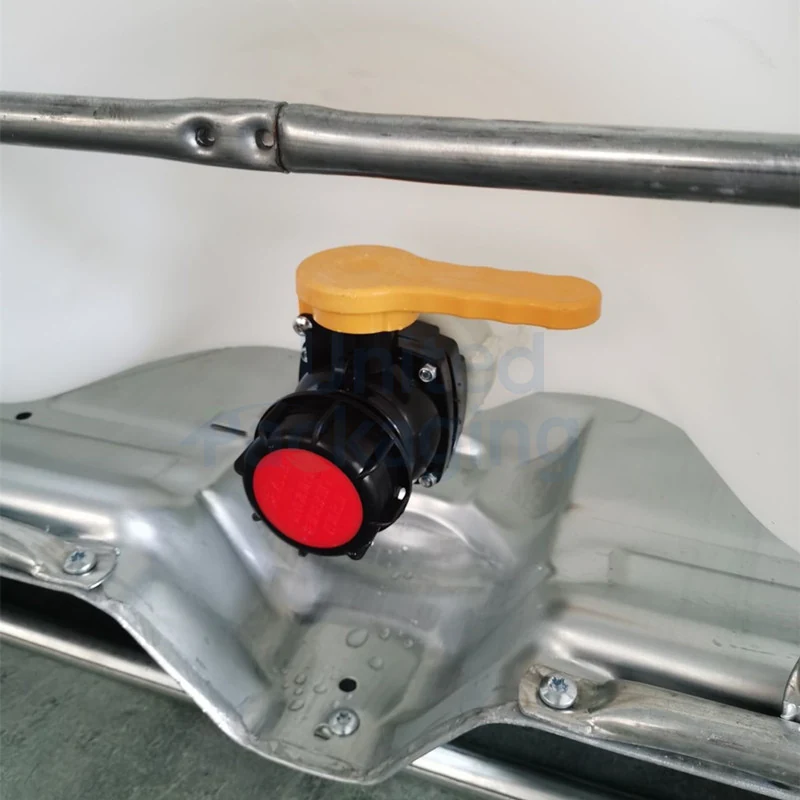

An HDPE IBC ball valve with a DN50 75mm inlet and an S60x6 outlet, sealed with EPDM or FKM gaskets and supplied with a plastic union nut. The quarter turn action opens and shuts cleanly, and the threaded outlet takes the whole S60x6 adapter range.
Key Benefits
- Quarter turn operation shuts off cleanly with no run-on
- The S60x6 outlet accepts spouts, taps, hose tails, camlocks and caps from this range
- EPDM or FKM gaskets match the seal to the liquid carried
- Fits most standard IBCs, so one part covers a mixed fleet
What Goes Wrong Without It
- A leaking or stiff valve is the most common reason a sound tote is scrapped
- Valves that dribble after closing contaminate the pallet and the floor
- Reconditioners need one valve that fits across mixed IBC brands
Application Scenarios
- IBC reconditioners refitting returned totes
- IBC manufacturers fitting valves at build
- Chemical, pharmaceutical and agricultural users replacing failed valves
Technical Data
| Material | HDPE |
|---|---|
| Inlet | DN50(75mm) |
| Outlet | S60x6 |
| Gasket | EPDM/FKM |
| Note | Plastic union nut |
Figures above are taken from the product documentation. Anything not listed is confirmed at enquiry rather than estimated.
Features and Advantages
Features
- Designed to fit most standard IBCs
- Easily installed
- Equipped with gaskets
- Can be easily cleaned and sanitized for reuse
Advantages
- Quick opening and closing with a quarter-turn operation, facilitating efficient fluid handling processes
- Equipped with resilient seals and gaskets, it provide leak-free sealing to prevent fluid leakage
- Designed for easy installation and maintenance, it simplify handling and operation
- Constructed from durable plastics, ensuring long-lasting performance in demanding industrial environments
- Fit for most IBC brands
- Can be equipped with different types of IBC adapters
How to Specify and Use It
Confirm the tote outlet is DN50, 75mm
Fit the valve with the plastic union nut and check the gasket is seated evenly
Operate the lever through the full quarter turn rather than part way
Clean and inspect the seals when the tote is washed between products
Comparison With Other Products
This valve ends in an S60x6 thread, which keeps the whole accessory range available. The camlock version of the same DN50 valve trades that flexibility for faster hose connection, and the butterfly valves are the better choice for viscous product.
Customisation
Sizes, colours and materials can be adapted where the product allows it, and branding can be applied to closures and cap seals. Confirm the change you need when you send the enquiry.
Quality Control
United Packaging operates a professional quality control system under ISO 9001 certification, following quality management procedures intended to minimise the risk of defects.
Other Items in IBC Valves
Camlock IBC Ball Valve
A DN50 Replacement Valve That Ends in a Camlock
View details
IBC Butterfly Valve DN80(100mm) S100x8
The Large Bore Valve for Thick and Viscous Product
View details
IBC Butterfly Valve DN50(75mm) S60x6
Flow Control on the Standard DN50 Outlet
View details
IBC Plain Cap DN225(9")
A Plain DN225 Lid That Seals the Top of a 1000L Tote
View details
Questions About IBC Ball Valve DN50(75mm) S60x6
What is the inlet size?
DN50, 75mm.
What is the outlet thread?
S60x6.
Which gaskets are available?
EPDM or FKM.
What union nut is supplied?
A plastic union nut.
Does it fit most IBC brands?
Yes, it is designed to fit most standard IBCs and is used for valve replacement.
Can adapters be fitted?
Yes, it takes the different types of IBC adapters in this range.
Get a Price on IBC Ball Valve DN50(75mm) S60x6
Send the quantity, the specification variant and your destination port. We will come back with pricing and lead time.
