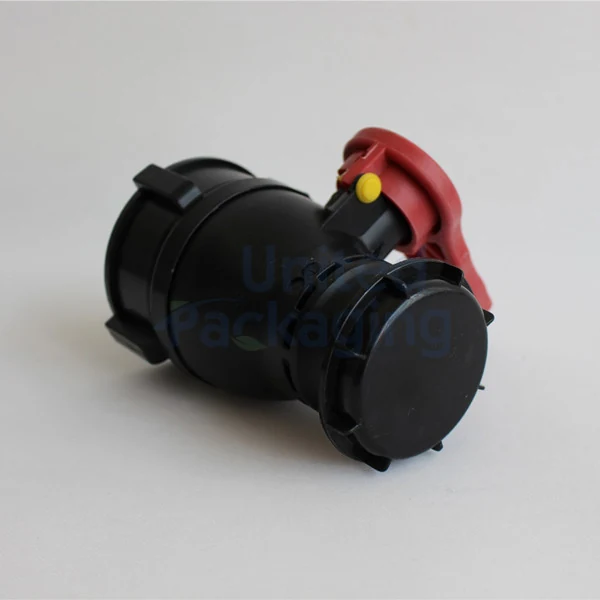

Camlock IBC Ball Valve
A DN50 Replacement Valve That Ends in a Camlock
What This Product Is
An HDPE IBC ball valve with a DN50 75mm inlet and a camlock outlet, sealed with EPDM or FKM gaskets and supplied with an aluminium or plastic union nut. It is built for IBC manufacturing and reconditioning, and fits most standard IBC brands as a replacement valve.
Key Benefits
- A quarter turn ball valve opens and closes quickly with no dribble
- The camlock outlet takes hoses and equipment without threading
- EPDM or FKM gaskets are chosen against the liquid rather than fitted as standard
- Aluminium or plastic union nut lets cost and duty be matched at order
What Goes Wrong Without It
- A seized or leaking valve takes an otherwise sound tote out of service
- Screw outlets slow down operations where one tote feeds several transfers a day
- Reconditioners need a valve that fits mixed brands rather than one make
Application Scenarios
- IBC reconditioners refitting returned totes for resale or rental
- IBC manufacturers specifying valves at build
- Chemical, pharmaceutical and agricultural users replacing failed valves in the field
Technical Data
| Material | HDPE |
|---|---|
| Inlet | DN50(75mm) |
| Outlet | Camlock |
| Gasket | EPDM/FKM |
| Note | Aluminum union nut/Plastic union nut |
Figures above are taken from the product documentation. Anything not listed is confirmed at enquiry rather than estimated.
Features and Advantages
Features
- Designed to fit most standard IBCs
- Easily installed
- Equipped with gaskets
- Can be easily cleaned and sanitized for reuse
Advantages
- Quick opening and closing, facilitating efficient fluid handling processes
- Equipped with resilient seals and gaskets, it provide leak-free sealing to prevent fluid leakage
- Designed for easy installation and maintenance, it simplify handling and operation
- Constructed from durable plastics, ensuring long-lasting performance in demanding industrial environments
- Fit for most IBC brands
- Can be equipped with different types of IBC adapters
How to Specify and Use It
Confirm the tote outlet is DN50, 75mm, before ordering
Fit the valve with the correct union nut and check the gasket is seated
Operate the lever fully rather than throttling part open
Wash and inspect the seals whenever the tote is cleaned for reuse
Comparison With Other Products
This valve ends in a camlock, so it is the right choice where hoses are connected and released repeatedly. Where the outlet feeds screwed fittings, spouts or caps, a threaded S60x6 outlet valve with the adapter range is the more flexible arrangement.
Customisation
Sizes, colours and materials can be adapted where the product allows it, and branding can be applied to closures and cap seals. Confirm the change you need when you send the enquiry.
Quality Control
United Packaging operates a professional quality control system under ISO 9001 certification, following quality management procedures intended to minimise the risk of defects.
Other Items in IBC Valves
IBC Butterfly Valve DN80(100mm) S100x8
The Large Bore Valve for Thick and Viscous Product
View details
IBC Ball Valve DN50(75mm) S60x6
A Quarter Turn Replacement Valve With an S60x6 Outlet
View details
IBC Butterfly Valve DN50(75mm) S60x6
Flow Control on the Standard DN50 Outlet
View details
IBC Plain Cap DN225(9")
A Plain DN225 Lid That Seals the Top of a 1000L Tote
View detailsQuestions About Camlock IBC Ball Valve
What is the inlet size?
DN50, 75mm.
What is the outlet?
A camlock connection.
Which gaskets are available?
EPDM or FKM.
What union nut options are there?
Aluminium or plastic.
Will it fit my IBC?
It is designed to fit most standard IBC brands and is used for valve replacement.
Can it be reused?
Yes, it can be cleaned and sanitised for reuse.
Get a Price on Camlock IBC Ball Valve
Send the quantity, the specification variant and your destination port. We will come back with pricing and lead time.
