IBC Butterfly Valve DN50(75mm) S60x6

Name: IBC Butterfly Valve DN50(75mm) S60x6
Brand: United Packaging

Flow Control on the Standard DN50 Outlet

IBC butterfly valve DN50 75mm with S60x6 outlet

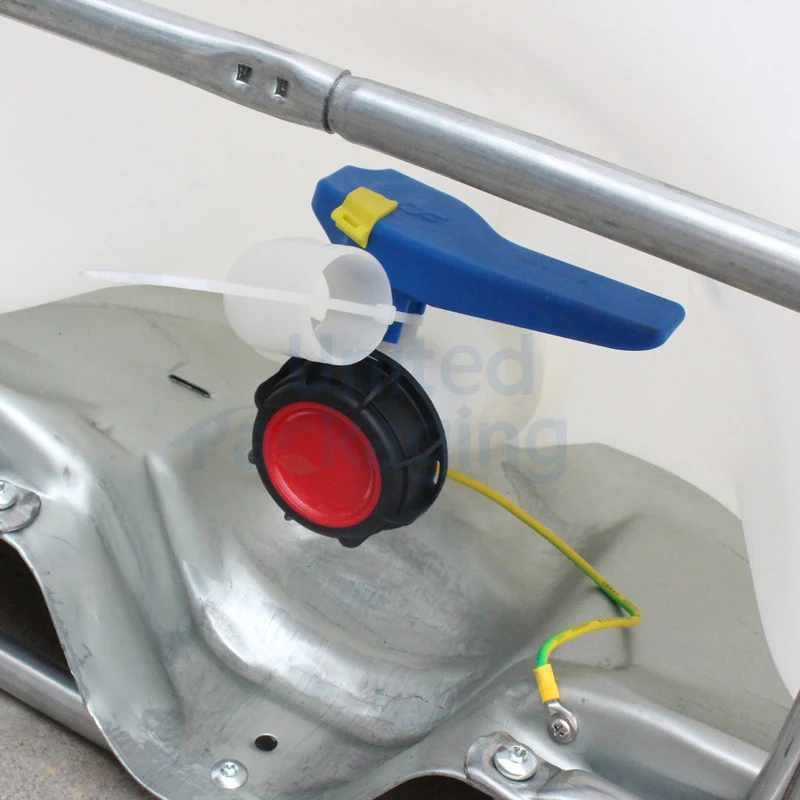

HDPE butterfly valve with aluminium union nut

Product Overview

What This Product Is

An HDPE butterfly valve for DN50 75mm or DN40 62mm inlets with an S60x6 outlet, sealed with EPDM or FKM gaskets and supplied with a plastic or aluminium union nut. The butterfly disc regulates flow rate rather than simply opening and closing, which matters when filling by eye.

Key Benefits

The disc can be set part open, so flow rate is controlled rather than all or nothing
DN50 75mm and DN40 62mm inlets cover both common tote outlet sizes
Plastic or aluminium union nut lets cost and duty be matched at order
EPDM or FKM gaskets prevent leaks and spills during storage, transport and dispensing

Problems It Solves

What Goes Wrong Without It

A ball valve is either open or shut, which makes controlled part-flow filling awkward
Totes arrive with either DN50 or DN40 outlets, so one valve size does not cover a fleet
Granulated and semi-liquid contents need a valve that can be feathered open

Who It Is For

Application Scenarios

IBC manufacturers integrating valves at the container build stage
Reconditioners replacing valves across mixed brand returns
Users filling smaller containers by eye from a tote

Specifications

Technical Data

Material	HDPE
Inlet	DN50(75mm)/DN40(62mm)
Outlet	S60x6
Gasket	EPDM/FKM
Note	Plastic union nut/Aluminum union nut

Figures above are taken from the product documentation. Anything not listed is confirmed at enquiry rather than estimated.

Technical Features

Features and Advantages

Features

Designed to fit most standard IBCs
Easily installed
Equipped with gaskets
Can be easily cleaned and sanitized for reuse

Advantages

Designed to efficiently regulate the flow of liquids or granulated substances stored within the IBC tanks
Equipped with seals and gaskets that provide secure sealing to prevent leaks and spills during storage, transport, and dispensing
Constructed from durable plastics, ensuring long-lasting performance in demanding industrial environments.
Can be easily installed and securely fastened, saving time and effort during setup or replacement
Fit for most IBC brands
Can be equipped with different types of IBC adapters

Use Guide

How to Specify and Use It

Confirm whether the tote outlet is DN50 75mm or DN40 62mm

Fit with the chosen union nut and check the gasket seats evenly

Set the disc part open when filling smaller containers, fully open for discharge

Wash and sanitise the valve when the tote is prepared for a new product

Comparison With Other Products

The DN50 butterfly valve controls flow on the standard outlet. The DN80 butterfly valve has greater flow capacity and is the correct choice for thick or viscous fluid. The DN50 ball valve is the alternative where a fast, clean on-off shut is more useful than flow control.

Customisation

Sizes, colours and materials can be adapted where the product allows it, and branding can be applied to closures and cap seals. Confirm the change you need when you send the enquiry.

Quality Control

United Packaging operates a professional quality control system under ISO 9001 certification, following quality management procedures intended to minimise the risk of defects.
