Automatic sleep tracking
Sleep is recorded without the wearer starting a session, which is what makes overnight data reliable.

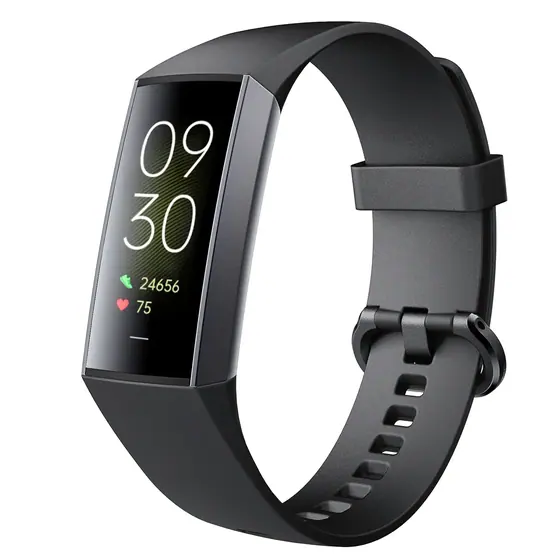

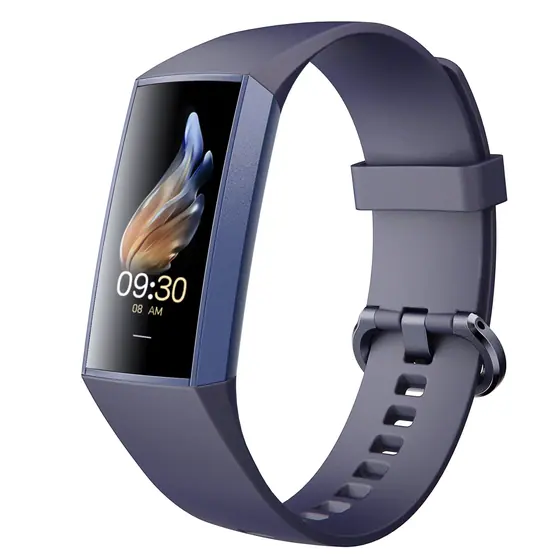

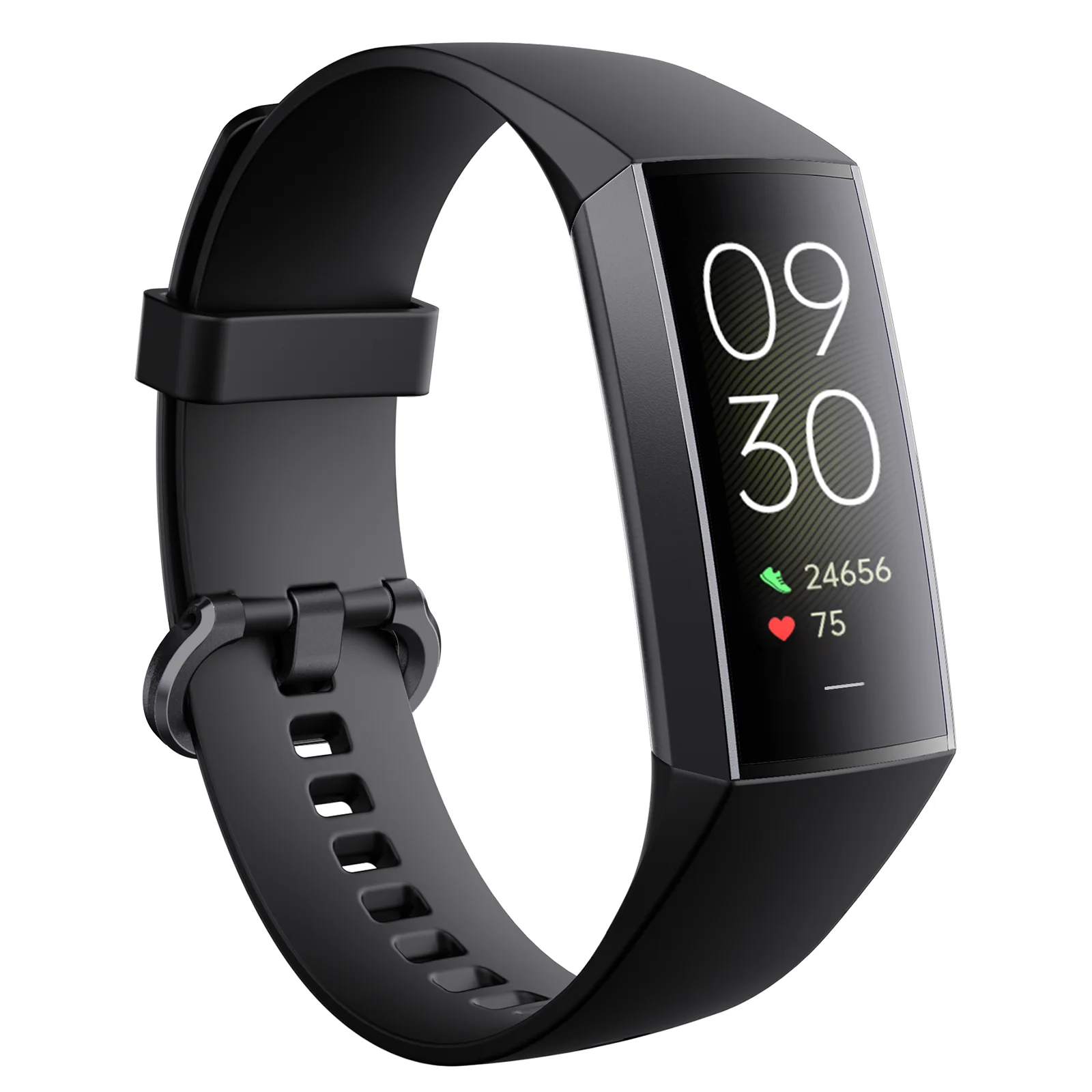

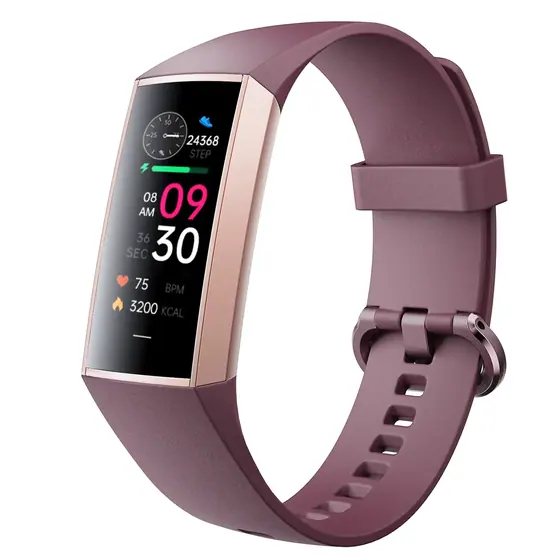

1.1 Inch AMOLED Display Activity Tracker Sleeping Heart Rate Monitoring SpO2 Smartwatch
The sleep focused band: a slim 43.7 x 19 x 11.8mm body that stays comfortable overnight, with automatic sleep tracking and a 10 day battery.
Product Overview
Slim 1.1 inch AMOLED band tuned for automatic sleep tracking, with 70+ dials and 10 day battery
This band is built for the wrist to forget it. At 43.7 x 19 x 11.8mm it is narrow enough to wear through the night, which is the only way sleep data gets collected consistently.
The 1.1 inch AMOLED panel at 126x294 pixels carries more than 70 stylish interfaces with custom dial support. A Tai Ling Micro TLSR8251F512ET32 platform and a 90mAh battery deliver 7 to 10 days.
Sensing runs on an original phase PAH8007 heart rate sensor with blood oxygen monitoring and high precision thermal temperature measurement, across 25 professional sport modes.
- Activity Trackers And Fitness Bands
- Activity Tracker
- Smart Band
- Smart Bracelet
- Smart Wristband
Technical Features
What This Model Actually Does
Slim 43.7 x 19 x 11.8mm body
Narrow enough to wear comfortably in bed, at IP67.
1.1 inch AMOLED
126x294 pixels with more than 70 interfaces and custom dial support.
High precision thermal measurement
Body temperature measurement alongside heart rate and blood oxygen.
25 professional sport modes
Plus call, SNS and third party app reminders.
10 day battery duration
A 90mAh cell quoted at 7 to 10 days with magnetic charging.
Specifications
Published Factory Specification
Every value below is copied from the factory specification sheet for this model. Values marked TBC are not published and we confirm them in writing before an order rather than estimating them.
| Display size | 1.1 inch AMOLED |
|---|---|
| Screen resolution | 126x294 |
| CPU chip | Tai Ling Micro TLSR8251F512ET32 |
| Heart rate sensor | Original phase PAH8007 |
| 3D sensor | SC7A20 / 2x2 / LGA12 |
| Memory | 512KB + 64KB + 32Mb (RAM + ROM + Flash) |
| Battery capacity | 90mAh |
| Usage time | 7-10 days |
| Charging method | Magnetic charging |
| Bluetooth version | 4.2 |
| Device body dimension | 43.7 x 19 x 11.8mm |
| Water resistance | IP67 |
| Material | PC + ABS |
| Sport modes | 25 |
| App | TBC |
Problems It Solves
Why Buyers Choose It
- Sleep programmes failing because the device is too bulky to wear in bed.
- Trackers charged nightly, so the night data is always missing.
- Brands needing a launch SKU under the watch price ladder.
- Assortments with no slim band form factor.
Who It Is For
- Wellness and sleep programme buyers
- Consumer electronics brands needing an entry SKU
- Promotional and incentive buyers
- Online sellers in the fitness band segment
Application Scenarios
- Overnight sleep tracking across weeks
- Daily step and calorie tracking
- Corporate wellness challenges
- Gift and bundle programmes
Key Benefits
What It Changes For Your Programme
Sleep data that actually gets recorded
A band that is comfortable overnight collects data a bulky watch never will.
A dial library for brand launches
Over 70 interfaces plus custom dials means one hardware SKU can serve several brand identities.
Ten days between charges
At 90mAh the charger comes out roughly once a week, not every night.
Low bill of materials
Bluetooth 4.2 and a compact AMOLED keep this the accessible entry in the tracker range.
Comparison
How It Compares In Our Range
It shares its platform and specification with the 1.1 inch thermometer tracker in the same range. The two are separate catalogue items with different strap and colour programmes; this one is positioned around sleep, the other around SmartTrack and temperature.
Customisation Options
- Silk printed logo and case legends applied during production.
- Custom watch faces and boot screen built into the firmware image.
- Strap material and colourway selection at sampling.
- Retail box, insert, manual and label artwork assembled in our packaging workshop.
Quality Control
- SMT board test before the board meets a case.
- Function test at final assembly on the semi-automatic lines.
- More than ten reliability and quality tests before lot release.
- Pre-shipment check of artwork position, colour and packing against the approved sample.
Certifications: we publish only what the factory holds. Certification documents for a destination market are supplied on request, and where a certification is pending we say pending.
Use Guide
Getting The Best Out Of It
Charge magnetically to full before the first night of tracking.
Wear the band slightly snug overnight so the PAH8007 keeps skin contact.
Leave automatic sleep tracking enabled rather than starting a manual session.
Upload custom dials during sampling if the programme carries brand artwork.
Rinse and dry the band after exercise; IP67 covers sweat and splashes, not swimming.
Trade Terms
| Minimum order | 3,000 pcs |
|---|---|
| Sample lead time | 1-3 working days after payment |
| Bulk lead time | 20-25 working days after deposit |
| Warranty | 12 months, excluding man-made damage |
Related Products
Other Models Worth Comparing
Activity Trackers And Fitness Bands
1.1 Inches AMOLED Heart Rate SpO2 Body Temperature Activity Tracker
IP68 rated 1.1 inch AMOLED tracker with SmartTrack auto detection across 25 preloaded sport modes
View specification
Activity Trackers And Fitness Bands
Fitness Wristbands Blood Oxygen Deep Light REM Sleep Tracker Smart Watch
1.7 inch rectangular band with deep, light and REM sleep staging and all day stress monitoring
View specification
Activity Trackers And Fitness Bands
1.57 Inch Hyperboloid Screen Blood Oxygen Heart Rate Monitoring Smart Watch With Two-Tone Strap
UQ76 curved hyperboloid display in a zinc alloy case with a two-tone strap and IP68
View specificationRelated Reading
Industries, Capabilities And Guides
Answers
Product FAQ
How is this different from the 1.1 inch thermometer tracker
The hardware platform is the same. They are separate listings with different positioning and colour and strap programmes, and both are quoted independently.
How long does the battery last
7 to 10 days on a 90mAh cell, charged magnetically.
Can it track sleep automatically
Yes, sleep tracking is automatic rather than session based.
How many watch faces are included
More than 70 interfaces with custom dial support.
Can it be worn swimming
No. The rating is IP67, which covers sweat and splashes, not swimming.
Quote The Slim 1.1 inch AMOLED band tuned for automatic sleep tracking, with 70+ dials and 10 day battery
Send your target quantity, destination market and branding requirement. We will confirm price, lead time and every value this page marks TBC.
