RF Weather Stations
FT-0818 RF Weather Station

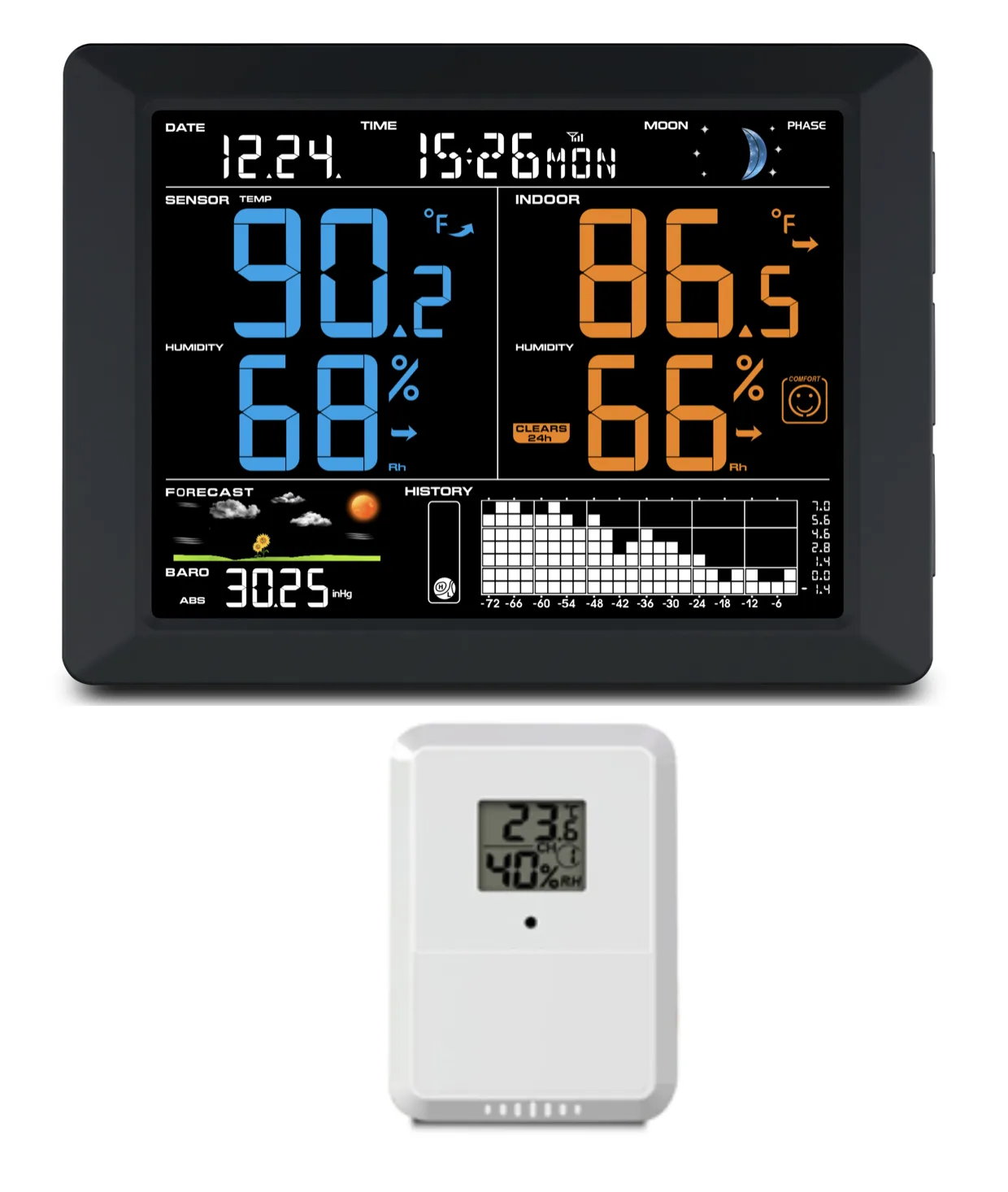

The FT-0818 RF Weather Station is a RF weather station built around 5 measured parameters: indoor temperature, outdoor temperature, humidity, barometric pressure, and weather forecast. Data reaches the console over 433 MHz RF, with no gateway, hub or subscription in the path. Up to 8 remote sensor channels report to the one display, so several rooms, stores or enclosures are read side by side instead of on separate instruments.
CE and FCC
MOQ 300-1,000 pcs35-45 days
OEM and ODM1 year warranty
Why this model
What the FT-0818 RF Weather Station gives a buyer
Verified measuring range
Outdoor temperature is specified at -40~60 °C, so the range and tolerance are on the table before you sample.
Humidity specified both sides
Humidity is quoted as 10%~99%, indoor and outdoor stated separately rather than as one blanket figure.
8 channels on one console
Dip-switch channel setting lets up to 8 remote sensors report to a single display, so a multi-room or multi-cabinet install needs one screen, not 8.
Field calibration
Temperature, humidity, pressure, wind and rainfall can be calibrated manually on the console, so a unit can be trimmed against your own reference instead of returned.
Published data
Specifications
These are the figures published for the FT-0818 RF Weather Station. A parameter that is not in this table is not one we will confirm without testing.
| Indoor temperature range | 0~60 °C |
|---|---|
| Outdoor temperature range | -40~60 °C |
| Temperature accuracy | ±1 °C |
| Humidity range | 10%~99% |
| Humidity accuracy | ±5% |
| Transmission frequency | 433MHZ |
| Transmission range | 100meter(300feet) in open area |
| Transmission interval | 60 seconds |
| Console | 3 x AAA alkaline batteries (Not Included) 2) Thermo-hygrometer Sensor: 2 x AAA alkaline batteries (Not Included) 3) 5.9V/500mA power adaptor(Included) |
| Display Console | 215x159x24mm |
| Thermo-hygrometer Sensor | 75x53x20mm |
| LCD Dimensions(LXW) | 169*124mm |
| Weather Station Packages | 1 x Indoor Display Console 1 x Thermo-hygrometer Sensor (FT017TH) 1 x English Manual |
| Model Number | FT0814 |
|---|---|
| Color | Black |
| Feature | Measure Weather Conditions |
| Application | Living Room |
| Keywords | Digital Weather Station Clock |
| Warranty | 1 years |
| Certification | CE, FCC |
| Customized support | OEM/ODM |
Function list
Features as published
- Indoor temperature (°F or °C) and humidity
- Outdoor temperature (°F or °C) and humidity
- Min/Max records of temperature and humidity
- Min/Max records 24hrs automatically clear
- Weather forecast, Barometric pressure
- Time, Alarm clock/Snooze, Calendar
- 3 Levels of adjustable Backlight

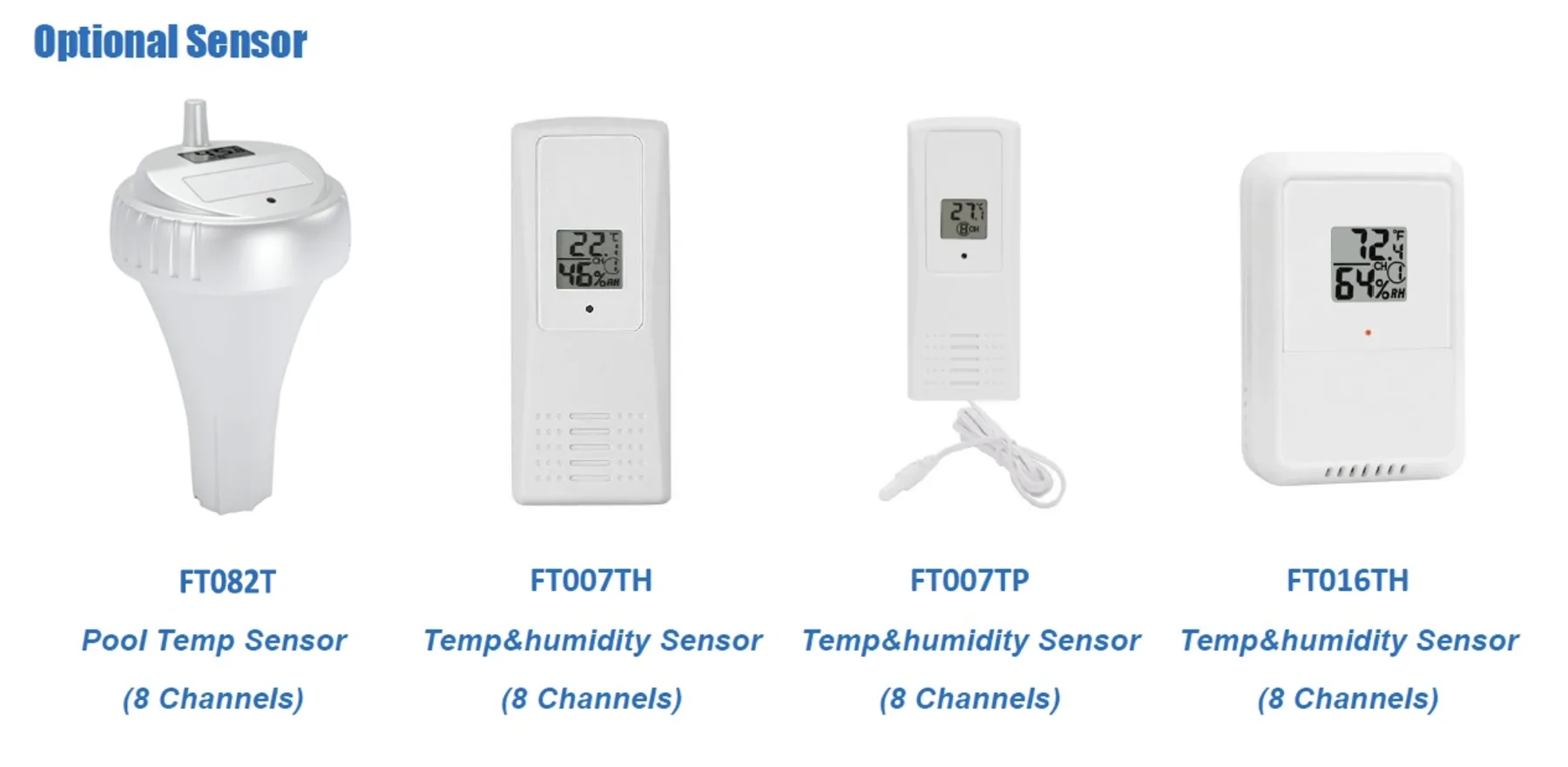

- Support up to 8 sensors (optional)
- History Graph
- Calibration of temp, humidity, pressure
Applications
Where the FT-0818 RF Weather Station is used
Local short-range forecasting
Absolute and relative pressure with trend is the basis for the console forecast icon, not a downloaded forecast.
Wine cellar, greenhouse and storeroom humidity
Humidity is the variable that spoils stock; reading it continuously is what turns a storeroom into controlled storage.
Problems it removes
- Outdoor conditions guessed from a phone app that reports the nearest airport, not the site.
- Stock spoiling in storage because humidity was never measured, only assumed.
- A weather call with nothing local behind it.
Who buys it
- Retail and catalogue buyers who want no app or account
- Promotional and gift-market importers
- Distributors selling into areas with poor home Wi-Fi
Quality
How it is tested
Every FT-0818 RF Weather Station is aged before it leaves the factory and is checked on the same equipment the rest of the range uses: constant temperature and humidity chambers, radio link checks over the rated range, and vibration and smog aging equipment. A ten-person QC team inspects and tests in process, and the weather station line holds CE (GTS verification of compliance, RED 2014/53/EU) and FCC authorisation under FCC ID 2ALHJ-WS0300.
OEM and ODM
Building it under your brand
The FT-0818 RF Weather Station is available as an OEM or ODM build: own-logo and own-package builds, console artwork and unit selection (°C/°F, mm/inch, m/s or mph), and channel count and sensor bundle. MOQ runs from 300 to 1,000 pcs depending on model and delivery is normally 35 to 45 days; our own R&D team handles new development rather than subcontracting it.
Where it sits in the range
Inside RF Weather Stations the FT-0818 RF Weather Station reads 5 parameters; if you need more on the same console, the FT036B1 RF Weather Station carries 13; if the specification is heavier than the application needs, the FT0207 Wireless Weather Station Rain Gauge covers 4.
Questions buyers ask about the FT-0818 RF Weather Station
How many remote sensors can the FT-0818 RF Weather Station take?
Up to 8 channels, set with dip switches on each sensor. Extra sensors are ordered separately.
What temperature range and accuracy are specified?
Outdoor is -40~60 °C. The full table is on this page; anything not in it is not a figure we will confirm by email.
What is the MOQ for the FT-0818 RF Weather Station?
MOQ is 300 to 1,000 pcs depending on the model. Tell us the model and the market and we will confirm which band it falls in.
What is the normal delivery time?
35 to 45 days for a normal production order. Sample lead time is shorter and is quoted per request.
Can we have our own logo and packaging?
Yes. OEM and ODM are standard here, including own-logo consoles and own-package builds, and our R&D team develops to customer requirements.
What certificates do you hold?
CE and FCC. The weather station range is covered by a GTS verification of compliance against RED 2014/53/EU and an FCC grant of equipment authorisation under FCC ID 2ALHJ-WS0300.
What is the warranty?
One year.
Other models in RF Weather Stations
Quote the FT-0818 RF Weather Station
Tell us quantity, destination market and whether you need own-brand packaging. MOQ 300-1,000 pcs, normal delivery 35-45 days.
