Tank Liquid Level Indicator
The Tank Liquid Level Indicator is a sensor unit built around 3 measured parameters: indoor temperature, outdoor temperature, and liquid level. Data reaches the console over 433 MHz RF, with no gateway, hub or subscription in the path.
CE and FCC
MOQ 300-1,000 pcs35-45 days
OEM and ODM1 year warranty
Why this model
What the Tank Liquid Level Indicator gives a buyer
Verified measuring range
Outdoor temperature is specified at -40~60 °C, so the range and tolerance are on the table before you sample.
Published data
Specifications
These are the figures published for the Tank Liquid Level Indicator. A parameter that is not in this table is not one we will confirm without testing.
| Indoor temperature range | 0~60 °C |
|---|---|
| Outdoor temperature range | -40~60 °C |
| Temperature accuracy | ±1 °C |
| Water level measure rang | 0 ~15m |
| Resolution | 0.01m |
| Accurate | +/-0.03M |
| Transmission frequency | 433MHZ |

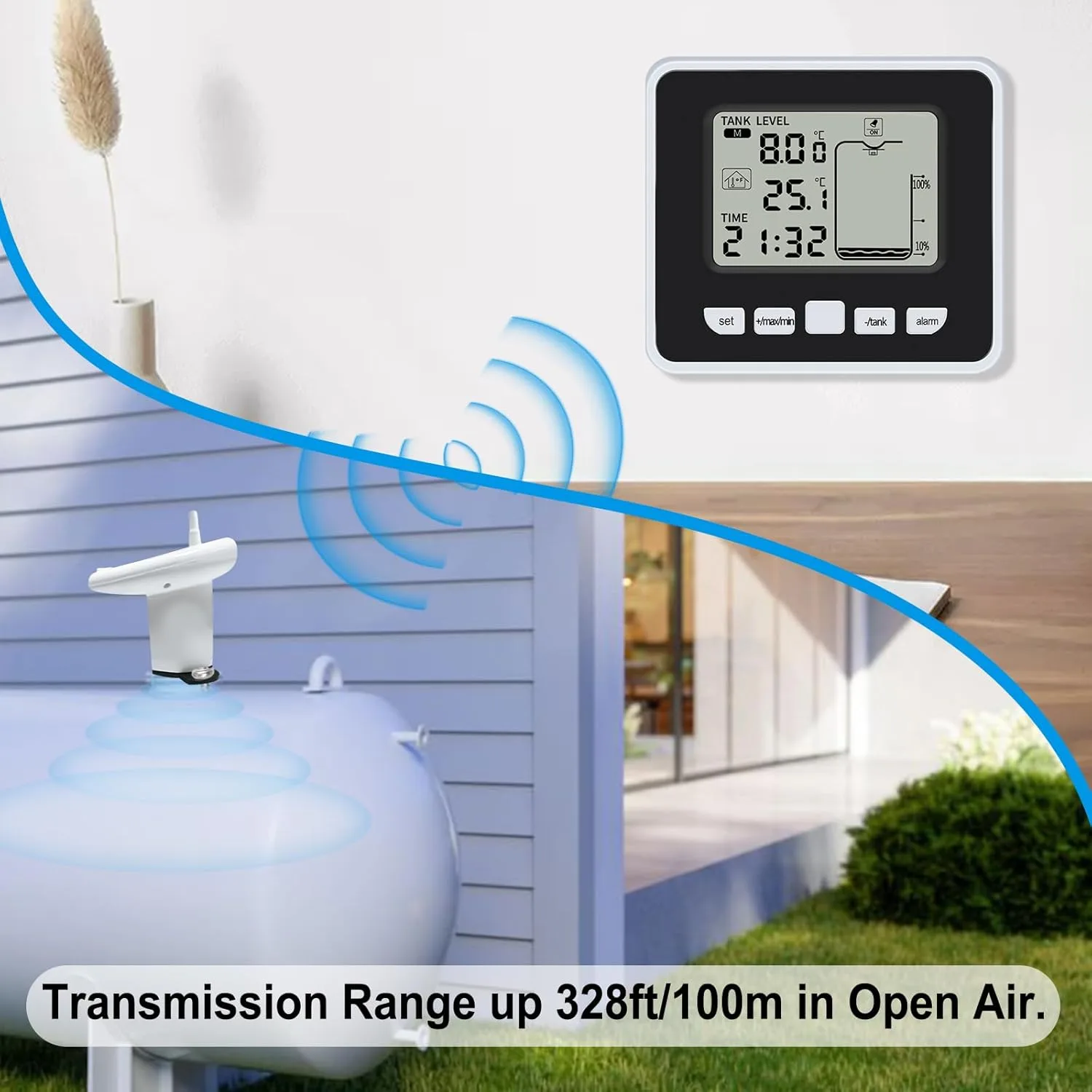

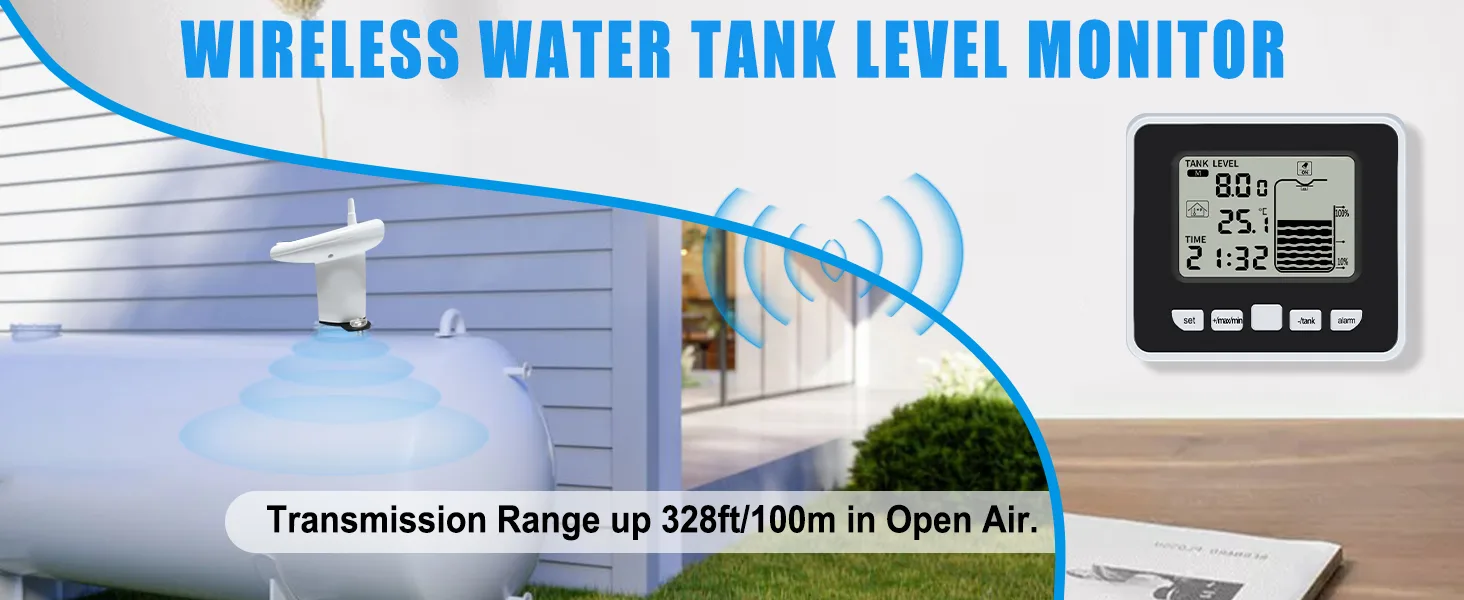

| Transmission range | 100 meters(300 feet)in open area |
| Transmission interval | 30s when level changes or 3 minutes when level does not change |
| Receiver | 2XAA 1.5V |

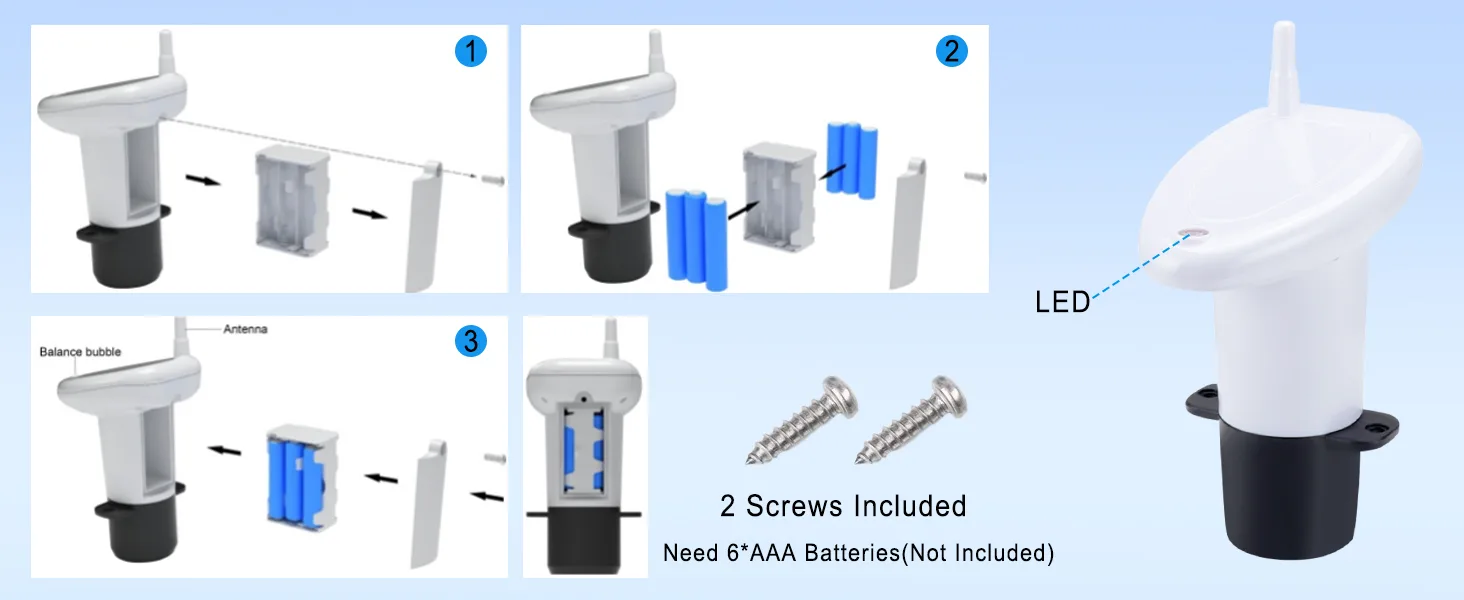

| LR3 Alkaline batteries Remote sensor | 6XAAA 1.5V |
| LR6 Alkaline or lithium batteries Battery life | Minimum 12 months for receiver Minimum 12 months for transmitter |

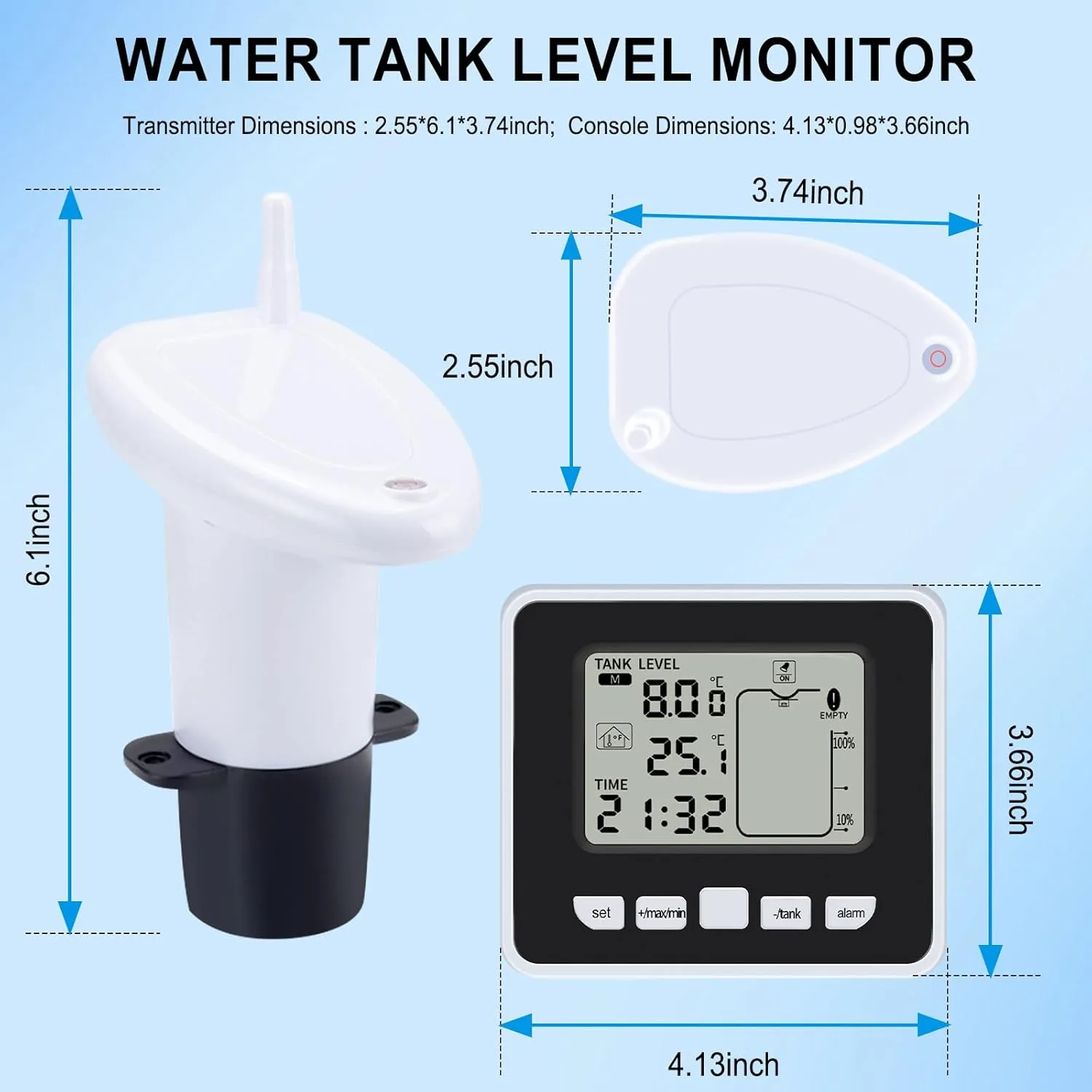

| Receiver | 108X94X27mm |
| Transmitter | 97X68X152mm |
| LCD Dimensions(LXW) | 66X45mm(3.3 inch) |
| Model Number | FT0021 |
|---|---|
| Color | Black |
| Feature | Tank Liquid Level Indicator |
| Application | Home or Agriculture |
| Keywords | Tank Liquid Level Indicator |
| Warranty | 1 year |
| Certification | CE, FCC |
| Customized support | OEM/ODM |

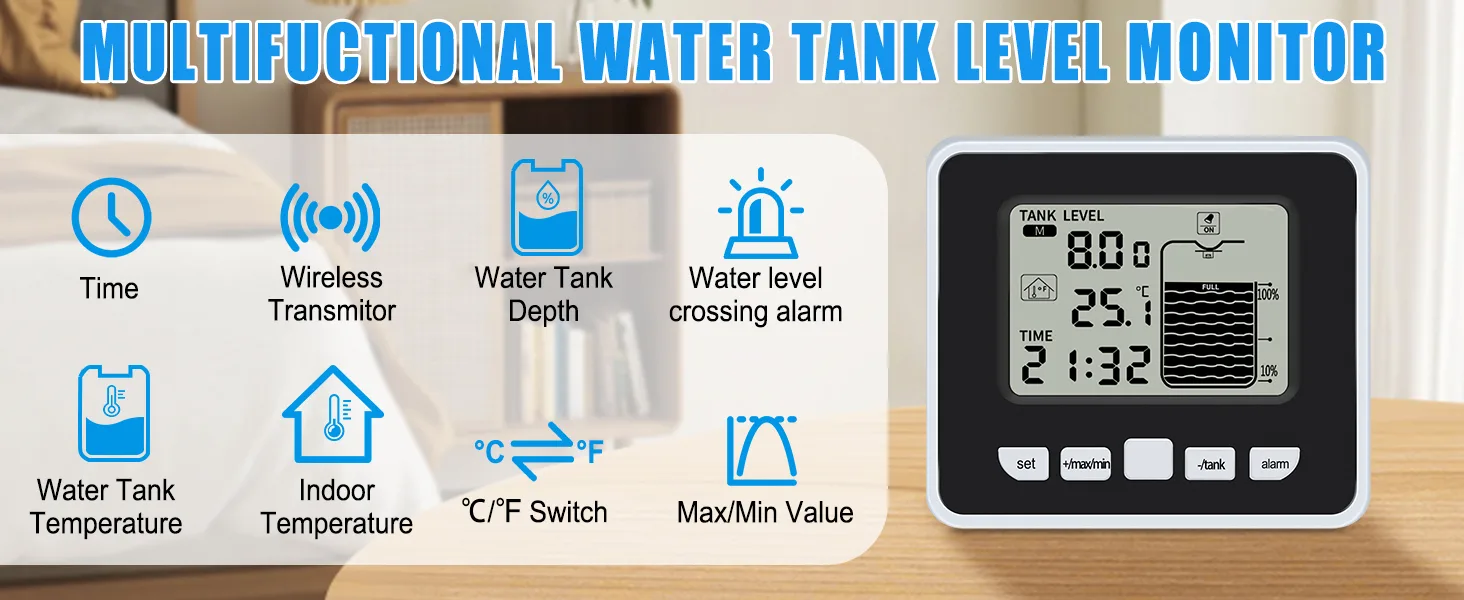

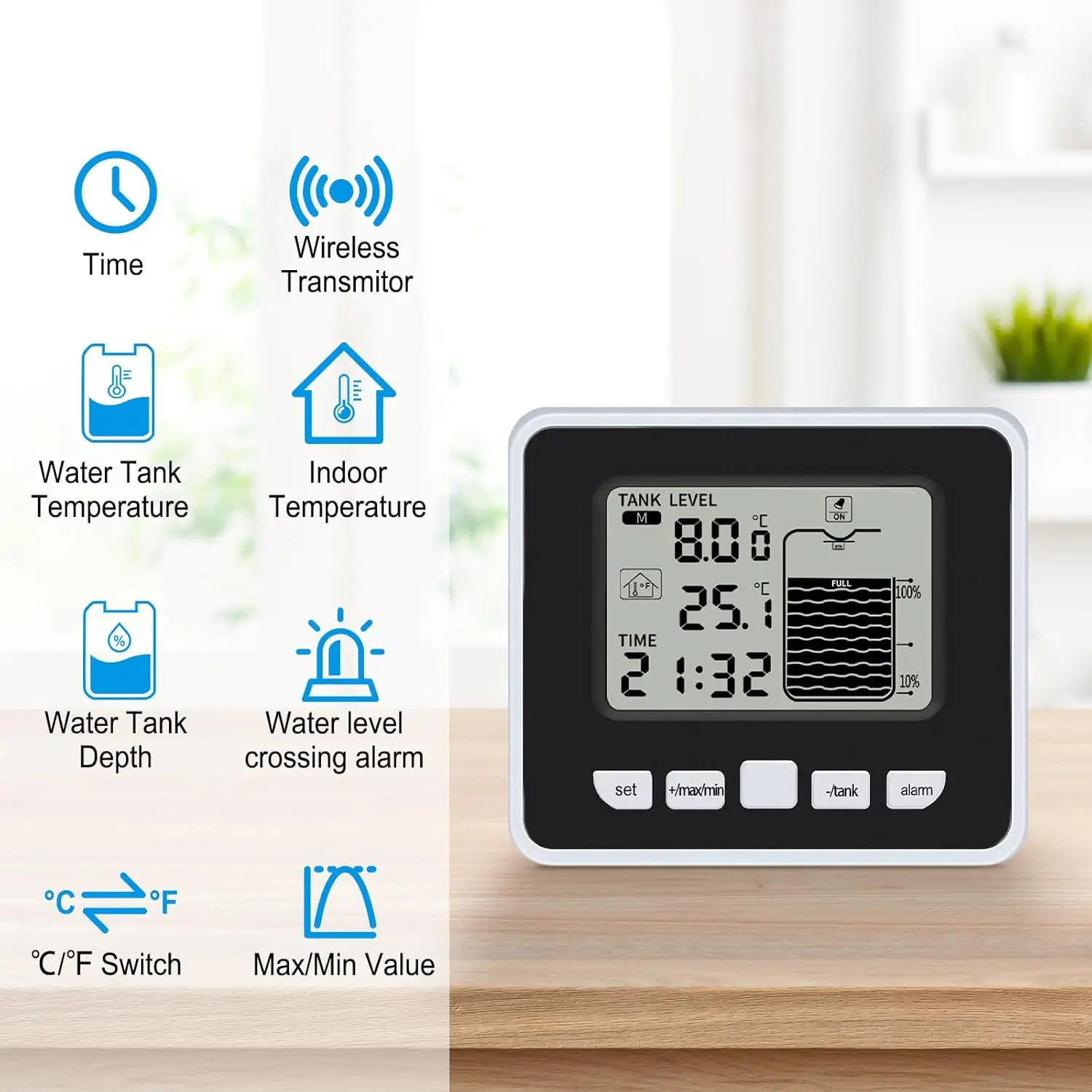

Function list
Features as published
- Monitors tank liquid depth level

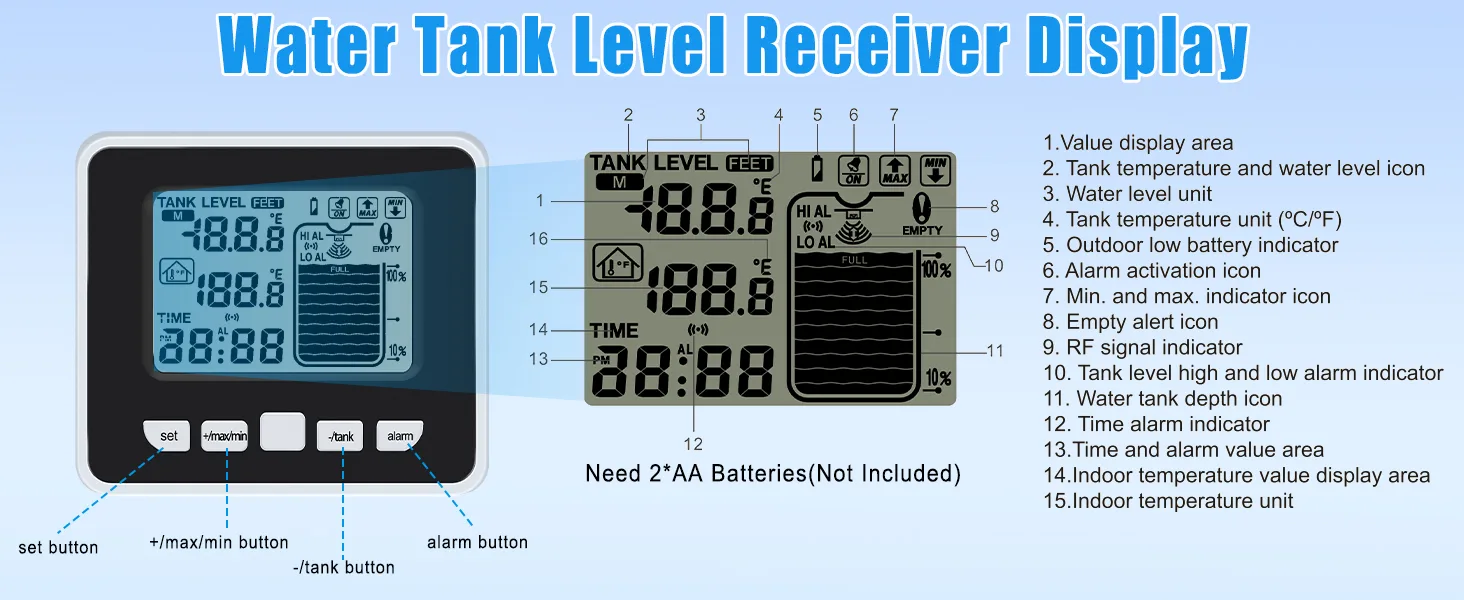

- Tank liquid level displayed on a 10-element LCD bar graph
- Min/max records of tank liquid level

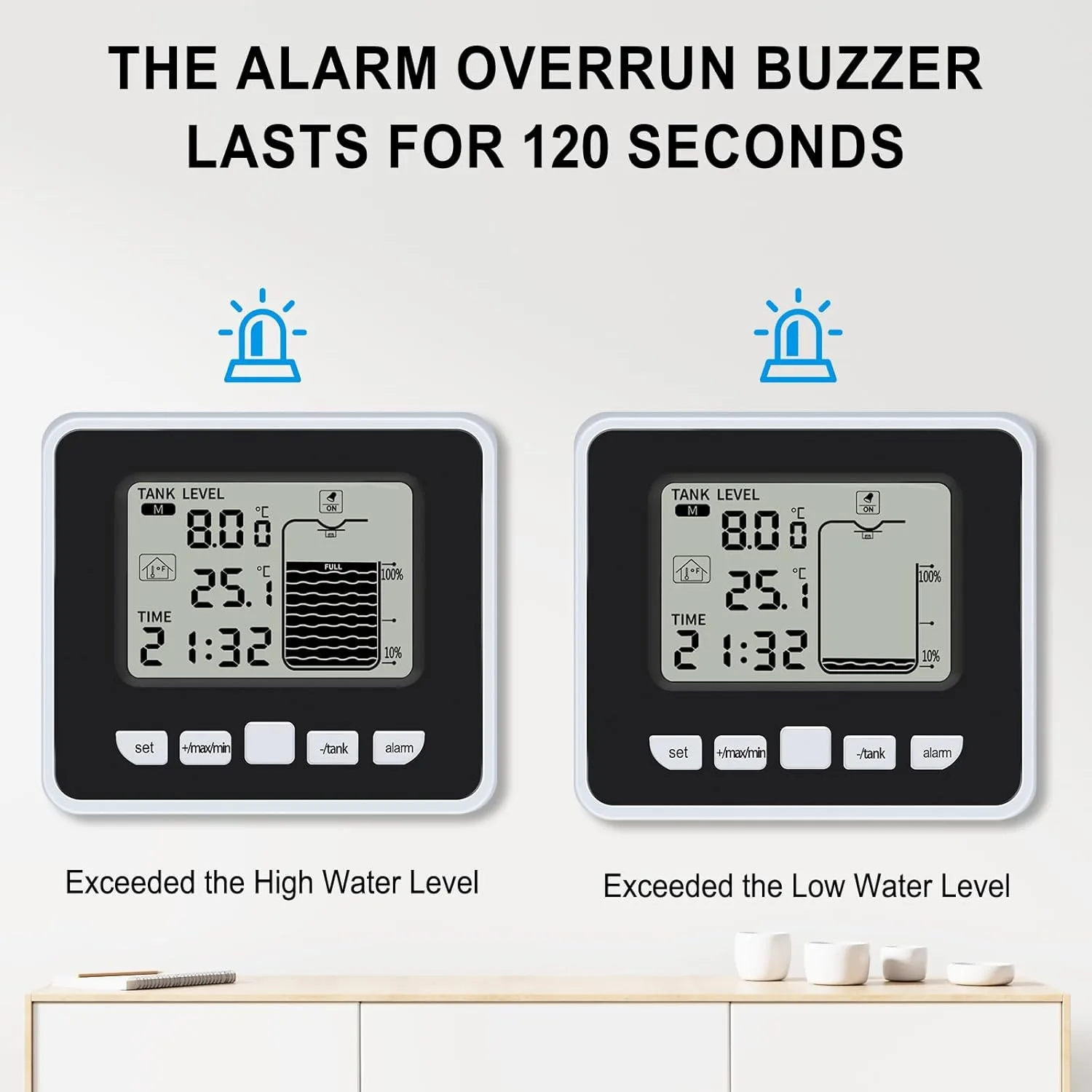

- Tank liquid level high/low alarm
- Tank liquid empty alert
- Indoor temperature (°F or °C)
- Tank temperature (°F or °C)
- Time alarm
- Free Standing or wall hanging
Applications
Where the Tank Liquid Level Indicator is used

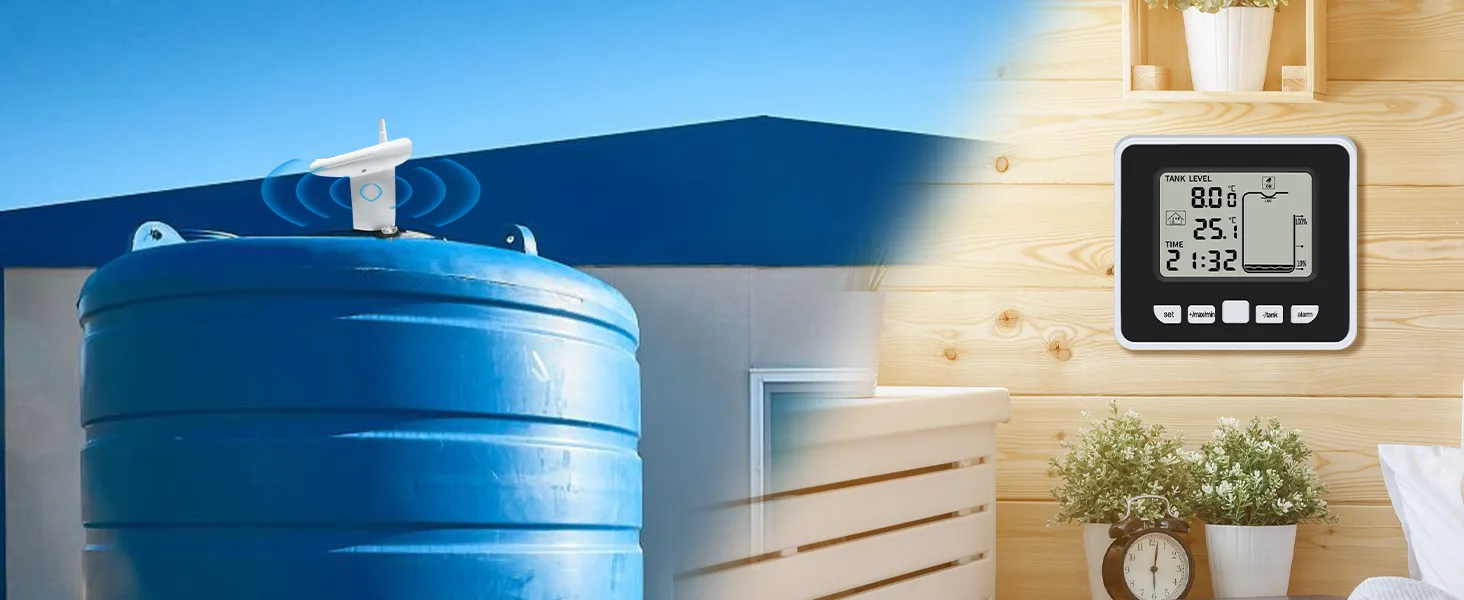

Water tank and cistern level

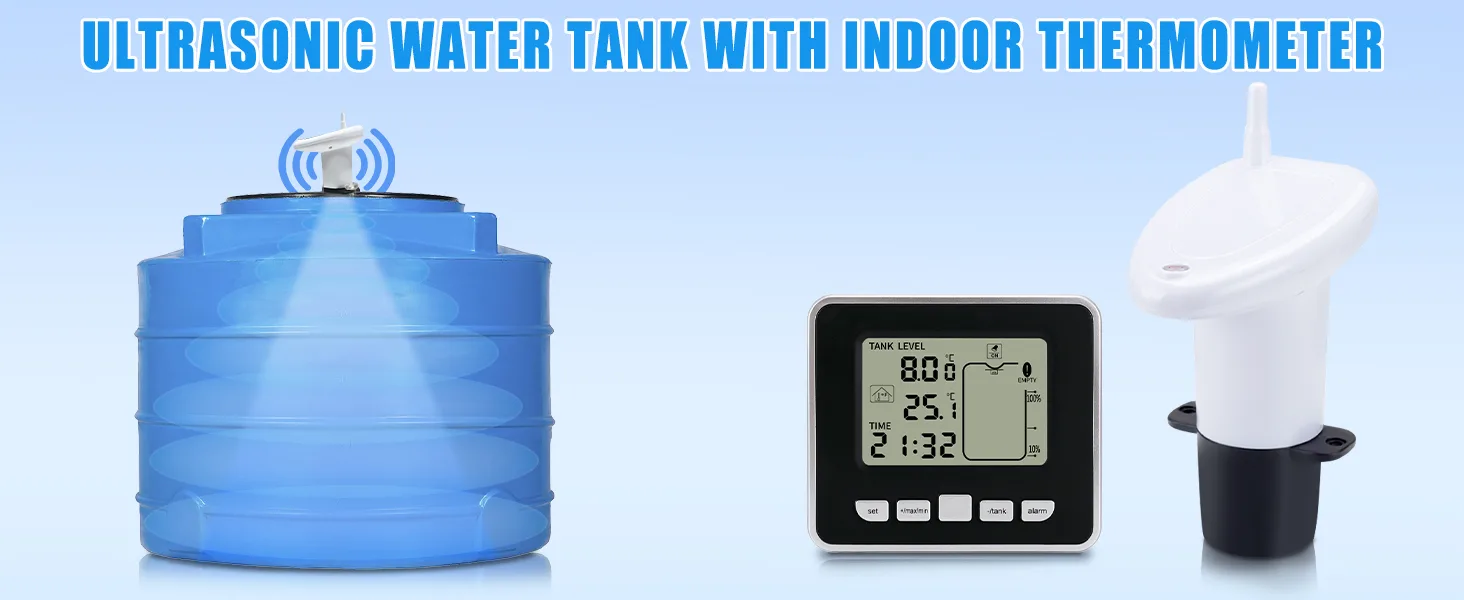

Level is read from the console instead of by climbing to the tank hatch, which is the whole point of the ultrasonic head.
Problems it removes
- Outdoor conditions guessed from a phone app that reports the nearest airport, not the site.
- Someone climbing to a tank hatch to see how much is left.
Who buys it
- OEM customers pairing sensors to their own console
- Service and spares distributors
- System integrators building a multi-point install
Quality
How it is tested
Every Tank Liquid Level Indicator is aged before it leaves the factory and is checked on the same equipment the rest of the range uses: constant temperature and humidity chambers, radio link checks over the rated range, and vibration and smog aging equipment. A ten-person QC team inspects and tests in process, and the weather station line holds CE (GTS verification of compliance, RED 2014/53/EU) and FCC authorisation under FCC ID 2ALHJ-WS0300.
OEM and ODM
Building it under your brand
The Tank Liquid Level Indicator is available as an OEM or ODM build: own-logo and own-package builds and console artwork and unit selection (°C/°F, mm/inch, m/s or mph). MOQ runs from 300 to 1,000 pcs depending on model and delivery is normally 35 to 45 days; our own R&D team handles new development rather than subcontracting it.
Where it sits in the range
Inside Weather Sensors and Transmitters the Tank Liquid Level Indicator reads 3 parameters; if you need more on the same console, the FT025T Weather Station Sensor-UV carries 7.
Questions buyers ask about the Tank Liquid Level Indicator
What temperature range and accuracy are specified?
Outdoor is -40~60 °C. The full table is on this page; anything not in it is not a figure we will confirm by email.
What is the MOQ for the Tank Liquid Level Indicator?
MOQ is 300 to 1,000 pcs depending on the model. Tell us the model and the market and we will confirm which band it falls in.
What is the normal delivery time?
35 to 45 days for a normal production order. Sample lead time is shorter and is quoted per request.
Can we have our own logo and packaging?
Yes. OEM and ODM are standard here, including own-logo consoles and own-package builds, and our R&D team develops to customer requirements.
What certificates do you hold?
CE and FCC. The weather station range is covered by a GTS verification of compliance against RED 2014/53/EU and an FCC grant of equipment authorisation under FCC ID 2ALHJ-WS0300.
What is the warranty?
One year.
