RF Weather Stations

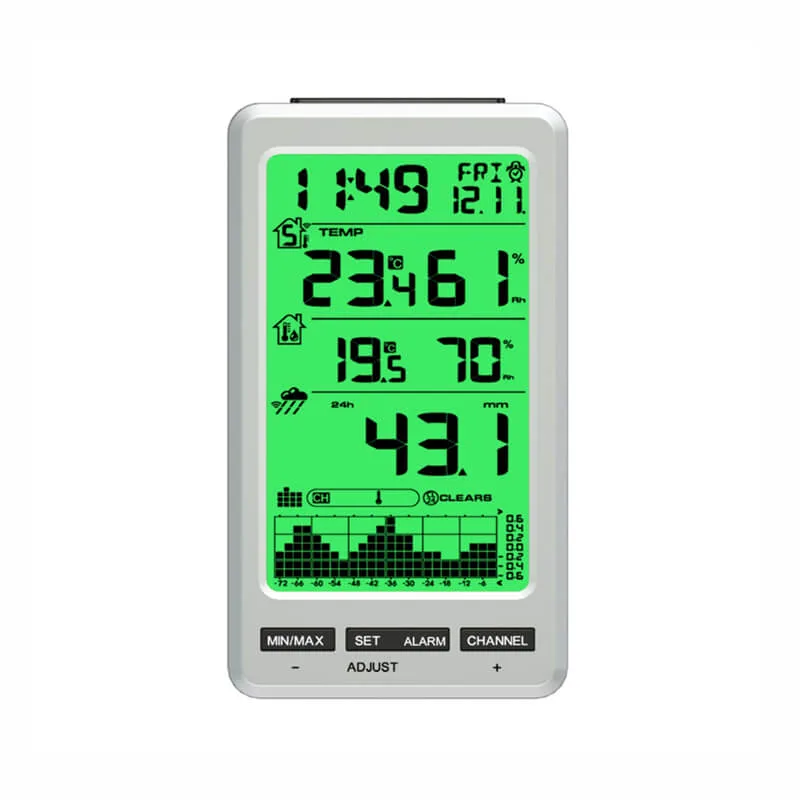

FT0206 RF Weather Station
The FT0206 RF Weather Station is a RF weather station built around 4 measured parameters: indoor temperature, outdoor temperature, humidity, and rainfall. Data reaches the console over 433 MHz RF, with no gateway, hub or subscription in the path. The sensor link is rated at 100 m in open area, which sets how far the outdoor unit can sit from the console.
CE and FCC
MOQ 300-1,000 pcs35-45 days
OEM and ODM1 year warranty
Why this model
What the FT0206 RF Weather Station gives a buyer
Verified measuring range
Outdoor temperature is specified at -40 °C to + 60 °C, so the range and tolerance are on the table before you sample.
Humidity specified both sides
Humidity is quoted as 10% to 99% (1% resolution), indoor and outdoor stated separately rather than as one blanket figure.
100 m sensor link
An open-area range of 100 m decides where the outdoor unit can be mounted; the figure is stated rather than left to the installer to discover.
Published data
Specifications
These are the figures published for the FT0206 RF Weather Station. A parameter that is not in this table is not one we will confirm without testing.
| Outdoor temperature range | -40 °C to + 60 °C |
|---|---|
| Indoor temperature range | 0 °C to + 60 °C |
| Temperature accuracy | ±1 °C |
| Humidity range | 10% to 99% (1% resolution) |
| Humidity accuracy | ±5% |
| Rain volume | 0 - 9999mm |
| Resolution | 0.3mm (if rain volume < 1000mm) 2) 1mm (if rain volume > 1000mm) |
| Rain accuracy | < 15 mm: +/- 1 mm, 15 mm to 9999 mm: +/- 7% |
| Transmission interval | 60s for rain and |
| T/H sensors Transmission range | 100m in the open area |
| Transmission frequency | 433MHZ |
| Receiver | 4 x AAA alkaline batteries |
| Thermo-hygrometer Sensor | 2 x |
| AAA alkaline batteries 3) Rain sensor | 4xAAA alkaline batteries |
| Receiver | 136x196x32mm |
| Thermo-hygrometer Sensor | 45x110x21mm (FT007TH) |
| Rain sensor | 170x140x207mm (FT009TR) |
| Model Number | FT0206 |
|---|---|
| Color | Black |
| Feature | Test Rainfall |
| Application | Farm or Garden |
| Keywords | Wireless Rain Gauge |
| Warranty | 1 years |
| Certification | CE, FCC |
| Customized support | OEM/ODM |
Function list
Features as published
- In/ outdoor temperature and humidity display
- Wireless(CH1-CH8) temperature and humidity
- Rainfall data (inch or mm): 1 hour, 24 hours, week, month, and total
- Rainfall history graph
- Records Min/Max of temperature, humidity, rainfall
- Display Console Supports up to 8 thermo-hygrometer sensors
- Time, time alarm, and calendar Display
- Low power indicator
- Wall hanging or freestanding
Applications
Where the FT0206 RF Weather Station is used
Farm and garden irrigation planning
Rain rate plus 24-hour, weekly, monthly and total accumulation lets an operator decide whether to irrigate without guessing at the weather report.
Wine cellar, greenhouse and storeroom humidity
Humidity is the variable that spoils stock; reading it continuously is what turns a storeroom into controlled storage.
Problems it removes
- Outdoor conditions guessed from a phone app that reports the nearest airport, not the site.
- Stock spoiling in storage because humidity was never measured, only assumed.
- Irrigation and drainage decisions made on a regional forecast rather than on what fell on this field.
Who buys it
- Retail and catalogue buyers who want no app or account
- Promotional and gift-market importers
- Distributors selling into areas with poor home Wi-Fi
Quality
How it is tested
Every FT0206 RF Weather Station is aged before it leaves the factory and is checked on the same equipment the rest of the range uses: rainfall and waterproof testing, constant temperature and humidity chambers, radio link checks over the rated range, and vibration and smog aging equipment. A ten-person QC team inspects and tests in process, and the weather station line holds CE (GTS verification of compliance, RED 2014/53/EU) and FCC authorisation under FCC ID 2ALHJ-WS0300.
OEM and ODM
Building it under your brand
The FT0206 RF Weather Station is available as an OEM or ODM build: own-logo and own-package builds and console artwork and unit selection (°C/°F, mm/inch, m/s or mph). MOQ runs from 300 to 1,000 pcs depending on model and delivery is normally 35 to 45 days; our own R&D team handles new development rather than subcontracting it.
Where it sits in the range
Inside RF Weather Stations the FT0206 RF Weather Station reads 4 parameters; if you need more on the same console, the FT036B1 RF Weather Station carries 13; if the specification is heavier than the application needs, the FT0854 RF Weather Station covers 3.
Questions buyers ask about the FT0206 RF Weather Station
What is the wireless range of the FT0206 RF Weather Station?
100 m in open area. Walls, metal cladding and other 433 MHz traffic reduce it, so plan the mounting point against the open-area figure rather than on top of it.
What temperature range and accuracy are specified?
Outdoor is -40 °C to + 60 °C. The full table is on this page; anything not in it is not a figure we will confirm by email.
What is the MOQ for the FT0206 RF Weather Station?
MOQ is 300 to 1,000 pcs depending on the model. Tell us the model and the market and we will confirm which band it falls in.
What is the normal delivery time?
35 to 45 days for a normal production order. Sample lead time is shorter and is quoted per request.
Can we have our own logo and packaging?
Yes. OEM and ODM are standard here, including own-logo consoles and own-package builds, and our R&D team develops to customer requirements.
What certificates do you hold?
CE and FCC. The weather station range is covered by a GTS verification of compliance against RED 2014/53/EU and an FCC grant of equipment authorisation under FCC ID 2ALHJ-WS0300.
What is the warranty?
One year.
Other models in RF Weather Stations
Quote the FT0206 RF Weather Station
Tell us quantity, destination market and whether you need own-brand packaging. MOQ 300-1,000 pcs, normal delivery 35-45 days.
