FT0376 LoRa WiFi Weather Station
The FT0376 LoRa WiFi Weather Station is a LoRa weather station built around 13 measured parameters: indoor temperature, outdoor temperature, humidity, wind speed, wind direction, rainfall, barometric pressure, UV index, solar radiation, dew point, feels-like temperature, moon phase, and weather forecast. A LoRa radio carries the outdoor data to the console, which keeps the link alive at distances where a plain 433 MHz pair would already have dropped out; the console itself joins a 2.4 GHz Wi-Fi network and pushes readings to Weather Underground and WeatherCloud. The sensor link is rated at 1500 m in open area, which sets how far the outdoor unit can sit from the console.
CE and FCC
MOQ 300-1,000 pcs35-45 days
OEM and ODM1 year warranty
Why this model
What the FT0376 LoRa WiFi Weather Station gives a buyer
Verified measuring range
Outdoor temperature is specified at -40 °C to + 60 °C, accuracy: ±0.3 °C, so the range and tolerance are on the table before you sample.
Humidity specified both sides
Humidity is quoted as 10% to 99%, accuracy: ±5%, indoor and outdoor stated separately rather than as one blanket figure.
Data leaves the building
Readings upload to Weather Underground and WeatherCloud, which gives your customer a record to look at without standing in front of the unit.

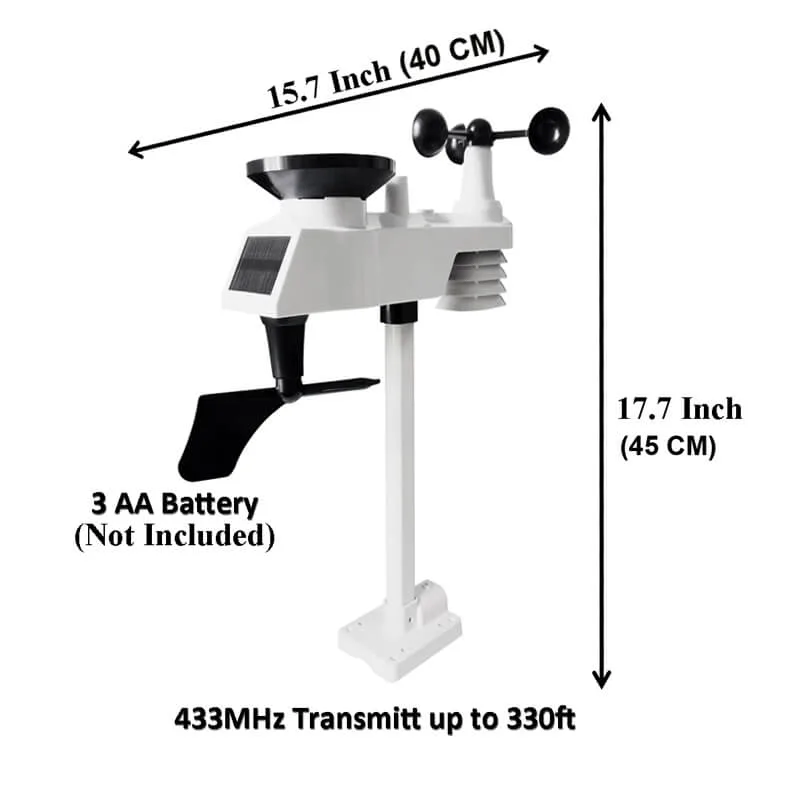

Solar-assisted outdoor unit
The outdoor sensor carries a solar panel as auxiliary supply, which reduces how often someone climbs up to change batteries.
Published data
Specifications
These are the figures published for the FT0376 LoRa WiFi Weather Station. A parameter that is not in this table is not one we will confirm without testing.
| Outdoor temperature range | -40 °C to + 60 °C, accuracy: ±0.3 °C |
|---|---|
| Indoor temperature range | 0 °C to + 60 °C, accuracy: ±1 °C |
| Indoor Humidity range | 10% to 99%, accuracy: ±5% |
| Outdoor Humidity range | 1% to 99%, accuracy: ±3% |
| Barometric pressure range | 300 to 1100hpa , accuracy: ±3hpa |
| Rain volume | 0 - 9999mm |
| Resolution | 0.3mm (if rain volume < 1000mm) 2) 1mm (if rain volume > 1000mm) accuracy: < 15 mm: +/- 1 mm, 15 mm to 9999 mm: +/- 7% |
| Wind speed Range | 0~50m/s accuracy: 2 m/s ~ 10 m/s (± 0.3 m/s), 10 m/s ~ 50m/s (±10%) |
| Wind direction accuracy | 0 - 360º, accuracy: ± 10º |
| Sunlight index | 0 to 200,000 Lux, accuracy: ± 15% |
| UV index | 1 to 15+, accuracy:± 1 Levels |
| Integrated Outdoor Sensor transmission interval | 16s |
| Integrated Outdoor Sensor transmission range | 1500m in open area (500m under most conditions) |
| Integrated Outdoor Sensor transmission frequency | 433MHz，915/868MHz |
| Wifi standard | 802.11 b/g/n |
| Wifi frequency | 2.4GHZ |
| Line of sight of Wifi transmission | 20m |
| Display Console | 3 x AAA 1.5V Alkaline or Lithium batteries (not included) |
| Integrated Outdoor Sensor | 3 x AA 1.5V alkaline batteries or Lithium batteries (not included) The batteries provide backup power when there is limited solar energy |
| Power Adaptor | 5.9V/0.5A |
| Display Console (LxHxW) | 215x158x22mm (8.47×6.22×0.87inch) |
| LCD Dimensions (LxW) | 170×125 mm (6.7×4.9inch) |
| Integrated Outdoor Sensor(FT019T) | 330x280x150mm (13x11x5.9 inch) |
| Weather Station Packages | 1 x Indoor Display Console 1 x Solar Integrated Outdoor Sensor(FT019T) 1 x Mounting Bracket Back Plate 1 x Mounting Pole + 1 x Foot Mounting 1 x English Manual 1 x |
| Power Adapter( Console use only) Spare parts | Pole mounting nuts and bolts |
| Model Number | FT0376 Lora |
|---|---|
| Color | Black |
| Feature | Measure Ambient Weather |
| Application | Outdoor |
| Keywords | Home Weather Station |
| Warranty | 1 years |
| Certification | CE, FCC |
| Customized support | OEM/ODM |

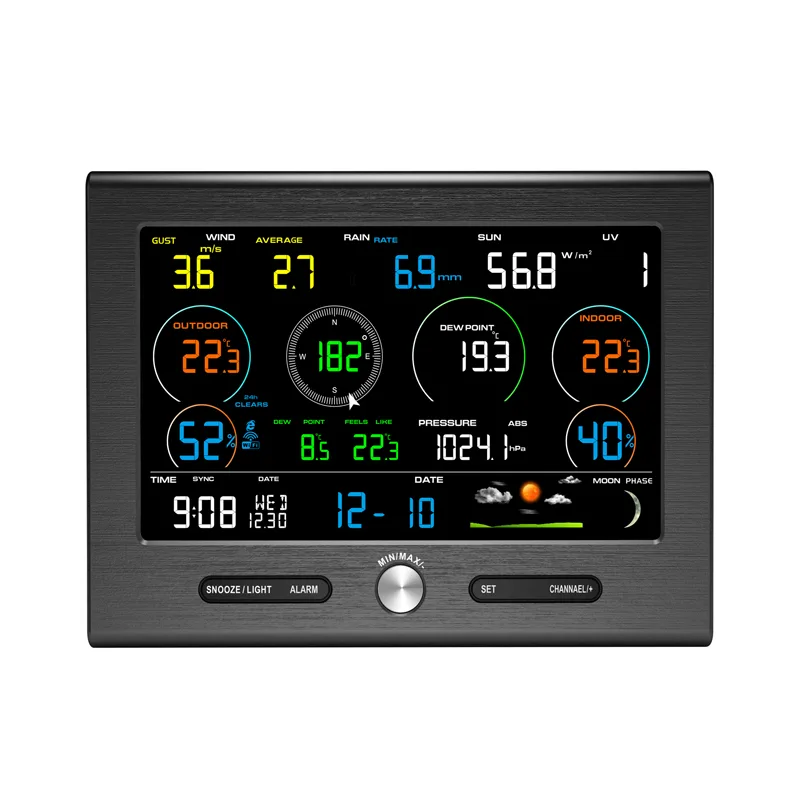

Function list
Features as published
- Time(12/24) and calendar display: Time( Internet Sync Time ), date, Year, alarm Set (alarm 1 and alarm 2), Snooze
- Indoor temperature(°C/°F) and humidity - Hi/Lo alarm
- Indoor Dew Point-Hi/Lo alarm
- Integrated outdoor sensor temp(°C/°F) and humidity - Hi/Lo alarm
- Outdoor dew point, AT and Feels like - Hi/Lo alarm
- Wind speed and gust display(m/s, km/h, mph, knots bft or ft/s): Current, 2mins, 10mins - Hi alarm
- Wind direction icon and data display
- Weather forecast (Sunny, partly cloudy, Cloudy, Rainy), Moon Phase
- Barometric Pressure display (mmhg, inHg or hPa.): ABS or REL - Hi Alarm
- Rainfall data (inch or mm): Rate, 24 hours, week, month, and total - Hi Alarm
- UV and Sunlight Index Display(W/m², fc or lux.) - Hi Alarm
- Display console 3 levels of adjustable backlight
- Min/Max Records with manually clear or 24hrs automatically clear
- Manually calibration of in/outdoor temp, humidity, pressure, wind speed, rainfall, sunlight
- Solar Power-Solar panel doesn't charge the battery and it is an auxiliary power supply
- Integrated Outdoor Sensor Low power indicator
- Wall hanging or desk freestanding
- WiFi connection(2.4G Router)
- Upload real-time weather data to wunderground and weathercloud
Applications
Where the FT0376 LoRa WiFi Weather Station is used
Farm and garden irrigation planning
Rain rate plus 24-hour, weekly, monthly and total accumulation lets an operator decide whether to irrigate without guessing at the weather report.
Roof, mast and yard exposure
Current, average and gust readings show when it is unsafe to work at height or leave equipment uncovered.
Outdoor UV exposure
UV index on the console tells a grower or a household when exposure is high enough to matter.
Local short-range forecasting
Absolute and relative pressure with trend is the basis for the console forecast icon, not a downloaded forecast.
Problems it removes
- Outdoor conditions guessed from a phone app that reports the nearest airport, not the site.
- Stock spoiling in storage because humidity was never measured, only assumed.
- No local wind record, so exposure limits at height are argued about instead of read.
Who buys it
- Buyers whose sensor sits far from the console
- Farm, vineyard and site-monitoring distributors
- OEM customers replacing a short-range 433 MHz design
Quality
How it is tested
Every FT0376 LoRa WiFi Weather Station is aged before it leaves the factory and is checked on the same equipment the rest of the range uses: rainfall and waterproof testing, constant temperature and humidity chambers, radio link checks over the rated range, and vibration and smog aging equipment. A ten-person QC team inspects and tests in process, and the weather station line holds CE (GTS verification of compliance, RED 2014/53/EU) and FCC authorisation under FCC ID 2ALHJ-WS0300.
OEM and ODM
Building it under your brand
The FT0376 LoRa WiFi Weather Station is available as an OEM or ODM build: own-logo and own-package builds, console artwork and unit selection (°C/°F, mm/inch, m/s or mph), and cloud service and app branding. MOQ runs from 300 to 1,000 pcs depending on model and delivery is normally 35 to 45 days; our own R&D team handles new development rather than subcontracting it.
Where it sits in the range
Inside LoRa WiFi Weather Stations the FT0376 LoRa WiFi Weather Station reads 13 parameters. Tell us the parameters and the link type the application needs and we will point at the closest model in the range.
Questions buyers ask about the FT0376 LoRa WiFi Weather Station
What is the wireless range of the FT0376 LoRa WiFi Weather Station?
1500 m in open area. Walls, metal cladding and other 433 MHz traffic reduce it, so plan the mounting point against the open-area figure rather than on top of it.
Where does the data go?
The console uploads to Weather Underground and WeatherCloud over your own 2.4 GHz Wi-Fi. There is no UCTECH subscription and no gateway in the path.
What temperature range and accuracy are specified?
Outdoor is -40 °C to + 60 °C, accuracy: ±0.3 °C. The full table is on this page; anything not in it is not a figure we will confirm by email.
What is the MOQ for the FT0376 LoRa WiFi Weather Station?
MOQ is 300 to 1,000 pcs depending on the model. Tell us the model and the market and we will confirm which band it falls in.
What is the normal delivery time?
35 to 45 days for a normal production order. Sample lead time is shorter and is quoted per request.
Can we have our own logo and packaging?
Yes. OEM and ODM are standard here, including own-logo consoles and own-package builds, and our R&D team develops to customer requirements.
What certificates do you hold?
CE and FCC. The weather station range is covered by a GTS verification of compliance against RED 2014/53/EU and an FCC grant of equipment authorisation under FCC ID 2ALHJ-WS0300.
