Side Emitting Slim 60W 14 Inch 12V/24V CREE LED Work Light for Car 4x4 Offroad SLL-1460

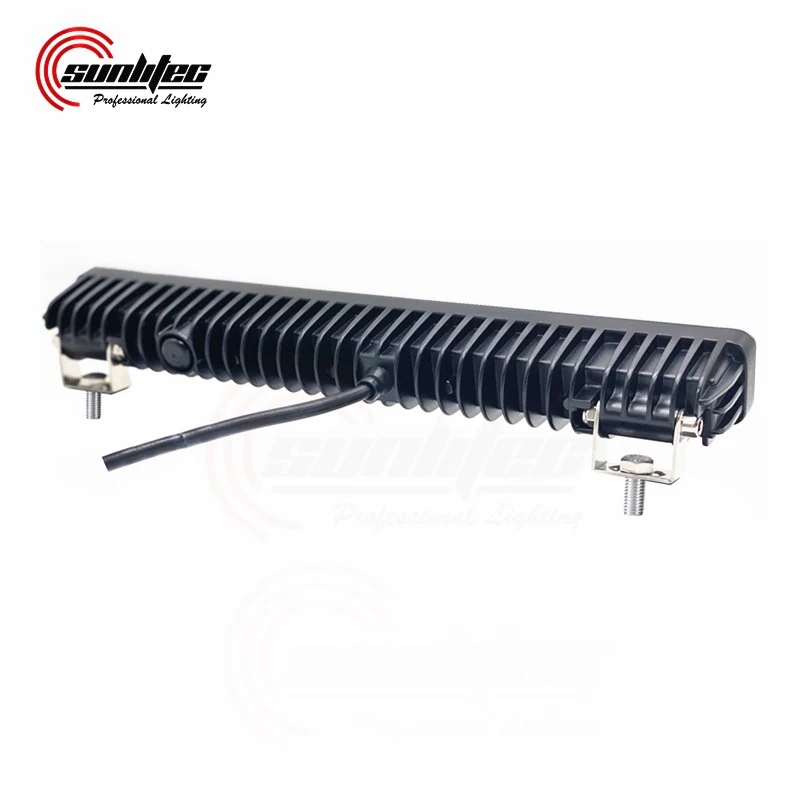

The SLL-1460 is a 14 inch side emitting slim LED work light designed for off-road vehicles and 4x4s that need consistent, wide-angle illumination in harsh conditions. Twelve 5W CREE XPG2 LEDs produce a driving beam pattern with approximately 1035 effective lumens, delivering clear visibility across the path ahead without glare for the driver. The die-cast aluminium housing and stainless steel bracket resist vibration and corrosion, while IP68 sealing ensures operation after exposure to rain, dust, and pressure washing. The light operates on 10-30V DC, making it compatible with both 12V and 24V vehicle systems.
- Side emitting beam spreads light across the full width of the road ahead, reducing blind spots on uneven terrain
- IP68 sealing prevents water ingress during pressure washing and prolonged exposure to rain or mud
- 12 x 5W CREE XPG2 LEDs deliver 1035 effective lumens with low power draw at 12V and 24V systems
- Stainless steel 304 bracket resists rust on vehicles washed with salt or chemical residues
- Operating range of 10-30V DC allows one part number to serve both 12V and 24V fleets, reducing SKU complexity
Where This Lamp Is Used
- Front mounting on 4x4s and off-road vehicles for clear path illumination during night driving
- Side mounting on utility trucks and service vehicles where a narrow profile fits under body rails
- Auxiliary lighting on excavators and engineering vehicles where vibration and dust degrade standard lights
- Fleet vehicles operating in coastal or agricultural zones where salt and moisture accelerate corrosion
- Night operations on mining support vehicles where consistent beam pattern and durability are critical
Who It Is For
- Distributors of off-road vehicle lighting needing a single model for both 12V and 24V systems
- 4x4 accessory brands building a private label range with proven European compliance
- Fleet operators replacing halogen lights that fail under vibration and draw excessive current
- Machinery OEMs integrating a slim, durable light into vehicle production lines with consistent mounting
- Equipment dealers fitting work lights on machines used in wet, dusty or corrosive environments
Problems It Solves
- Halogen lights fail quickly under vibration and draw more than double the current from the vehicle’s electrical system
- Standard sealed lights allow water to enter through the cable gland, causing fogging and short circuits after wash cycles
- Narrow beam lights leave the edges of the road or machine dark, increasing risk in off-road driving
- Lights without ECE R10 or EMARK certification may be rejected during vehicle inspection in Europe
- Painted mild steel brackets corrode within weeks on machines washed daily with salt or fertiliser
Technical Features
- Twelve 5W CREE XPG2 LEDs with a total real power draw of 60W and a theoretical output of 1035 effective lumens
- Side emitting beam pattern with a wide horizontal spread for consistent illumination across the road
- Semi-gloss black powder coating on the full housing and bracket for abrasion resistance
- Bare wire lead of 40cm as standard with a Deutsch connector available on request
- Operating temperature range of -40 to +50 degrees Celsius, suitable for extreme climates
- EMC protected wiring and sealed cable entry gland to prevent electrical interference and water ingress
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-1460 |
|---|---|
| Max Power | 60W |
| Real Power | 60W |
| LED | 12 pcs x 5W CREE XPG2 |
| Theoretical Lumen | 1035 lm |
| Effective Lumen | 1035 lm |
| Beam Pattern | Driving |
| 1 Lux Reading | Not specified |
| Colour Temperature | 5700K |
| Operating Voltage | 10-30V DC |
| Lens Material | Anti-reflective polycarbonate |
| Bracket Material | 304 stainless steel |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +50 degrees Celsius |
| Electrical Connection | Bare wire 40cm, Deutsch connector available |
| Packing | 10 sets per carton, carton 40 x 30 x 30 cm |
| Certification | CE, RoHS, EMARK, ECE R10, R23 |
Materials Used
- Anti-reflective UV-resistant polycarbonate lens
- 304 stainless steel U-shaped mounting bracket
- Silicone rubber gasket and sealed cable entry gland
- Semi-gloss black powder coating on housing and bracket
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black
LED board assembly with CREE XPG2 emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to reproduce machine mounted service
- Salt spray corrosion testing on housing coating and stainless bracket
- High and low temperature alternating humidity testing across the -40 to +50 degrees Celsius window
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Alternative cable length for integration with a specific vehicle harness
- Private label logo on the housing and printed carton
- Mixed cartons combining this light with other SUNLITEC models for trial orders
- Spot beam optics in place of the standard driving beam pattern
How It Compares With the Alternatives
| Standard round 14 inch LED light bar | The slim side emitting design fits under body rails and cab pillars where a round bar will not clear |
|---|---|
| Halogen work light of similar output | Draws 5A at 12V against roughly 10A for halogen and survives vibration that destroys a filament |
| Front emitting LED light bar | Side emitting pattern illuminates the full width of the road ahead, reducing blind spots on uneven terrain |
How to Fit and Use It
- Leave a drip loop in the 40cm lead so water runs away from the gland rather than into it
- Aim the driving beam at the road ahead and use a spot lamp separately for long-distance visibility
- Clean the polycarbonate lens with water and a soft cloth only, as solvents may degrade the anti-reflective coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 10 to 30V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant and carries EMARK, ECE R10 and R23 certifications for vehicle lighting in Europe.
