9“ 120W Osram DRL LED Laser Light 16600LM 1lux@2000m SLL-19025C

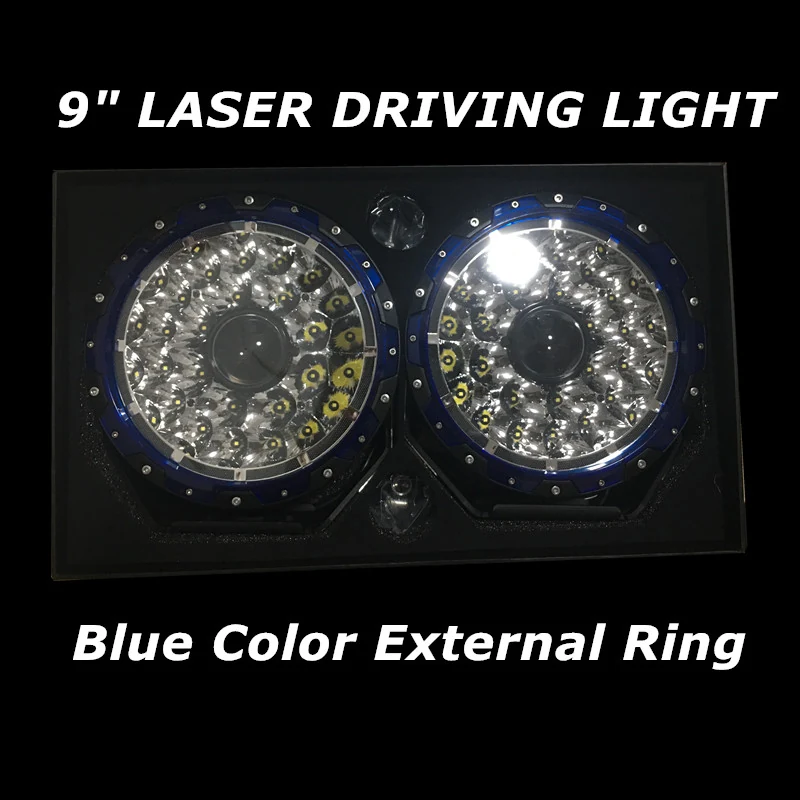

The SLL-19025C is a 9 inch LED laser driving light designed for off-road vehicles and heavy machinery that operate in low visibility conditions at high speed. It delivers 16600 effective lumens with a 1 lux reading at 2000 meters, enabling clear visibility on unpaved roads, construction sites, and mining operations. The light uses 24 x 5W Osram CRDP-SH+LASER emitters and is rated for 10-30V DC operation, making it compatible with both 12V and 24V vehicle systems. The die-cast aluminium housing is sealed to IP67, and the unit is built to withstand vibration and dust in demanding environments.
- 16600 effective lumens with a 1 lux reading at 2000 meters, extending visibility beyond standard driving lights
- IP67 sealing protects against dust and water immersion up to 1 meter, suitable for wash-down environments
- 24 x 5W Osram CRDP-SH+LASER LEDs provide a sharp, focused beam ideal for long-range illumination
- 10-30V DC operation allows one part number to serve both 12V and 24V fleets, reducing SKU complexity
- 50000 hours lifetime means replacement is measured in years, not months, for high-utilisation machines
Where This Lamp Is Used
- Front lighting on off-road trucks and 4x4s navigating remote terrain at night
- Primary headlight replacement on mining and engineering vehicles operating in low-light zones
- Auxiliary lighting on cranes and excavators where long-range visibility is needed for safety
- Fleet vehicles used in logging, agriculture, and construction that require consistent long-range lighting
- Night operations on vessels and boats where a high-intensity beam cuts through fog and rain
Who It Is For
- Distributors of off-road and industrial lighting needing a high-output light with proven beam distance
- Machinery OEMs fitting driving lights on production-line machines that must operate in extreme conditions
- Fleet operators replacing halogen or low-lumen LED lights that fail under sustained high-speed use
- 4x4 accessory brands building a private label laser light range with long-range performance
- Equipment dealers supplying lighting for mining and construction machinery where beam reach is critical
Problems It Solves
- Halogen driving lights burn out quickly under vibration and cannot reach 2000 meters with usable light
- Cheap LED lights with poor heat dissipation fail within months due to thermal stress on the driver
- Lights with inadequate sealing let water in during pressure washing or heavy rain, causing internal corrosion
- Narrow beam lights with low lumen output leave the road edge and obstacles undetected beyond 500 meters
- Non-IP67 rated lights fail during wash cycles or in dusty environments, leading to premature failure
Technical Features
- 24 x 5W Osram CRDP-SH+LASER LEDs with a real power draw of 120W and a maximum rating of 120W
- Spot beam or DRL (Daytime Running Light) pattern available as an option, with a 1 lux reading at 2000 meters
- Semi-gloss black powder coating over the full housing for corrosion resistance
- DT plug standard for secure electrical connection; bare wire available on request
- Rated for more than 50000 hours of continuous operation under normal conditions
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-19025C |
|---|---|
| Max Power | 120W |
| Real Power | 120W |
| LED | 24 pcs x 5W Osram CRDP-SH+LASER |
| Theoretical Lumen | 16600 lm |
| Effective Lumen | 16600 lm |
| Beam Pattern | Spot beam, DRL (optional) |
| 1 Lux Reading | 2000 meters |
| Colour Temperature | 6000K |
| Operating Voltage | 10-30V DC |
| Amp Draw | 9.6A at 12V |
| Lens Material | Anti-reflective PC |
| Waterproof Rating | IP67 |
| Electrical Connection | DT plug standard, bare wire available on request |
| Lifetime | More than 50000 hours |
| Size | 9 inch diameter, 24mm bracket width |
| Certification | CE, RoHS |
Materials Used
- Anti-reflective UV-resistant polycarbonate lens
- Silicone rubber gasket and sealed cable entry
- Semi-gloss black powder coating on housing
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black

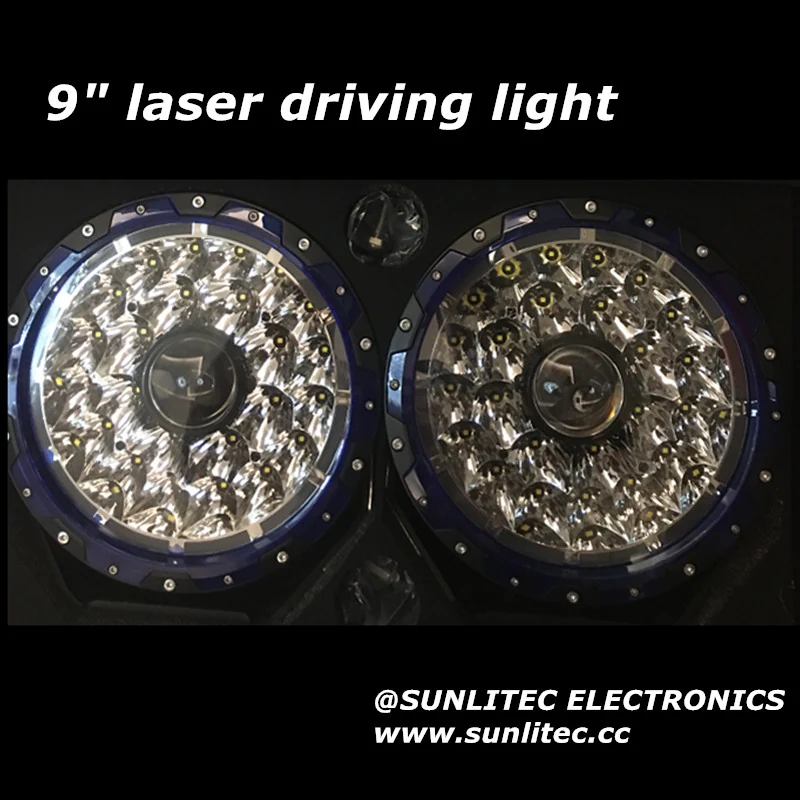

LED board assembly with Osram CRDP-SH+LASER emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP67 rating before shipment
- Vibration testing on a vibration test machine to simulate machine-mounted service
- Salt spray corrosion testing on housing coating and stainless bracket
Customisation Options
- Spot beam or DRL beam pattern as an option
- Black housing finish only
- Private label logo on the housing and printed carton
- Alternative cable length or connector type (e.g. bare wire instead of DT plug)
- Mixed cartons combining this light with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Standard 120W LED driving light | Uses Osram CRDP-SH+LASER emitters for higher lumen output and longer beam reach |
|---|---|
| Round 9 inch driving light | The same diameter body allows the same mounting footprint but with a more focused beam pattern |
| DRL-only version of the same lamp | This model includes a spot beam option for long-range visibility, not just daytime running light function |
| Larger 12 inch driving light | Lower output but fits on narrow vehicle grilles where a 12 inch body would not clear |
How to Fit and Use It
- Mount on a flat surface using the 24mm bracket width and check clearance before drilling
- Wire through a fused feed sized for 9.6A at 12V and keep the cable entry pointing downward
- Aim the spot beam at the road ahead and use a separate flood lamp for near-field work
- Clean the PC lens with water and a soft cloth only, since solvents will degrade the anti-reflective coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 10 to 30V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant and carries IP67 sealing, suitable for use on vehicles operating on public roads.
