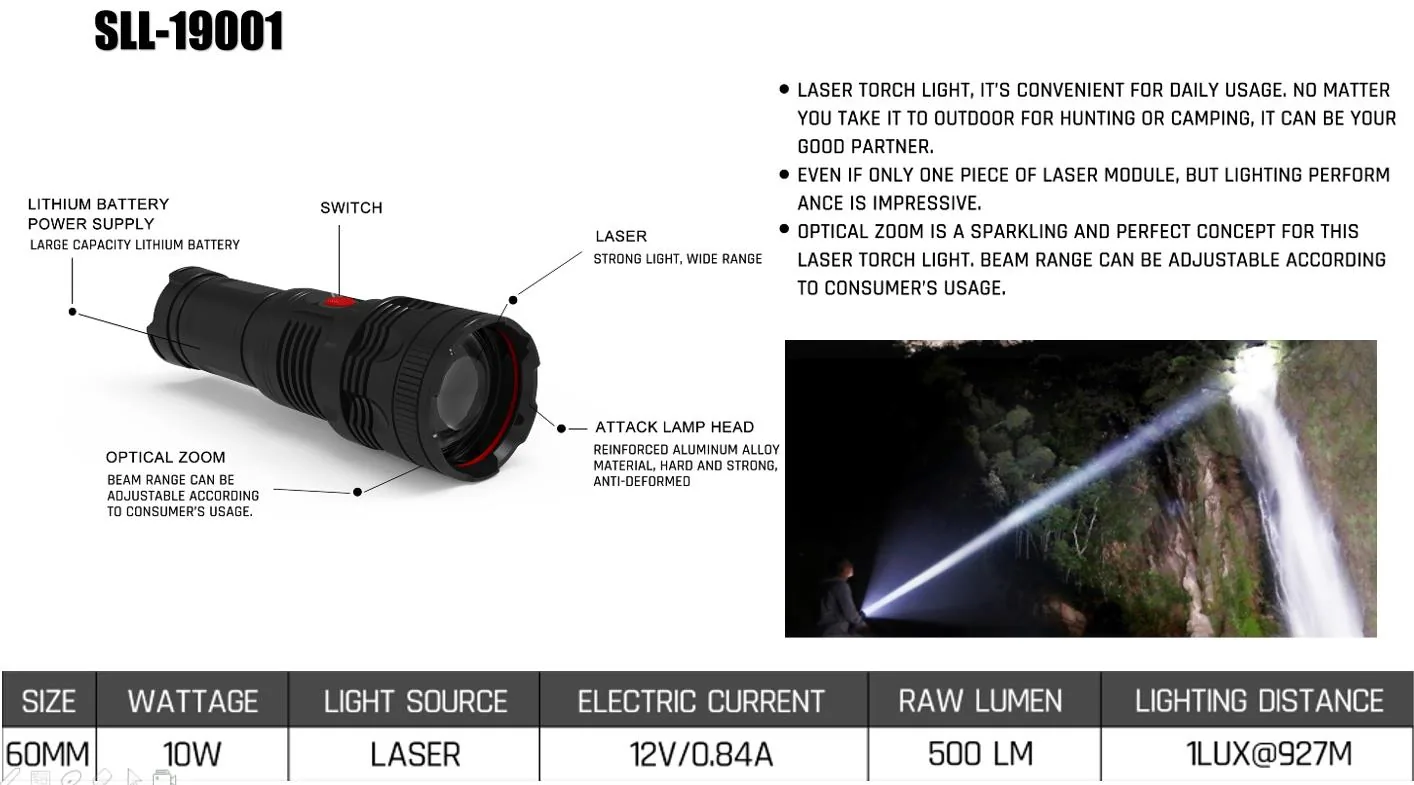

60mm 10W Laser LED Torch Light 500LM 1LUX@927M SLL-19001B
The SLL-19001B is a 60mm diameter laser LED torch light designed for long-range visibility in low-light conditions on vehicles and machinery that operate at night or in remote areas. A single 10W CREE laser diode produces 500 effective lumens with a 1 lux reading at 927 meters, enabling operators to identify obstacles, terrain features, or targets at extreme distances.
- 10W CREE laser diode delivers 500 effective lumens with a 1 lux reading at 927 meters for long-range visibility
- 10-30V DC input allows direct use on both 12V and 24V vehicle systems without additional components
- Compact 60mm diameter body fits in tight mounting spaces on cranes, excavators, and off-road vehicles
- Laser beam pattern provides a focused light path for distance identification, not general area illumination
- Die-cast aluminium housing resists deformation under vibration and dissipates heat efficiently
Where This Lamp Is Used
- Long-range target identification on cranes and excavators operating at night in construction zones
- Navigation lighting on off-road vehicles and mining machinery in remote or unlit areas
- Emergency search and rescue operations where visibility beyond 900 meters is required
- Auxiliary lighting on utility trucks and service vehicles used in rural or forested regions
- Nighttime inspection of large machinery where a narrow beam helps isolate specific components
Who It Is For
- Fleet operators needing long-range visibility lights for night operations on 12V and 24V vehicles
- Machinery OEMs integrating a focused beam light into production line builds for remote operation
- Distributors sourcing a compact laser torch light with consistent beam performance across models
- 4x4 accessory brands developing a private label range of high-intensity auxiliary lights
- Equipment dealers fitting a low-profile light on machines where space is limited
Problems It Solves
- Non-sealed lights allow dust and water ingress in harsh environments, leading to early failure
- Lights requiring separate voltage regulators increase wiring complexity and potential failure points
- Broad beam lights flood the immediate area but do not extend visibility to distant targets
- Large body lights do not fit in tight mounting zones on compact machinery or vehicle cab pillars
Technical Features
- Single 10W CREE laser diode with a real power draw of 10W and a maximum rating of 12W
- Laser beam pattern with a 1 lux reading at 927 meters
- Semi-gloss black powder coating over the full housing
- Bare wire lead of 30cm as standard with a Deutsch connector available on request
- EMC protected wiring and an operating window of -30 to +60 degrees Celsius
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-19001B |
|---|---|
| Real Power | 10W |
| LED | 1 x 10W CREE |
| Theoretical Lumen | 500 lm |
| Effective Lumen | 500 lm |
| Beam Pattern | Laser |
| 1 Lux Reading | 927 meters |
| Lens Material | Anti-reflective coated PC |
| Bracket Material | Die-cast aluminium |
| Certification | CE, RoHS |
Materials Used
- Anti-reflective coated polycarbonate lens
- Die-cast aluminium mounting bracket
- Silicone rubber gasket and sealed cable entry
- Semi-gloss black powder coating
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black
Laser diode assembly with CREE emitter
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Vibration testing on a vibration test machine to reproduce machine mounted service
- Salt spray corrosion testing on housing coating and bracket
- High and low temperature alternating humidity testing across the -30 to +60 degrees Celsius window
Customisation Options
- Deutsch DT connector instead of the standard 30cm bare wire lead
- Alternative cable length for a specific machine harness
- Private label logo on the housing and printed carton
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 60mm LED light | The laser beam provides a focused path for distance identification, while round LED lights spread light across a wide area |
|---|---|
| Larger 80mm laser light | Smaller 60mm body fits in tighter spaces on machinery but has less heat dissipation surface |
How to Fit and Use It
- Leave a drip loop in the 30cm lead so water runs away from the gland rather than into it
- Aim the laser beam at the target distance and use a flood light separately for near-area illumination
- Clean the PC lens with water and a soft cloth only, since solvents will damage the anti-reflective coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 10 to 30V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
