6 Inch Square 80W 12V/24V CREE LED Work Light for Truck Tractor Forklift SLL-7080-80W
The SLL-7080-80W is a 6 inch square LED work light designed for heavy-duty machines that operate in extreme conditions. Eight 10W CREE LEDs deliver 7760 effective lumens with a spot or flood beam pattern, providing clear visibility on forklifts, excavators, and off-road vehicles during night or low-light operations. The die-cast 6063 aluminium housing and 304 stainless steel bracket resist corrosion and vibration, while the Deutsch connector ensures a secure electrical connection in high-shock environments.
- 80W maximum power with 7760 effective lumens from eight CREE 10W LEDs for high visibility in dark or dusty conditions

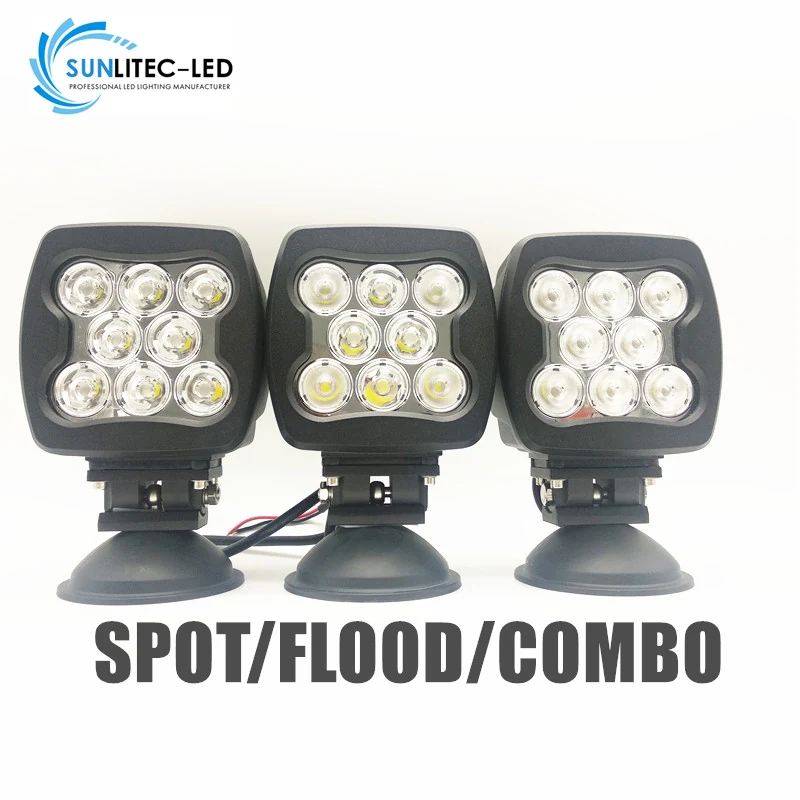

- Spot or flood beam pattern options allow selection based on application needs, from long-distance reach to wide-area coverage
- 304 stainless steel mounting bracket resists rust on machines exposed to salt, water, or chemical washes
- Deutsch connector available as standard, reducing connection failure risks in high-vibration environments
- 12V/24V dual voltage operation allows one part number to serve both 12V and 24V vehicle fleets, reducing SKU complexity
Where This Lamp Is Used
- Front and side work lighting on forklifts and excavators operating in warehouses and construction zones at night
- Auxiliary lighting on off-road trucks and trailers used in mining or logging where vibration damages standard lights
- Cab and hood lighting on 4x4s, ATVs, and UTVs during night off-road driving or emergency response
- Machine edge lighting on cranes and engineering vehicles where consistent beam coverage prevents blind spots
- Marine deck and dock lighting on boats and vessels where salt exposure and moisture are constant challenges
Who It Is For
- Fleet operators managing 12V and 24V vehicle fleets who need a single work light model across multiple platforms
- Machinery OEMs integrating lighting into production lines and requiring consistent mounting and electrical interfaces
- Distributors of industrial lighting seeking a durable, high-output work light with proven performance in harsh environments
- 4x4 and off-road accessory brands building private label lighting systems with reliable components and mounting
- Equipment dealers fitting lighting on heavy machinery where long life and resistance to vibration are critical
Problems It Solves
- Halogen work lights fail quickly under vibration and draw excessive current, increasing alternator load and fuel consumption
- Cheap plastic housings degrade under UV exposure and heat, leading to premature failure and lens clouding
- Standard wire connections loosen over time in high-vibration environments, causing intermittent lighting or complete failure
- Narrow beam lights leave the edges of a machine in shadow, increasing risk during close proximity work
- Mild steel brackets rust within weeks on machines washed daily with water or cleaning agents, leading to structural failure
Technical Features
- Eight CREE 10W LEDs with a maximum power rating of 80W and real power draw of approximately 70W
- Anti-scratch UV resistant polycarbonate lens over a die-cast 6063 aluminium heat sink for thermal management
- Semi-gloss black powder coating over the full housing and bracket for corrosion resistance and durability
- Deutsch connector standard; bare wire lead available on request for custom harness integration
- Operating voltage range of 10-30V DC, compatible with both 12V and 24V systems
- Operating temperature range of -40 to +50 degrees Celsius, suitable for extreme cold and hot climates
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-7080 80W |
|---|---|
| Max Power | 80W |
| LED | 8 pcs x 10W CREE |
| Theoretical Lumen | 7760 lm |
| Effective Lumen | 7760 lm |
| Beam Pattern | Spot or Flood |
| Housing Material | 6063 die-cast aluminium, semi-gloss black powder coating |
| Lens Material | Anti-scratch UV resistant PC |
| Bracket Material | 304 stainless steel |
| Operating Temperature | -40 to +50 degrees Celsius |
| Electrical Connection | Deutsch connector standard, bare wire available |
| Packing | 6 sets per carton, carton 46 x 25 x 37 cm |
| Gross Weight per Carton | 14.8 kg |
| Certification | CE, RoHS |
Materials Used
- 6063 die-cast aluminium housing and heat sink
- Anti-scratch UV resistant polycarbonate lens
- 304 stainless steel U-shaped mounting bracket
- Silicone rubber gasket and sealed cable entry
- Semi-gloss black powder coating on housing and bracket
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black
LED board assembly with CREE emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Vibration testing on a vibration test machine to simulate machine-mounted service
- Salt spray corrosion testing on housing coating and stainless bracket
- High and low temperature alternating humidity testing across the -40 to +50 degrees Celsius window
Customisation Options
- Private label logo on the housing and printed carton
- Alternative cable length for integration with specific machine harnesses
- Custom colour box and outer carton with corresponding printing MOQ
- Spot beam optics in place of the standard flood pattern
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 6 inch work lamp | The square body fits flat mounting surfaces better and allows more LED area behind the same footprint |
|---|---|
| Flood beam version of the same lamp | Spot beam reaches further ahead for distance visibility while flood covers the near working area evenly |
| Smaller 4 inch work lamp | Higher output and better heat dissipation from the larger 6 inch body support continuous duty in high-load applications |
How to Fit and Use It
- Keep the cable entry gland pointing downward to reduce water ingress during rain or pressure washing
- Use a spot beam for long-distance visibility and a flood beam for close-up work; avoid mixing beam types on the same machine without planning
- Clean the PC lens with water and a soft cloth only—avoid solvents that can damage the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 10 to 30V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
