7 Inch 45W Osram Hi-low Beam DRL Laser LED Driving Light 13000LM 1LUX@1300M SLL-19007
It delivers a high beam, low beam, DRL, and laser function using a combination of CREE XML and laser diodes. The light produces 13000 effective lumens with a 1 lux reading at 1300 meters, enabling clear visibility on long stretches of unpaved road or at night in mining and construction zones. The die-cast aluminium housing is sealed to IP67, protecting against dust and water ingress during operation in harsh environments.
- 13000 effective lumens with a 1 lux reading at 1300 meters for long-range visibility on off-road and industrial terrain
- IP67 sealing prevents dust and water ingress during operation in rain, mud, and high-pressure washdowns
- Dual function of high beam, low beam, DRL, and laser allows one light to serve multiple lighting needs
- CREE XML and laser diode combination delivers high output with a 6000K colour temperature for clear, natural visibility
- 10-30V DC input allows use on both 12V and 24V vehicle electrical systems without changing part numbers
Where This Lamp Is Used
- Front lighting on off-road vehicles and 4x4s operating at night on unpaved roads and trails
- Primary headlight replacement on excavators and cranes working in remote or poorly lit construction sites
- Auxiliary lighting on mining machinery where long-range visibility is critical for safety
- Fleet vehicles used in agriculture, forestry, or utility services that operate beyond daylight hours
- Nighttime operations on vessels and boats where long-range beam distance is required for navigation
Who It Is For
- Distributors of 12V and 24V vehicle lighting needing one part number to cover both systems
- Machinery OEMs integrating a single lighting solution into production line builds
- Fleet operators replacing halogen or standard LED headlights that fail under vibration or in wet conditions
- 4x4 accessory brands developing a private label driving light range with advanced beam functions
- Equipment dealers fitting lights on machines that must operate in extreme weather and dust conditions
Problems It Solves
- Halogen headlights burn out quickly under vibration and draw excessive current from the vehicle’s electrical system
- Standard LED lights with narrow beams fail to illuminate long distances, leaving the road edge unlit
- Lights with no IP67 rating allow water and dust to enter, causing internal fogging and early failure
- Lack of DRL or laser function means the vehicle is not visible to other road users at night
- Single-function lights require multiple part numbers for high beam, low beam, and DRL, increasing inventory complexity
Technical Features
- CREE XML and laser diodes combined for high output and long reach
- Hi beam, low beam, DRL, and laser functions selectable via switch or control module
- 13000 effective lumens with a 1 lux reading at 1300 meters for long-range visibility

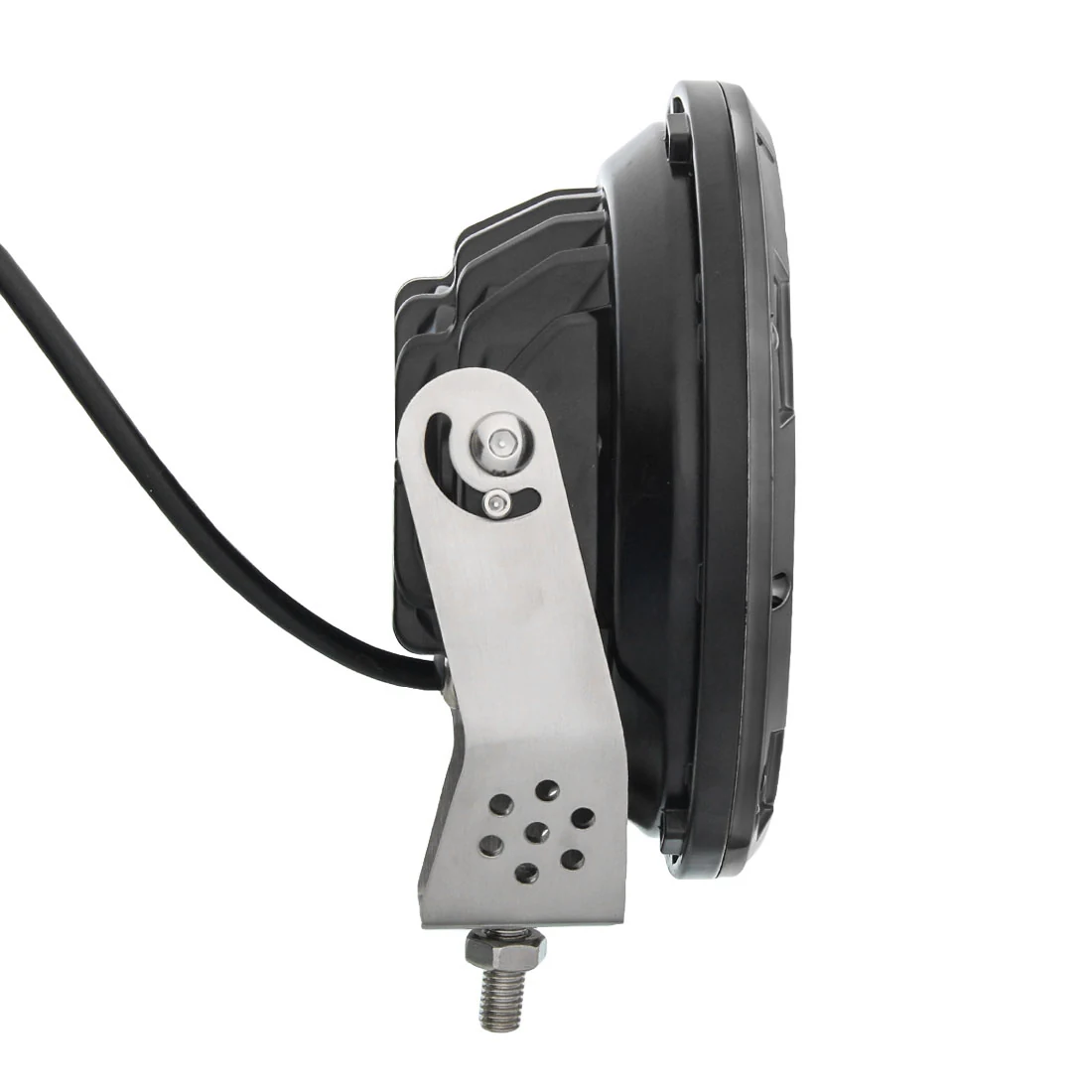

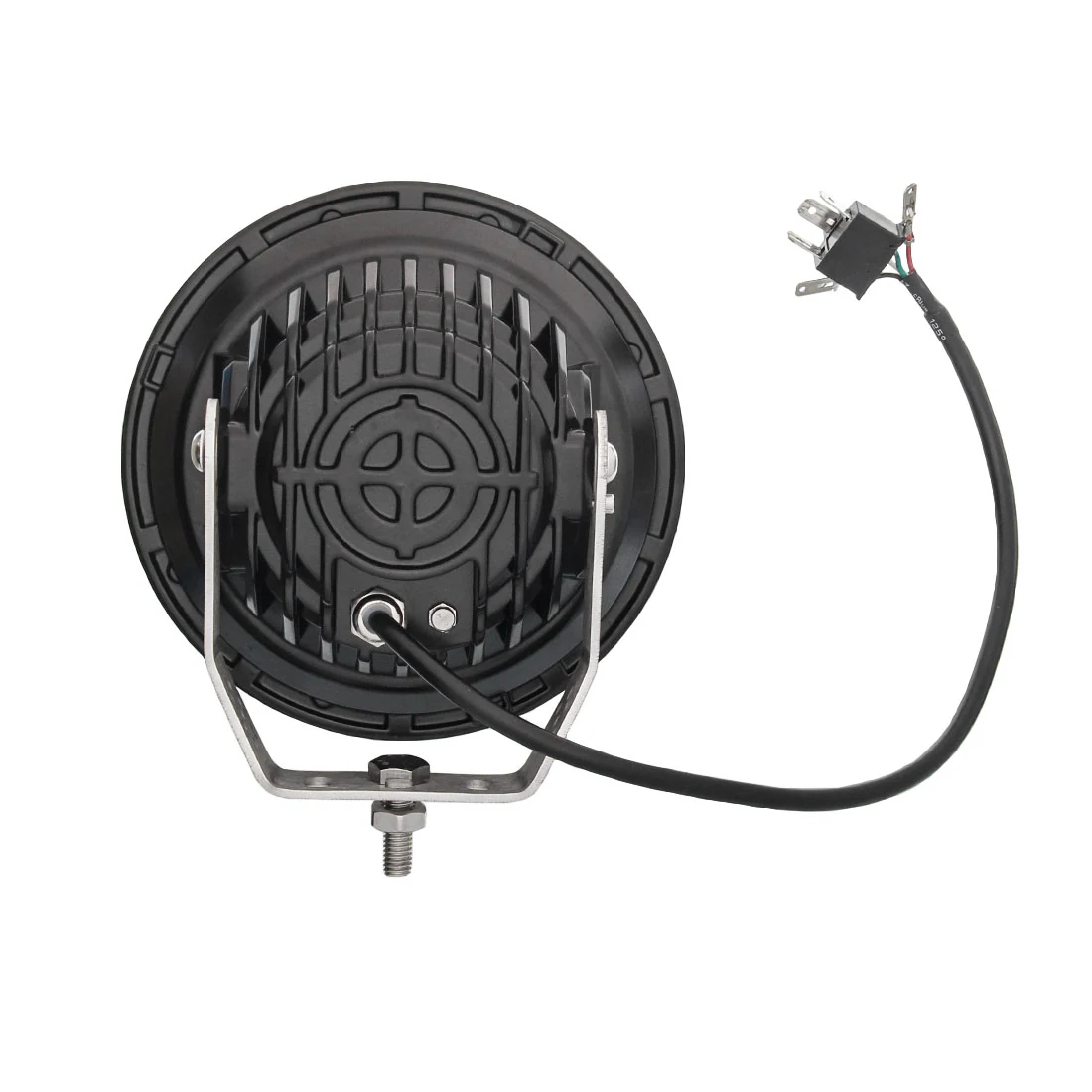

- 7 inch diameter housing with die-cast aluminium construction for heat dissipation and durability
- Polycarbonate lens with anti-reflective coating to maintain light output and resist impact
- 10-30V DC input compatible with 12V and 24V vehicle systems, reducing SKU count
- 12V at 3.75A draw ensures compatibility with standard vehicle wiring and fuses

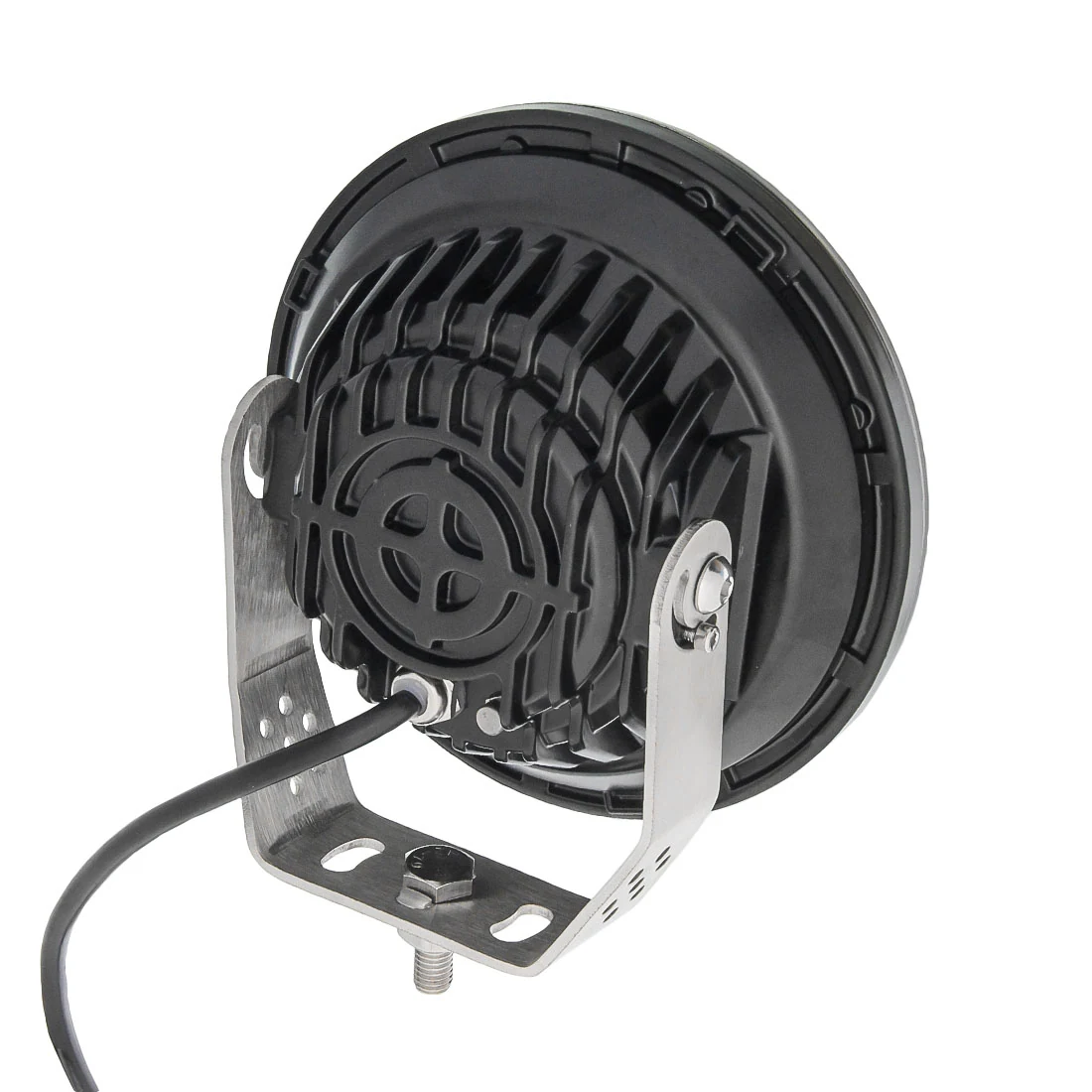

- IP67 sealing protects against dust and water jets from any direction
- 6000K colour temperature provides clear, daylight-like illumination
- 50000 hours or more rated lifetime reduces maintenance frequency on high-use machines
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-LA060 |
|---|---|
| Model | SLL-19007 |
| Size | 7 inch |
| LED Type | CREE XML + Laser |
| LED Power | 45W |
| Theoretical Lumen | 13000 lm |
| Effective Lumen | 13000 lm |
| Beam Pattern | Hi Low Beam |
| 1 Lux Reading | 1300 meters |
| Lighting Distance | 1000 meters |
| Colour Temperature | 6000K |
| Operating Voltage | 10-30V DC |
| Amp Draw | 3.75A at 12V |
| Housing Material | Die-cast aluminium |
| Lens Material | Polycarbonate |
| Waterproof Rating | IP67 |
| Lifetime | More than 50000 hours |
| Dimensions | 7 inch diameter |
| Optional Colour | Silver |
| Function | Hi Beam / Low Beam / DRL / Laser |
Materials Used
- Die-cast aluminium housing for heat dissipation and structural strength
- Polycarbonate lens with anti-reflective coating for high light transmission
- Silicone gasket and sealed cable entry for IP67 protection
- Internal heat sink structure within the aluminium housing
- Silver finish option on the housing for aesthetic and corrosion resistance
How This Lamp Is Built
Die casting of the aluminium housing and internal heat sink
Polishing and surface treatment for the housing before coating
Application of silver finish or standard black powder coating as per option
Assembly of CREE XML and laser diodes on the LED board
Quality Control on This Model
- Photometric output verified in an integrating sphere to confirm lumen output
- Sealing tested under IP67 conditions using dust and water spray chambers
- Vibration testing on a vibration test machine to simulate machine-mounted operation
- Salt spray corrosion testing on the housing and finish to verify durability
Customisation Options
- Silver finish instead of standard black housing
- Custom beam pattern selection (hi-low beam only, no laser option)
- Private label logo on the housing and printed carton
- Alternative cable length to match a specific machine harness
- Mixed cartons combining this light with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Standard 7 inch LED driving light | Uses only CREE LEDs; lacks laser diode, so has lower effective reach and 1 lux distance |
|---|---|
| Halogen driving light | Draws 3.75A at 12V against roughly 10A for halogen, with 50000 hours vs. 1000 hours lifetime |
| Single-function LED headlight | One unit replaces high beam, low beam, DRL, and laser functions, reducing the number of lights needed |
| Larger 8 inch driving light | Same beam distance but fits in tighter spaces due to 7 inch diameter, suitable for narrow vehicle grilles |
| Non-IP67 rated light | IP67 sealing prevents water and dust ingress during washdowns and in high-moisture environments |
How to Fit and Use It
- Mount on a flat surface using the standard bracket, ensuring the 7 inch diameter fits within the vehicle grille or mounting space
- Wire the light through a fused feed sized for 3.75A at 12V and keep the cable entry pointing downward to prevent water entry
- Use a drip loop in the cable to direct water away from the gland and maintain IP67 integrity
- Select the desired function (hi beam, low beam, DRL, laser) using the control switch or module
- Clean the polycarbonate lens with water and a soft cloth only; avoid solvents that may damage the anti-reflective coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 10 to 30V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is IP67 rated and CE and RoHS compliant, but ECE R10 or similar road approval is not listed in the product facts.
