5x7 88W Flush Mount High Low Beam LED Head Light
The SLL-7088 is a 5x7 inch flush mount LED headlight designed to replace original headlights on off-road vehicles, trucks, and heavy machinery that operate in extreme conditions. It delivers 6160 effective lumens in high beam and 5110 in low beam, ensuring visibility in darkness, rain, and dust. The die-cast aluminium housing with UV polyester powder coating resists corrosion, while IP68 sealing prevents water and dust ingress during pressure washing. Overvoltage and overheat protection extend service life in unstable electrical environments.
- High beam delivers 6160 effective lumens and low beam 5110 lumens for clear visibility in dark and adverse weather
- Flush mount design fits original headlight housing without body modifications, reducing installation time
- IP68 sealing prevents water and dust ingress during pressure washing and long-term exposure
- 9 to 32V operating range supports both 12V and 24V systems, eliminating need for multiple SKUs
- Overvoltage and overheat protection prevent damage from electrical surges and high ambient temperatures
Where This Lamp Is Used
- Replacement headlight on off-road vehicles and 4x4s used in mining, forestry, and construction
- Primary lighting on trucks and engineering vehicles operating in remote areas with no street lighting
- Fleet vehicles used in cold climates where low beam must remain functional at -40°C
- Heavy machinery with original headlights failing due to vibration and moisture ingress
- Night operations on cranes, excavators, and service vehicles where consistent beam pattern matters
Who It Is For
- Distributors of vehicle lighting needing a direct replacement for OEM headlight models
- Machinery OEMs integrating lighting into new builds with a standard flush mount footprint
- Fleet operators replacing halogen headlights that fail under vibration and electrical stress
- 4x4 accessory brands building a private label headlight line with dual beam functionality
- Equipment dealers fitting lighting on machines where retrofitting requires minimal body work
Problems It Solves
- Original headlights fail prematurely due to vibration, moisture, and poor sealing
- Halogen headlights draw more current and burn out within months under continuous use
- Non-IP68 sealed lights fog up or short after exposure to rain, dust, or pressure washing
- Inconsistent beam patterns from low-quality LED units reduce visibility and safety
- Voltage fluctuations in 12V and 24V systems damage unregulated LED drivers
Technical Features
- 5x7 inch flush mount design replaces original headlight housing without modification
- High beam: 88W, 6160 effective lumens; low beam: 73W, 5110 effective lumens
- Dual beam operation with selectable high and low beam patterns
- Die-cast aluminium housing with durable UV polyester powder coating
- Durable polycarbonate lens resistant to impact and UV degradation
- Overvoltage and overheat protection built into the driver circuit
- Operating voltage range: 9 to 32V DC, compatible with 12V and 24V systems
- Operating temperature: -40 to +60 degrees Celsius
- Color temperature: 6000K for daylight-like illumination
- IP68 sealing for complete protection against water and dust
- 50,000 hour lifespan under continuous operation
- Bare wire lead with standard length, connector options available on request
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-7088 |
|---|---|
| Beam Pattern | High and Low Beam |
| High Beam Power | 88W |
| High Beam Lumen | 6160 lm |
| Low Beam Power | 73W |
| Low Beam Lumen | 5110 lm |
| Operating Voltage | 9–32V DC |
| Operating Temperature | -40 to +60 degrees Celsius |
| Colour Temperature | 6000K |
| Waterproof Rating | IP68 |
| Lifespan | More than 50,000 hours |
| Housing Material | Die-cast aluminium |
| Lens Material | Polycarbonate |
| Coating | UV polyester powder coating |
| Beam Adjustment | Fixed, flush mount |
| Electrical Protection | Overvoltage, overheat protection |

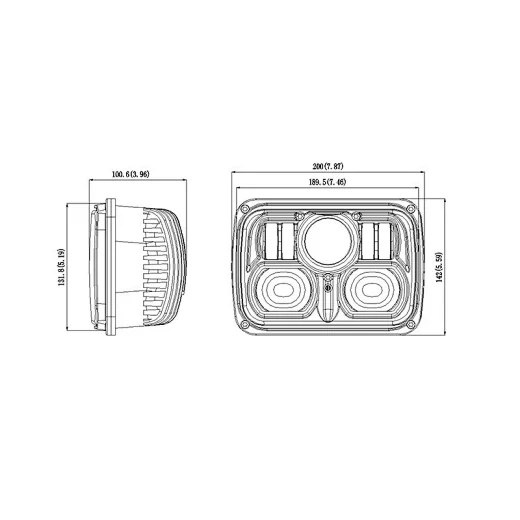

| Size | 5 x 7 inches |
| Mounting Type | Flush mount, original housing replacement |
| Connection Type | Bare wire lead, connector options available |
Materials Used
- Die-cast aluminium housing
- Durable polycarbonate lens
- UV polyester powder coating
- Silicone gasket for sealing
- Internal heat sink and driver board with thermal paste
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating with UV polyester finish
LED board assembly with high-efficiency emitters
Lens bonding with UV-resistant adhesive
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing tested to IP68 standard under pressure and immersion
- Vibration testing on a vibration test machine to simulate machine-mounted service
- Salt spray corrosion testing on housing and coating
- High and low temperature alternating humidity testing across -40 to +60 degrees Celsius
Customisation Options
- Deutsch or OEM connector instead of standard bare wire lead
- Alternative cable length to match specific vehicle harnesses
- Private label logo on housing and carton
- Single beam version (high or low only) for specific applications
- Mixed cartons combining this headlight with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round LED headlight with same beam output | The 5x7 inch flush mount fits original housing better than round units with larger footprint |
|---|---|
| Single beam LED headlight | Dual beam allows safe driving in traffic without switching lamps or adding extra units |
| Low-cost LED headlight without overheat protection | Built-in protection prevents failure in high ambient temperatures and under prolonged use |
How to Fit and Use It
- Ensure the 5x7 inch flush mount fits the original headlight housing before drilling or modifying
- Keep the cable entry pointing downward to prevent water ingress
- Do not operate the headlight outside the 9–32V range to avoid driver damage
- Clean the polycarbonate lens with water and a soft cloth only; avoid solvents that degrade the coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is IP68 sealed and carries overvoltage and overheat protection, but no specific road approval is listed in the product facts.
