4 Inch 30W Flush Mount LED Fog Light with Bracket

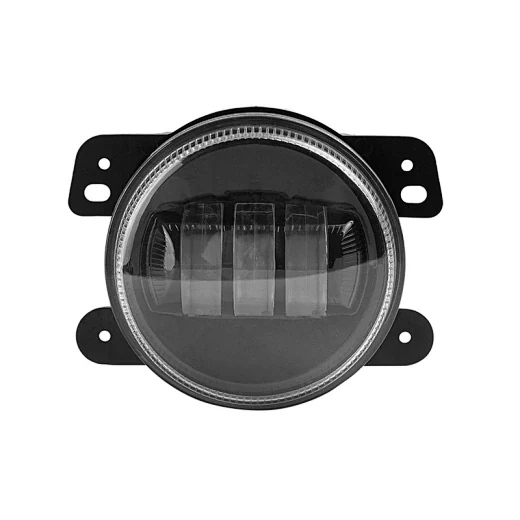

The SLL-4032 is a 4 inch flush mount LED fog light designed to replace original equipment headlights on off-road vehicles, trucks, and heavy machinery. It delivers 2100 effective lumens with a low beam pattern, operates across a 9 to 32V DC range, and is built for continuous use in extreme conditions with IP68 sealing and a 50,000 hour lifespan. The die-cast aluminium housing and durable polycarbonate lens resist impact, UV degradation, and corrosion, making it suitable for machines exposed to dust, rain, and vibration.

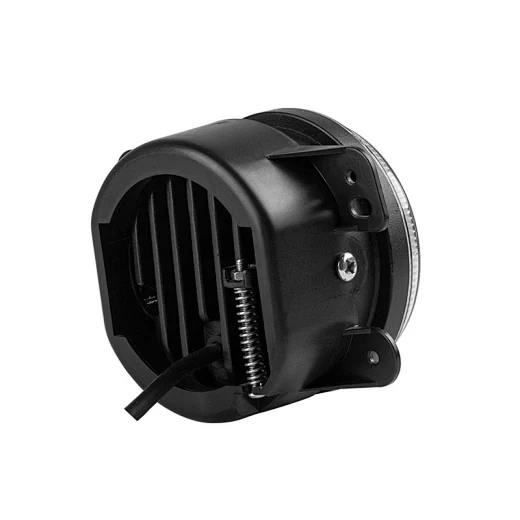

- Flush mount design replaces original headlights without requiring body modifications
- 2100 effective lumens with low beam pattern provide clear visibility in fog, rain, and dust
- 9 to 32V DC operation supports both 12V and 24V vehicle systems, reducing SKU count
- IP68 sealing prevents water and dust ingress during pressure washing or off-road use
- Overvoltage and overheat protection extend service life in unstable electrical environments
Where This Lamp Is Used
- Front fog lighting on off-road vehicles and 4x4s used in wet or dusty terrain
- Auxiliary lighting on trucks and engineering vehicles operating in low-visibility conditions
- Replacement for original headlights on fleet vehicles where OEM parts are no longer available
- Mounting on excavators and cranes where space is limited and flush fit is required
- Lighting on utility vehicles and service trucks that operate in variable weather
Who It Is For
- Distributors sourcing replacement fog lights for 12V and 24V vehicle fleets
- Machinery OEMs integrating a flush mount fog light into new machine designs
- Fleet operators replacing failed halogen fog lights with longer-lasting LED alternatives
- 4x4 accessory brands building a private label fog light range with OEM compatibility
- Equipment dealers fitting fog lights on used or modified vehicles for resale
Problems It Solves
- Original headlights fail quickly under vibration and exposure to moisture in off-road use
- Non-flush mount lights require body cutting and create aerodynamic drag or snag points
- Low-lumen fog lights leave the immediate area around the machine dark in poor visibility
- Voltage fluctuations in older vehicles damage standard LED lights without protection
- Painted metal housings corrode or peel after repeated washing or salt exposure
Technical Features
- Three 10W CREE LEDs with a real power draw of 30W and 2100 effective lumens
- Low beam pattern with a 6000K colour temperature for clear, daylight-like visibility
- Die-cast aluminium housing with durable UV-resistant polyester powder coating
- Anti-impact polycarbonate lens with UV protection and scratch resistance
- Overvoltage and overheat protection circuits to prevent damage from electrical surges
- IP68 sealing with a gasketed cable entry to resist water, dust, and pressure washing
- 9 to 32V DC input range compatible with 12V and 24V vehicle systems
- Operating temperature range from -40 to +60 degrees Celsius
- Flush mount design with optional bracket mount for flexible installation
- 50,000 hour rated lifespan under continuous operation
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-4032 |
|---|---|
| Max Power | 30W |
| Real Power | 30W |
| LED | 3 pcs x 10W CREE |
| Beam Pattern | Low Beam |
| Colour Temperature | 6000K |
| Operating Voltage | 9-32V DC |
| Housing Material | Die-cast aluminium, UV polyester powder coating |
| Lens Material | Durable polycarbonate |
| Bracket Material | Included with optional bracket mount |
| Mounting | Flush mount with optional bracket mount |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +60 degrees Celsius |
| Electrical Connection | Bare wire lead, standard length |
| Certification | CE, RoHS |
Materials Used
- Die-cast aluminium housing with UV-resistant polyester powder coating
- Durable polycarbonate lens with UV and scratch protection
- Silicone rubber gasket for IP68 sealing
- Bare wire lead with insulation suitable for 32V DC
- Optional bracket mount made of durable steel with powder coating
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating with UV-resistant polyester finish
LED board assembly with CREE emitters and driver circuit
Lens bonding and gasket sealing for IP68 integrity
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating using water immersion and dust exposure
- Vibration testing on a vibration test machine to simulate machine-mounted service
- Salt spray corrosion testing on housing coating and bracket components
- High and low temperature alternating humidity testing across the -40 to +60 degrees Celsius range
Customisation Options
- Deutsch connector instead of the standard bare wire lead
- Alternative beam pattern (e.g. spot or flood) on request
- Private label logo on the housing and printed carton
- Custom cable length to match a specific machine harness
- Mixed cartons combining this fog light with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 4 inch fog light with external bracket | Flush mount fits flush with the vehicle body and avoids snag points, while the bracket version allows tilt adjustment |
|---|---|
| LED fog light with 12V only operation | 9 to 32V DC range supports both 12V and 24V fleets without changing part numbers |
| Fog light with lower IP rating | IP68 sealing prevents water and dust ingress during pressure washing and off-road use |
How to Fit and Use It
- Install flush with the vehicle body using the standard mounting pattern and check clearance before drilling
- Leave a drip loop in the 40cm lead so water runs away from the gland rather than into it
- Use the optional bracket mount if tilt adjustment is needed for beam aiming
- Clean the polycarbonate lens with water and a soft cloth only, as solvents may degrade the UV coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant and carries IP68 sealing, which supports use on machines operating on public roads.
