5 Inch 45W 3 600 Lumens 6000K
The SLL-5046 is a 5 inch round LED driving light designed for off-road vehicles that operate in dark, dusty, and high-vibration environments. It delivers 3600 effective lumens with a spot beam pattern, providing a clear and bright long-range beam for safe navigation on unpaved roads and trails. The die-cast aluminium housing and polycarbonate lens resist impact and environmental damage, while the 9–32V DC operating range ensures compatibility with both 12V and 24V vehicle electrical systems. The light includes overvoltage and overheat protection, and the IP68 sealing prevents dust and water ingress during off-road use.
- 3600 effective lumens with a spot beam pattern illuminate distant terrain on unpaved roads and trails
- IP68 sealing prevents dust and water ingress during off-road driving and pressure washing
- 9–32V DC operation allows use on both 12V and 24V vehicles without changing part numbers
- Overvoltage and overheat protection extend service life in unstable electrical environments

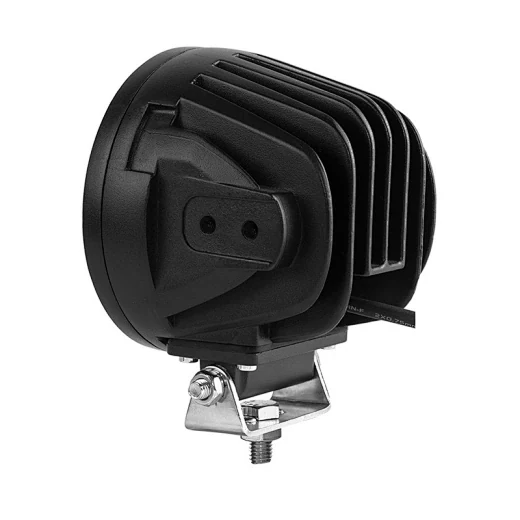

- Die-cast aluminium housing and polycarbonate lens resist impact and UV degradation
Where This Lamp Is Used
- Front bumper mounting on off-road vehicles and 4x4s used in mining, forestry, and desert terrain
- Auxiliary lighting on utility vehicles and service trucks operating on unlit rural roads
- Night driving on construction sites and remote job sites where visibility is critical
- Fleet vehicles used in agriculture and logging that travel on unpaved and muddy roads
- Replacement for halogen driving lights that fail under vibration and heat stress
Who It Is For
- Distributors of off-road vehicle lighting needing a single part number for 12V and 24V systems
- 4x4 accessory brands building a private label driving light range with consistent performance
- Machinery OEMs fitting driving lights on production vehicles with limited mounting space
- Fleet operators replacing halogen lights that fail after a few hundred hours of use
- Off-road vehicle modifiers installing lights on custom builds with tight bumper mounting constraints
Problems It Solves
- Halogen driving lights burn out quickly under vibration and heat, requiring frequent replacement
- Cheap plastic lenses degrade under UV exposure and become brittle after a few months
- Inadequate sealing allows water and dust to enter, causing internal fogging and electrical failure
- Narrow voltage range limits use across different vehicle electrical systems, increasing SKUs
- Lack of overvoltage protection leads to premature LED failure during alternator surges
Technical Features

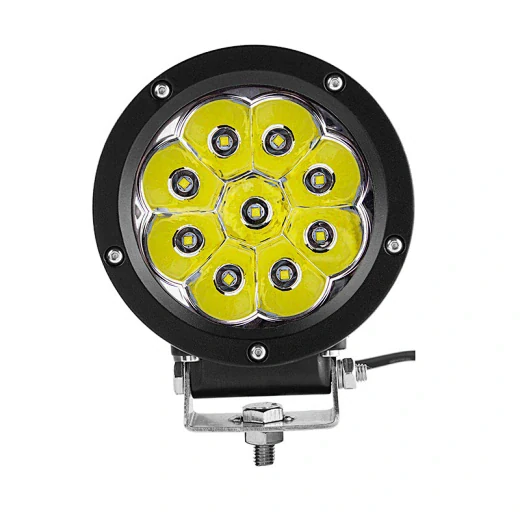

- 5 inch round body with a spot beam pattern for long-range illumination
- 45W CREE LED with 4500 raw lumens and 3600 effective lumens output
- 9–32V DC operating voltage range for compatibility with 12V and 24V systems
- Overvoltage and overheat protection built into the driver circuit
- Die-cast aluminium housing with durable UV-resistant polyester powder coating
- Durable polycarbonate lens with anti-reflective coating and impact resistance
- IP68 sealing against dust and water immersion, suitable for pressure washing
- DT plug-and-play wiring kit included for quick and reliable installation
- Operating temperature range of -40 to +85 degrees Celsius
- 50,000 hour lifespan under continuous operation
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-5046 |
|---|---|
| Max Power | 45W |
| Effective Lumen | 3600 lm |
| LED | 1 x 45W CREE |
| Beam Pattern | Spot |
| Colour Temperature | 6000K |
| Operating Voltage | 9–32V DC |
| Housing Material | Die-cast aluminium with UV-resistant polyester powder coating |
| Lens Material | Durable polycarbonate |
| Mounting | Bracket included, side bumper mount |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Electrical Connection | DT plug-and-play wiring kit included |
| Lifetime | More than 50000 hours |
| Certification | CE, RoHS |
Materials Used
- Die-cast aluminium housing with UV-resistant polyester powder coating
- Durable polycarbonate lens with anti-reflective coating
- DT plug-and-play wiring kit with insulated connectors
- Silicone rubber gasket for IP68 sealing
- Internal overvoltage and overheat protection circuit
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating with UV-resistant polyester finish
LED board assembly with a single 45W CREE emitter
Lens bonding with UV-stable adhesive and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating using water immersion test
- Vibration testing on a vibration test machine to simulate off-road conditions
- Salt spray corrosion testing on housing coating and metal components
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius range
Customisation Options
- Alternative beam pattern (flood or combo) available on request
- Custom wiring length or connector type (e.g. Deutsch) instead of standard DT
- Private label logo on the housing and printed carton
- Mixed cartons combining this light with other SUNLITEC models for trial orders
- Brackets modified for non-standard bumper profiles
How It Compares With the Alternatives
| Round 5 inch light with flood beam | Spot beam reaches further ahead for long-range visibility while flood covers a wider area but at shorter range |
|---|---|
| Light with 12V only operation | 9–32V DC range allows use on both 12V and 24V systems, reducing the number of SKUs needed |
| Light without overvoltage protection | Built-in protection prevents damage during alternator surges, extending service life in unstable electrical environments |
How to Fit and Use It
- Mount the light on the bumper using the included bracket, ensuring the bracket aligns with the mounting holes on the vehicle
- Route the cable away from moving parts and heat sources, and keep the connector sealed when not in use
- Aim the spot beam at the road ahead, adjusting for distance and terrain; avoid aiming at oncoming traffic
- Clean the polycarbonate lens with water and a soft cloth only; avoid solvents that may damage the anti-reflective coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant, and the IP68 sealing and overvoltage protection meet requirements for reliable operation on public roads.
Get a Price on 5 Inch 45W 3 600 Lumens 6000K
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
