5.3 Inch 90W CREE XM-L2 Flood Beam Super Bright LED Driving Light SLL-15106
The SLL-15106 is a 5.3 inch flood beam LED driving light designed for vehicles and heavy machinery that operate in low visibility conditions, including night driving, off-road terrain, and adverse weather. Nine 10W CREE XM-L2 LEDs deliver 8730 raw lumens with a 6000K colour temperature, providing broad, even illumination across the immediate path ahead. The die-cast aluminium housing with 304 stainless steel mounting brackets resists corrosion and vibration, while IP67 sealing prevents water ingress during heavy rain or pressure washing. The light includes reverse polarity and overheat protection, ensuring reliable operation in demanding environments.
- 90W total power with 8730 raw lumens from nine CREE XM-L2 LEDs for clear visibility in dark or dusty conditions
- Flood beam pattern at 45 degrees spreads light evenly across the immediate driving path, reducing dark edges
- IP67 sealing prevents water and dust ingress during heavy rain, snow, or pressure washing
- 304 stainless steel brackets and screws resist rust on machines exposed to salt, moisture, or cleaning agents
- Reverse polarity and overheat protection prevent damage from incorrect wiring or prolonged high-load operation
Where This Lamp Is Used
- Front driving lighting on off-road vehicles and 4x4s operating in remote or unlit areas
- Auxiliary lighting on cranes and excavators during night shifts or in low-light industrial zones
- Truck and bus front lighting in regions with poor street illumination or frequent fog
- Mining and construction vehicle lighting where vibration and dust degrade standard lamps
- Fleet vehicles operating in coastal or high-humidity areas where corrosion is a concern
Who It Is For
- Distributors of vehicle lighting needing one part number for both 12V and 24V fleets
- Machinery OEMs integrating driving lights into production line builds with consistent mounting
- Fleet operators replacing halogen or lower-output LED lights that fail under vibration
- 4x4 accessory brands developing a private label driving light range with high output
- Equipment dealers fitting lights on machines used in mining, agriculture, or transport
Problems It Solves
- Halogen driving lights draw more power, produce less light, and fail quickly under vibration
- Cheap LED lights without reverse polarity protection can be damaged by incorrect wiring during installation
- Lights with inadequate sealing fail after exposure to rain, snow, or pressure washing
- Narrow beam lights leave the near-side of the road or machine edge dark, increasing collision risk
- Mild steel brackets rust within months on machines washed daily or used in coastal areas
Technical Features
- Nine 10W CREE XM-L2 LEDs with a total power draw of 90W and 8730 raw lumens
- Flood beam pattern at 45 degrees for even coverage across the immediate driving path
- Unbreakable anti-UV polycarbonate lens over a die-cast aluminium heat sink

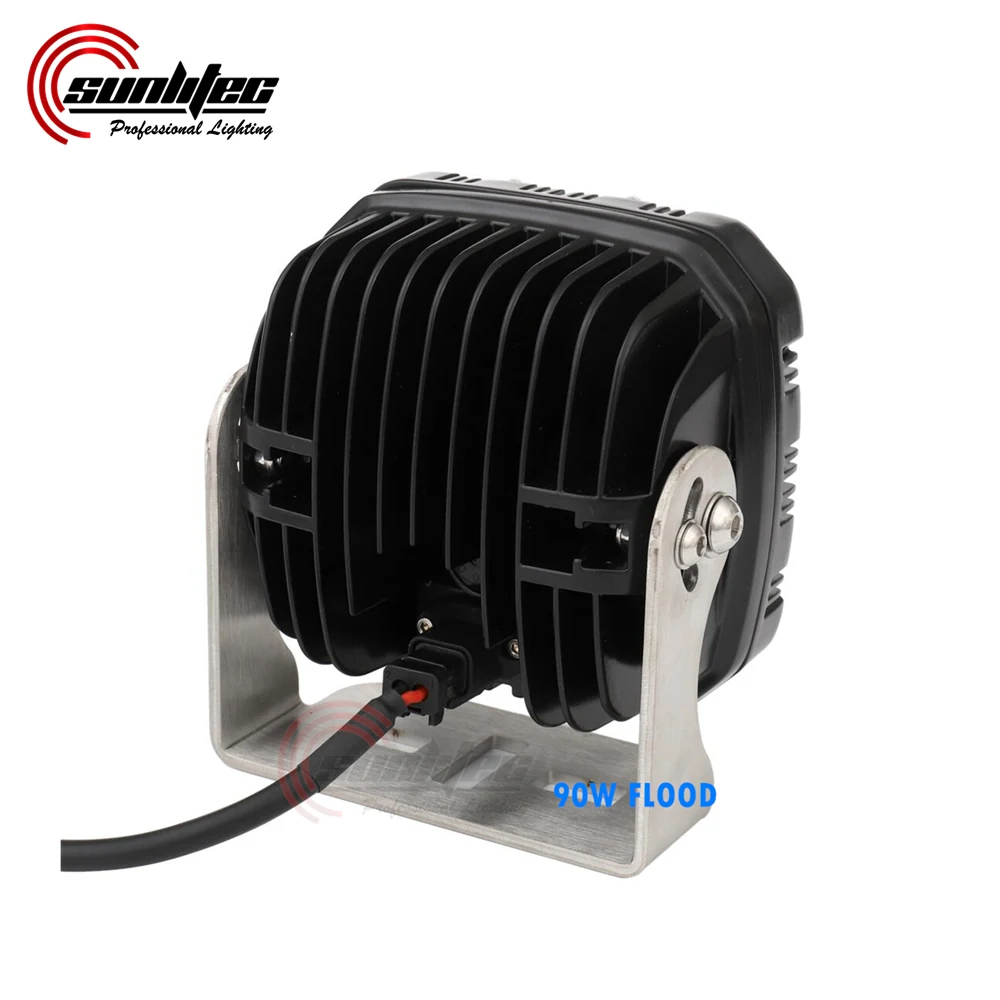

- 304 stainless steel mounting brackets and screws for corrosion resistance
- Military-grade equalizing vent (breather) to balance internal pressure without compromising sealing
- Reverse polarity protection and overheat protection built into the circuit
- 10-30V DC input range compatible with 12V and 24V vehicle systems
- Operating temperature range from -40 to +60 degrees Celsius
- Durable UV-resistant polyester powder coating on the full housing
- IP67 waterproof rating with sealed cable entry and gasketed housing joints
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-15106 |
|---|---|
| Max Power | 90W |
| LED | 9 pcs x 10W CREE XM-L2 |
| Raw Lumen | 8730 lm |
| Beam Pattern | Flood (45°) |
| Colour Temperature | 6000K |
| Operating Voltage | 10-30V DC |
| Operating Temperature | -40 to +60 degrees Celsius |
| Waterproof Rating | IP67 |
| Lifetime | More than 50000 hours |
| Housing Material | Die-cast aluminium |
| Lens Material | Unbreakable anti-UV polycarbonate |
| Bracket Material | 304 stainless steel |
| Electrical Connection | Bare wire lead, length on request |
| Protection | Reverse polarity, overheat |
| Certification | CE, RoHS |
Materials Used
- Die-cast aluminium housing and heat sink
- Unbreakable anti-UV polycarbonate lens
- 304 stainless steel mounting brackets and screws
- Silicone rubber gasket and sealed cable entry
- UV-resistant polyester powder coating
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating with UV-resistant polyester finish
LED board assembly with nine CREE XM-L2 emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP67 rating before shipment
- Vibration testing on a vibration test machine to simulate machine-mounted service
- Salt spray corrosion testing on housing coating and stainless steel brackets
- High and low temperature alternating humidity testing across the -40 to +60 degrees Celsius range
Customisation Options
- Deutsch connector or alternative cable length on request
- Spot beam optics instead of flood pattern
- Private label logo on the housing and printed carton
- Mixed cartons combining this light with other SUNLITEC models for trial orders
- Alternative mounting bracket configuration for specific machine fit
How It Compares With the Alternatives
| Round 5.3 inch driving light | The square body fits a flat mounting surface and allows more LED area behind the same footprint |
|---|---|
| Spot beam version of the same lamp | Flood covers the near path evenly while spot reaches further ahead but leaves the machine edges dark |
| Smaller 4 inch driving light | Higher output and wider beam but requires more space for mounting on the front bumper |
How to Fit and Use It
- Wire through a fused feed sized for 90W at 12V or 24V and keep the cable entry pointing downward
- Leave a drip loop in the bare wire lead to prevent water from entering the gland
- Aim the flood beam at the immediate driving path and use a separate spot lamp for long-distance visibility
- Clean the polycarbonate lens with water and a soft cloth only, as solvents may damage the anti-UV coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 10 to 30V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant, with an IP67 rating and built-in protection features suitable for use on public roads.
