4x6 45W Flush Mount Convex Lens High Low Beam LED Head Light
The SLL-5045 is a 4x6 inch flush mount LED headlight designed to replace original headlights on off-road vehicles, excavators, and industrial machinery that operate in extreme conditions. It uses 15 Bridgelux 3W LEDs to deliver 3150 effective lumens with a high-low beam option, ensuring visibility in both close and distant terrain. The die-cast aluminium housing with UV polyester powder coating resists corrosion, while IP68 sealing prevents water and dust ingress during pressure washing or heavy rain. Overvoltage and overheat protection extend service life in unstable electrical environments.
- 3150 effective lumens from 15 Bridgelux 3W LEDs provide clear visibility in high and low beam modes
- Flush mount design fits original headlight housing without body modifications
- IP68 sealing ensures operation in heavy rain, dust storms, and pressure wash cycles
- 9 to 32V operating range supports both 12V and 24V systems across fleets
- Overvoltage and overheat protection prevent damage from electrical spikes or blocked airflow
Where This Lamp Is Used
- Replacements for original headlights on excavators and cranes working in wet or dusty environments
- High-low beam lighting on off-road vehicles and 4x4s used in mining or forestry operations
- Front lighting on forklifts and engineering vehicles where flush mounting avoids interference
- Auxiliary lighting on utility trucks and service vehicles that operate at night in variable weather
- Headlight upgrade on older machinery where halogen units fail under vibration or moisture
Who It Is For
- Machinery OEMs fitting LED headlights during production with a direct drop-in replacement
- Fleet operators replacing halogen headlights that fail under vibration or in wet conditions
- Distributors sourcing a single model with high-low beam for multiple vehicle types
- 4x4 accessory brands building a private label headlight line with flush mount compatibility
- Equipment dealers offering a direct replacement for original equipment headlights
Problems It Solves
- Original halogen headlights burn out quickly under vibration and moisture exposure
- Non-sealed LED headlights fog up or fail after a few pressure wash cycles
- Narrow beam or low lumen output leaves operators unable to see terrain edges at night
- Voltage fluctuations in 12V and 24V systems damage unprotected LED drivers
- Bulky or protruding headlights interfere with body panels or protective guards
Technical Features

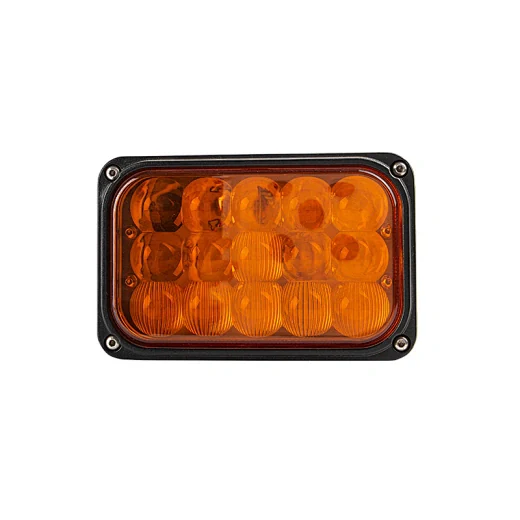

- 15 Bridgelux 3W LEDs with a total real power draw of 45W and 3150 effective lumens
- High and low beam beam pattern option for close and distant visibility
- Semi-gloss black UV polyester powder coating over the full housing and mounting flange

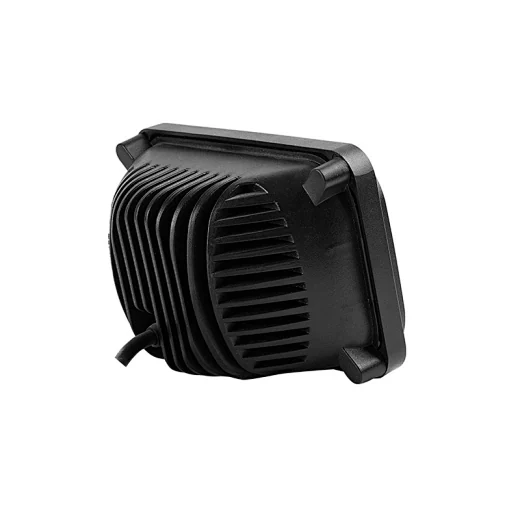

- Flush mount design with a 4x6 inch footprint matching original headlight dimensions
- Overvoltage protection and overheat protection circuits for electrical stability
- Operating window of -40 to +60 degrees Celsius for cold and hot climate operation
- Bare wire lead of 40cm as standard with no connector included
- IP68 sealing rated for immersion in water and dust ingress resistance
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-5045 Amber |
|---|---|
| Size | 4 x 6 inches |
| Max Power | 45W |
| Real Power | 45W |
| LED | 15 pcs x 3W Bridgelux |
| Beam Pattern | High and Low Beam optional |
| Colour Temperature | 6000K |
| Operating Voltage | 9 - 32V DC |
| Lens Material | Anti-UV polycarbonate |
| Mounting | Flush mount, 4x6 inch footprint |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +60 degrees Celsius |
| Electrical Connection | Bare wire 40cm |
| Certification | CE, RoHS |
Materials Used
- Anti-UV, durable polycarbonate lens
- UV polyester powder coating on housing and flange
- Silicone rubber gasket for sealing
- Bare copper wire lead with PVC insulation
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating with UV polyester finish
LED board assembly with Bridgelux emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to simulate machine-mounted service
- Salt spray corrosion testing on housing coating and mounting flange
- High and low temperature alternating humidity testing across the -40 to +60 degrees Celsius range
Customisation Options
- Deutsch connector instead of the standard 40cm bare wire lead
- High beam only or low beam only configuration
- Private label logo on the housing and printed carton
- Alternative cable length for integration with specific vehicle harnesses
- Mixed cartons combining this headlight with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 4 inch LED headlight | The 4x6 inch flush mount fits original rectangular housings and provides more LED area behind the same footprint |
|---|---|
| Standard flush mount LED headlight without overheat protection | This model includes overheat protection, which prevents failure in enclosed or poorly ventilated headlight housings |
| LED headlight with only high beam | The optional low beam mode improves visibility in tight spaces and reduces glare for oncoming traffic |
How to Fit and Use It
- Verify the 4x6 inch flush mount footprint matches the original headlight housing before installation
- Leave a drip loop in the 40cm lead so water runs away from the gland rather than into it
- Use the high beam for long-distance visibility and low beam for close-up work or oncoming traffic
- Clean the polycarbonate lens with water and a soft cloth only, since solvents will degrade the anti-UV coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant, which are required for sale in Europe and other regulated markets.
