2 Inch Off-Road LED Lights
The SLL-0801-10 is a 2 inch square off-road LED light designed for motorcycles and light off-road vehicles that operate in low visibility conditions. It delivers a 10° spot beam with a reach of 251 meters, three times the distance of a standard motorcycle high beam, enabling safe navigation on unlit trails and rural roads. The light is built for vibration and weather exposure with a die-cast aluminium housing, IP68 sealing, and overvoltage and overheat protection. It operates across 9 to 32V DC, making it compatible with both 12V and 24V motorcycle electrical systems.
- 10° spot beam reaches 251 meters, three times the distance of a standard motorcycle high beam
- IP68 sealing prevents water and dust ingress during off-road riding and washing
- Overvoltage and overheat protection prevent damage from electrical surges and prolonged use
- Die-cast aluminium housing resists deformation under impact and dissipates heat effectively
- 9 to 32V DC operation allows one part number to be used across 12V and 24V motorcycle platforms
Where This Lamp Is Used
- Front-mounted lighting on off-road motorcycles navigating unlit forest trails at night
- Side or rear mounting on dual-sport bikes for improved visibility in tight terrain
- Auxiliary lighting on adventure touring motorcycles where standard beams fall short
- Use on electric motorcycles with variable voltage systems requiring stable operation
- Installation on modified or custom-built motorcycles where compact size and adjustability matter
Who It Is For
- Distributors of motorcycle lighting needing a single model for both 12V and 24V systems
- 4x4 and adventure motorcycle accessory brands building a private label off-road lighting line
- Fleet operators maintaining a mixed fleet of 12V and 24V motorcycles and light off-road vehicles
- Machinery OEMs fitting compact, durable lights on light off-road utility vehicles
- Motorcycle riders upgrading from halogen or low-output LED lights for longer reach
Problems It Solves
- Standard motorcycle high beams fail to illuminate beyond 80 meters, limiting visibility on dark trails
- Cheap LED lights with no overvoltage protection fail after electrical spikes from alternators
- Non-sealed lights fog up or short circuit after exposure to rain, mud, or pressure washing
- Narrow beam lights create a hot spot but leave the path edge dark, increasing collision risk
- Lights with plastic housings crack or fade under UV exposure, reducing lifespan and safety
Technical Features
- One 10W CREE LED with a raw output of 1,000 lumens and effective output of 800 lumens
- 10° spot beam pattern with a 1 lux reading at 251 meters

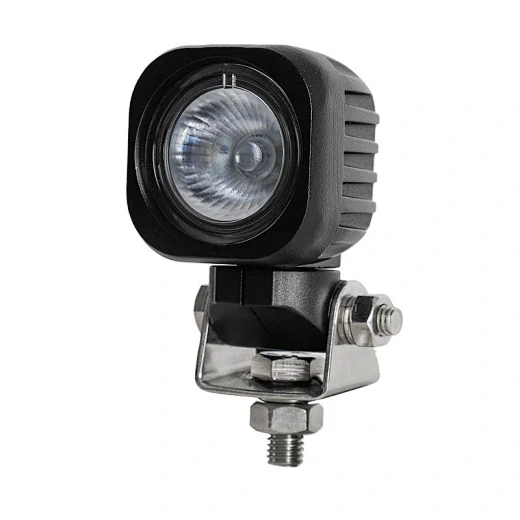

- Die-cast aluminium housing with durable UV-resistant polyester powder coating
- Anti-reflective polycarbonate lens with scratch resistance and UV stability

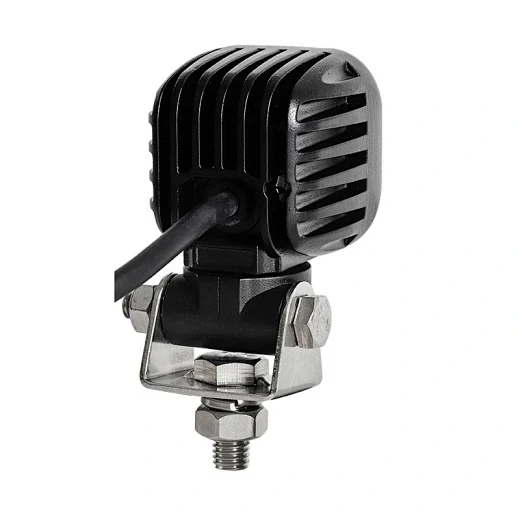

- 360-degree rotation mount for flexible positioning on handlebars, fairings, or frame rails
- Overvoltage protection and overheat protection for stable operation under variable loads
- Operating voltage range of 9 to 32V DC, compatible with 12V and 24V systems
- Operating temperature range of -40 to +60 degrees Celsius
- IP68 waterproof and dustproof rating with sealed cable entry and gasket
- Bare wire lead of 40cm as standard, with connector options available on request
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-0801-10 |
|---|---|
| Power | 1x10W CREE LED |
| Raw Lumens | 1,000 lm |
| Effective Lumens | 800 lm |
| Beam Pattern | Spot |
| 1 Lux Reading | 251 meters |
| Beam Angle | 10° |
| Colour Temperature | 6000K |
| Operating Voltage | 9 – 32V DC |
| Operating Temperature | -40 to +60 degrees Celsius |
| Housing Material | Die-cast aluminium |
| Lens Material | Durable polycarbonate |
| Mounting | 360-degree rotation, adjustable |
| Waterproof Rating | IP68 |
| Protection | Overvoltage, overheat |
| Lifespan | 50,000 hours |
| Cable Length | 40cm bare wire (standard) |
| Size | 50 x 50 x 50 mm |
Materials Used
- Die-cast aluminium housing with UV-resistant polyester powder coating
- Durable polycarbonate lens with anti-reflective and scratch-resistant coating
- Silicone rubber gasket and sealed cable entry gland
- Bare copper wire lead with PVC insulation
- 360-degree rotation mounting bracket with stainless steel fasteners
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating with UV-resistant polyester finish
LED board assembly with a single 10W CREE emitter
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to simulate off-road conditions
- Salt spray corrosion testing on the housing coating and mounting hardware
- High and low temperature alternating humidity testing across the -40 to +60 degrees Celsius range
Customisation Options
- Deutsch connector or other terminal type instead of the standard 40cm bare wire lead
- Alternative beam pattern (flood or combo) on request
- Private label logo on the housing and printed carton
- Custom cable length to match specific motorcycle harness routing
- Mixed cartons combining this light with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Standard motorcycle high beam | Three times the beam distance at 251 meters, with a focused spot instead of a wide scatter |
|---|---|
| Round 2 inch LED light | Square body fits better on flat surfaces and handlebar mounts, but requires a flat mounting surface |
| Flood beam version of same model | Spot beam reaches further ahead while flood covers a wider area, but spot is better for long-distance visibility |
| Lower power 5W LED light | Double the effective lumens and three times the beam distance, with better heat management from the larger housing |
How to Fit and Use It
- Mount on a flat surface using the 360-degree adjustable bracket and confirm the 50mm mounting footprint matches the bike's bracket
- Leave a drip loop in the 40cm lead to ensure water runs away from the gland
- Aim the spot beam at the road ahead and avoid pointing it at oncoming traffic or reflective surfaces
- Clean the polycarbonate lens with water and a soft cloth only—avoid solvents that may degrade the anti-reflective coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V motorcycles
Yes. The operating range is 9 to 32V DC, so the same part number can be used on 12V and 24V motorcycle systems.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for use on public roads
The lamp is IP68 sealed and operates within 9 to 32V DC, but no road approval such as ECE R10 is listed for this model.
