Dock Equipment · Wheel Chocks
Truck Wheel Chocks In Rubber Cast Iron and Steel
A wheel chock is the cheapest thing on a loading dock and the one that most often is not there. S&L lists six models, SL-WC-01 to SL-WC-06, across folded steel, cast iron, laminated rubber and moulded rubber, so a site can match the chock to its yard surface rather than take whatever arrives.
Product Overview
What This Product Is and Where It Fits
Chock choice comes down to the yard surface and the handling. On a clean concrete apron a moulded rubber chock grips well and is quiet to place. On a gravel or broken surface a steel or cast iron chock bites in where rubber would skid.
Handling matters more than buyers expect. A chock that has to be carried the length of a trailer in the rain gets left in the cab. The models with a bail handle or a side carry handle are the ones that actually end up under a wheel.
SL-WC-02 carries Safety First Check Your Wheels cast into the face, which makes the chock legible as a safety item rather than a lump of iron someone might move.
All six models are listed in the same S&L range, so a site can standardise on one supplier while still running different chocks in the yard and at the dock face.
Key Benefits
Three Reasons Buyers Specify This Line
Six models rather than one compromise
Folded steel, cast iron, laminated rubber, curved steel, moulded rubber and diamond tread steel cover clean concrete through to broken yard surfaces.
Handles on the models that get carried
The laminated rubber chock has a welded steel bail handle and the diamond tread steel chock a side carry handle.
A cast safety message that cannot wear off
SL-WC-02 has its warning cast into the body rather than printed on it.
Application Scenarios
- Dock face restraint during loading and unloading
- Drop trailers parked in a yard
- Vehicle maintenance bays
- Rail and plant sidings where a vehicle is worked on
Who It Is For
- Dock supervisors enforcing a chock-before-open rule
- Fleet yards parking trailers on a graded surface
- Safety managers replacing an ad hoc mix of chocks with a standard
- Distributors supplying chocks alongside dock equipment
Problems It Solves
- Trailer creep while a fork truck is inside the trailer
- Chocks that skid on a wet or broken surface
- Chocks left in the cab because they are awkward to carry
- No visual cue that a vehicle has been secured
Technical Features
What Is Actually Published For This Line

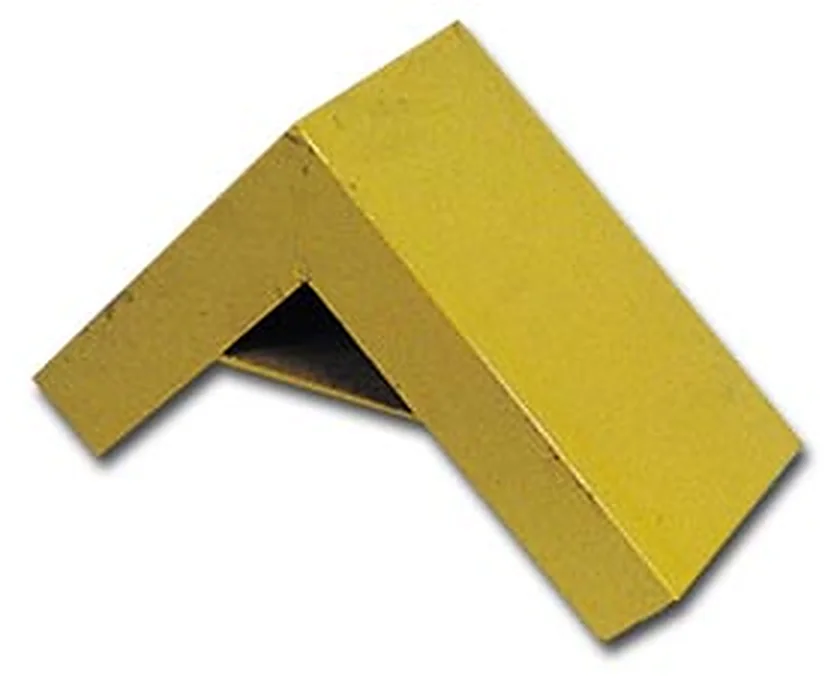

SL-WC-01 folded steel
Folded steel plate chock finished in safety yellow.

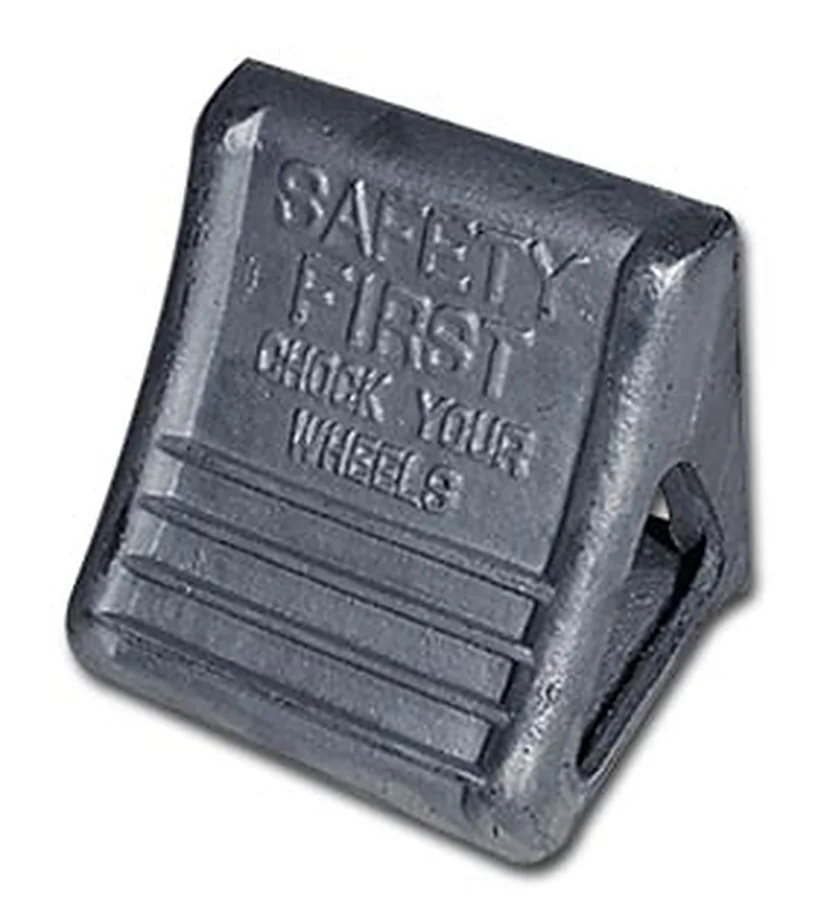

SL-WC-02 cast iron
Cast body with Safety First Check Your Wheels cast into the face.
SL-WC-03 laminated rubber
Laminated rubber with a welded steel bail handle.
SL-WC-04 curved steel
Curved steel profile finished in safety yellow.

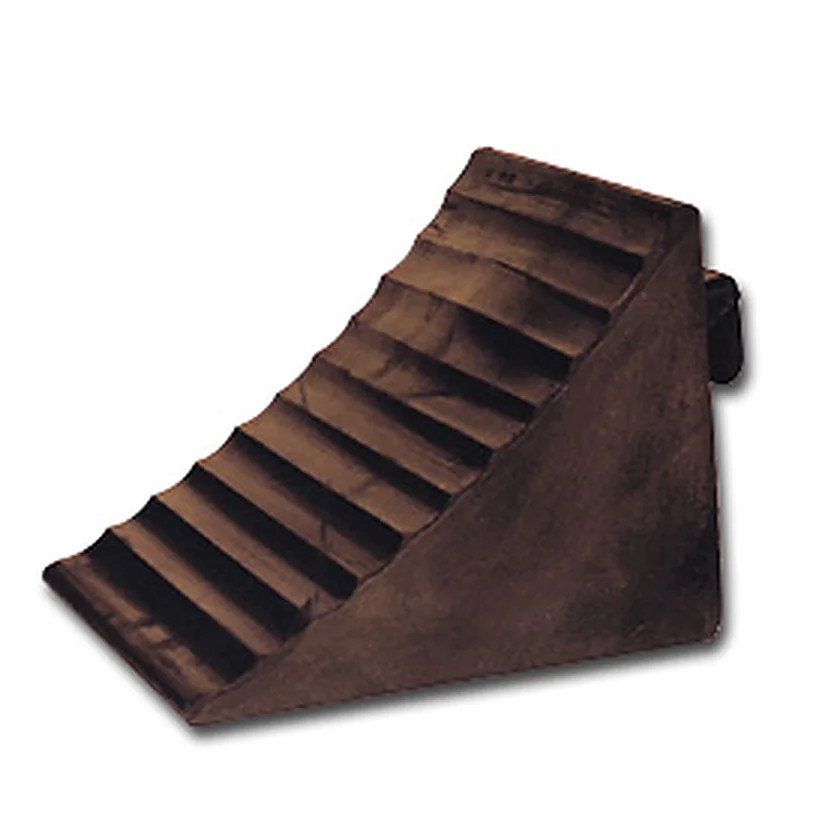

SL-WC-05 moulded rubber
Moulded rubber with a stepped gripping face.

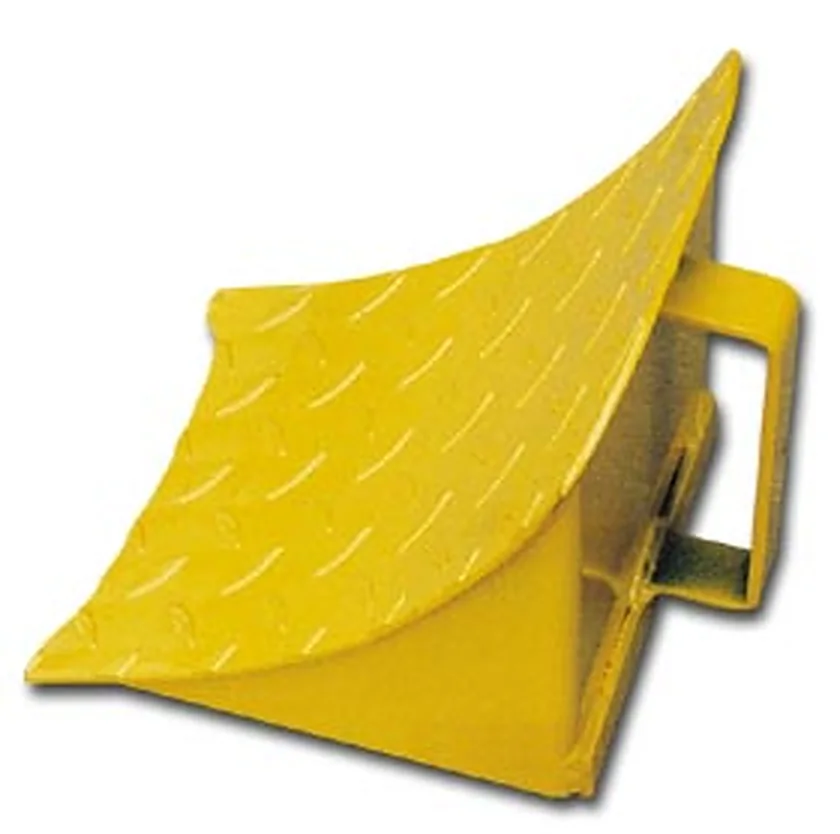

SL-WC-06 diamond tread steel
Steel body with a diamond tread face and a side carry handle.
Specifications
Wheel Chocks Specification Table
Every figure below is transcribed from the specification sheets S&L published for this line. Where a figure is not published, it is marked rather than estimated.
| Specification | Status |
|---|---|
| Rated vehicle weight per model | TBC at quotation |
| Chock dimensions | TBC at quotation |
| Net weight per model | TBC at quotation |
| Rubber compound and steel grade | TBC at quotation |
These are confirmed at quotation rather than estimated here.
Product Photography
Wheel Chocks As Supplied
Every photograph below is from the S&L product records for this line. Nothing is a stock image or a rendering.
Materials
Materials and Finish
Folded and fabricated steel, cast iron, laminated rubber and moulded rubber depending on model. Steel models are finished in safety yellow.
ManufacturingHow It Is Made
Steel models are cut, formed and welded before painting. Cast models are poured and dressed. Rubber models are moulded or laminated and fitted with a handle where the model calls for one.
Quality Control
What Is Checked Before Packing
Profile and face condition checked on every model; handle weld checked on SL-WC-03 and SL-WC-06; paint coverage checked on the steel models.
CertificationsCertification Status
No third-party certification is published for Wheel Chocks in S&L's own documentation, so this page marks it TBC at quotation rather than implying one. For chocks the useful evidence is a rated vehicle weight rather than a mark. That rating is not published for these models, so ask for it in writing before you standardise on one.
Customisation
Options Within The Published Range
- Model selected for the yard surface and handling
- Safety yellow finish on the steel models
- Handle fitted where the model offers it
Comparison
How It Compares With The Alternatives
| Option | When To Choose It |
|---|---|
| Rubber chock | Grips clean concrete, quiet to place, no spark risk. |
| Cast iron chock | Bites into a broken or gravel surface and carries a cast-in safety message. |
| Steel chock | Hardest wearing of the three, and the diamond tread model has a side handle for carrying. |
Use Guide
Getting It Right On Site
- Place chocks at the rear wheels on the downhill side before the dock door is opened
- Push the chock firmly against the tyre rather than resting it near the wheel
- Use two chocks where the yard is graded or the trailer is being loaded from one end
- Replace a rubber chock once the gripping face has worn smooth
Questions
Wheel Chocks Questions
What vehicle weight are the chocks rated for?
Rated weights are not published on the original S&L documentation. Confirm the rating for the model you want at quotation and state the vehicle type.
Which model suits a gravel yard?
A steel or cast iron chock. Rubber grips a clean concrete apron well but can skid on loose surfaces.
Which models have a handle?
SL-WC-03 has a welded steel bail handle and SL-WC-06 has a side carry handle.
What is cast into the face of SL-WC-02?
Safety First Check Your Wheels, cast into the body so it cannot wear off.
Can I order a mixed pallet of models?
Yes. The six models are part of one range and are quoted together.
