PVC Arc Floor Trunking for Cable Crossings
Arc floor trunking has a curved top so a cable crossing a floor can be walked over and wheeled over instead of taped down. The profile spreads the load and gives a shallow ramp on both sides rather than an edge to trip on.
What This Profile Gives You
Walk Over Profile
The arc gives a ramp either side instead of a square edge in a walkway.
Protects The Cable
Closed channel keeps the cable off the floor surface and out of the way of trolleys and chairs.
Removable
Lifts out when the temporary circuit or the event is finished.
Clean Appearance
Even white finish suited to corridors and public areas.
Application Scenarios
- Temporary power and data crossing a corridor during a refurbishment
- Exhibition, conference and event floors
- Classroom and office layouts where a cable has to cross an open floor
Who It Is For
- Facility and event teams
- Fit-out contractors working in occupied buildings
- Distributors serving hire and events companies
What Goes Wrong Without It
- Cable taped across a floor becoming a trip hazard and a liability
- Cables crushed by trolleys and chair castors
- Needing a crossing that can be removed without damaging the floor finish
Technical Features
- Arc profile with a shallow ramp on both sides
- New PVC compound, self extinguishing
- Non conductive body
- Impact and compression resistant top
Customisation
Colour, length and printing to your specification; other arc sections quoted by mould design.
Specifications
| Profile | Arc floor trunking |
|---|---|

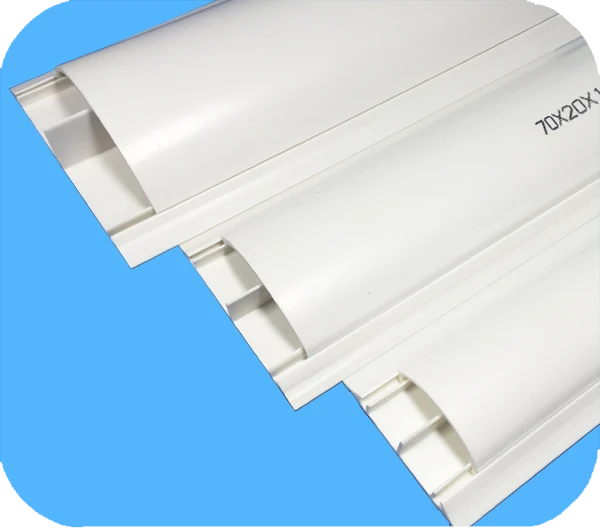

| Marked Section | 70x20 as shown on the product |
| Material | New PVC compound |
| Fire Behaviour | Self extinguishing |
| Packing | Bundled in printed white plastic bags |
| Other Sections and Length | TBC per order |
Values marked TBC are confirmed per order against your drawing or sample. We do not publish numbers we cannot stand behind.
Quality Control
- First Inspection on the opening batch of every mould and colour run
- IPQC in-process checks on wall thickness, profile shape and colour while the line runs
- Final Inspection on packed goods before the container is loaded
Certification: RoHS, TUV and SGS; certificate copies are sent on request.
Comparison
Against taping a cable to the floor, the arc profile removes the trip hazard and the daily re-taping. Against a heavy rubber cable protector it is lighter, cheaper and better looking indoors, but it is not made for vehicle traffic.
Use Guide
- Check the run is clear and flat before laying the profile
- Lay the cable in the channel without tension so it does not lift the profile
- Butt lengths tightly so there is no raised joint in a walkway
- Remove and store lengths when the temporary circuit is finished
Often Ordered Together
PVC Cable Cover Trunking 40x25
A larger surface profile sold widely into South America as canaleta and elsewhere as cable cover.
View product →
PVC Trunking 25x16mm
The standard square profile in 25x16 mm: a base with two retaining lips and a cover that clips between them.
View product →
Double Sided Adhesive Tape for PVC Trunking
Adhesive tape turns a screw-fixed trunking run into a run that goes up without a drill.
View product →Where It Is Used
Questions About the PVC Arc Floor Trunking
Can vehicles drive over it?
No. It is an indoor pedestrian profile. For vehicle traffic use a purpose made heavy duty protector.
What section is it?
The product is marked 70x20. Other sections are quoted per enquiry.
Is it fixed down?
It is usually laid loose so it can be removed; adhesive can be used where the run is semi permanent.
What colours are available?
White is standard; other colours as an OEM order.
How is it packed?
Bundled in printed white plastic bags, or cartons on request.
Quote the PVC Arc Floor Trunking
Tell us the quantity, colour and packing you need. We reply with a price, a lead time and the container plan.
