YSZ Substrate

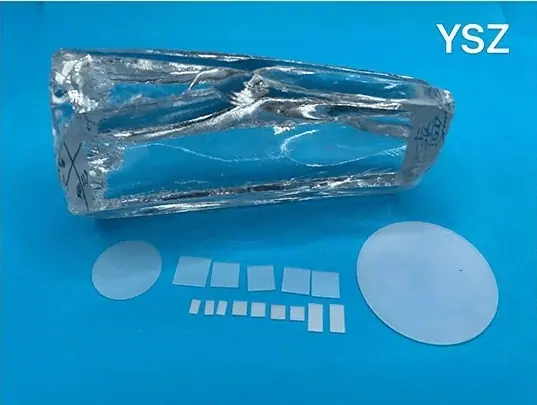

Yttrium-doped zirconia (YSZ) single crystal substrate is one of the earliest materials used in high temperature superconducting thin films. Generally used zirconia needs to be doped with yttrium as a stabilizer, the common concentration of 13 mol%, YSZ is characterized by good mechanical and chemical stability and low cost, it has been widely used in ceramics, refractories, machinery, electronics, optics, aerospace, ...

ManufacturerOST Photonics
CategoryCrystal Wafer and Substrate
Stock Items22 listed specifications
Lead TimeQuoted per order
CustomizationSize, orientation and surface finish to drawing

Yttrium-doped zirconia (YSZ) single crystal substrate is one of the earliest materials used in high temperature superconducting thin films. Generally used zirconia needs to be doped with yttrium as a stabilizer, the common concentration of 13 mol%, YSZ is characterized by good mechanical and chemical stability and low cost, it has been widely used in ceramics, refractories, machinery, electronics, optics, aerospace, biology, chemistry and so on.

OST Photonics offers high quality YSZ substrates for researchers and industries. Crystal orientation, size and thickness can be customized according to your requirements.

Features

Good corrosion resistance
Excellent optical properties
Good mechanical and chemical stability
Low cost

Applications

Optical devices
Substrate material for high-temperature superconducting film
Electronics

Processing Capability

Orientation: <100>,<110>,<111>, etc.
Dimension: 1”, 2”, 10x5mm, 10x10mm, 15x15mm, 20x20mm, etc.
Thickness: 0.5mm, 1.0mm, etc.
Available items: wafers, substrates, blanks and customized optics

Specification and Properties of YSZ Substrates

Crystal System	Cubic
Growth Method	Electric-Arc fusion
Crystal Lattice Constant	a=5.147 Å
Melting Point	2700 ℃
Density	6.0 g/cm3
Hardness	8-8.5 Mohs
Purity	99.99%
Thermal Expansion Coefficient	10.3×10^-6 /℃
Dielectric Constant	ε=27
Orientation	<100>,<110>,<111>, etc.
Orientation Tolerance	±0.5° or better
Dimension	1”, 2”, 10x5mm, 10x10mm, 15x15mm, 20x20mm, etc.
Dimension Tolerance	±0.1 mm or better
Thickness	0.5mm, 1.0mm, etc.
Thickness Tolerance	±0.05 mm or better
Surface Finish	Single side polished (SSP)/Double sides polished (DSP)
Surface Roughness	Ra<5Å (5µmx5µm)
Package	Class 100 clean bag, Class 1000 super clean room

Standard Specifications

Available YSZ Substrate Items

The following specifications are listed on our original catalogue. Custom dimensions, orientations and surface finishes are produced to your drawing.

5 mm x 5 mm x 0.5 mm YSZ Single Crystal Substrates, Orientation: (100), Double Sides Polished (50 Pieces)	View
5 mm x 5 mm x 0.5 mm YSZ Single Crystal Substrates, Orientation: (100), Single Side Polished (50 Pieces)	View
5 mm x 5 mm x 0.5 mm YSZ Single Crystal Substrates, Orientation: (110), Double Sides Polished (50 Pieces)	View
5 mm x 5 mm x 0.5 mm YSZ Single Crystal Substrates, Orientation: (110), Single Side Polished (50 Pieces)	View
5 mm x 5 mm x 0.5 mm YSZ Single Crystal Substrates, Orientation: (111), Double Sides Polished (50 Pieces)	View
5 mm x 5 mm x 0.5 mm YSZ Single Crystal Substrates, Orientation: (111), Single Side Polished (50 Pieces)	View
10 mm x 10 mm x 0.5 mm YSZ Single Crystal Substrates, Orientation: (100), Double Sides Polished (20 Pieces)	View
10 mm x 10 mm x 0.5 mm YSZ Single Crystal Substrates, Orientation: (100), Single Side Polished (20 Pieces)	View
10 mm x 10 mm x 0.5 mm YSZ Single Crystal Substrates, Orientation: (110), Double Sides Polished (20 Pieces)	View
10 mm x 10 mm x 0.5 mm YSZ Single Crystal Substrates, Orientation: (110), Single Side Polished (20 Pieces)	View
10 mm x 10 mm x 0.5 mm YSZ Single Crystal Substrates, Orientation: (111), Double Sides Polished (20 Pieces)	View
10 mm x 10 mm x 0.5 mm YSZ Single Crystal Substrates, Orientation: (111), Single Side Polished (20 Pieces)	View
10 mm x 10 mm x 0.35 mm YSZ Single Crystal Substrates, Orientation: (100), Single Side Polished (20 Pieces)	View
10 mm x 10 mm x 0.35 mm YSZ Single Crystal Substrates, Orientation: (111), Single Side Polished (20 Pieces)	View
10 mm x 10 mm x 1.0 mm YSZ Single Crystal Substrates, Orientation: (100), Single Side Polished (20 Pieces)	View
10 mm x 10 mm x 1.0 mm YSZ Single Crystal Substrates, Orientation: (111), Single Side Polished (20 Pieces)	View
20 mm x 20 mm x 0.35 mm YSZ Single Crystal Substrates, Orientation: (100), Single Side Polished (10 Pieces)	View
20 mm x 20 mm x 0.35 mm YSZ Single Crystal Substrates, Orientation: (111), Single Side Polished (10 Pieces)	View
Diameter 25.4 mm x 0.35 mm YSZ Single Crystal Substrates, Orientation: (100), Single Side Polished (10 Pieces)	View
Diameter 25.4 mm x 0.35 mm YSZ Single Crystal Substrates, Orientation: (111), Single Side Polished (10 Pieces)	View
Diameter 50.8 mm x 0.35 mm YSZ Single Crystal Substrates, Orientation: (100), Single Side Polished (5 Pieces)	View
Diameter 50.8 mm x 0.35 mm YSZ Single Crystal Substrates, Orientation: (111), Single Side Polished (5 Pieces)	View
