End well NaI(Tl) scintillator has a cylindrical well which is set concentrically in the NaI(Tl) crystal.
This assembly is housed in aluminium cases. For measurements, specimen is entered to well part and light output can be obtained from the optical window mounted at the another end. End well NaI(Tl) scintillators are the most efficient (typically greater than 78%), because the scintillator surrounds the specimen, it is very ideal for radioimmunoassay applications.
1 ) Encapsulation material options
Metal container: Aluminum, Stainless steel
Optical window: K9 glass, Quartz, Sapphire
2 ) Special flanges, mounting fixtures or other modifications
1 ) High detection efficiency
2 ) Good efficiency for low-level Gamma-ray detection

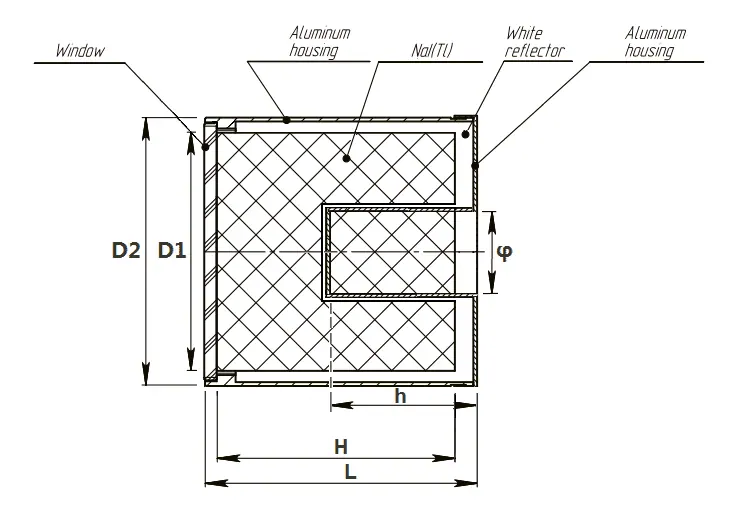

Model | Crystal Size(mm) | Outer Dimension(mm) | Encapsulation | Detection Efficiency | ||||
D1 | H | D2 | L | φ | h | |||
NaI-D40H40-W20-25 | 40 | 40 | 45 | 47 | 20 | 25 | Aluminum housing with K9 glass window | ≥78% |
NaI-D50H50-W25-35 | 50 | 50 | 56 | 57 | 25 | 35 | Aluminum housing with K9 glass window | ≥78% |
NaI-D75H75-W30-50 | 75 | 75 | 81 | 82 | 30 | 50 | Aluminum housing with K9 glass window | ≥78% |
Note: other size or specifications can be customized according to your requirements. | ||||||||
Send us your dimensions, orientation, surface finish and quantity. Our engineers reply with a technical proposal and price.
