CsI:Tl arrays are widely used in X-Ray security inspection systems. We design and develop the pixelated CsI:Tl crystal in reflection coating, the Titanium dioxide(TiO 2 ) is used as the reflector between each single element, the configuration can be linear, 2D array or other special design, with high resolution and high sensitive properties to achieve excellent imaging quality.

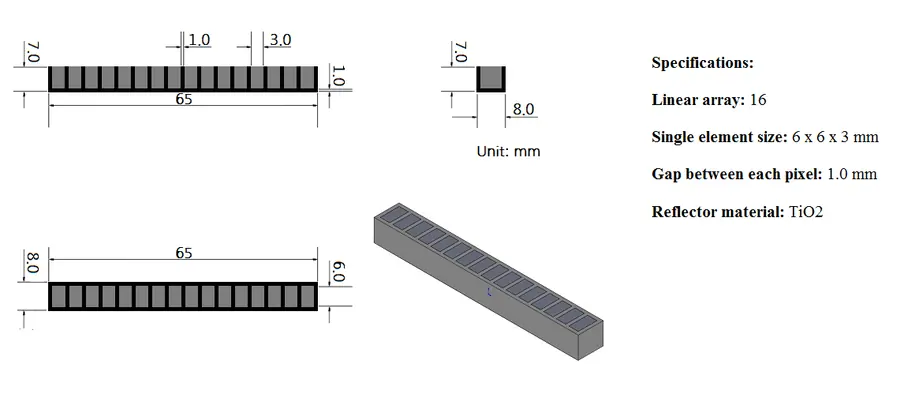

Linear array: 8, 16, 32, 64 pixels(customized upon request)
2D array: 6 × 10, 12 × 18, 24 × 36 pixels(customized upon request)
Single element size: customized upon request
Light output: 55,000 Photons/MeV
Afterglow: 0.8% after 100ms(normal); 0.2% after 100ms(low)
Pixel uniformity in arrays: <10%
Reflector material: TiO2
Send us your dimensions, orientation, surface finish and quantity. Our engineers reply with a technical proposal and price.
